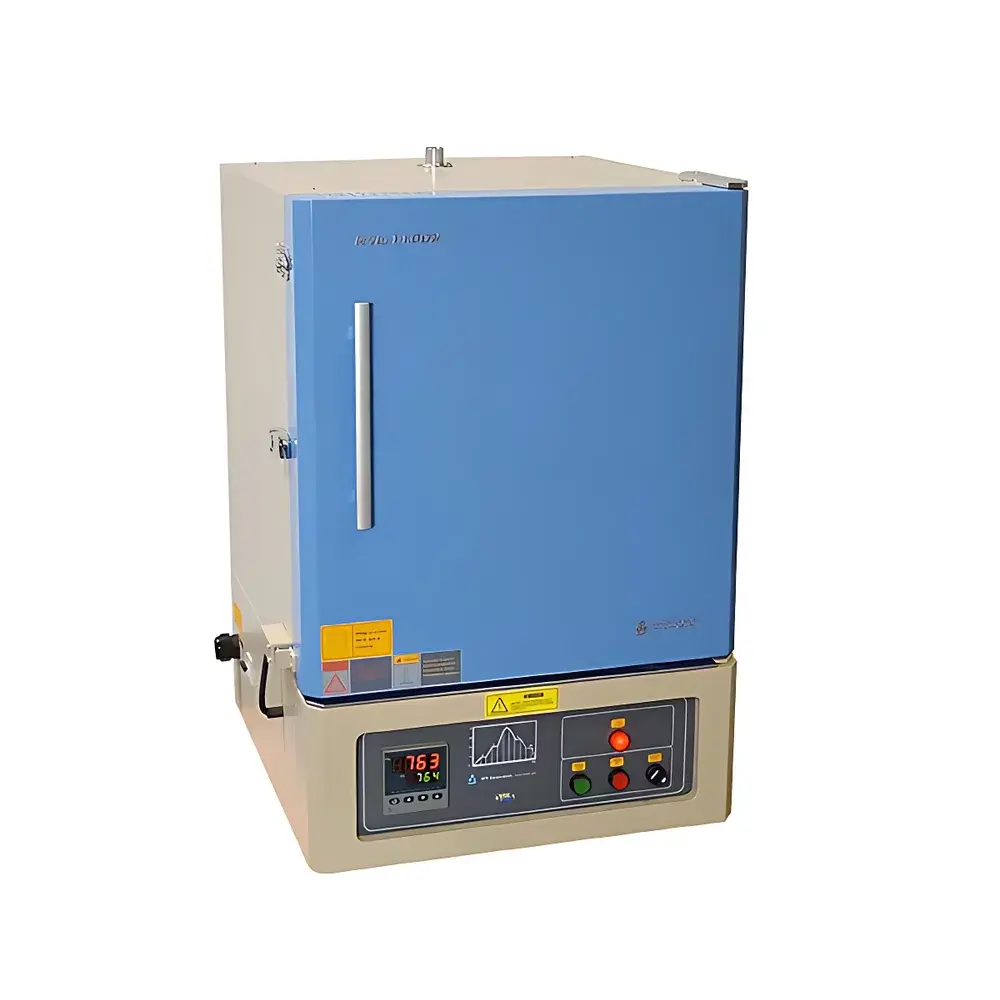

KSL-1100X-L High-Temperature Box Furnace by Hefei Kejing

Overview

The KSL-1100X-L is a high-performance, benchtop box furnace engineered for precision thermal processing in academic laboratories, materials research centers, and industrial quality assurance environments. Designed around resistive heating principles using imported high-purity resistance wire elements arranged on three internal walls, it delivers uniform heat distribution across its 64 L alumina-fiber insulated chamber. The furnace operates within a continuous working range of 100–1000 °C and achieves a maximum short-term temperature of 1100 °C for durations under 60 minutes—compliant with ASTM E1142 and ISO 8573-1 thermal stability classifications for laboratory-grade muffle furnaces. Its dual-layer steel shell incorporates an active air-circulation cooling system, ensuring external surface temperatures remain below 60 °C during operation—a critical safety feature for shared lab spaces. The furnace chamber is lined with microcrystalline alumina fiber insulation and coated with a proprietary 1750 °C-rated aluminum oxide reflective layer (sourced from U.S. manufacturers), enhancing thermal efficiency, minimizing energy loss, and extending service life under repeated thermal cycling.

Key Features

• 30-stage programmable temperature controller with auto-tuning PID algorithm for precise ramp-soak-hold profiles
• K-type thermocouple embedded in the furnace wall for real-time feedback and ±1 °C control accuracy (verified per IEC 60584-2)
• Triple-wall heating configuration ensures superior temperature uniformity (±3.45 °C across working zone, measured at 1000 °C per ISO/IEC 17025 calibration protocols)
• Dual-shell construction with forced-air interstitial cooling maintains safe external casing temperatures during extended operation
• CE-certified electrical architecture compliant with EN 61000-6-3 (EMC) and EN 61000-6-4 (immunity) standards
• Integrated over-temperature cut-off protection (independent of main controller) meeting UL 1278 safety requirements
• Modular rear panel with optional 1/4″ NPT gas inlet port for inert or reducing atmospheres (e.g., N₂, Ar, forming gas)—not rated for flammable, explosive, or strongly corrosive gases without prior modification

Sample Compatibility & Compliance

The KSL-1100X-L accommodates standard crucibles including alumina, quartz, and silicon carbide—compatible with common sample forms such as powders, pellets, thin films, and bulk metallic specimens. It is routinely deployed in applications requiring conformance to ASTM C1171 (ceramic sintering), ASTM E8/E8M (metal tensile specimen annealing), and ISO 11358 (thermogravimetric pre-conditioning). While not vacuum-rated, the furnace supports controlled-atmosphere processing when paired with external gas manifolds and flow controllers. Users must avoid introducing Cl₂, NH₃, HF, SO₂, or other aggressive halogen- or sulfur-containing species unless the chamber has undergone custom ceramic coating reinforcement—a service available upon request and documented in the OEM’s technical amendment log. All operational procedures align with GLP documentation standards, and temperature logs generated via optional PC interface support 21 CFR Part 11-compliant audit trails when used with validated software.

Software & Data Management

An optional RS485/USB-enabled high-temperature furnace control software package is available for real-time monitoring, remote parameter adjustment, and automated data logging. The software records timestamped temperature profiles, power consumption, and alarm events with CSV export capability. When configured with password-protected user roles and electronic signature functionality, it satisfies basic FDA 21 CFR Part 11 requirements for electronic records and signatures in regulated QC/QA workflows. Firmware updates are delivered via secure HTTPS download and verified using SHA-256 checksums. Raw thermocouple voltage outputs and controller diagnostics can be accessed via Modbus RTU protocol for integration into centralized SCADA or LIMS platforms.

Applications

• High-temperature sintering of oxide ceramics (Al₂O₃, ZrO₂, YSZ), ferrites, and battery cathode precursors (e.g., LiCoO₂, NMC)
• Controlled-atmosphere annealing of semiconductor wafers and thin-film photovoltaic substrates
• Thermal gravimetric analysis (TGA) pre-heating and residue ashing per ASTM D3175 and ISO 1171
• Heat treatment of tool steels, stainless alloys, and titanium-based components for microstructural homogenization
• Calibration reference source for secondary temperature sensors in metrology labs (within defined uncertainty budgets)
• Preparation of reference materials for XRD, SEM-EDS, and dilatometry testing

FAQ

Can this furnace be used under vacuum or hydrogen atmosphere?
No—the KSL-1100X-L lacks vacuum sealing and is not rated for hydrogen or other flammable/reducing gases without factory-applied modifications.
What causes fine cracks in the furnace lining after prolonged use?
Microfissures in the alumina fiber insulation are inherent to thermal expansion mismatch and do not impair performance; they may be sealed using OEM-recommended high-temperature alumina paint.
Is the ±1 °C control accuracy maintained across the full 64 L chamber?
Control accuracy refers to setpoint deviation at the thermocouple measurement point; spatial uniformity is ±3.45 °C across the usable volume at 1000 °C.
Does the one-year warranty cover heating element replacement?
Heating elements and crucibles are classified as consumables and excluded from standard warranty coverage per clause 4.2 of the OEM’s Terms of Sale.
Can I integrate this furnace into an existing lab automation network?
Yes—via optional Modbus RTU or analog 4–20 mA output modules, enabling interoperability with PLCs, DCS systems, or custom Python/LabVIEW control interfaces.
