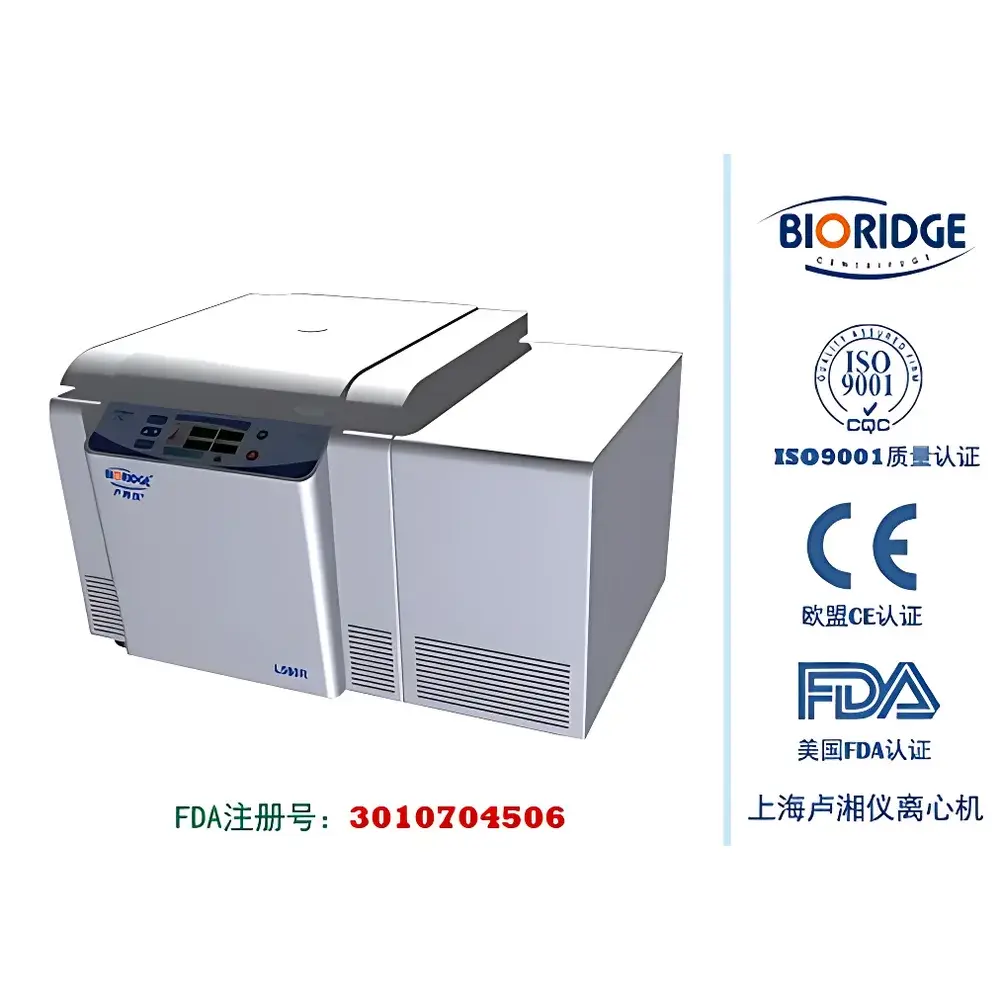

L580R Large-Capacity Refrigerated Centrifuge by BIORIDGE

Overview

The BIORIDGE L580R is a high-reliability benchtop refrigerated centrifuge engineered for routine and demanding separation tasks in clinical diagnostics, molecular biology, immunology, and biopharmaceutical research laboratories. It operates on the principle of sedimentation under controlled gravitational force (RCF), where differential density and particle size enable separation of cellular components—including whole cells, nuclei, mitochondria, lysosomes, and viral particles—within temperature-stabilized rotor chambers. Designed for consistent performance across extended operational cycles, the L580R integrates a high-efficiency R404a refrigeration system with precise thermal regulation (±1 °C) across its full operating range (−20 °C to +40 °C), ensuring sample integrity during prolonged runs. Its robust cast-aluminum chamber and reinforced stainless-steel rotor housing meet international safety standards for mechanical stability and containment, supporting GxP-aligned workflows in regulated environments.

Key Features

• Microprocessor-based control system with intuitive 7-inch capacitive touchscreen interface, enabling real-time monitoring of speed, RCF, temperature, time remaining, and acceleration/deceleration profiles.
• 10 programmable acceleration/deceleration ramp profiles—configurable independently—to minimize shear stress on sensitive biological samples and prevent pellet resuspension.
• Automatic rotor recognition technology prevents inadvertent overspeed operation by validating rotor ID and maximum rated speed prior to run initiation.
• Comprehensive safety architecture including dual independent imbalance detection, overspeed cutoff, overtemperature shutdown, door interlock verification, and emergency brake activation.
• Electronically actuated lid lock mechanism with audible and visual confirmation ensures secure closure and eliminates manual latching errors.
• Energy-efficient refrigeration system featuring imported high-torque compressor and eco-friendly R404a refrigerant, compliant with current EU F-Gas Regulation (EU No 517/2014) and aligned with ISO 14001 environmental management principles.
• Premier acoustic engineering achieves <65 dB(A) noise emission at 1 m distance—optimized for shared laboratory spaces without compromising cooling or torque delivery.

Sample Compatibility & Compliance

The L580R accommodates a broad spectrum of primary and secondary sample containers—from standard conical tubes (15 mL, 50 mL) and blood collection tubes to large-volume bottles (250 mL, 500 mL, 750 mL) and 96-well microplates—via six validated rotor configurations. Each rotor is certified for its specified maximum load, speed, and RCF per ISO 21501-4 and ASTM E2928-22 guidelines for centrifuge validation. The instrument supports GLP/GMP documentation requirements through optional audit-trail-enabled firmware (v3.2+), which logs user actions, parameter changes, and error events with timestamp and operator ID. All electrical and mechanical subsystems conform to IEC 61010-1 (Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use) and electromagnetic compatibility per EN 61326-1.

Software & Data Management

While the L580R operates autonomously via its embedded controller, optional USB data export enables transfer of run logs (CSV format) containing start/stop timestamps, setpoints, actual values, alarms, and rotor usage history. Firmware updates are performed via secure USB key with cryptographic signature verification to maintain system integrity. For integrated lab informatics, the device supports RS-232 serial output (Modbus RTU protocol) compatible with LIS/HIS platforms and third-party laboratory information management systems (LIMS). All temperature and speed calibrations adhere to traceable NIST-traceable reference standards, and calibration certificates are available upon request for ISO/IEC 17025-accredited facilities.

Applications

• Clinical hematology: Separation of plasma, serum, and buffy coat from whole blood using swing-out rotors (e.g., 500 mL × 4 configuration at 4000 rpm / 3040 × g).
• Virology and vaccine development: Pellet recovery of enveloped and non-enveloped viruses from clarified supernatants using high-capacity horizontal rotors (750 mL × 4 at 4000 rpm / 3780 × g).
• Cell culture harvest: Clarification of mammalian or insect cell suspensions prior to downstream purification steps, minimizing foaming and shear-induced lysis.
• Protein fractionation: Differential centrifugation protocols for subcellular organelle isolation—nuclei (low-speed), mitochondria (medium-speed), and microsomes (high-speed)—with precise thermal control preventing enzymatic degradation.
• Quality control in biomanufacturing: Batch consistency testing of monoclonal antibody preparations, recombinant proteins, and gene therapy vectors under validated SOPs aligned with USP and FDA 21 CFR Part 11 expectations.

FAQ

What is the maximum certified RCF for the L580R, and under what conditions is it achieved?
The L580R achieves a maximum certified RCF of 3760 × g at 5800 rpm with the 50 mL × 6 fixed-angle rotor (NO.1), as verified per ISO 21501-4 Annex B. This value is not attainable with larger-volume rotors due to radius limitations.

Does the L580R support 21 CFR Part 11-compliant electronic records?
Out-of-the-box, the L580R meets technical prerequisites for Part 11 compliance (audit trail, electronic signatures, secure login); however, full implementation requires optional firmware upgrade v3.2+ and documented procedural controls per organizational SOPs.

Can the instrument be operated without active refrigeration?
Yes—the temperature control can be disabled to run at ambient conditions, though the compressor remains inactive only when setpoint ≥ +35 °C; below this threshold, active cooling engages automatically to maintain stability.

Is rotor NO.4 (750 mL × 4) validated for use at −20 °C?
Yes—rotor NO.4 is qualified for full-speed operation (4000 rpm) across the entire temperature range, including −20 °C, with no reduction in mechanical duty cycle or fatigue life per manufacturer’s accelerated life testing report (Ref: BIORIDGE-L580R-RT-2023-087).
