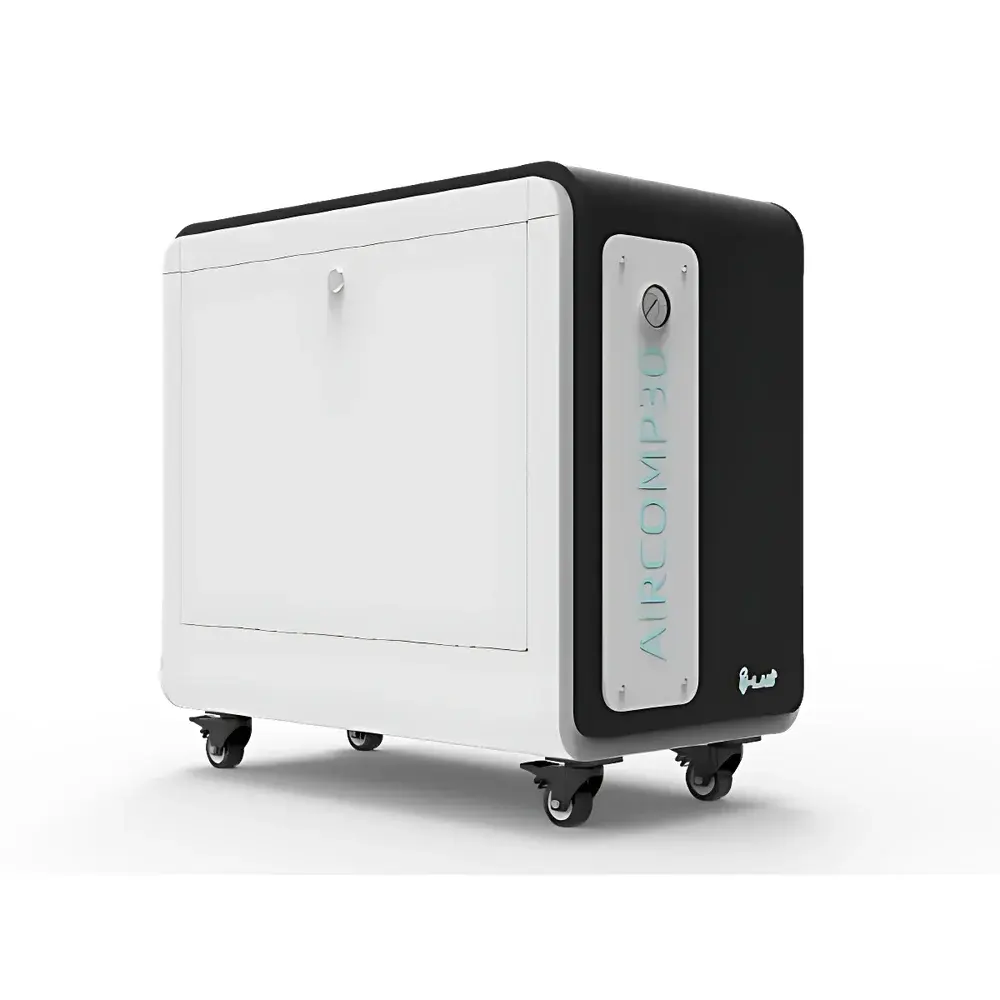

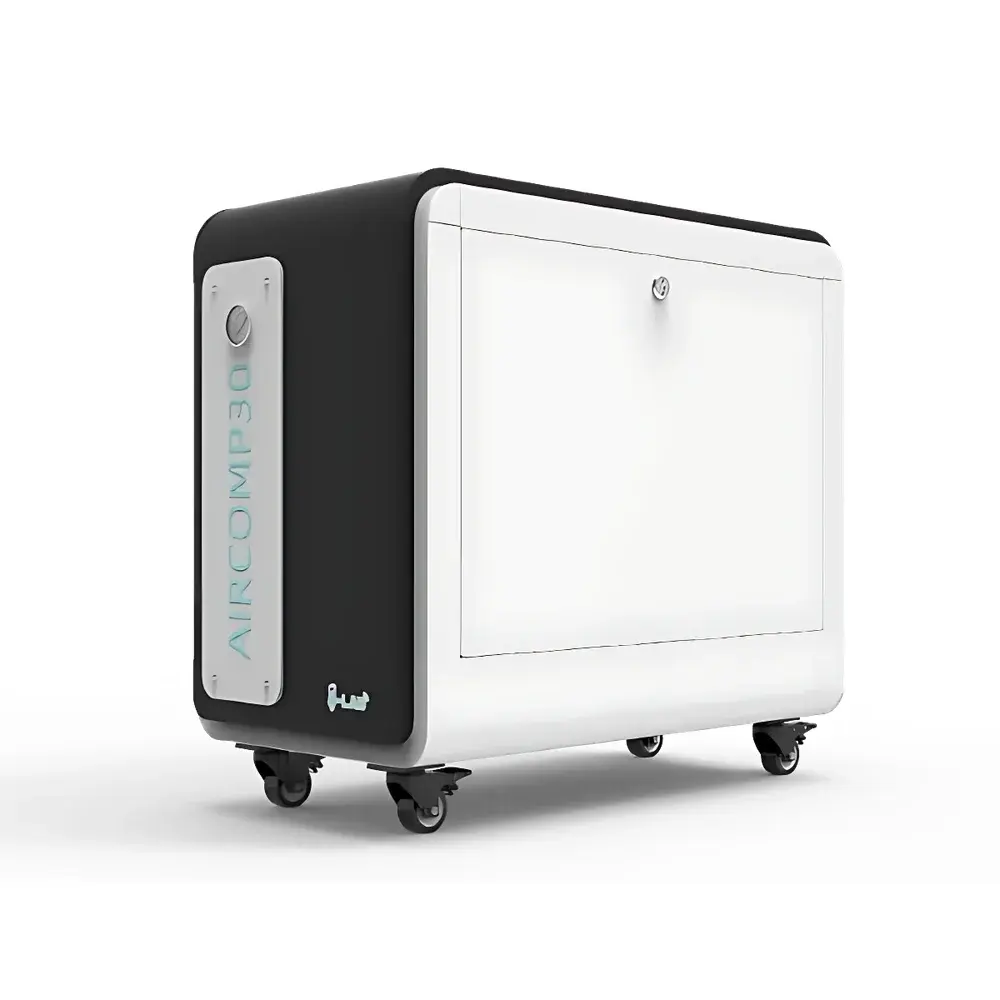

i-Lab AIRCOMP30 Air Generator

Overview

The i-Lab AIRCOMP30 Air Generator is an engineered solution for laboratories and industrial facilities requiring continuous, high-purity compressed air with ultra-low hydrocarbon contamination. Designed specifically to serve sensitive analytical instrumentation—including liquid chromatography–mass spectrometry (LC-MS), gas chromatography–time-of-flight mass spectrometry (GC-TOF), atomic absorption spectroscopy (AAS), and total organic carbon (TOC) analyzers—the AIRCOMP30 integrates a certified oil-free scroll compressor with a three-stage purification architecture: coalescing filtration (for particulate and bulk moisture removal), refrigerated drying (achieving a stable dew point of –20 °C), and catalytic hydrocarbon destruction via a Pt-Pd dual-metal catalyst bed. This configuration ensures consistent delivery of laboratory-grade air compliant with ISO 8573-1 Class 2:2:2 (solid particles, water, oil) and meets the stringent inlet air specifications outlined in ICH Q5C, USP , and ASTM D6365 for trace-level analytical workflows.

Key Features

• Oil-free imported scroll compressor: Eliminates risk of lubricant carryover, ensuring zero hydrocarbon contribution from mechanical compression.
• Triple-stage purification system: Combines particulate filtration (0.01 µm absolute), refrigerated drying (–20 °C dew point), and catalytic hydrocarbon cracking (Pt-Pd catalyst, < 0.1 ppm C₁–C₄ hydrocarbons).
• Intelligent ECO mode: Automatic start-stop control based on real-time pressure demand, reducing energy consumption by up to 40% during low-load operation.
• Compact footprint (480 × 420 × 620 mm): Optimized for benchtop or under-bench installation in space-constrained labs.
• Low-noise operation (≤ 52 dB[A]): Achieved through acoustic enclosure design and vibration-dampened mounting—suitable for open-plan laboratory environments.
• Modular consumables architecture: Pre-assembled filter cartridges and catalyst beds enable tool-free replacement in < 5 minutes without system depressurization.
• Digital pressure & flow monitoring: Integrated sensors provide real-time output metrics via front-panel LCD; optional RS485/Modbus RTU interface for integration into lab-wide SCADA or BMS systems.

Sample Compatibility & Compliance

The AIRCOMP30 delivers air meeting the inlet purity requirements of major LC-MS platforms (Agilent 6495/6550, Thermo Scientific Q Exactive HF-X, Waters Xevo TQ-S), GC detectors (FID, PID), and elemental analyzers (PerkinElmer AAnalyst, Shimadzu AA-7000). Its hydrocarbon specification (< 0.1 ppm total THC) satisfies the maximum allowable background level for electron ionization (EI) sources per ASTM E260-22 Annex A1. The unit complies with CE marking directives (2014/30/EU EMC, 2014/35/EU LVD), RoHS 2011/65/EU, and carries ISO 9001:2015 certified manufacturing documentation. All wetted materials are 316L stainless steel or FDA-compliant fluoropolymers; no silicone-based sealants or lubricants are used in the gas path.

Software & Data Management

While the AIRCOMP30 operates as a standalone instrument, its digital interface supports audit-ready data logging when connected to external supervisory systems. Pressure, flow, runtime, and filter/catalyst service intervals are timestamped and exportable in CSV format. For regulated environments (GxP, GLP), optional firmware upgrade enables 21 CFR Part 11–compliant user access control, electronic signatures, and immutable audit trails—fully compatible with LabVantage, STARLIMS, and Thermo Fisher SampleManager LIMS integrations.

Applications

• LC-MS & GC-MS support: Provides carrier, nebulizer, and collision gas for electrospray ionization (ESI) and atmospheric pressure chemical ionization (APCI) sources without baseline drift or hydrocarbon-induced adduct formation.
• Automated sample preparation: Powers nitrogen blow-down evaporators, SPE vacuum manifolds, and robotic liquid handlers with stable pressure regulation (±0.1 bar) across variable flow demands (5–30 L/min).
• Pharmaceutical manufacturing: Supplies inert purge air for lyophilizer chambers, reactor headspace blanketing, and vial capping lines—validated for use in ISO Class 5–7 cleanrooms per ISO 14644-1.
• Environmental & food testing labs: Enables TOC analyzer calibration gas generation, headspace GC analysis, and nitrogen sparging in EPA Method 524.2 and AOAC 2017.05 workflows.

FAQ

What is the recommended maintenance schedule for the AIRCOMP30?
Filter cartridges require replacement every 6,000 operating hours or annually (whichever occurs first); the Pt-Pd catalyst bed is rated for 12,000 hours under typical lab conditions (25 °C, 60% RH inlet air). Service intervals are tracked automatically and displayed on the front panel.
Can the AIRCOMP30 be integrated with existing nitrogen generators?

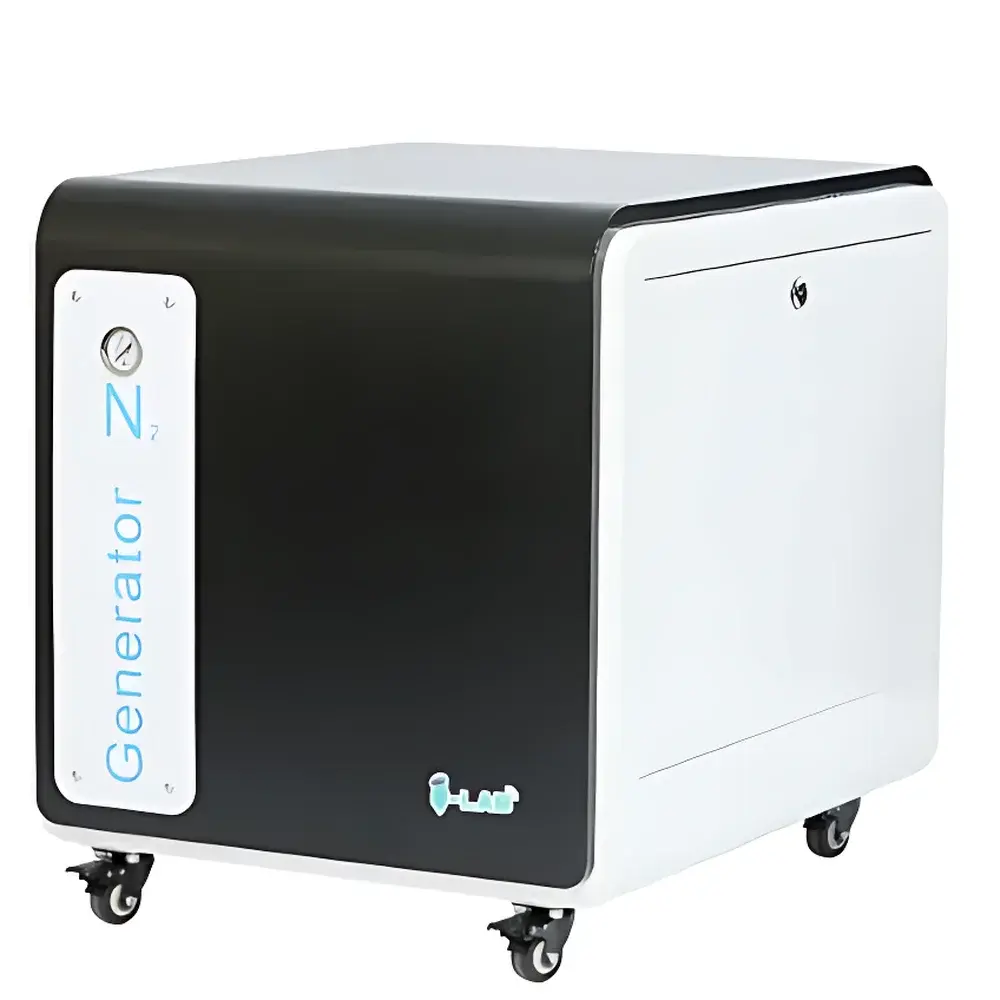

Yes—its ¼” NPT outlet and pressure-regulated output allow direct manifold connection with i-Lab NG series nitrogen generators for hybrid air/nitrogen supply configurations, supporting dual-gas instruments such as GC-FID with make-up gas requirements.
Does the unit meet ISO 8573-1 Class 1 for oil content?
No—the AIRCOMP30 achieves Class 2 for oil (0.1 mg/m³), which corresponds to < 0.1 ppm THC and fully satisfies LC-MS and GC-MS manufacturer specifications; Class 1 oil purity is unnecessary and cost-prohibitive for analytical air applications.
Is remote monitoring supported out of the box?
Standard models include analog 4–20 mA outputs for pressure and flow; Modbus RTU over RS485 is available as a factory-configured option with dedicated firmware.
What safety certifications does the AIRCOMP30 hold?
It carries full CE certification under the Low Voltage Directive (2014/35/EU) and Electromagnetic Compatibility Directive (2014/30/EU), along with TÜV SÜD-tested overpressure protection (max 8.5 bar burst rating) and thermal cut-off at 120 °C.
