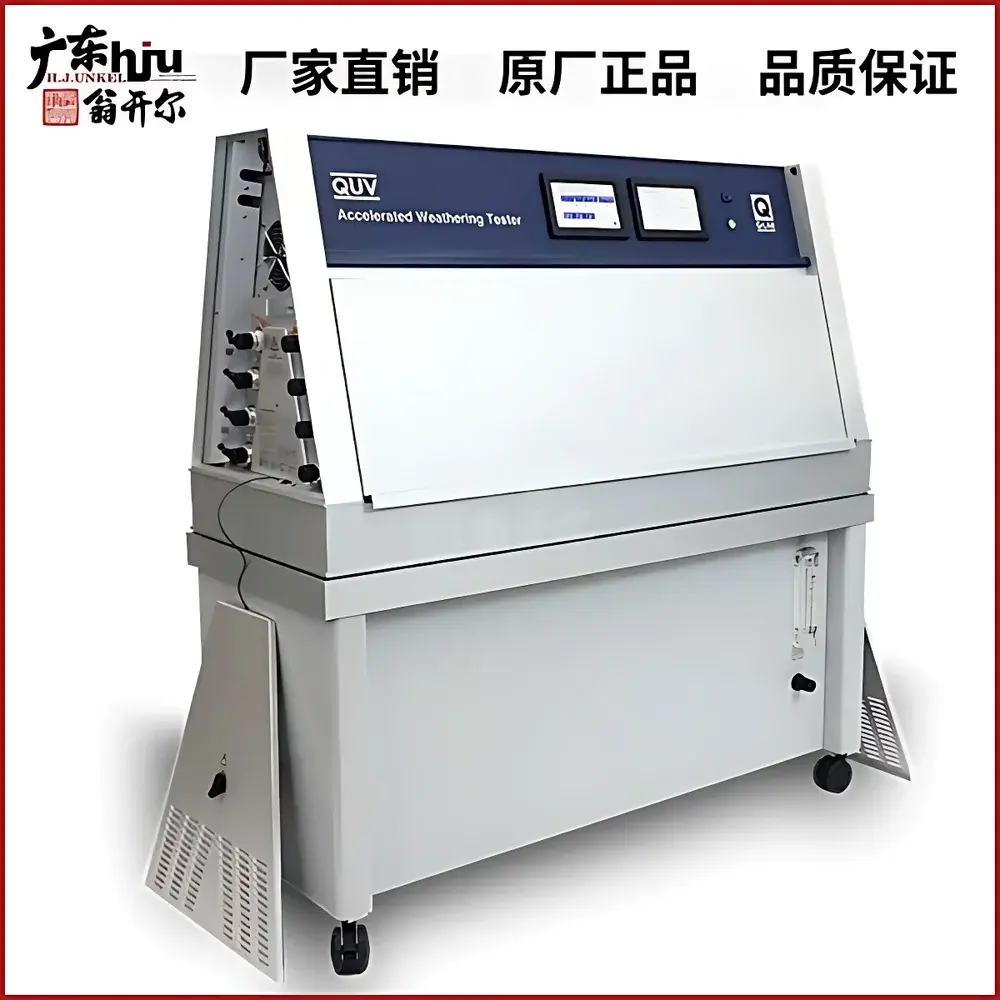

Q-LAB QUV Accelerated UV Weathering Tester

Overview

The Q-LAB QUV Accelerated UV Weathering Tester is an industry-standard benchtop environmental test chamber engineered for rapid, reproducible simulation of solar ultraviolet (UV) radiation effects on polymeric materials, coatings, adhesives, and plastics. Unlike broad-spectrum xenon arc or carbon arc testers, the QUV system employs fluorescent UV lamps—primarily UVA-340 (mimicking terrestrial sunlight down to 295 nm) and UVB-313 (for aggressive, accelerated degradation)—to isolate and intensify the most photochemically damaging portion of the solar spectrum. Its cyclic operation alternates controlled UV irradiance with condensation (via elevated temperature and humidity) or water spray, replicating critical outdoor exposure mechanisms such as photolysis, hydrolysis, and thermal oxidation. Designed in compliance with ASTM G154, ISO 4892-3, and SAE J2020, the QUV platform delivers high inter-laboratory reproducibility and is widely accepted for qualification testing in automotive, aerospace, architectural coatings, and packaging industries.

Key Features

• Fluorescent UV lamp options: UVA-340 (sunlight-spectrum simulation), UVB-313 (accelerated degradation), and UVA-351 (through-window glass-filtered UV)
• Precisely regulated black-panel temperature control (35–80 °C) with integrated thermocouple feedback and PID algorithm
• Automatic condensation cycle via heated water reservoir and chamber wall cooling—no external plumbing required
• Optional water spray function with adjustable duration and frequency for wet/dry cycling per ASTM D4329
• Microprocessor-based controller with real-time monitoring, programmable test profiles, and password-protected parameter locking
• Stainless steel interior construction and UV-stabilized acrylic viewing window for long-term corrosion resistance and optical clarity
• Compliance-ready design supporting audit trails, calibration logs, and user-access level management (GLP/GMP-aligned workflows)

Sample Compatibility & Compliance

The QUV accommodates flat-panel specimens up to 127 mm × 76 mm (5″ × 3″) in standard configurations, with optional multi-tier racks for higher throughput. Sample holders are designed for uniform irradiance distribution and thermal equilibrium across the exposure plane. The system meets the geometric and spectral requirements of key international standards including ASTM G154 (Standard Practice for Operating Fluorescent Ultraviolet (UV) Lamp Apparatus for Exposure of Non-Metallic Materials), ISO 4892-3 (Plastics — Methods of Exposure to Laboratory Light Sources — Part 3: Fluorescent UV Lamps), and IEC 61215 (for PV module qualification). All lamp spectral output data is traceable to NIST-certified reference spectroradiometers. The unit is CE-marked and conforms to IEC 61000-6-3 (EMC emission) and IEC 61000-6-2 (immunity).

Software & Data Management

While the base QUV model operates via embedded controller with LCD interface, optional Q-Lab’s SunTest™ PC software enables remote monitoring, multi-chamber synchronization, automated report generation (PDF/CSV), and full data logging at user-defined intervals. The software supports 21 CFR Part 11-compliant electronic signatures, audit trail recording (including operator ID, parameter changes, and alarm events), and secure database archiving. Calibration certificates—including irradiance uniformity maps and black-panel temperature validation—are generated and stored within the software environment. All firmware updates are delivered via Q-Lab’s secure customer portal, ensuring continued alignment with evolving regulatory expectations for instrument qualification (IQ/OQ/PQ documentation support available).

Applications

• Evaluation of color shift, gloss loss, chalking, cracking, and embrittlement in automotive clearcoats and exterior trim
• Accelerated weathering validation of UV-stabilized polyolefins, PVC, and engineering thermoplastics used in outdoor applications
• Performance screening of architectural sealants, elastomeric roof coatings, and façade systems per AAMA 2605 and ASTM D7862
• Photostability assessment of medical device polymers and pharmaceutical packaging materials under ICH Q1B guidelines
• Correlation studies between QUV cycles and natural outdoor exposure (e.g., Florida or Arizona field sites) using established acceleration factors
• Quality control release testing for batch-to-batch consistency of light-sensitive formulations

FAQ

What UV lamp types are compatible with the QUV tester?
The QUV accepts UVA-340, UVB-313, and UVA-351 fluorescent lamps—each calibrated to specific spectral power distributions defined in ASTM G154 Annex A1.
Can the QUV replicate moisture exposure without external water supply?
Yes. Condensation is generated internally through controlled heating of a water reservoir and simultaneous cooling of the specimen plane—no plumbing or pressurized water source is required.
Is the QUV suitable for testing coated metal substrates?
Yes. The system is routinely used for evaluating coating adhesion, blistering, and delamination on aluminum, steel, and galvanized panels per ASTM D714 and ISO 4628 series.
How often must UV lamps be replaced?
Lamp replacement is recommended every 1,600–2,000 hours of operation, depending on irradiance setpoint and cumulative spectral decay—tracked automatically via the controller’s lamp-hour counter.
Does Q-LAB provide IQ/OQ documentation for regulated environments?
Yes. Factory-verified Installation Qualification (IQ) and Operational Qualification (OQ) protocols, including calibration certificates and performance verification reports, are available upon request for GxP-compliant laboratories.
