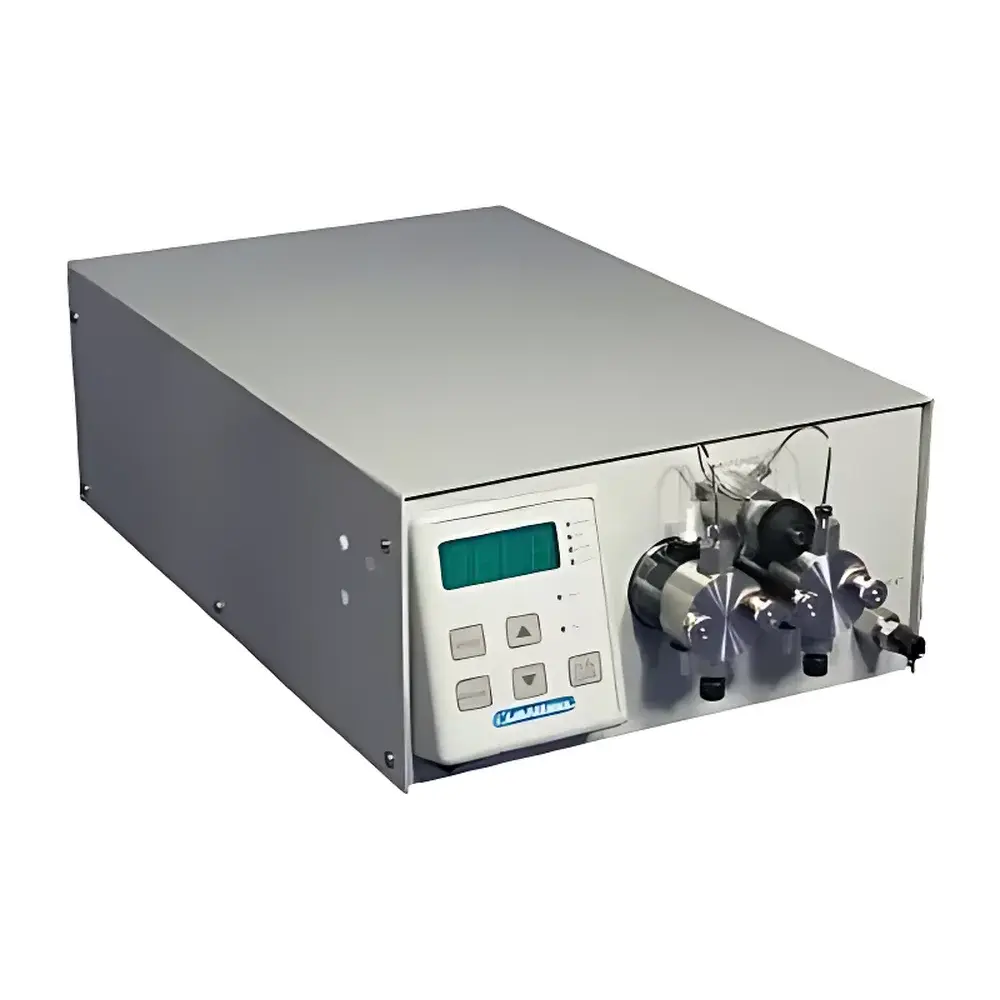

Laballiance Flash100 Digital Constant Flow Pump

Overview

The Laballiance Flash100 Digital Constant Flow Pump is a precision-engineered peristaltic-free, digitally controlled dual-piston reciprocating pump designed specifically for medium-pressure flash chromatography and preparative-scale liquid handling in analytical and synthetic laboratories. Operating on positive displacement principles with synchronized dual-piston architecture, the Flash100 delivers pulse-dampened, high-stability flow across its full operational range—eliminating reliance on mechanical dampeners or post-pump accumulators. Its pressure rating of up to 500 psi supports use with silica, reversed-phase C18, and other high-efficiency stationary phases commonly employed in rapid purification workflows. Unlike analog-driven pumps, the Flash100 integrates a closed-loop digital stepper motor control system that actively compensates for viscosity-induced load variations, thermal drift, and long-term mechanical wear—ensuring consistent volumetric delivery independent of ambient temperature fluctuations or extended runtime.

Key Features

• Dual-piston reciprocating design with integrated pulse attenuation for low-flow stability and minimal baseline ripple—critical for UV detection sensitivity in fraction collection.
• Front-panel digital flow rate adjustment in precise 0.1 mL/min increments, with real-time display of setpoint, actual flow, and system pressure.
• Integrated high-speed solvent purge valve enabling instantaneous flow ramp-up to maximum output (100 mL/min) for rapid mobile phase equilibration or column flushing—reducing method transition time by >60% compared to manual priming.
• Onboard pressure monitoring with overpressure shutdown (configurable threshold) and automatic zero-pressure calibration routine—ensuring compliance with ISO 8573-1 for compressed air–free operation and eliminating external transducer dependency.
• Three-mode control interface: hardware TTL start/stop trigger, analog 0–10 V / 0–10 kHz flow setpoint input for integration into PLC-based purification systems, and full bidirectional RS232 communication supporting SCPI command syntax for remote configuration, status polling, and event logging.
• Self-diagnostic firmware with error-code reporting (e.g., E03 = piston seal wear alert, E12 = pressure sensor timeout), facilitating preventive maintenance scheduling aligned with GLP documentation requirements.

Sample Compatibility & Compliance

The Flash100 is chemically compatible with common flash chromatography solvents including hexane, ethyl acetate, methanol, acetonitrile, dichloromethane, and isopropanol. Wetted components consist of sapphire-coated stainless steel pistons, PTFE-faced check valves, and Kalrez® 6375 seals—validated per ASTM D471 for resistance to swelling and extraction under continuous exposure. The pump meets CE electromagnetic compatibility (EMC) Directive 2014/30/EU and conforms to IEC 61010-1:2010 safety standards for laboratory equipment. Its firmware architecture supports audit-trail-enabled operation when paired with compliant chromatography data systems (CDS), satisfying FDA 21 CFR Part 11 requirements for electronic records and signatures where configured with user authentication and immutable event logging.

Software & Data Management

The Flash100 operates autonomously without proprietary software but is fully interoperable with third-party control platforms via its RS232 port using standard SCPI commands (e.g., :FLOW:SET 25.0, :PRESSURE:READ?). Laballiance provides a documented ASCII command set and Python-compatible serial driver libraries for integration into custom automation scripts or LIMS environments. All operational parameters—including total delivered volume, cumulative run time, pressure history (sampled at 10 Hz), and fault events—are timestamped and exportable as CSV files. When deployed in regulated environments, the pump’s internal non-volatile memory retains last-known configuration and calibration offsets across power cycles—supporting continuity of validated methods per USP and ICH Q2(R2) guidelines.

Applications

• Routine flash purification of organic synthesis intermediates (5–500 mg scale) with gradient or isocratic elution.
• Preparative HPLC sample loading and guard column regeneration at sub-500 psi pressures.
• Automated solvent delivery in parallel reaction screening systems requiring synchronized multi-pump coordination.
• Mobile phase supply for hyphenated techniques including flash–MS and flash–UV fraction collection workflows.
• Method development support for column selection studies where reproducible flow-dependent resolution assessment is required.

FAQ

Does the Flash100 require periodic recalibration? Why or why not?

Yes—Laballiance recommends annual verification of flow accuracy and pressure transducer linearity using NIST-traceable secondary standards. While the digital stepper motor eliminates drift-related recalibration, mechanical wear of piston seals and check valves affects volumetric fidelity over time; scheduled calibration ensures continued adherence to ±2% flow accuracy specification.
Can the Flash100 be used with aqueous buffers containing >20% salt?

Yes, provided the system is flushed thoroughly with water followed by ethanol or IPA after each run. High-concentration ionic solutions may accelerate corrosion of non-wetted aluminum housing components if residual salts crystallize—routine maintenance per Laballiance Technical Bulletin TB-FL100-07 mitigates this risk.
Is RS232 communication compatible with modern Windows/Linux systems lacking native serial ports?

Yes—USB-to-RS232 adapters compliant with FTDI chipset drivers are fully supported. Laballiance validates operation with standard CDC ACM class drivers; no proprietary USB firmware is required.
