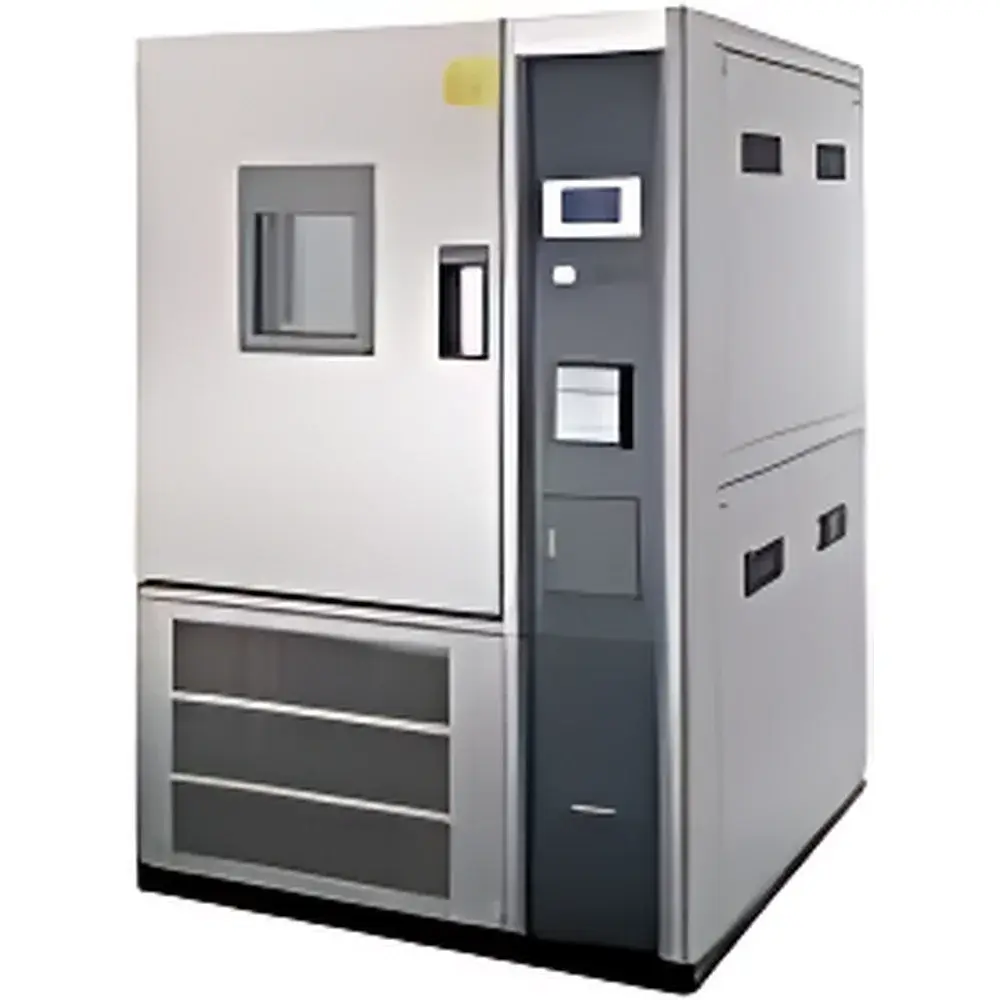

LabCompanion TH-225 Environmental Test Chamber

Overview

The LabCompanion TH-225 Environmental Test Chamber is an engineered solution for precise, repeatable simulation of temperature and humidity stress conditions in accordance with international environmental testing standards. Designed around a dual-circuit refrigeration architecture and a high-efficiency steam humidification system, the chamber delivers stable, traceable control across a wide operational envelope: –40 °C to +150 °C and 20–98 % RH. Its core function is to replicate real-world climatic exposure—accelerating aging, validating material integrity, and verifying product reliability under combined thermal and hygroscopic stress. The chamber operates on fundamental thermodynamic principles: heat exchange via forced-air convection (using multi-blade centrifugal fans), phase-change-based humidification, and cascade refrigeration for sub-zero capability. It is not a generic storage cabinet but a metrologically disciplined test platform intended for R&D validation, quality assurance, and regulatory compliance testing in electronics, automotive components, pharmaceutical packaging, and aerospace materials.

Key Features

• Robust dual-stage refrigeration system featuring imported compressors (Tecumseh or Copeland) and critical auxiliary components including Italian CASTEL solenoid valves, Taiwanese GY oil separators, and U.S.-sourced Parker Hannifin dry filters—ensuring long-term stability and low maintenance frequency.
• High-uniformity air circulation architecture with multi-wing centrifugal blowers and optimized inlet/outlet ducting—achieving ≤±0.5 °C temperature uniformity and ≤±2 % RH uniformity across the 225 L working volume (per IEC 60068-3-5).
• Microprocessor-based PID controller with touchscreen interface (imported Japanese OEM module), supporting ramp-soak profiles, programmable cycles, and real-time deviation correction algorithms for enhanced setpoint fidelity.
• Energy-optimized external steam generator reducing power consumption by up to 70 % compared to traditional immersion-type humidifiers—critical for extended-duration tests requiring continuous RH maintenance.
• Structural integrity reinforced by CNC-machined SUS304 stainless steel inner chamber (mirror-finish or TIG-welded), powder-coated A3 steel outer enclosure, and non-metallic high/low-temperature insulation gaskets at chamber junctions to minimize thermal bridging.
• Dual-layer tempered observation window with integrated LED lighting, independent over-temperature safety cut-off circuit, and standardized 50 mm diameter test port for sensor feedthrough or cable routing.

Sample Compatibility & Compliance

The TH-225 accommodates a broad range of sample types—including PCB assemblies, polymer housings, lithium-ion battery modules, medical device packaging, and optical lenses—without compromising chamber integrity or measurement accuracy. Its internal geometry and airflow design prevent localized condensation, stratification, or thermal shadowing. The unit complies with key national and industrial standards including GB/T 2423.1 (cold testing), GB/T 2423.2 (dry heat), and GB/T 2423.3 (damp heat, cyclic). While not pre-certified to IEC 60068 or MIL-STD-810, its performance envelope and control architecture align with the functional requirements of those frameworks. For GLP/GMP environments, optional analog output (4–20 mA) supports integration into validated data acquisition systems; audit trails and electronic signatures require external SCADA-level software deployment.

Software & Data Management

The embedded controller provides local parameter logging (up to 100 test programs, 100 segments each) and real-time display of actual vs. setpoint values for both temperature and humidity. Optional RS485 Modbus RTU or Ethernet TCP/IP interfaces enable remote monitoring and centralized fleet management via third-party SCADA or LIMS platforms. When paired with external chart recorders or industrial PLCs, the chamber supports time-stamped CSV export of test data, alarm event logs, and calibration history—meeting basic FDA 21 CFR Part 11 requirements for electronic records when deployed with appropriate access controls and audit trail configuration.

Applications

• Accelerated life testing of consumer electronics under thermal cycling and humidity soak conditions.
• Validation of seal integrity and moisture barrier performance in sterile medical packaging per ISO 11607.
• Material compatibility assessment of adhesives, coatings, and composites exposed to tropical or desert climatic profiles.
• Pre-conditioning of sensors and optoelectronic components prior to functional verification.
• Environmental stress screening (ESS) for military-grade connectors and avionics enclosures per MIL-STD-202G.
• Stability studies for pharmaceutical excipients and final dosage forms under ICH Q1A(R2) recommended storage conditions.

FAQ

What is the typical recovery time after door opening?
Under standard test conditions (25 °C/60 % RH), full stabilization is achieved within ≤3 minutes post-door closure, thanks to optimized air re-circulation and minimized thermal mass in the chamber walls.
Can the TH-225 perform rapid temperature transitions?
Yes—the dual-circuit refrigeration system supports ramp rates up to 3 °C/min (average) between –40 °C and +85 °C, subject to load mass and thermal inertia.
Is calibration documentation included with shipment?
A factory calibration report (traceable to NIM China) is provided; however, user-site periodic recalibration using NIST-traceable reference sensors is required for ISO/IEC 17025-compliant operations.
Does the chamber support unattended operation for 72+ hours?
Yes—its redundant safety circuits, compressor overload protection, and dry-run prevention logic enable continuous operation; users are advised to verify water supply continuity for extended humidification cycles.
What maintenance intervals are recommended?
Compressor oil inspection every 12 months; refrigerant leak check every 24 months; steam generator descaling every 3 months (frequency depends on local water hardness).
