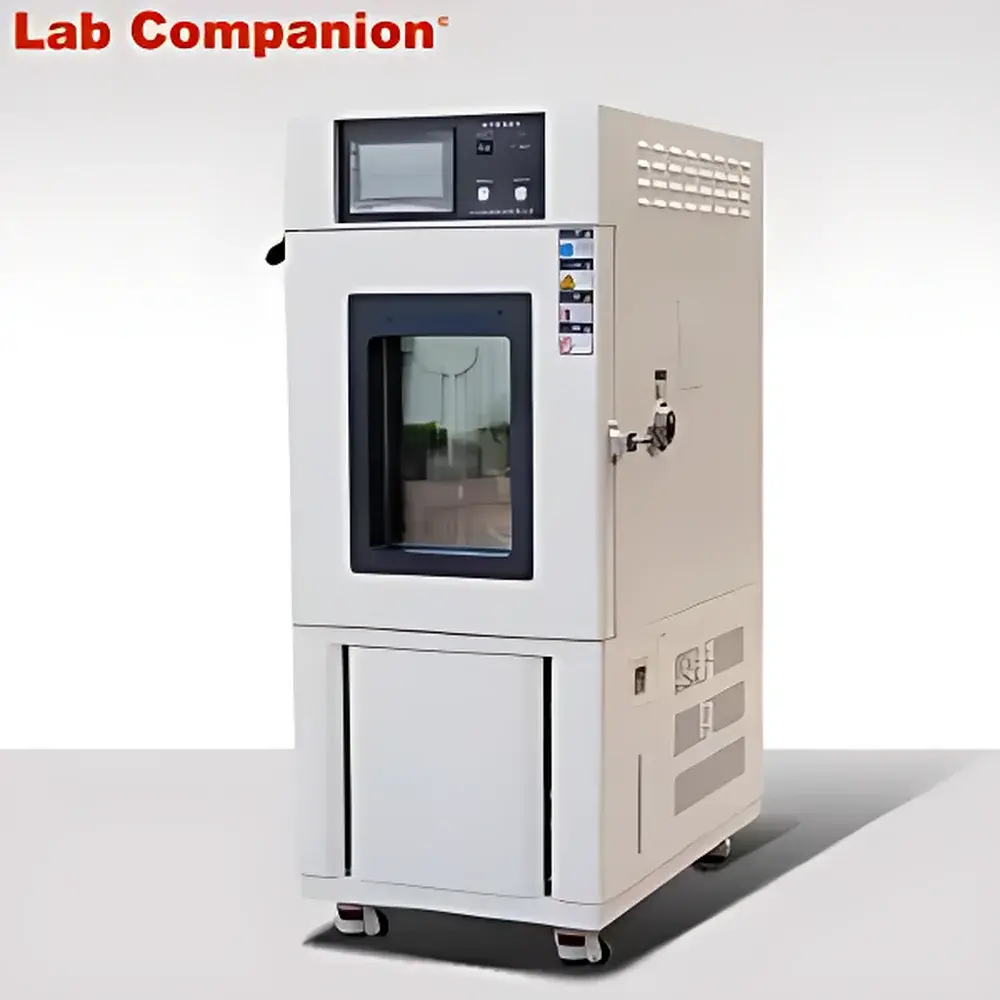

LabCompanion PS-608 High-Low Temperature Environmental Test Chamber for SSD Reliability Testing

Overview

The LabCompanion PS-608 High-Low Temperature Environmental Test Chamber is an engineered platform designed specifically for accelerated reliability validation of solid-state drives (SSDs) and other high-density electronic components under controlled thermal stress conditions. Based on the principles of accelerated life testing (ALT) and temperature cycling per JEDEC JESD22-A104 and MIL-STD-810H Method 502.7, the PS-608 provides precise, repeatable, and traceable thermal environments from −70 °C to +150 °C. Its robust dual-stage compression refrigeration system ensures stable low-temperature operation without liquid nitrogen dependency, while its optimized air circulation architecture—featuring rear-mounted centrifugal fans and baffle-guided airflow—delivers uniform thermal distribution across the full 608 L workspace. The chamber meets structural and operational requirements for ISO/IEC 17025-accredited laboratories conducting environmental qualification per IEC 60068-2-1 (cold), IEC 60068-2-2 (dry heat), and IEC 60068-2-14 (temperature cycling). It is not intrinsically safe or explosion-proof; users requiring hazardous-area certification must consult LabCompanion’s ATEX/IECEx-certified chamber variants.

Key Features

• Triple-layer safety architecture: Independent mechanical thermostat, digital overtemperature limiter, and software-enforced upper bound in the LCC-3000 controller ensure fail-safe shutdown under fault conditions.
• Large-format viewing window with heated double-glazed construction minimizes condensation and enables real-time visual monitoring of SSD thermal behavior during extended soak cycles.
• Lever-actuated door seal system maintains consistent gasket compression across ambient-to-extreme temperature transitions, ensuring long-term integrity of the chamber’s thermal envelope.
• Dual-side electrical feedthrough panels with IP54-rated terminal blocks allow simultaneous power supply, signal routing, and thermocouple access—critical for in-situ SSD functional testing during thermal stress.
• Modular controller firmware supports audit-ready data logging (timestamped, user-ID tagged), automatic calibration verification prompts, and configurable alarm escalation via email/SNMP (optional).
• Structural chassis built from 1.5 mm cold-rolled steel with electrophoretic epoxy coating resists corrosion in high-humidity or salt-spray co-testing configurations.

Sample Compatibility & Compliance

The PS-608 accommodates standard 2.5″ and M.2 form-factor SSDs mounted on custom thermal test fixtures or industry-standard carrier trays. Its internal dimensions (800 × 950 × 800 mm) permit vertical stacking of up to six 19″ rack-mount test enclosures with integrated power conditioning and SATA/NVMe loopback diagnostics. Optional heavy-duty sample racks (rated to 50 kg load capacity) and reinforced floor plates are available for large-scale burn-in setups. The chamber complies with electromagnetic compatibility (EMC) requirements per EN 61326-1 for laboratory use and satisfies mechanical safety standards per EN 61010-1. While not certified to UL 1203 or ATEX Directive 2014/34/EU, it may be deployed in non-classified zones adjacent to Class I Div 2 areas when operated within specified ambient limits.

Software & Data Management

The embedded LCC-3000 controller runs a deterministic real-time operating system with native support for ASTM E29–23-compliant rounding, GLP/GMP audit trail logging (user actions, parameter changes, alarm events), and 21 CFR Part 11–ready electronic signatures (when paired with LabCompanion’s optional LMS-Link software suite). Data export formats include CSV (time-stamped sensor readings), PDF (summary reports with chamber status snapshots), and XML (for integration into LIMS platforms such as Thermo Fisher SampleManager or LabVantage). Remote monitoring is enabled via Ethernet (TCP/IP), RS-485 Modbus RTU, or optional Wi-Fi module—supporting secure TLS 1.2 encrypted connections and role-based access control.

Applications

• JEDEC-compliant temperature cycling (−40 °C ↔ +85 °C, 1000+ cycles) to assess solder joint fatigue and NAND flash retention degradation.
• High-temperature soak tests (125 °C, 1000 h) evaluating controller IC thermal derating and DRAM buffer stability.
• Low-temperature functional validation (−55 °C) of PCIe link training and NVMe command execution latency.
• Combined thermal-humidity stress (with optional humidity add-on) per IEC 60068-2-30 for assessing conformal coating adhesion and PCB surface insulation resistance.
• Pre-conditioning of SSDs prior to vibration or HALT testing to establish baseline thermal boundary conditions.

FAQ

Does the PS-608 meet FDA or ISO 13485 requirements for medical device component testing?
Yes—the chamber’s controller audit trail, calibration traceability (NIST-traceable RTD sensors), and documented design history file (DHF) support compliance with ISO 13485:2016 clause 7.5.2 and FDA QSR 21 CFR Part 820.72.
Can the chamber operate continuously at −70 °C for extended durations?
Yes—its dual-stage cascade refrigeration system is rated for continuous operation at −70 °C with no duty-cycle limitation, provided ambient room temperature remains ≤30 °C and relative humidity ≤70% RH.
Is third-party calibration documentation included with shipment?
Each unit ships with a factory calibration certificate (per ISO/IEC 17025 accredited lab) covering temperature uniformity, fluctuation, and deviation at three points (−40 °C, 25 °C, +85 °C); full 15-point NIST-traceable calibration is available as an option.
What is the maximum allowable cable bundle diameter through the standard φ50 mm feedthrough?
The effective clear aperture is 42 mm ID; bundles exceeding 35 mm OD require optional φ80 mm or larger ports to maintain seal integrity and avoid gasket deformation.
Can LabCompanion provide IQ/OQ documentation packages for GxP-regulated facilities?
Yes—validated installation qualification (IQ) and operational qualification (OQ) protocols, executed by certified field engineers, are available under LabCompanion’s Validation Services Program (VSP-PS608).
