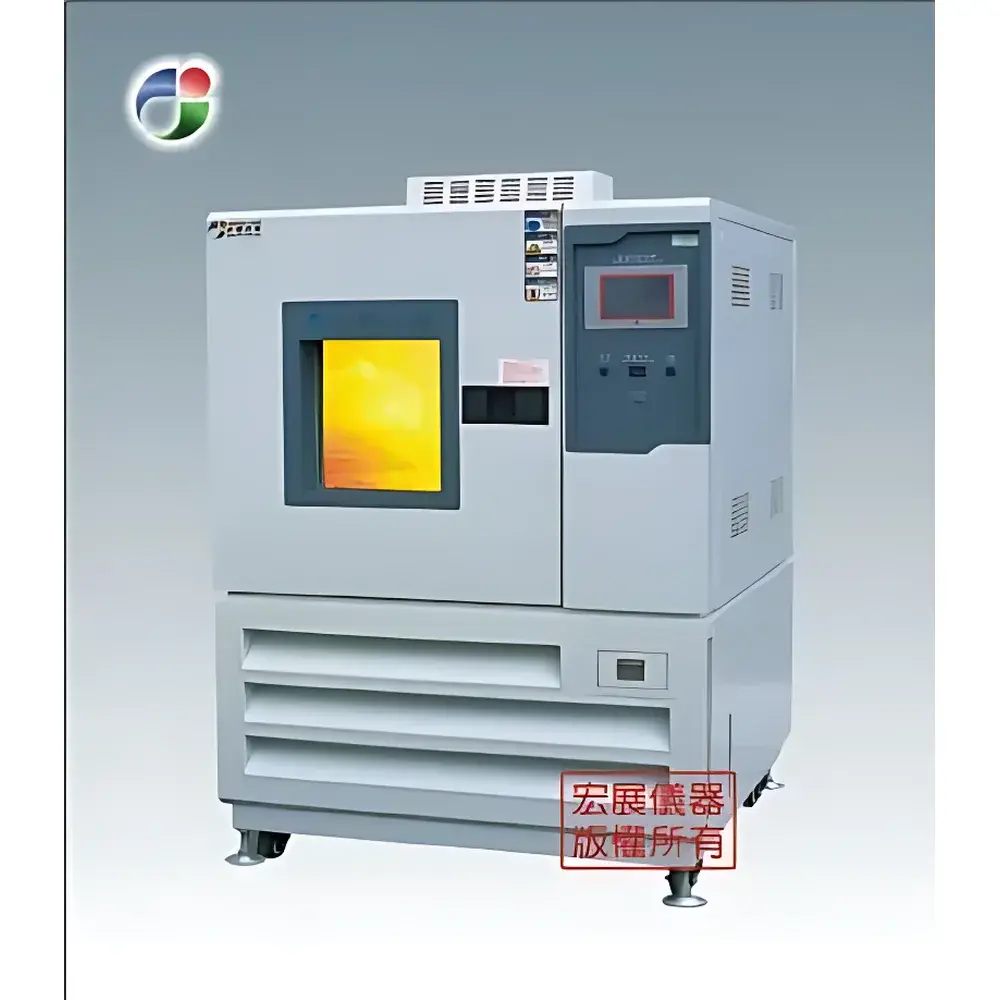

LabCompanion P-Series Programmable Environmental Test Chamber (Temperature & Humidity Cycling Chamber)

Overview

The LabCompanion P-Series Programmable Environmental Test Chamber is an engineering-grade temperature and humidity cycling system designed for rigorous reliability validation of materials, components, and electronic assemblies under controlled climatic stress conditions. Built upon a dual-chamber architecture with independent refrigeration, heating, and humidification subsystems, the chamber employs forced-air convection with optimized airflow distribution to ensure high spatial uniformity and temporal stability across the entire test volume. Its operational principle integrates precision PID-controlled thermal regulation with saturated steam humidification and direct-expansion refrigeration — enabling reproducible execution of complex multi-step profiles including steady-state humidity exposure, rapid thermal transitions, and combined temperature-humidity cycling per internationally recognized environmental stress screening protocols.

Key Features

• Q8-901 color touchscreen controller with bilingual (English/Chinese) HMI interface, supporting intuitive graphical programming and real-time visualization of setpoint curves and actual chamber dynamics
• Up to 120 programmable test profiles, each containing up to 1200 individual segments; maximum cycle count: 999 repetitions; segment duration configurable up to 99 hours 59 minutes
• Dual-stage PID tuning (9 parameter sets) for adaptive thermal and humidity control, minimizing overshoot and stabilizing conditions within ±0.5 °C and ±2 %RH (≥75 %RH)
• Robust mechanical design featuring SUS304 stainless steel interior, electrostatically coated cold-rolled steel exterior, and high-efficiency insulation (polyurethane foam or ultra-fine glass fiber)
• Front-mounted automatic water-fill system for seamless humidifier operation; vacuum double-glazed observation window with anti-frost heater for unobstructed sample monitoring
• Standard RS232 communication port; optional RS485 interface, USB data logging module, and PC-based remote supervision software for audit-ready traceability
• Comprehensive safety suite including over-temperature, over-humidity, compressor high-pressure, and door-open alarms — all displayed with diagnostic codes on the main screen
• Modular refrigeration configuration: air-cooled compressors (Tecumseh or Copeland) for standard models; water-cooled options available for high-capacity units (e.g., 800L)

Sample Compatibility & Compliance

The P-Series accommodates a wide range of sample geometries and thermal masses through four standardized internal volumes (150 L to 800 L), each equipped with adjustable stainless steel shelves and two standard 50 mm diameter access ports. The chamber meets structural and performance requirements of multiple international environmental testing standards, including IEC 60068-2-1 (cold), -2 (dry heat), and -3 (damp heat); MIL-STD-810F Methods 501.4, 502.4, and 507.4; JIS C60068-2 series; and JESD22-A101-B (constant temp/humidity), A103-C (high-temp storage), and A119 (low-temp storage). It is fully compliant with Chinese national standards GB/T 2423.1–4, GB 10586, GB 10592, and GJB 150.9 for military-grade wet-heat qualification testing. All configurations support GLP-aligned documentation workflows when paired with optional USB logging or RS485-connected data acquisition systems.

Software & Data Management

The embedded Q8-901 controller logs time-stamped temperature and humidity data at user-defined intervals (1–60 sec resolution) and stores up to 100 days of continuous records internally. Optional USB flash drive modules enable export of CSV-formatted datasets with full metadata (profile ID, timestamp, operator ID, alarm events). For regulated environments, LabCompanion provides optional PC software with 21 CFR Part 11-compliant features: electronic signatures, role-based access control, audit trail generation, and immutable record archiving. Data synchronization supports both manual transfer and scheduled automated uploads via Ethernet or serial link, facilitating integration into centralized quality management systems (QMS) and laboratory information management systems (LIMS).

Applications

This chamber serves as a core tool in accelerated reliability testing across electronics manufacturing, aerospace component qualification, automotive ECU validation, medical device shelf-life assessment, and polymer aging studies. Typical use cases include: preconditioning PCBAs prior to solder reflow; evaluating moisture sensitivity levels (MSL) per JEDEC J-STD-020; performing temperature-humidity bias (THB) tests on semiconductor packages; verifying hermetic seal integrity under cyclic condensation stress; and conducting long-term storage simulation for battery cells and optical sensors. Its stable low-temperature capability (down to –70 °C) also supports cryogenic material characterization and cold-start validation for automotive electronics.

FAQ

What is the standard temperature and humidity range for the P-Series?
Standard models operate from –20 °C to +150 °C and 20–98 %RH. Extended low-temperature variants support –40 °C or –70 °C minimum, depending on model configuration and cooling method.
Does the chamber support automated compliance reporting?
Yes — when used with the optional PC software package, it generates ISO/IEC 17025-aligned calibration reports, test summary certificates, and deviation logs with full traceability.
Can the controller be locked to prevent unauthorized profile changes?
Yes — the system includes configurable key-lock functionality and password-protected administrator mode for critical settings such as PID parameters and alarm thresholds.
Is the unit suitable for continuous 24/7 operation in production environments?
Yes — designed for industrial duty cycles, it features redundant safety interlocks, corrosion-resistant construction, and maintenance-friendly modular components (e.g., field-replaceable humidifier cartridges and filter-drier assemblies).
What refrigerant is used in the compressor system?
All units utilize environmentally compliant R404A or R507 refrigerants, selected based on regional regulatory requirements and cooling capacity demands.
