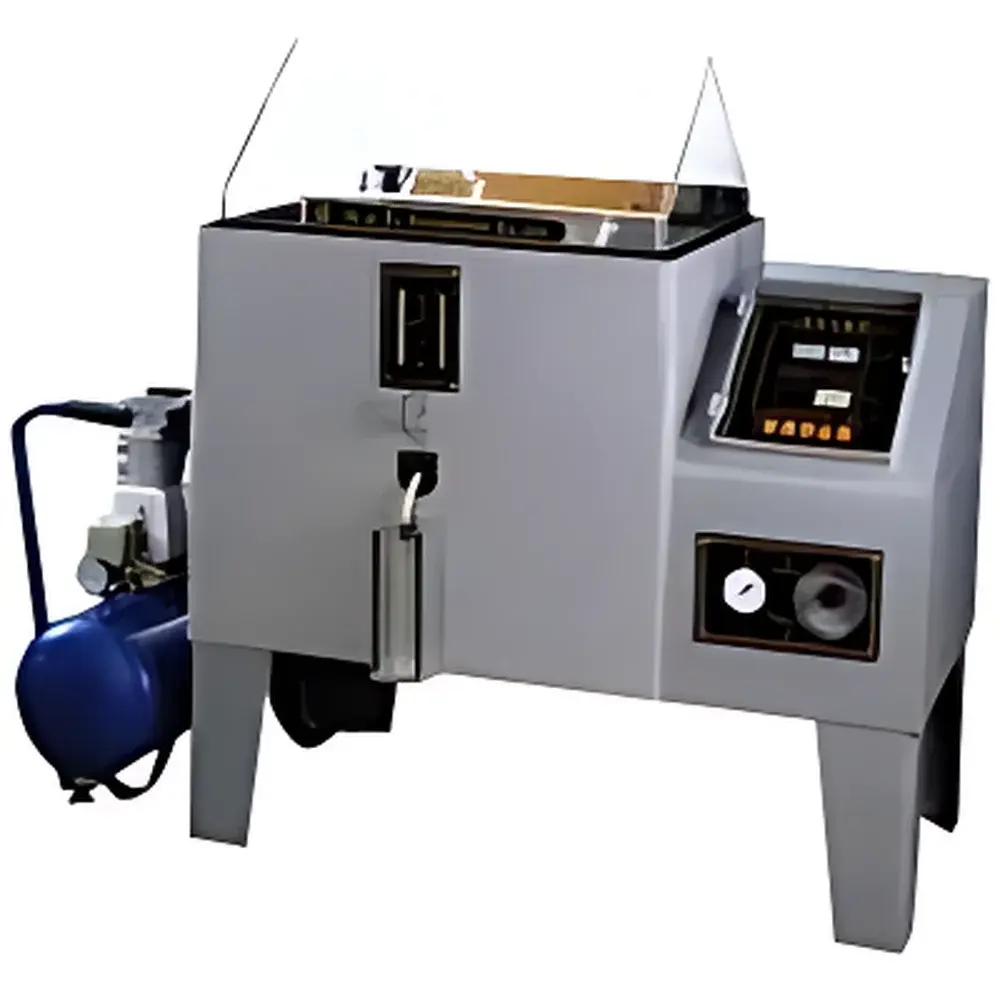

LabCompanion SH Series Salt Spray Test Chamber for Lighting Industry

Overview

The LabCompanion SH Series Salt Spray Test Chamber is an ASTM B117-22 and ISO 9227-compliant environmental test system engineered for accelerated corrosion evaluation of surface-treated components—particularly critical in the lighting industry, where metal housings, reflectors, LED heat sinks, and decorative trims undergo electroplating, anodizing, powder coating, chromate conversion, or organic/inorganic passivation. Operating on the principle of continuous or cyclic salt fog exposure under precisely controlled temperature and humidity conditions, the chamber simulates aggressive coastal or industrial atmospheric environments to quantify time-to-first-corrosion, white rust formation, red rust progression, and coating adhesion degradation. Its design prioritizes metrological stability, repeatability across laboratories, and long-term operational integrity—essential for QC/QA validation, supplier qualification, and regulatory documentation under IATF 16949, ISO/IEC 17025, and lighting-specific standards such as IEC 60598-1 Annex Q (corrosion resistance of luminaires).

Key Features

• Monolithic PVC chamber construction with ring-band 3D structural reinforcement ensures zero dimensional drift over 10+ years of operation—eliminating warping, leakage, or seal failure common in welded or bolted enclosures.
• Five-wall independent heating system maintains spatial temperature uniformity within ±1°C across the full test volume, validated per ASTM E2207 and critical for consistent corrosion kinetics across multi-position sample racks.
• Bernoulli-effect air-assisted nozzles generate fine, non-turbulent salt mist (median droplet size ~1–2 µm) with deposition rate reproducibility of ±0.3 mL/80 cm²·h—measured gravimetrically per ISO 9227 Annex A2.
• Saturation tower operates per Henry’s Law thermodynamic equilibrium, delivering stable 95–100% RH at 47°C to prevent premature drying of salt deposits and ensure congruent electrolyte film formation on specimens.
• PID-controlled temperature regulation achieves ±0.5°C setpoint accuracy—directly mitigating thermal-driven variability in chloride ion mobility and electrochemical reaction rates.
• Integrated low-solution warning system triggers audible alarm when remaining salt solution volume supports <5 hours of continuous spraying—preventing test interruption and data gaps during unattended operation.
• Multi-point fault detection circuitry monitors compressor status, heater continuity, level sensor function, and pressure differential across the saturation tower—illuminating dedicated LEDs for rapid root-cause identification without diagnostic software.

Sample Compatibility & Compliance

The SH Series accommodates flat, curved, or three-dimensional lighting components—including extruded aluminum housings, stamped steel brackets, brass lamp bases, and zinc die-cast reflectors—on adjustable 15° or 30° specimen holders (136/48/24 positions depending on model). All internal fixtures are non-metallic and corrosion-resistant. The chamber meets mandatory requirements for salt spray testing per ASTM B117, ISO 9227, JIS Z2371, GB/T 2423.17, and CNS 4158. It supports GLP-compliant audit trails when integrated with optional data logging modules compliant with FDA 21 CFR Part 11 (electronic signatures, user access control, immutable event logs).

Software & Data Management

While the base SH Series operates via embedded microcontroller with analog/digital PID interface, optional LabCompanion TestSuite™ software (v4.2+) enables remote monitoring, real-time fog deposition mapping, automated report generation (PDF/CSV), and calibration certificate archival. All data exports include timestamped metadata (chamber temp, saturation temp, pH of collected solution, ambient barometric pressure) required for ISO/IEC 17025 technical records. Audit logs record operator ID, parameter changes, alarm events, and maintenance interventions—fully traceable for GMP or automotive PPAP submissions.

Applications

• Validation of chromate-free passivation layers on aluminum LED heatsinks per MIL-DTL-5541F Class 3.
• Comparative assessment of zinc-nickel vs. trivalent chromium plating durability on lamp mounting brackets.
• Corrosion resistance certification of powder-coated streetlight poles under EN 60598-1 Clause 12.4.
• Supplier qualification testing for nickel-plated brass lamp caps per UL 1598 Annex M.
• Failure analysis of white rust formation on galvanized steel junction boxes used in outdoor luminaires.

FAQ

What standards does the SH Series comply with for lighting industry testing?
ASTM B117, ISO 9227, CNS 4158, and IEC 60598-1 Annex Q—covering both general corrosion methodology and luminaire-specific acceptance criteria.
Can the chamber operate continuously for 96+ hours without manual intervention?
Yes—equipped with dual-reservoir configuration (standard) and low-solution alert, it supports uninterrupted 168-hour tests when pre-filled and monitored remotely via optional Ethernet module.
Is the PVC chamber resistant to hydrochloric acid vapor generated during acidic salt spray variants?
Yes—industrial-grade rigid PVC (≥3 mm thickness) exhibits full chemical resistance to HCl vapor up to 50°C per ASTM D543, eliminating risk of chamber degradation during ASS or CASS testing.
How is fog deposition rate verified and calibrated?
Using NIST-traceable glass funnels (80 cm² collection area) placed per ISO 9227 Figure A.1; gravimetric measurement every 24 h with analytical balance (±0.001 g resolution) forms the basis of quarterly calibration.
Does LabCompanion provide IQ/OQ documentation for pharmaceutical or medical device lighting applications?
Yes—factory-installed qualification packages include Installation Qualification (IQ) protocols, Operational Qualification (OQ) test scripts aligned with ASTM E2500, and electronic signature-ready templates compliant with FDA 21 CFR Part 11.
