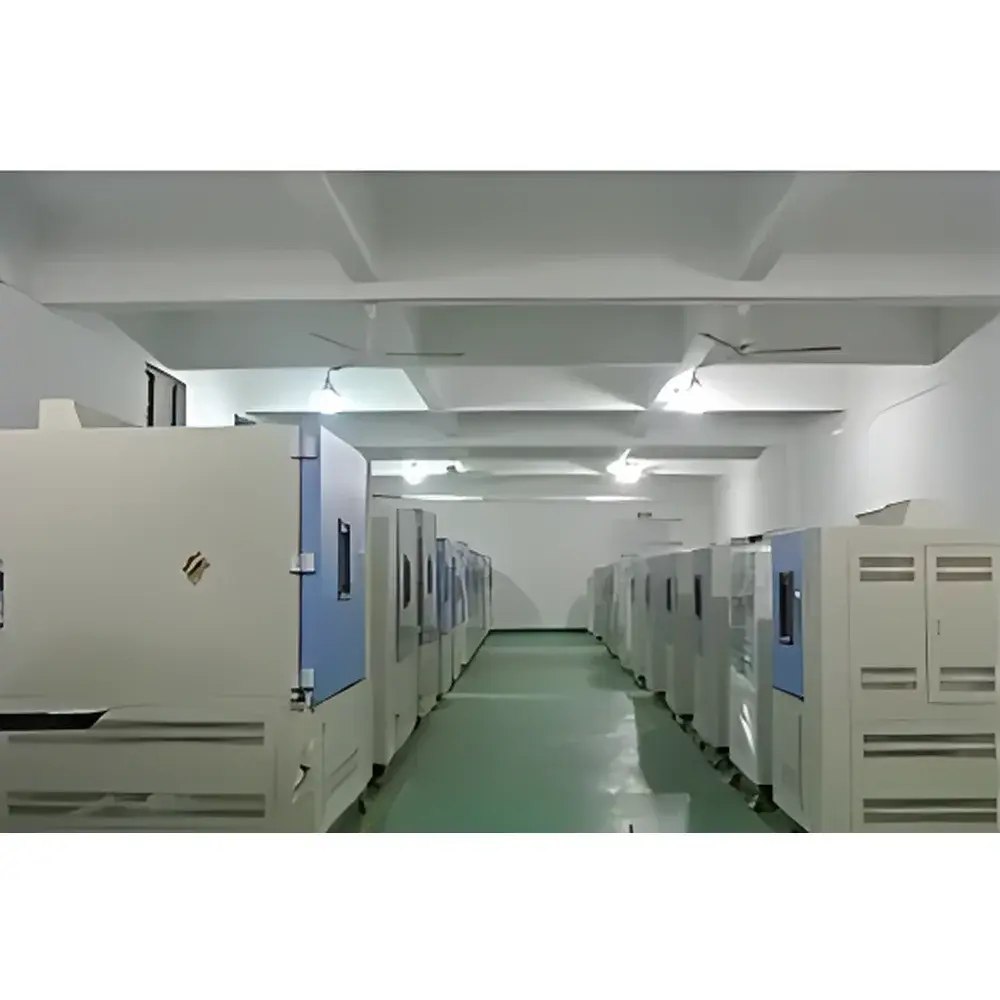

Langbo LHH-150 / LHH-250 Pharmaceutical Stability Testing Chamber

Overview

The Langbo LHH-150 and LHH-250 Pharmaceutical Stability Testing Chambers are engineered for ICH Q1–Q5-compliant long-term, accelerated, and intermediate stability studies in accordance with regulatory requirements for drug development and registration. These chambers implement a precision-controlled dual-loop environmental system—separately regulating temperature, relative humidity, and photometric irradiance—to replicate defined storage conditions per ICH guidelines (e.g., 25°C/60% RH, 30°C/65% RH, 40°C/75% RH). The chamber’s thermodynamic architecture is based on forced-air convection with a balanced, low-turbulence air distribution manifold, ensuring uniform thermal and hygric profiles across the entire working volume. Unlike general-purpose environmental chambers, this system integrates calibrated daylight-spectrum illumination (0–6000 lx) via UV-filtered fluorescent lamps—mounted behind an internal tempered glass barrier—to enable photostability testing per ICH Q1B without compromising lamp service life or sample integrity.

Key Features

• Microprocessor-based dual-channel PID controller for independent, real-time regulation of temperature and humidity—with auto-tuning capability and digital setpoint resolution of 0.1°C and 0.1% RH.
• Stainless steel (SUS304B) mirror-finish interior chamber, corrosion-resistant and compliant with USP cleaning validation protocols; exterior constructed from CNC-formed A3 steel with electrostatic powder coating.
• Dedicated, isolated refrigeration, heating, and humidification circuits—eliminating cross-interference and enabling rapid recovery after door opening or load changes.
• Redundant safety architecture: independent high/low temperature alarms with audible-visual alerts; overheat cut-off protection; leak-proof water reservoir with level monitoring; and sealed lamp compartment with secondary tempered glass isolation.
• Ergonomic design elements including large-view vacuum-insulated double-glazed observation window, adjustable multi-tier stainless steel sample shelves, and standardized 50 mm cable port (with silicone gasket) on left sidewall.
• Comprehensive component sourcing: imported Swiss PT100 temperature sensors, direct-reading humidity transducers, hermetic compressors, and EC centrifugal circulation fans—all selected for long-term metrological stability and MTBF >25,000 hours.

Sample Compatibility & Compliance

The LHH series accommodates a wide range of pharmaceutical dosage forms—including tablets, capsules, injectables in vials, ointments, and lyophilized powders—on freely adjustable stainless steel trays. Its uniformity performance (±0.5°C temperature deviation, ±3% RH spatial variation across the chamber volume) meets the acceptance criteria specified in ASTM E2805–22 and ISO 16770:2021 for stability test equipment qualification. The chamber supports IQ/OQ/PQ documentation packages aligned with FDA 21 CFR Part 11 and EU Annex 11 requirements, including audit trails for setpoint changes, alarm events, and calibration logs. Optional validation support includes mapping reports (per WHO TRS 992 Annex 9), uncertainty budgets per GUM, and traceable NIST-traceable sensor certificates.

Software & Data Management

While the base configuration features a local touchscreen HMI with data logging to internal flash memory (up to 30 days at 1-min intervals), optional Ethernet-enabled controllers support Modbus TCP and OPC UA integration into centralized laboratory informatics systems (e.g., LabVantage, STARLIMS). All logged parameters—including chamber setpoints, actual values, alarm status, lamp ON/OFF cycles, and door-open duration—are time-stamped with UTC synchronization and exportable as CSV or PDF reports. The system records operator ID (via optional RFID login), supports electronic signatures for critical actions, and maintains immutable event history compliant with ALCOA+ principles for GLP/GMP-regulated environments.

Applications

• ICH Q1A(R2) long-term and accelerated stability testing of active pharmaceutical ingredients (APIs) and finished products.
• ICH Q1B photostability assessment under Option 1 (near-UV and visible light) and Option 2 (controlled irradiance) protocols.
• Accelerated aging studies for packaging compatibility (e.g., blister foil permeability, HDPE bottle moisture transmission).
• Real-time stability monitoring during clinical trial material storage (e.g., 2–8°C excursions, 25°C/60% RH hold conditions).
• Support for regulatory submissions to FDA, EMA, PMDA, and NMPA requiring documented environmental control and data integrity.
• Extended use in biologics stability programs where precise humidity control mitigates aggregation or deamidation pathways.

FAQ

Does the LHH chamber comply with ICH Q1B photostability requirements?
Yes—the integrated daylight-spectrum fluorescent array delivers 0–6000 lx irradiance with spectral output matching CIE Publication No. 85, and lamp positioning behind protective glass ensures consistent exposure while meeting ICH-defined radiant energy thresholds.
Can temperature and humidity be controlled independently during a single test cycle?
Yes—dual-loop control architecture enables fully decoupled regulation, allowing dynamic ramp-and-soak profiles (e.g., 40°C → 30°C while holding 75% RH constant) without mutual interference.
Is third-party qualification support available for GMP environments?
Yes—Langbo provides IQ/OQ templates, mapping protocol guidance, and on-site PQ execution support by certified validation engineers familiar with FDA and EMA expectations.
What maintenance intervals are recommended for optimal performance?
Compressor oil and refrigerant checks every 24 months; humidity sensor recalibration annually; lamp replacement every 6,000 operating hours; full chamber sanitization per SOP prior to new product campaigns.
Are custom chamber sizes or extended temperature/humidity ranges possible?
Yes—Langbo offers engineering customization including larger internal volumes (up to 1000 L), sub-zero operation (-10°C), low-humidity capability (<20% RH), and enhanced UV-A/UV-B irradiance modules upon request.
