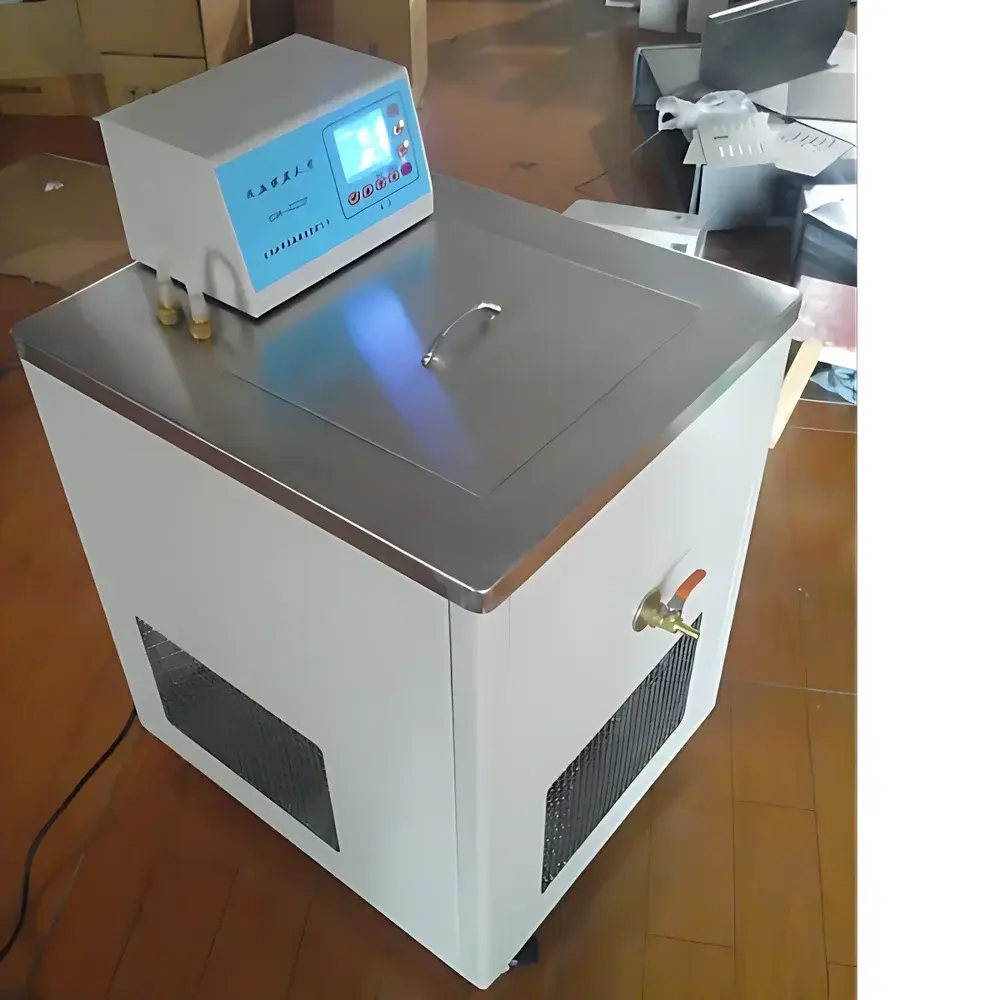

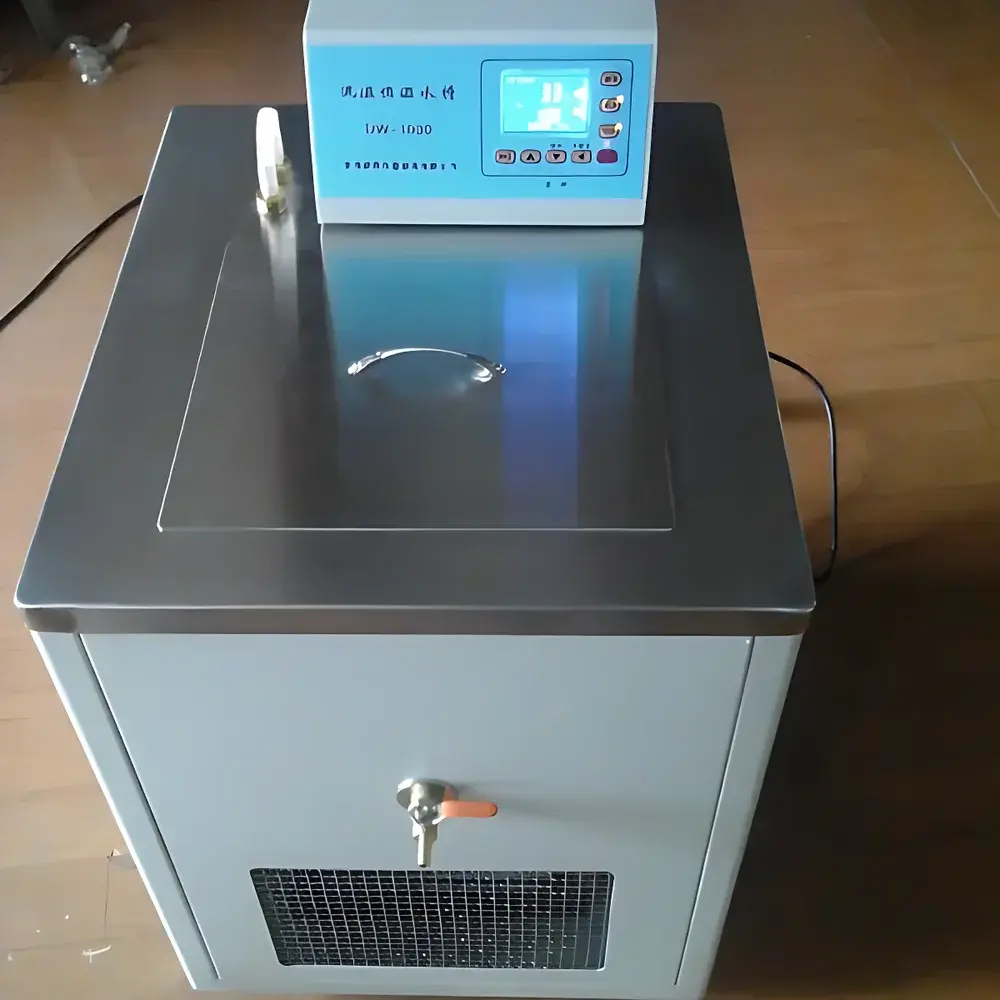

Langbo LKB-MF Contour Marker Seal Integrity Tester

Overview

The Langbo LKB-MF Contour Marker Seal Integrity Tester is a dual-bath, precision-controlled thermal cycling system engineered specifically for evaluating the long-term sealing performance of road delineators—commonly known as contour markers—under standardized environmental stress conditions. Designed in strict accordance with GB/T 24970–2010 “Contour Markers for Road Traffic,” this instrument subjects mounted or embedded contour markers to controlled, simultaneous high- and low-temperature immersion cycles to assess seal integrity, material resilience, and resistance to moisture ingress under accelerated aging protocols. The system operates on a dual-circulation principle: two independently regulated water baths (Bath A: 0–50°C; Bath B: 5–80°C) enable sequential or parallel thermal exposure, simulating real-world diurnal and seasonal thermal gradients experienced by markers installed on highways, bridges, tunnels, urban arterials, and parking facilities. Its core measurement objective is not direct quantification of leakage rate, but rather functional pass/fail verification of seal integrity following defined thermal shock and soak durations per GB/T 24970–2010 Section 6.4.

Key Features

• Dual independent temperature-controlled baths with precise digital PID regulation, each featuring stainless steel inner tanks and high-efficiency fiberglass insulation for minimal thermal drift.
• Microprocessor-based controller with 0.1°C display resolution and automatic sensor offset compensation, ensuring traceable and repeatable setpoint accuracy.
• High-flow (>8 L/min), corrosion-resistant stainless steel circulation pump enabling uniform temperature distribution (≤ ±0.1°C) and external fluid transfer for secondary bath applications.
• Energy-efficient closed-type heating elements (1000 W total) combined with an air-cooled, branded hermetic compressor system for rapid cooling response and low acoustic emission (<55 dB(A)).
• Modular chamber design: two identical 150 × 200 × 200 mm working volumes, allowing concurrent testing of multiple specimens or comparative evaluation of different marker types or mounting configurations.
• Electrostatically coated steel enclosure and reinforced structural frame ensure durability in QC laboratory or field-deployable test environments.

Sample Compatibility & Compliance

The LKB-MF accommodates standard contour markers conforming to GB/T 24970–2010 dimensional and mounting specifications—including catadioptric, retroreflective, and LED-integrated variants—regardless of substrate material (aluminum alloy, PVC, ABS, or polycarbonate). Specimens are mounted in their intended orientation using standardized fixtures (not supplied) to replicate field installation geometry. The instrument supports full compliance execution for Type I (surface-mounted), Type II (post-mounted), and Type III (embedded) contour markers. Test protocols conducted on this system satisfy the thermal conditioning requirements specified in Clause 6.4 (Sealing Performance Test) of GB/T 24970–2010. While not certified to ISO/IEC 17025, the device’s temperature stability, uniformity, and repeatability meet internal calibration standards aligned with ISO 17025 clause 6.4.1 for equipment used in accredited testing laboratories.

Software & Data Management

The LKB-MF operates via an embedded microcontroller interface with no external PC dependency. All temperature setpoints, dwell times, ramp rates, and cycle counts are configured through intuitive soft-touch keys and confirmed via real-time digital display. The controller logs timestamped temperature readings at 30-second intervals during active test phases; data can be exported manually via USB port (optional accessory) in CSV format for integration into laboratory information management systems (LIMS). Audit trails—including operator ID input, start/stop timestamps, deviation alerts, and calibration history—are retained in non-volatile memory. The system supports 21 CFR Part 11-compliant optional firmware upgrades (sold separately), enabling electronic signatures, user-level access control, and immutable record generation for GLP/GMP-regulated quality assurance departments.

Applications

• Quality conformance testing of contour markers prior to highway infrastructure procurement (e.g., provincial DOT tender submissions).
• R&D validation of new encapsulation materials, adhesive formulations, and gasket geometries under thermal cycling stress.
• Batch release testing in manufacturing facilities producing retroreflective sheeting or integrated LED delineators.
• Third-party certification lab verification for CE marking or CCC certification where GB/T 24970–2010 compliance is mandatory.
• Comparative durability assessment between conventional prismatic markers and emerging solar-charged or IoT-enabled smart delineators.
• Supporting root cause analysis in field failure investigations involving moisture-induced delamination or reflectivity loss.

FAQ

What standards does the LKB-MF explicitly support?
It is fully aligned with GB/T 24970–2010, particularly Section 6.4 for sealing performance evaluation. It does not replace ASTM E1502 or EN 1461 for general retroreflector testing.
Can the LKB-MF perform thermal shock testing beyond GB/T 24970–2010?
Yes—its independent dual-bath architecture allows custom ramp-and-soak profiles, including rapid transitions between extreme temperatures, subject to user-defined safety limits.
Is external calibration certification included with purchase?
No. A NIST-traceable calibration certificate (per ISO/IEC 17025) is available as a post-purchase service option, covering temperature sensors and display accuracy across the full operating range.
Does the system require chilled water or glycol supply?
No—it is self-contained with integrated air-cooled refrigeration and electric heating; only standard 220 VAC / 50 Hz power and ambient tap water are required.
What maintenance is recommended for sustained accuracy?
Biannual inspection of pump seals, compressor oil level, and sensor calibration verification; annual replacement of heat-transfer fluid is advised for continuous operation exceeding 2000 hours/year.
