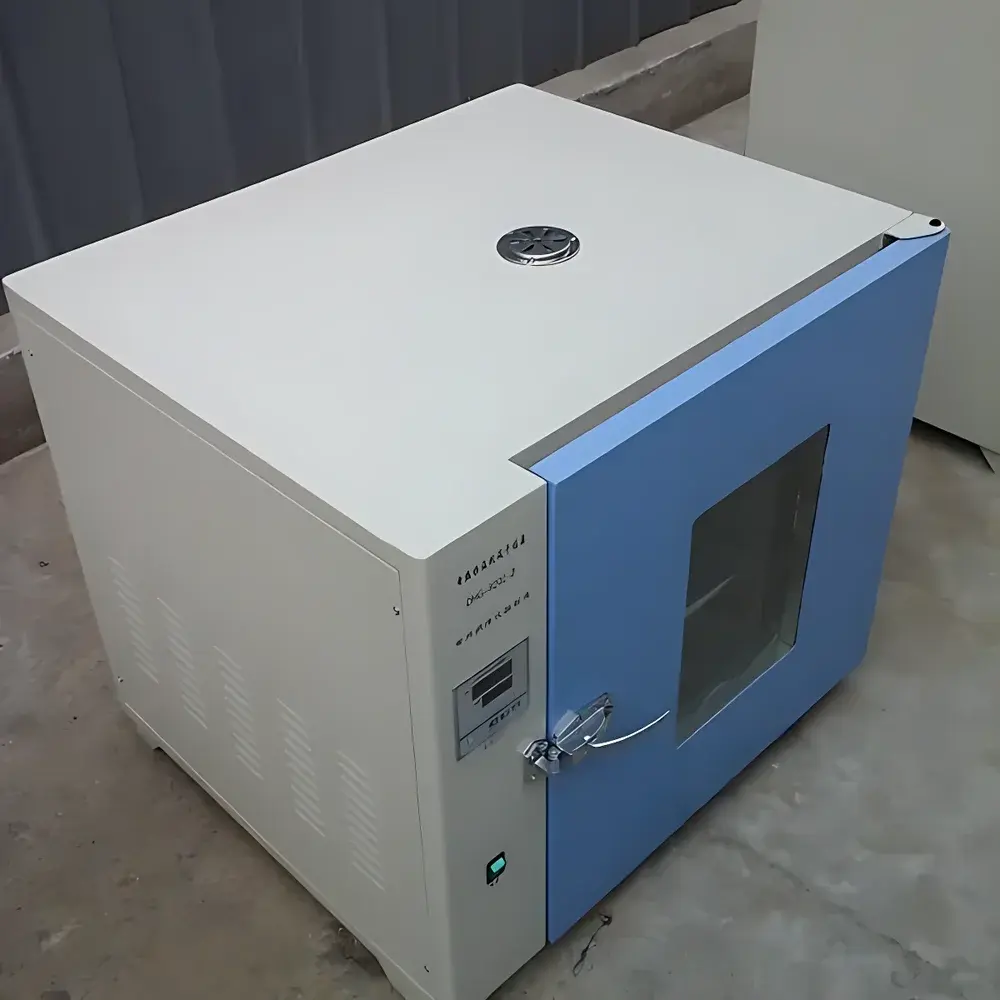

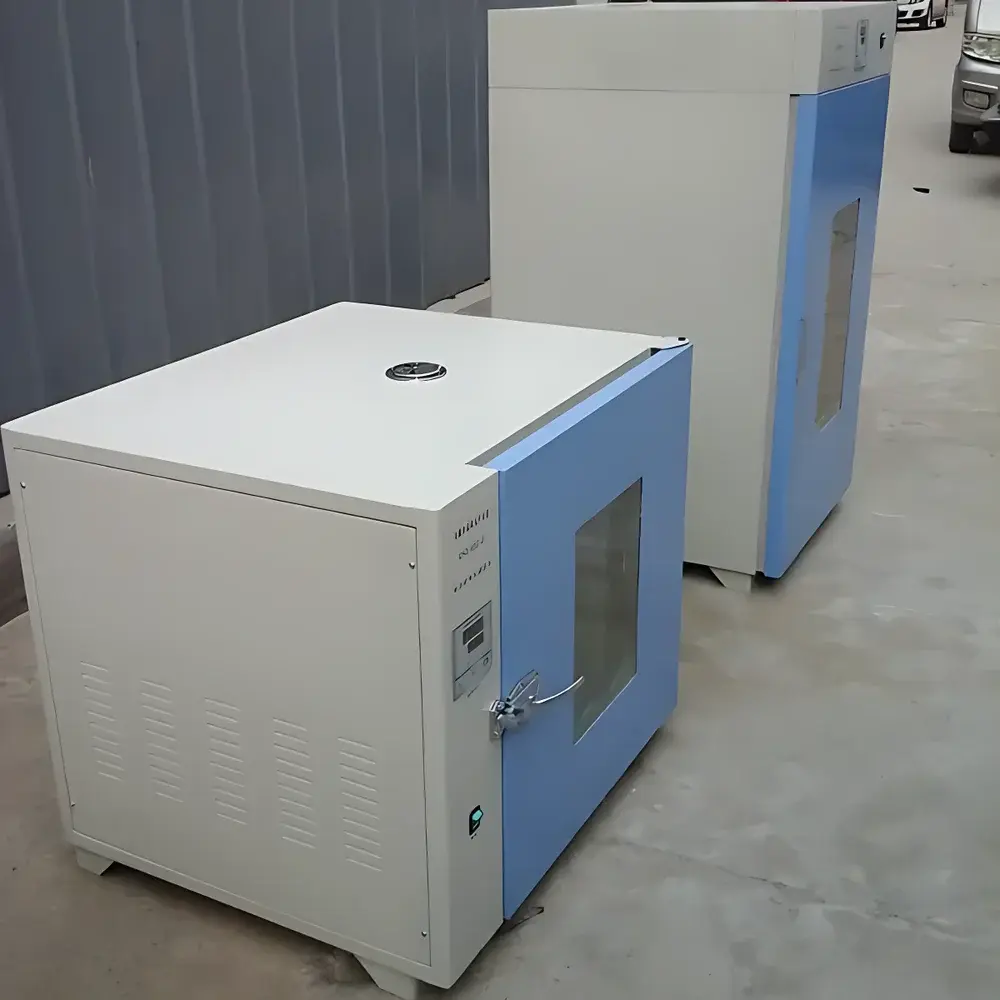

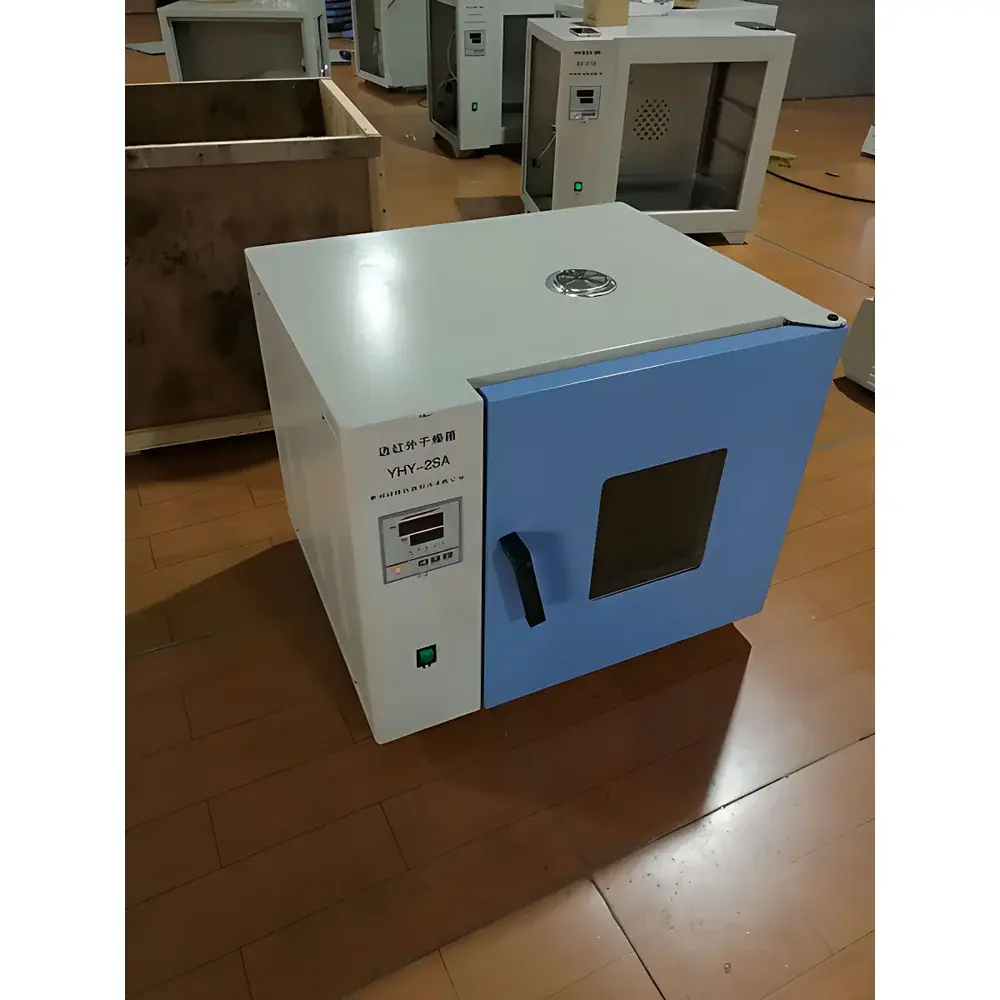

Langbo YHW-0SA Far-Infrared Drying Oven

Overview

The Langbo YHW-0SA Far-Infrared Drying Oven is an engineered thermal processing system designed for precise, energy-efficient drying, curing, and heat-treatment applications in research laboratories, quality control environments, and industrial R&D settings. Unlike conventional convection ovens that rely on air circulation and conductive/convective heat transfer, the YHW-0SA utilizes far-infrared (FIR) radiant heating—emitting electromagnetic radiation in the 3–1000 µm wavelength range—to directly excite molecular vibrations in target samples. This direct energy coupling results in rapid, volumetric heating with minimal thermal inertia, reduced ambient air disturbance, and improved energy conversion efficiency (>65% electrical-to-radiant efficiency, per IEC 60519-12). The oven operates within a validated temperature envelope of RT+10°C to 250°C, with P.I.D.-regulated stability and uniformity compliant with ISO 17025-relevant thermal performance expectations for laboratory-grade drying equipment.

Key Features

• Far-infrared radiant heating elements with high emissivity (ε > 0.92 at 5–8 µm), eliminating the need for reflective coatings and ensuring long-term spectral stability without degradation over 10,000+ operational hours.
• Mirror-finish 304 stainless steel interior chamber (350 × 350 × 350 mm) with removable, adjustable stainless steel shelving—optimized for residue-free cleaning and compatibility with ISO 14644-1 Class 7 cleanroom maintenance protocols.
• Microprocessor-based P.I.D. temperature controller with 0.1°C resolution, real-time digital display, programmable timer (1 min to 9999 min), and dual-stage over-temperature protection (deviation alarm + independent cut-off relay).
• Robust structural design: cold-rolled steel outer casing with electrostatic epoxy-polyester coating; reinforced double-layer door with tempered glass viewport (≥ 120° viewing angle) and high-temperature silicone gasket (rated to 300°C) minimizing thermal leakage.
• Intelligent power management: automatic parameter retention during unexpected power interruption; resume-on-power restoration with user-defined restart behavior (e.g., hold current setpoint or reinitiate timer).
• Compliance-ready architecture: supports audit trails via optional RS485/Modbus RTU interface (firmware v2.1+); compatible with laboratory information management systems (LIMS) for GLP/GMP documentation workflows.

Sample Compatibility & Compliance

The YHW-0SA accommodates a broad spectrum of non-volatile, thermally stable specimens—including polymer films, ceramic precursors, pharmaceutical granules, soil aggregates, botanical extracts, and metallurgical powders—without inducing oxidative surface degradation common in forced-air environments. Its radiative heating profile avoids convective turbulence, making it suitable for delicate particulate or hygroscopic samples requiring controlled moisture evaporation kinetics. The unit meets mechanical safety requirements per GB/T 2893.1 (Chinese national standard equivalent to ISO 3864-1 for warning symbols) and electromagnetic compatibility per GB/T 18268.1 (IEC 61326-1). While not certified to UL/CSA or CE for North American/EU commercial sale, its design principles align with ASTM E145-22 (Standard Specification for Gravity-Convection and Forced-Ventilation Ovens) thermal uniformity benchmarks and supports internal validation per USP for residual solvent removal in compendial testing.

Software & Data Management

The embedded controller provides local data logging of setpoint, actual temperature, elapsed time, and alarm status at user-selectable intervals (1–60 s). Logged data can be exported via USB flash drive (FAT32 format) as CSV files for post-processing in Excel, MATLAB, or statistical process control (SPC) platforms. Optional firmware upgrade enables Modbus RTU communication over RS485, allowing integration into centralized monitoring networks using industry-standard SCADA protocols. All temperature profiles are timestamped with internal RTC (±2 s/month accuracy) and support electronic signature capture when paired with validated third-party LIMS software—meeting traceability requirements under FDA 21 CFR Part 11 for audit-ready recordkeeping.

Applications

• Moisture content determination per AOAC 950.46 and ISO 5530-1 in food, feed, and agricultural commodities.
• Pre-conditioning of test specimens prior to tensile, hardness, or density analysis (ASTM D618, ISO 291).
• Thermal aging studies of elastomers and composites (ASTM D573, ISO 188).
• Drying of filter papers, crucibles, and glassware in analytical chemistry workflows.
• Curing of powder coatings and adhesives in materials development labs.
• Stabilization of reference standards and calibration artifacts requiring low-oxidation thermal treatment.

FAQ

What is the maximum safe operating temperature for continuous use?
The YHW-0SA is rated for continuous operation up to 250°C. For extended-duration runs (>8 h), we recommend limiting sustained use to ≤220°C to optimize heater longevity and thermal seal integrity.
Does the oven include validation documentation for IQ/OQ protocols?
Factory-supplied documentation includes a Certificate of Conformance and basic temperature uniformity test report (per ISO 17025 Clause 7.8.2). Full IQ/OQ protocol templates and on-site qualification support are available as optional services.
Can the chamber accommodate custom fixtures or sample racks?
Yes—the interior features standardized T-slot rails on side walls and floor-mounted anchor points compatible with modular stainless steel rack systems (max load: 15 kg distributed evenly across shelves).
Is remote monitoring supported out of the box?
Remote monitoring requires the optional RS485 communication module and external gateway hardware; no built-in Wi-Fi or Ethernet interface is provided in the base configuration.
How often should the silicone door gasket be replaced?
Under normal use (≤200°C, 2 cycles/day), the gasket maintains sealing performance for ≥24 months. Visual inspection for cracking or compression set is recommended every 6 months.
