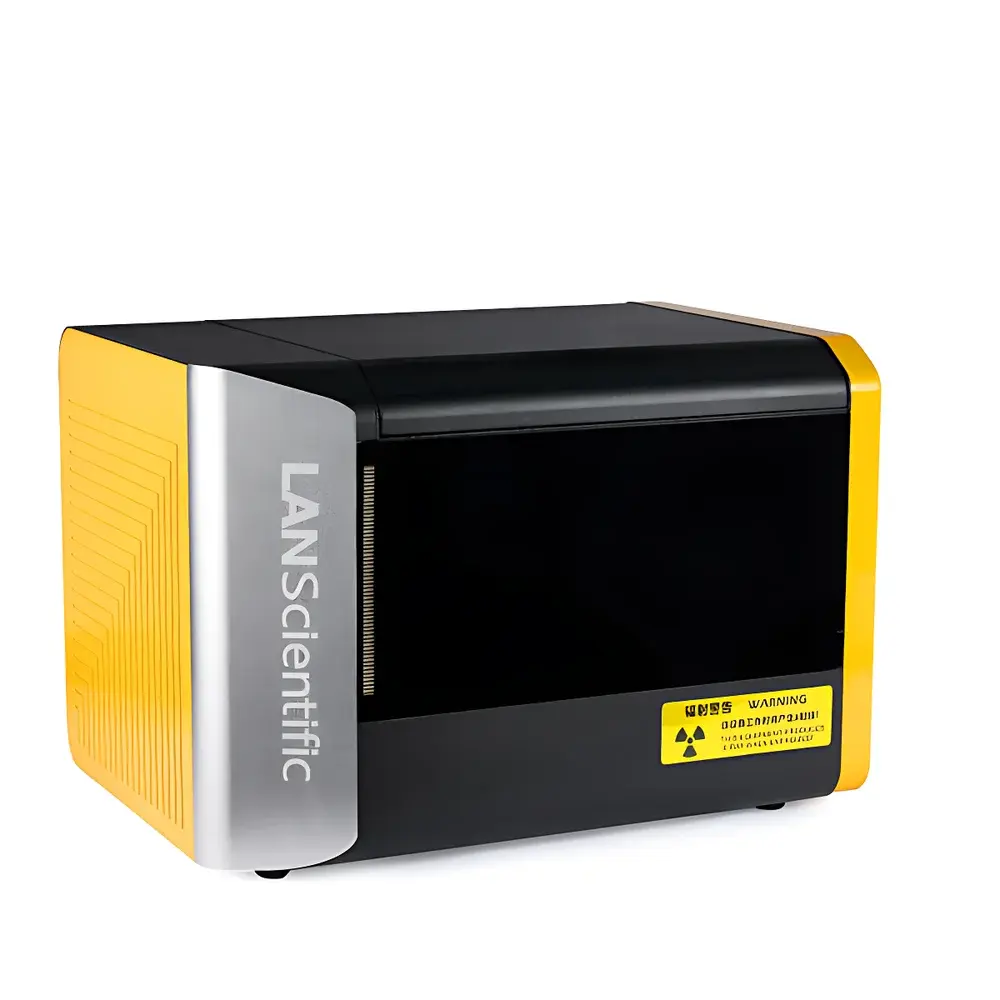

LANScientific ScopeX Desktop Energy Dispersive X-Ray Fluorescence Spectrometer for Limestone Analysis
| Brand | LANScientific |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Direct Manufacturer |
| Regional Classification | Domestic (China) |
| Model | ScopeX Limestone Analyzer |
| Price Range | USD $13,500 – $40,500 (FOB) |
| Form Factor | Benchtop |
| Instrument Type | Conventional ED-XRF |
| Industry-Specific Design | Geological & Mineralogical Applications |
| Elemental Coverage | Na (Sodium) to U (Uranium) |
| Detection Limit | Sub-ppm to % level (matrix-dependent) |
| Sample Compatibility | Solid, Powder, Pellet, Liquid, Thin Film |
| Regulatory Compliance | GB18871-2002, GBZ115-2002 |
Overview
The LANScientific ScopeX Desktop Energy Dispersive X-Ray Fluorescence (ED-XRF) Spectrometer is an industrial-grade benchtop analyzer engineered for rapid, non-destructive elemental quantification in limestone, carbonate rocks, and related geological materials. It operates on the fundamental principle of X-ray fluorescence: primary X-rays from a micro-focus X-ray tube excite atoms in the sample, causing ejection of inner-shell electrons; subsequent electron transitions emit secondary characteristic X-ray photons unique to each element. These spectral signatures—unaffected by chemical bonding state—are detected by a high-resolution silicon drift detector (SDD), enabling simultaneous multi-element analysis from sodium (Na) to uranium (U). The ScopeX platform integrates optimized excitation geometry, intelligent vacuum control, and Peltier-cooled detection to deliver high signal-to-noise ratios for light elements (e.g., Mg, Al, Si, P, S) critical in limestone quality assessment—including CaCO₃ purity, dolomite (CaMg(CO₃)₂) ratio, and trace contaminant profiling (e.g., Fe, Mn, Sr, Pb).
Key Features

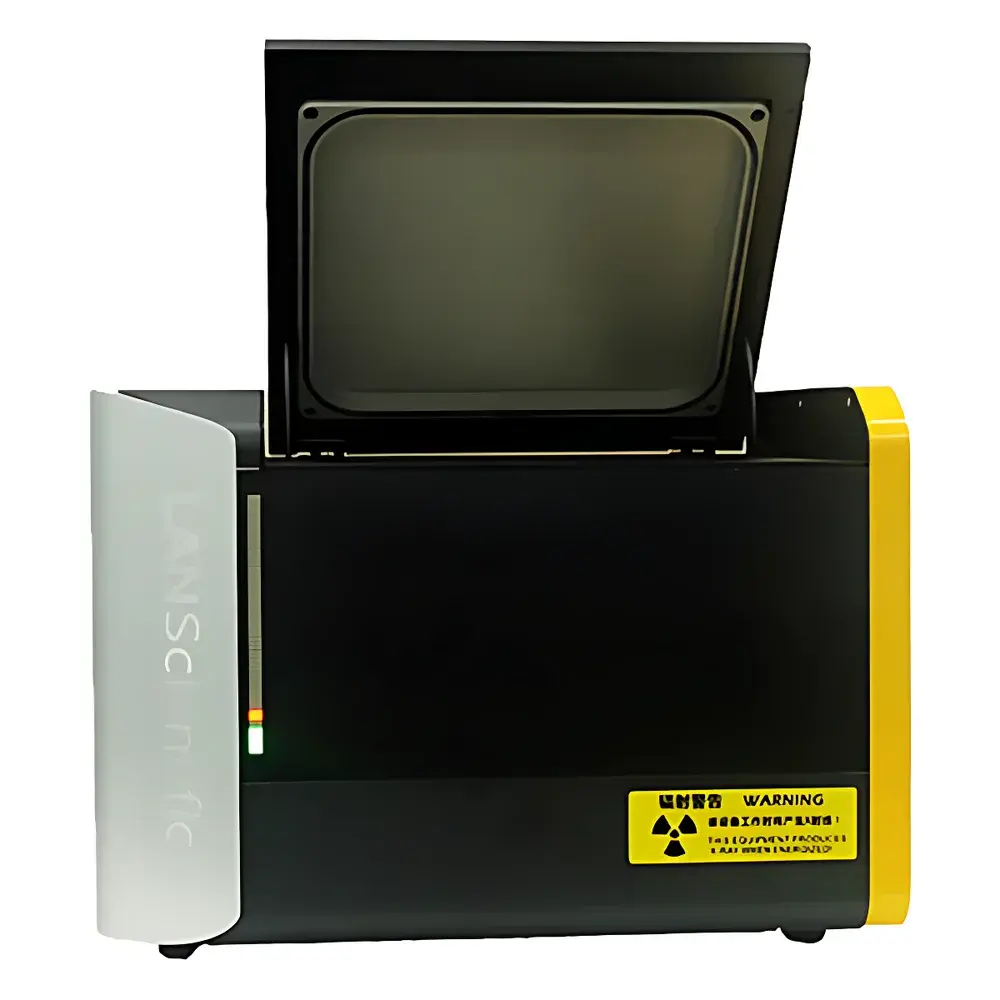

- Compact benchtop architecture with enlarged sample chamber (Ø 100 mm × H 60 mm), accommodating irregular solids, pressed pellets, fused beads, and liquid cells without reconfiguration.
- Micro-focus Rh-anode X-ray tube with variable kV/mA control (up to 50 kV / 1 mA), coupled with automatic vacuum/purge mode switching to enhance sensitivity for elements below calcium (Z < 20).
- High-resolution Peltier-cooled silicon drift detector (SDD) with <125 eV Mn Kα resolution at 0°C, eliminating reliance on liquid nitrogen and ensuring stable long-term calibration.
- Motorized multi-position collimator turret (0.5 mm, 1 mm, 3 mm, 5 mm) and filter wheel (Al, Cu, Ti, none) — both fully software-controlled via LANScientific QuantSuite™ for method-specific optimization.
- Integrated safety system: fully shielded metal enclosure, interlocked door sensor, real-time radiation monitoring, and hardware-enforced beam cutoff — certified compliant with Chinese national standards GB18871-2002 (Basic Safety Standards for Ionizing Radiation) and GBZ115-2002 (Radiation Protection for X-ray Fluorescence Analyzers).
Sample Compatibility & Compliance
The ScopeX analyzer supports direct analysis of raw limestone chips, ground powders (≤75 µm), pressed borate-fused discs, and slurries in sealed XRF cups. Its flexible excitation/detection geometry enables accurate measurement of heterogeneous samples with minimal preparation—critical for quarry feedstock screening and cement raw meal QA. All analytical methods adhere to ASTM C114 (Standard Test Methods for Chemical Analysis of Hydraulic Cement), ISO 29581-1:2009 (Cement – Part 1: Method of Sampling and Analysis), and relevant sections of ISO 12885 (XRF – General Requirements). Data integrity meets GLP/GMP expectations through audit-trail-enabled software logging and user-access controls.
Software & Data Management
QuantSuite™ v4.2 provides intuitive method development, empirical and fundamental parameter (FP) quantification, spectral deconvolution, and statistical process control (SPC) dashboards. Users define custom report templates in Excel or PDF format, embedding company logos, spectral overlays, calibration curves, and metadata (operator ID, timestamp, instrument ID, sample ID). Raw spectra and processed results export via USB 3.0, Wi-Fi (IEEE 802.11ac), or Bluetooth 5.0. Optional integration with LIMS via ASTM E1382-compliant XML schema ensures traceability across enterprise QA workflows.
Applications
- Geological survey labs: Rapid determination of CaO, MgO, SiO₂, Al₂O₃, Fe₂O₃, and trace metals in limestone, dolostone, and marl formations.
- Cement manufacturing: Real-time monitoring of raw mix homogeneity, kiln feed composition, and clinker quality control per ISO 9001 requirements.
- Environmental testing: Screening for heavy metal contaminants (As, Cd, Cr, Pb, Hg) in construction aggregates and soil amendments.
- Mineral processing: Grade control of crushed limestone feed prior to calcination or grinding stages.
- Academic research: Quantitative phase correlation studies between elemental composition and thermal decomposition behavior (TGA-DSC coupling).
FAQ
Does the ScopeX require liquid nitrogen cooling?
No. It employs solid-state Peltier cooling for the SDD, maintaining optimal detector performance at −20°C without cryogenic consumables.
Can it analyze sulfur (S) and phosphorus (P) in low-Ca limestone?
Yes — under vacuum mode with optimized tube voltage (15–25 kV) and 0.5 mm collimation, detection limits for S and P are typically ≤5 ppm in homogeneous matrices.
Is method validation support available for ISO/IEC 17025 accreditation?
Yes. LANScientific provides documented IQ/OQ protocols, CRM-based calibration verification procedures, and uncertainty estimation guidance aligned with EURACHEM/CITAC QUAM:2022.
What sample preparation is required for routine limestone analysis?
For highest precision: drying, grinding to ≤75 µm, and pressing into 32-mm pellets with cellulose binder. For rapid screening: direct analysis of representative chips with auto-background correction.
How is data security ensured during remote reporting?
All wireless transmissions use WPA3-Enterprise encryption; local storage supports AES-256 full-disk encryption; audit logs record every user action with timestamp and IP address.
