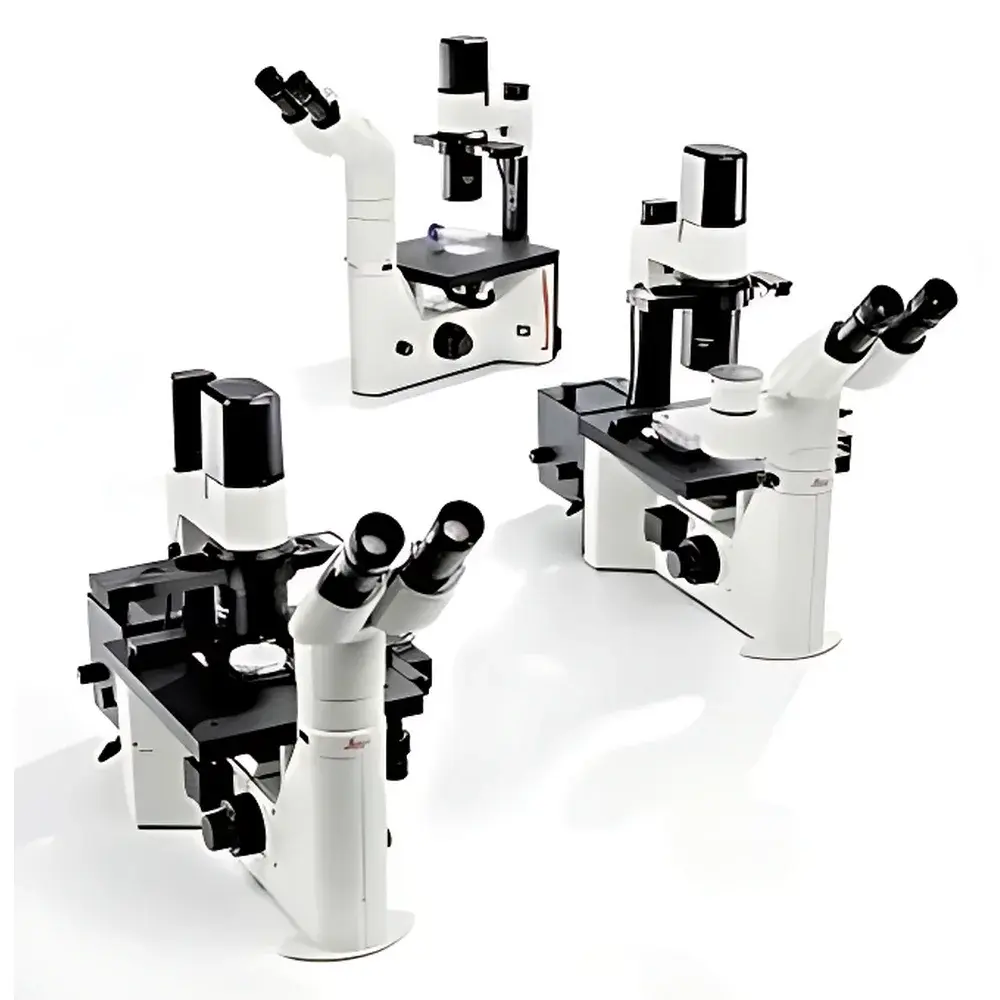

Leica DM IL LED Inverted Laboratory Microscope

Overview

The Leica DM IL LED is a purpose-engineered inverted laboratory microscope optimized for routine and advanced life science applications in cell culture monitoring, live-cell imaging, micromanipulation, and quality control of adherent and suspension cultures. Its optical architecture employs high-transmission, anti-reflective coated achromatic objectives and precision-ground condenser optics engineered for consistent phase contrast performance across magnifications from 10× to 40×. Unlike conventional halogen-based inverted systems, the DM IL LED integrates a thermally stabilized 10 W high-luminance LED illumination module—delivering stable color temperature (~5,600 K), minimal phototoxicity, and zero warm-up delay. The system operates on Köhler illumination principles, ensuring uniform field illumination and optimal contrast transfer without external heat generation at the specimen plane—a critical advantage for long-term observation of temperature-sensitive biological samples.

Key Features

• Ergonomic Human-Centered Design: Fully adjustable binocular tube with continuous interpupillary distance (55–75 mm) and individual diopter compensation (±5 dpt); height-adjustable stage (range: 30 mm) accommodates flasks up to 175 cm² and multi-well plates without repositioning.
• Extended Working Distance Optics: Optimized mechanical tube length and objective mounting geometry provide ≥5.2 mm working distance at 40×, enabling unobstructed access for micropipettes, microinjection tools, or environmental chambers.
• Integrated Phase Contrast System: Motor-free, manually indexed contrast slider supports rapid switching between BF, PC, and optional darkfield alignment; compatible with standard phase contrast annuli for 10×, 20×, 32×, and 40× objectives—no dedicated phase objectives required.
• LED Illumination Architecture: Constant-current-driven 10 W white LED with closed-loop intensity feedback; brightness automatically adapts to selected contrast mode and objective magnification via embedded firmware logic; lifetime rated at 50,000 hours at full output with <0.5% chromatic shift over operational life.
• Modular Expansion Readiness: Standard dovetail interfaces support seamless integration of optional modules including heated stage (ambient to 45 °C, ±0.3 °C stability), fluorescence LED excitation units (365 nm, 470 nm, 530 nm, 630 nm), and fiber-coupled epi-illumination adapters.

Sample Compatibility & Compliance

The DM IL LED is validated for use with standard tissue culture formats—including T-flasks, Petri dishes, chamber slides, and 6–96-well plates—and maintains optical fidelity across glass-bottom, polymer, and collagen-coated substrates. Its open-stage architecture permits concurrent use with CO₂ incubator-compatible accessories and environmental control enclosures. From a regulatory perspective, the instrument’s design aligns with key requirements for Good Laboratory Practice (GLP) and Good Manufacturing Practice (GMP) environments: all firmware operations are timestamped and non-erasable; LED intensity logs and user-accessed contrast settings can be exported as CSV for audit trails; mechanical adjustments (e.g., stage position, condenser height) are repeatable within ±2 µm tolerance. While not FDA 21 CFR Part 11–certified out-of-the-box, the system supports third-party electronic lab notebook (ELN) integration via RS-232 and USB virtual COM port protocols.

Software & Data Management

The DM IL LED operates as a standalone optical platform but is fully compatible with Leica Application Suite (LAS X) Core software via optional USB camera interface (e.g., Leica DFC series). LAS X enables image acquisition, annotation, measurement (area, length, intensity profiling), time-lapse scheduling, and metadata embedding (objective ID, illumination mode, exposure parameters). All acquired data conforms to TIFF 6.0 and JPEG2000 standards; export formats include PDF reports compliant with ISO/IEC 17025 documentation guidelines. Firmware updates are delivered through Leica’s secure customer portal and require digital signature verification prior to installation—ensuring traceability and version control per ISO 13485 medical device quality management standards.

Applications

• Routine QC of mammalian, insect, and stem cell cultures—including confluence estimation, morphology assessment, and contamination screening.
• Long-term live-cell imaging experiments requiring thermal and photonic stability (e.g., mitosis tracking, wound-healing assays).
• Microinjection, electroporation, and patch-clamp preparation where unobstructed top access and vibration-damped stage positioning are essential.
• Teaching laboratories requiring robustness, low maintenance, and intuitive operation for undergraduate and graduate instruction in cell biology and histology.
• Bioprocess monitoring in upstream development labs, particularly for adherent bioreactor systems and scaffold-based 3D culture models.

FAQ

Is the DM IL LED manufactured by Leica Microsystems in Germany?
No—the DM IL LED is produced under license by Leica’s manufacturing partner in Shanghai, China, adhering to Leica’s global optical and mechanical specifications, quality control protocols, and ISO 9001:2015 certified production processes.
Can I upgrade to fluorescence capability after purchase?
Yes—fluorescence modules (LED-based excitation units and filter cubes) are field-installable using standardized mechanical and electrical interfaces; no disassembly of the main optical path is required.
Does the system support automated focus maintenance during time-lapse imaging?
Not natively—the DM IL LED does not include hardware-based Z-drift compensation; however, LAS X software offers software-based focus tracking when paired with a motorized Z-drive accessory (sold separately).
What is the warranty coverage for the LED light source?
The 10 W LED module carries a 3-year limited warranty covering lumen depreciation beyond 15% and color temperature deviation exceeding ±200 K under normal operating conditions.
Are replacement objectives and condensers interchangeable with older Leica inverted models?
Objectives conform to Leica’s RMS thread standard (W25 × 0.75) and are mechanically compatible with DM IRB/DMI series; condensers require verification of turret aperture diameter and height calibration—consult Leica Technical Bulletin TB-IL-02 for cross-model compatibility matrices.
