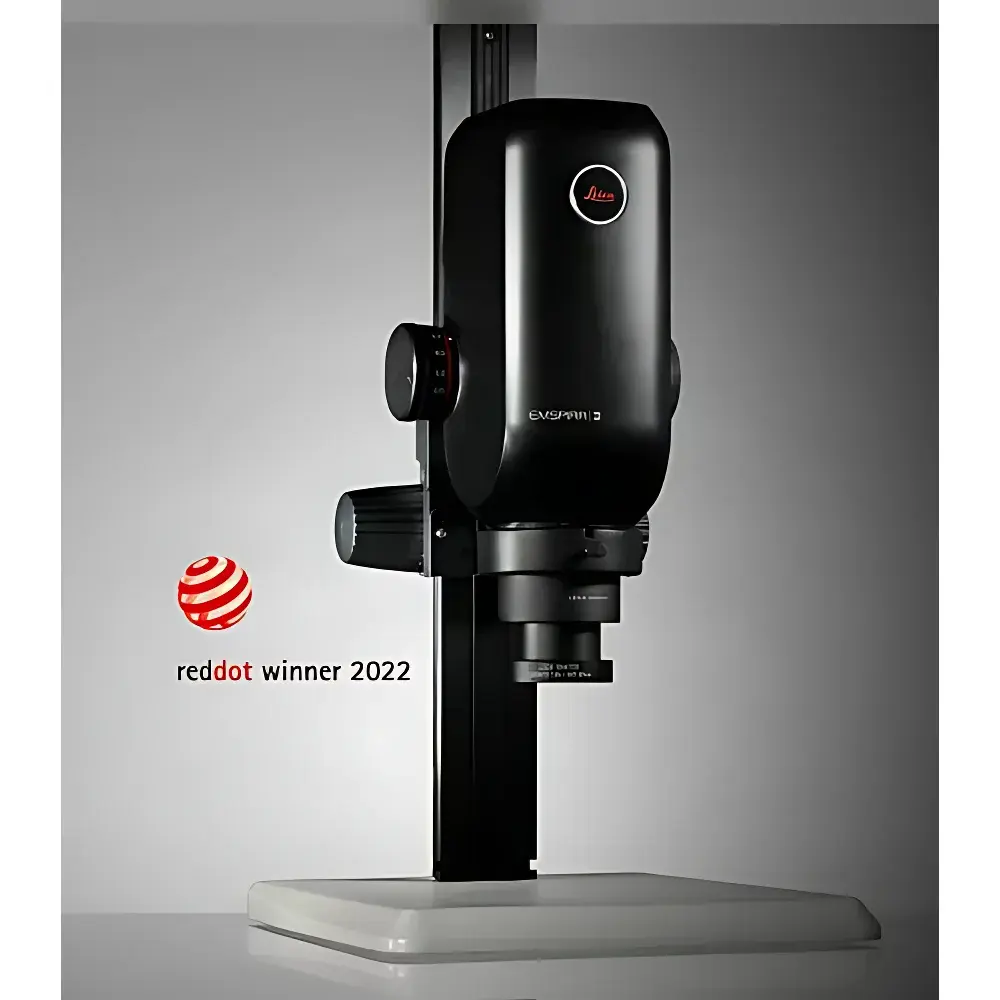

Leica Emspira 3 Digital Microscope

Overview

The Leica Emspira 3 Digital Microscope is an industrial-grade, fully integrated digital inspection system engineered for high-reliability visual quality control in production, laboratory, and R&D environments. Unlike traditional compound or stereo microscopes requiring eyepieces and external imaging hardware, the Emspira 3 employs a high-sensitivity CMOS sensor coupled with an optically corrected, motorized 8:1 encoded zoom objective to deliver real-time, distortion-corrected 4K imagery at up to 60 frames per second. Its core measurement architecture relies on calibrated, position-encoded optical components—ensuring traceability of magnification, working distance, and field-of-view parameters in accordance with ISO 9022-3 and VDI/VDE 2634 Part 2 standards for optical metrology. Designed for zero-dependency operation, the system runs a dedicated embedded version of Leica Application Suite (LAS) X Lite, enabling full image capture, annotation, comparative overlay, and quantitative measurement without any host computer.

Key Features

• Encoded 8:1 motorized zoom optics: Guarantees repeatable magnification settings and eliminates manual scale misinterpretation during measurement workflows.
• Real-time 4K imaging at 60 fps: Delivers fluid, low-latency visualization essential for dynamic inspection tasks such as solder joint evaluation, fiber alignment, or moving component assessment.

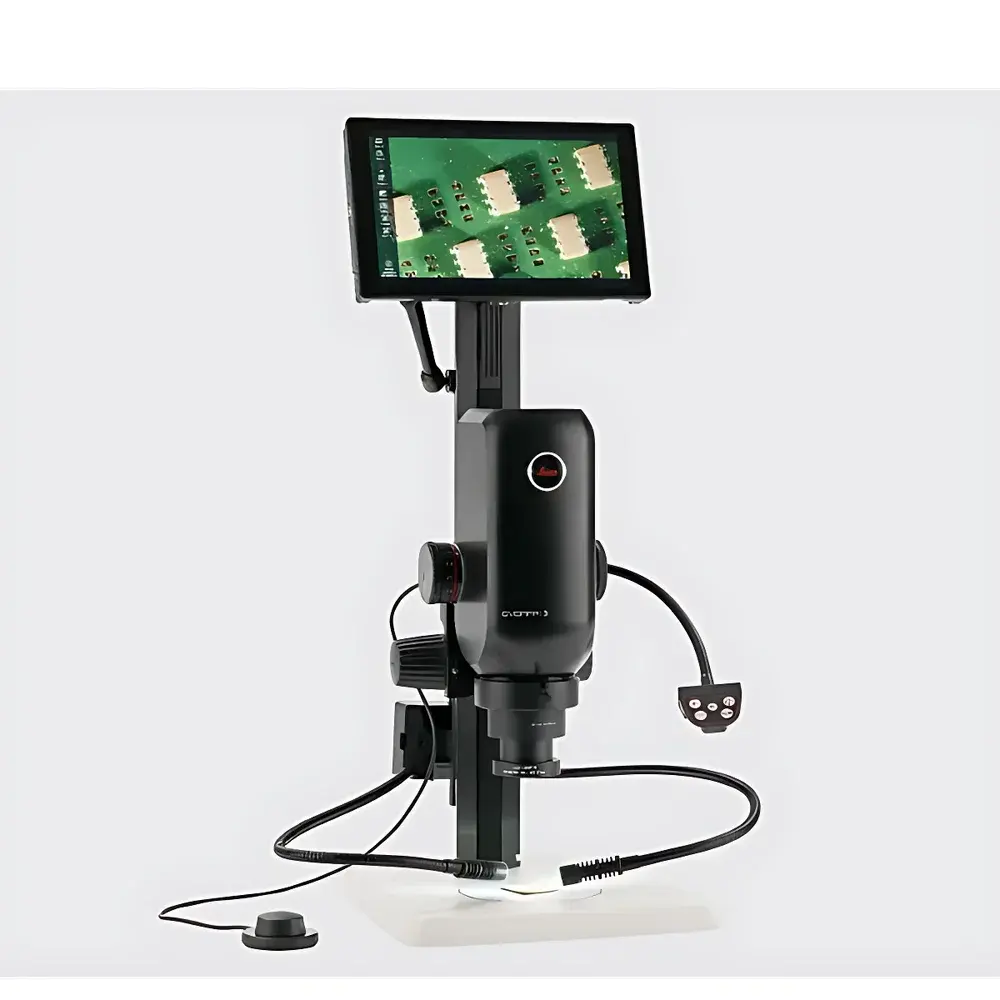

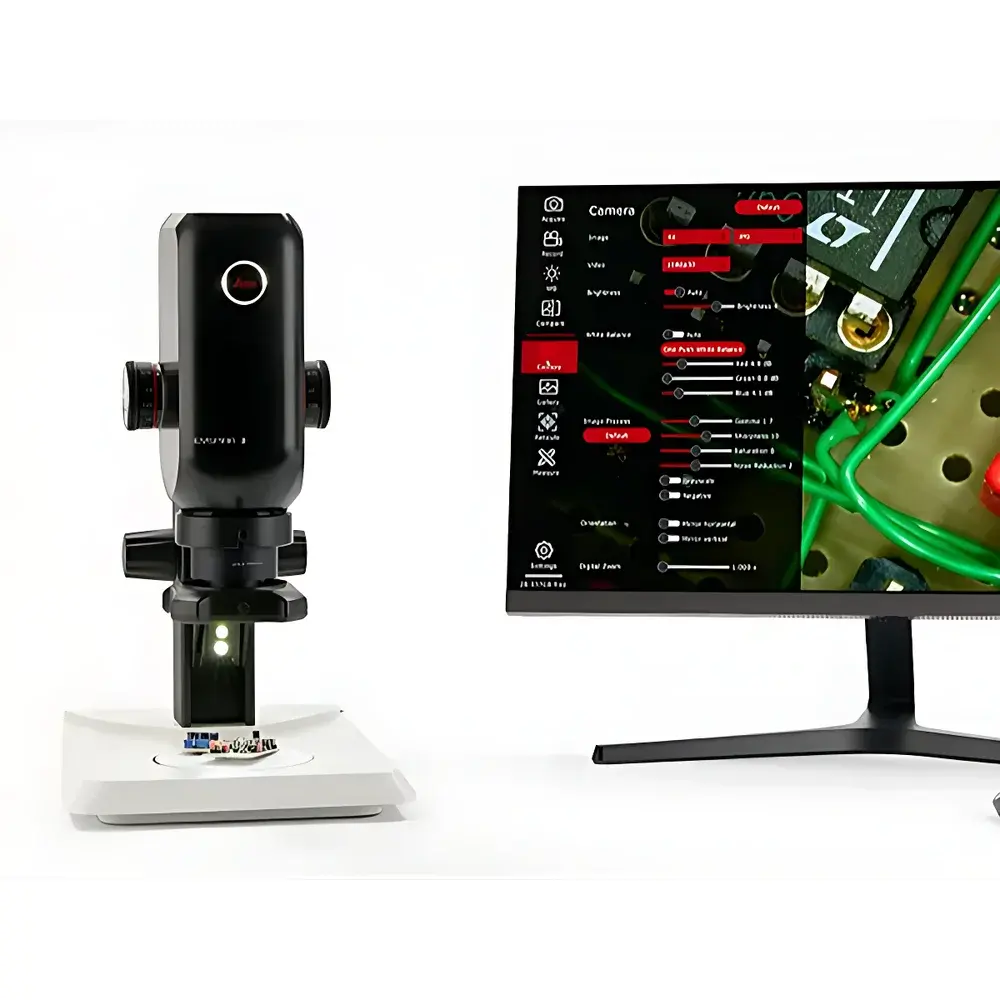

• Standalone operation with on-device OSD interface: Intuitive touch- or button-driven menu system allows full control—including measurement, annotation, comparison, and export—without external computing resources.
• Modular illumination system: Supports interchangeable LED-based lighting configurations: coaxial, ring, oblique, and transmitted—optimized for surface topography, edge contrast, transparency, or reflectivity-dependent features.
• IP21-rated robust housing: Industrial-grade mechanical design protects optical pathways and electronics from dust ingress and incidental splashes; suitable for shop-floor deployment without environmental enclosures.
• AgTreat® antimicrobial surface treatment: Applied to frequently contacted surfaces (e.g., control panel, base housing) to reduce microbial viability in shared-use environments, supporting ISO 22196-compliant hygiene protocols.

Sample Compatibility & Compliance

The Emspira 3 accommodates a broad range of macro-to-mesoscale samples—from PCB assemblies and machined metal parts to polymer films, biological tissue sections, and additive-manufactured components—without requiring sample sectioning or conductive coating. Its large depth-of-field and wide working distance (up to 120 mm at lowest magnification) support non-contact inspection of bulky or irregularly shaped objects. The system complies with IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emissions) for industrial electromagnetic compatibility. All measurement data generated under encoded zoom/focus conditions are compliant with GLP/GMP documentation requirements when exported with timestamped audit trails and user authentication logs. Optional LAS X software extension supports 21 CFR Part 11–compliant electronic signatures and role-based access control for regulated QC laboratories.

Software & Data Management

Embedded LAS X Lite provides native support for ISO/IEC 17025-aligned documentation workflows: measurements include uncertainty estimation based on pixel calibration and optical distortion correction coefficients stored within each image’s EXIF metadata. Captured images and annotated reports can be saved directly to USB 3.0 storage devices, mounted SMB/CIFS network shares, or dispatched via SMTP-configured email—all without intermediate PC intervention. Batch export functions preserve folder hierarchies and naming conventions defined by user templates. For enterprise integration, optional LAS X Enterprise enables centralized configuration management, remote firmware updates, and SAML-based single sign-on (SSO) authentication across multi-site deployments.

Applications

• Electronics manufacturing: SMT solder joint inspection, BGA void analysis, flex circuit trace verification, and connector pin coplanarity assessment.
• Precision machining: Surface defect mapping, burr detection, thread pitch verification, and GD&T feature evaluation (e.g., flatness, circularity).
• Materials science: Coating thickness estimation (via edge step-height analysis), particle size distribution in powders, and composite delamination tracking.
• Failure analysis labs: Crack propagation documentation, corrosion morphology classification, and cross-section correlation between optical and SEM datasets.
• Educational & training facilities: Standardized visual assessment protocols with built-in reference image libraries for pass/fail decision training.

FAQ

Does the Emspira 3 require a computer to perform measurements?
No. All measurement functions—including length, angle, area, and profile analysis—are executed onboard using the embedded LAS X Lite operating system.
Can measurement results be traced to national standards?
Yes. Encoded zoom and focus mechanisms provide digitally recorded positional data, enabling calibration traceability to NIST-traceable standards when validated using Leica-certified calibration slides.
Is it possible to integrate the Emspira 3 into a factory MES or LIMS?
Yes. Through optional LAS X Enterprise, the system supports RESTful API endpoints and OPC UA connectivity for bidirectional data exchange with manufacturing execution systems.
What is the maximum supported network storage path depth for automated image archiving?
The embedded OS supports SMB v2/v3 shares with nested directory structures up to 12 levels deep, compatible with Windows Server, NetApp, and Synology NAS platforms.
How often does the system require recalibration?
Under typical industrial use, annual verification against Leica calibration standards is recommended; no routine recalibration is needed unless physical impact or environmental shock occurs.
