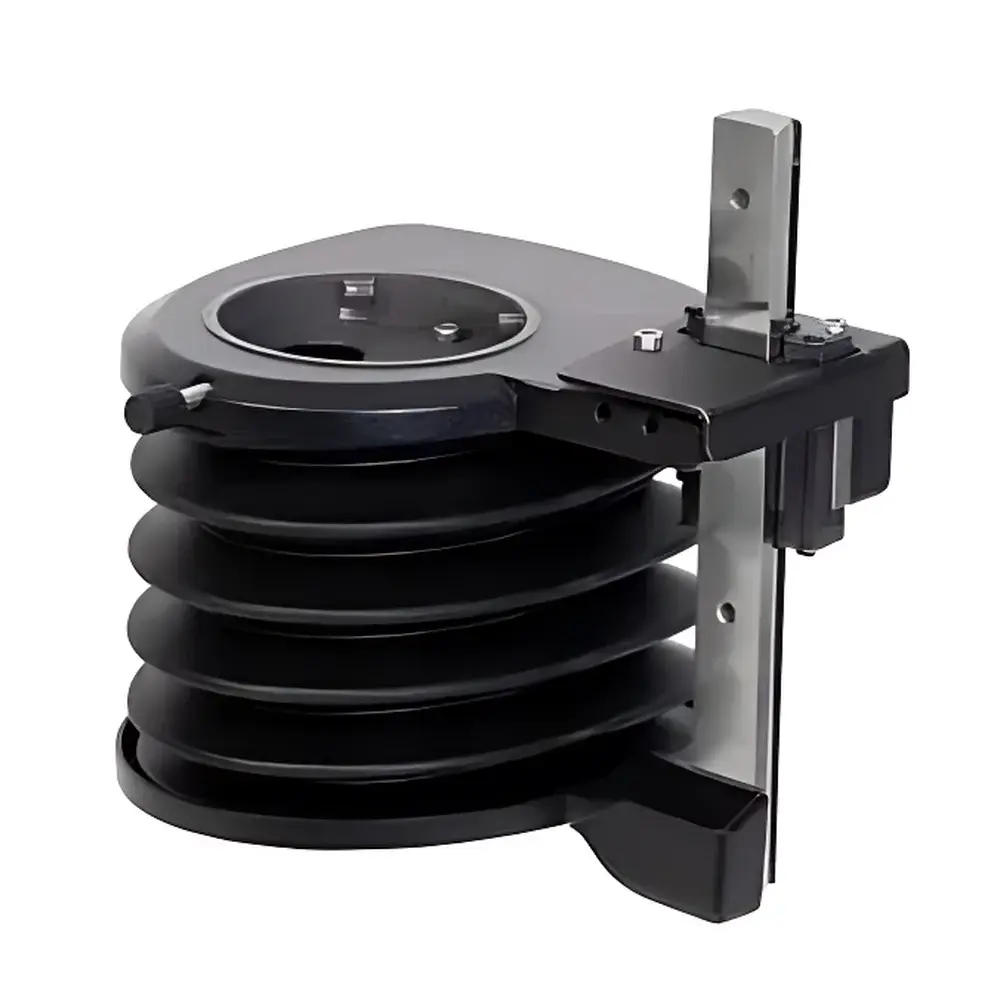

Leica ErgoModule 30–120 mm Adjustable Height Extension Module for Stereo Microscopes

Overview

The Leica ErgoModule 30–120 mm is an engineered ergonomic extension module designed exclusively for integration with Leica’s low-profile stereo microscope platforms—including the M50, M60, M80, MS5, MZ-series (e.g., MZ6, MZ9), and M3B/C/Z models. Unlike standalone optical instruments, this module functions as a precision-machined mechanical interface that elevates the microscope’s optical path while preserving parfocality, coaxial illumination alignment, and working distance integrity. It operates on a calibrated vertical translation principle, enabling continuous, repeatable height adjustment from 30 mm to 120 mm above the base mounting plane. This range accommodates diverse anthropometric requirements—particularly for users ranging from 155 cm to 195 cm in stature—without compromising optical performance or requiring reconfiguration of integrated lighting, camera ports, or auxiliary peripherals. The module is constructed from corrosion-resistant anodized aluminum and hardened stainless steel components, ensuring long-term dimensional stability under routine laboratory use.

Key Features

• Adjustable height range: 30 mm to 120 mm in fine increments, with dual-position locking mechanism for rapid reproducible setup
• Optically neutral design: maintains native magnification, field-of-view, and depth-of-field characteristics of host stereo microscope systems
• Integrated dovetail and bayonet-mount interfaces compatible with Leica’s standardized M-series mechanical coupling architecture
• Zero-backlash vertical translation stage with micrometer-scale repeatability (±0.1 mm) across full travel range
• Modular compatibility: supports concurrent use with Leica LED illumination units (e.g., KL300 LED), digital imaging adapters (DFC series), and motorized focus controllers
• Compliant with ISO 9241-5 (Ergonomics of human-system interaction – Part 5: Workstation layout and postural requirements)

Sample Compatibility & Compliance

The ErgoModule does not directly interact with specimens; rather, it enhances operator ergonomics during macroscopic observation of solid, opaque, or semi-transparent samples—such as electronic assemblies, botanical specimens, forensic evidence, pharmaceutical tablets, or metallurgical cross-sections—under Leica stereo microscopes. Its mechanical integration preserves all original optical specifications defined in the host system’s technical documentation (e.g., M50’s 5.5×–55× zoom ratio, M80’s Greenough optical path). The module itself conforms to EU Machinery Directive 2006/42/EC and carries CE marking. It supports GLP-compliant workflows when deployed in regulated environments (e.g., QC labs performing visual inspection per USP or ISO 13485), provided the underlying microscope platform is validated and maintained per manufacturer-recommended service intervals.

Software & Data Management

As a purely mechanical extension component, the ErgoModule contains no embedded electronics, firmware, or software interface. It requires no drivers, calibration files, or configuration utilities. All operational parameters—including height setting—are manually adjusted and mechanically locked. However, its stable platform enables consistent positioning for automated image acquisition workflows when paired with Leica Application Suite (LAS X) v3.5+, particularly in tiled scanning, extended-depth-of-focus (EDF) reconstruction, or measurement annotation protocols. Audit trails for height-related procedural steps must be documented manually or via LAS X’s metadata logging features (e.g., user-defined annotation fields referencing “ErgoModule position: 85 mm”).

Applications

• Electronics manufacturing: SMT solder joint inspection and PCB rework at optimal viewing angles for seated operators
• Academic histology labs: Prolonged dissection and tissue mounting tasks requiring variable vertical access without posture-induced fatigue
• Quality control in medical device assembly: Visual verification of laser-welded components under consistent illumination geometry
• Museums and conservation studios: Non-invasive examination of fragile artifacts where minimal handling and adjustable line-of-sight are critical
• Industrial metrology: Integration into custom jigs for comparative dimensional assessment of machined parts using Leica’s DVM6 or DMS1000-compatible stereoscopic imaging setups

FAQ

Does the ErgoModule affect optical resolution or magnification?

No. It introduces no additional optical elements and does not alter the magnification, NA, or resolution limits specified for the host microscope.
Can it be used with third-party stereo microscopes?

No. Mechanical and interface specifications are proprietary to Leica’s M-series and MZ-series platforms; non-Leica systems lack compatible mounting geometry and load-bearing tolerances.
Is recalibration required after height adjustment?

No. The module maintains mechanical registration with the microscope’s optical axis; only coarse focus may require minor readjustment due to changed working distance.
What maintenance is recommended?

Annual inspection of locking screws and dovetail engagement surfaces; cleaning with isopropyl alcohol and lint-free wipes; no lubrication required.
Is it suitable for cleanroom Class 100 (ISO 5) environments?

Yes—provided the host microscope is certified for such use and all exposed surfaces are passivated per ISO 14644-1 particle generation testing protocols.
