Leica ToricEyePiece Surgical Microscope Eyepiece for Toric IOL Alignment

Overview

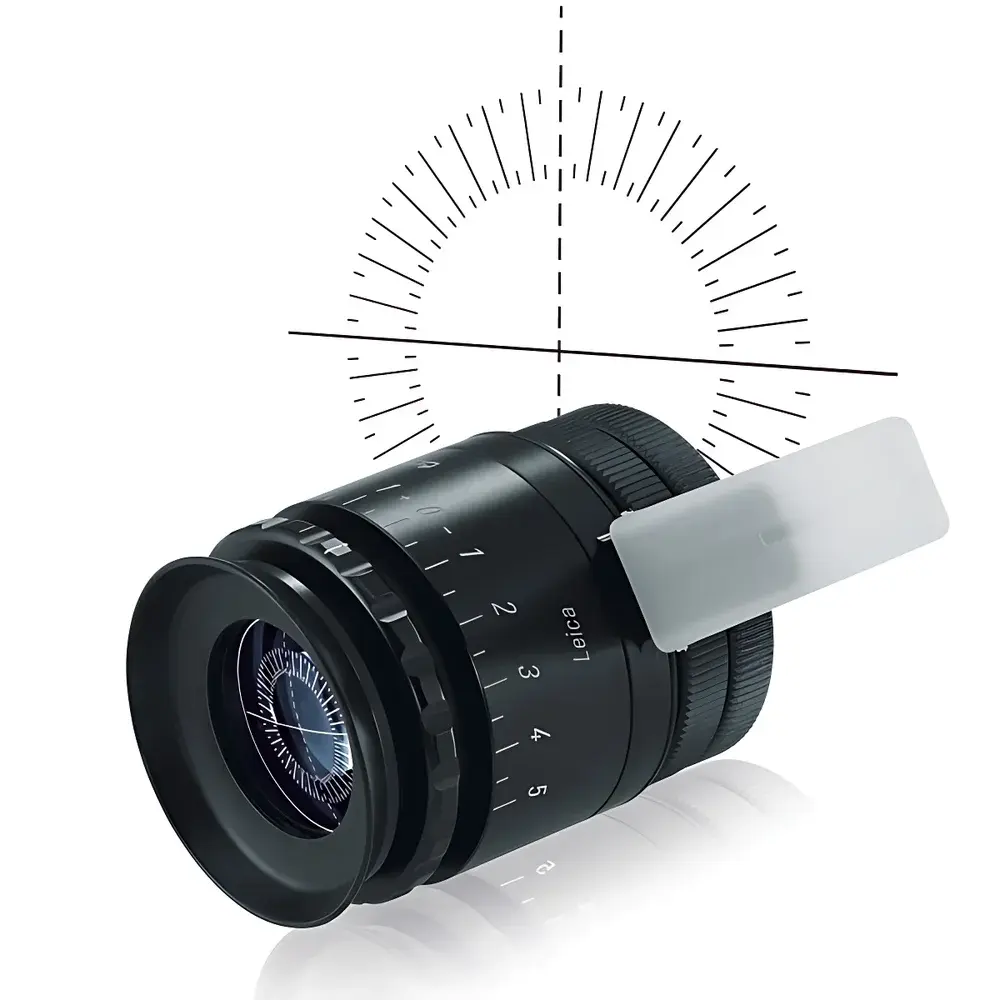

The Leica ToricEyePiece is a purpose-engineered surgical microscope eyepiece accessory designed specifically to support precise intraoperative alignment of toric intraocular lenses (IOLs) in cataract and refractive lens exchange procedures. Unlike conventional eyepieces, it integrates a calibrated, manually rotatable reticle featuring orthogonal crosshairs and a concentric angular scale (0°–360°), enabling real-time visualization and verification of the intended IOL axis orientation directly within the surgeon’s optical path. Its design leverages the established optical architecture of Leica surgical microscopes—such as the M844, M530, or Proveo series—without requiring hardware modification or external tracking systems. The device operates on the principle of optical superposition: the engraved scale and crosshair are projected into the same focal plane as the surgical field, allowing for direct correlation between the displayed angular reference and the anatomical meridian of the cornea or capsular bag. This eliminates reliance on external marking methods that introduce variability due to patient movement, draping shifts, or parallax error.

Key Features

• Manually adjustable rotatable scale ring with tactile detents at 5° increments and continuous fine-tuning capability
• High-contrast, etched reticle with dual-axis crosshairs and a 360° azimuthal scale calibrated to ±0.5° accuracy under standard illumination conditions
• Autoclavable stainless-steel ergonomic handle compatible with standard sterile draping protocols
• No software dependency, battery, or electronic components—ensures zero electromagnetic interference and full compatibility with MRI-safe OR environments
• Optically matched to Leica’s proprietary wide-field eyepiece optics, preserving native resolution, depth of field, and color fidelity
• Quick-release mechanism enables tool-free installation and removal between cases without recalibration

Sample Compatibility & Compliance

The Leica ToricEyePiece is validated for use with all Leica surgical microscopes equipped with standard 23.2 mm eyepiece tubes (e.g., M844 F40, M530 OH6, Proveo 8). It supports alignment of FDA-cleared and CE-marked toric IOLs—including models from Alcon (AcrySof Toric), Johnson & Johnson Vision (Tecnis Toric), and Zeiss (AT LISA Toric)—across spherical equivalents ranging from +5.0 D to +30.0 D. The device complies with ISO 13485:2016 for medical device quality management systems and bears CE marking under the EU Medical Device Regulation (MDR 2017/745). While not a standalone medical device, it functions as an essential ancillary component within a Class IIa surgical workflow compliant with ISO 14971:2019 risk management requirements. It does not require FDA 510(k) clearance when used as an accessory to a cleared Leica microscope platform.

Software & Data Management

The Leica ToricEyePiece operates independently of digital imaging or software platforms. It introduces no data capture, storage, or transmission functionality—therefore, it imposes no regulatory burden related to FDA 21 CFR Part 11, HIPAA, or GDPR compliance. This analog design ensures uninterrupted operation during power fluctuations or network outages and eliminates cybersecurity vulnerabilities associated with connected surgical peripherals. Documentation of axis alignment is maintained via standard surgical notes and optional integrated microscope video recording (when enabled via Leica Envision or LAS X software), which preserves timestamped visual evidence of final IOL orientation for audit and peer review. No firmware updates, license keys, or cloud synchronization are required or supported.

Applications

• Intraoperative verification and refinement of preoperative toric IOL axis planning derived from topography, tomography, or wavefront analysis
• Real-time adjustment of IOL orientation during injector insertion and rotation prior to haptic fixation
• Teaching and competency assessment in residency programs—provides immediate visual feedback on rotational accuracy without time-consuming post-hoc image analysis
• Reduction of residual refractive cylinder in high-astigmatism patients (>1.5 D), supporting outcomes reporting for ASCRS Cataract Quality Measures (CQM)
• Supporting adherence to ESCRS guidelines on toric IOL alignment, including recommendations against sole reliance on corneal ink marks

FAQ

Is the Leica ToricEyePiece compatible with non-Leica surgical microscopes?
No. It is mechanically and optically engineered exclusively for Leica microscope eyepiece tubes with standardized 23.2 mm outer diameter and specific flange-to-reticle distance specifications.
Does it require calibration before each use?
No. The scale is factory-aligned and permanently fixed; routine verification can be performed using a certified optical protractor or by comparing against a known meridian in a test slide.
Can it be used in conjunction with intraoperative aberrometry or OCT-guided alignment systems?
Yes. It serves as a redundant, real-time visual confirmation layer and does not interfere with electromagnetic or optical signals from complementary devices.
What sterilization method is recommended?
Steam autoclaving at 134°C for 18 minutes (Class B cycle) is validated. Ethylene oxide and low-temperature hydrogen peroxide plasma are not recommended due to potential lens coating degradation.
Is training required for effective use?
A 15-minute orientation session covering scale interpretation, handle ergonomics, and integration into standard phacoemulsification workflow is sufficient for experienced cataract surgeons.
