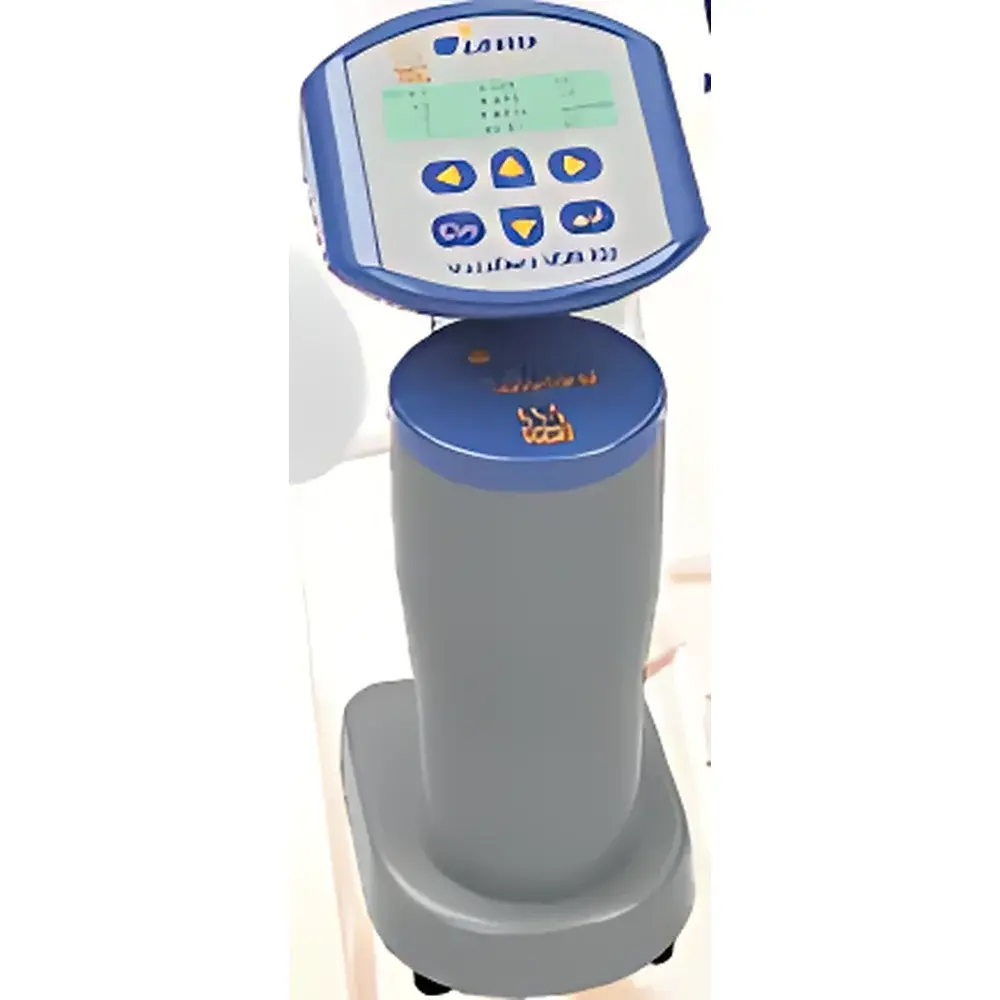

Lemis VDM-300 Portable Kinematic Viscosity and Density Analyzer

Overview

The Lemis VDM-300 Portable Kinematic Viscosity and Density Analyzer is an integrated, field-deployable instrument engineered for simultaneous measurement of kinematic viscosity and density in liquid hydrocarbons and industrial fluids. Based on oscillating U-tube densimetry combined with capillary timing under controlled laminar flow conditions, the VDM-300 applies first-principles physical methods compliant with ASTM D445 (Standard Test Method for Kinematic Viscosity of Transparent and Opaque Liquids), ISO 3104 (Petroleum Products — Determination of Kinematic Viscosity and Calculation of Dynamic Viscosity), and IP 71 (Determination of Kinematic Viscosity of Petroleum Products). Unlike traditional gravity-driven capillary viscometers requiring fixed bath immersion and manual timing, the VDM-300 integrates Peltier-based temperature regulation, automated flow initiation, and real-time signal processing to deliver repeatable kinematic viscosity results without operator-dependent timing errors. Its dual-parameter architecture enables direct calculation of dynamic viscosity (η = ν × ρ), eliminating sequential measurement steps and reducing cumulative uncertainty.

Key Features

• Simultaneous kinematic viscosity and density determination in a single 2–3 mL sample injection
• Peltier-controlled temperature regulation from ambient up to 100 °C with ±0.1 °C stability over 30-minute equilibration
• Integrated automatic temperature compensation algorithm aligned with ASTM D445 Annex A1 for viscosity interpolation
• Factory-calibrated using NIST-traceable standard oils (e.g., Cannon-Manning 100 cSt and 1000 cSt reference fluids) and certified density standards
• Compact, ruggedized enclosure (140 × 100 × 290 mm) with IP54-rated housing suitable for mobile lab vans, refinery field stations, and marine engine rooms
• No consumables or moving parts beyond the solenoid-driven sample valve; no routine maintenance required per ISO 17025 preventive maintenance guidelines

Sample Compatibility & Compliance

The VDM-300 is validated for use with transparent and mildly opaque Newtonian fluids within petroleum and related industrial sectors. Certified applications include transformer oils (IEC 60296), hydraulic fluids (ISO 11171), lubricating oils (ASTM D975, D2515), crude oil fractions (ASTM D1298), biodiesel blends (ASTM D7467), and fuel oils (ASTM D396, D975). It supports testing under GLP-compliant workflows when paired with audit-trail-enabled software (see Software & Data Management). All internal calibration records and traceability documentation comply with ISO/IEC 17025:2017 Clause 6.6 and satisfy pre-audit requirements for API Q1 and ISO 9001-certified laboratories. The instrument meets CE marking requirements for electromagnetic compatibility (2014/30/EU) and low-voltage safety (2014/35/EU).

Software & Data Management

The VDM-300 operates with Lemis VisiControl™ v3.2 firmware and PC-based VisiLink™ desktop application (Windows 10/11, 64-bit). VisiLink provides full 21 CFR Part 11 compliance via role-based user accounts, electronic signatures, and immutable audit trails recording every measurement event—including timestamp, operator ID, calibration status, raw transit time data, temperature logs, and result export history. Data exports support CSV, PDF (with embedded digital signature), and XML formats compatible with LIMS integration (ASTM E1578-compliant schema). Calibration verification reports include uncertainty budgets per GUM (JCGM 100:2008) methodology, referencing ISO/IEC 17025 Clause 7.6.2.

Applications

• Rapid on-site assessment of in-service transformer oil viscosity degradation during predictive maintenance campaigns
• Field verification of hydraulic fluid contamination (e.g., water ingress or thermal cracking) via density-viscosity deviation analysis
• Batch release testing of lubricant formulations at OEM manufacturing lines without fixed laboratory infrastructure
• Marine bunker fuel quality screening prior to vessel bunkering—supporting ISO 8217:2017 Annex B viscosity specifications
• Research-grade characterization of biofuel blends where temperature-dependent viscosity behavior affects injector performance
• QA/QC of edible oil refining processes where viscosity correlates with fatty acid composition and polymerization state

FAQ

Does the VDM-300 require external calibration standards for daily operation?
No. The instrument performs self-diagnostic checks at power-on and retains factory calibration coefficients. Periodic verification using a single certified reference fluid (e.g., Cannon-Manning 100 cSt) is recommended every 90 days per ISO 17025 Clause 7.7.
Can it measure non-Newtonian fluids such as polymer-thickened oils?
No. The VDM-300 is designed exclusively for Newtonian liquids per ASTM D445 scope. Non-Newtonian behavior must be assessed using rotational rheometry (e.g., ASTM D2196).
Is the device compatible with hazardous area classifications (e.g., ATEX or IECEx)?
Not inherently. The standard VDM-300 is rated for general-purpose industrial environments. An ATEX Zone 2 / IECEx Zone 2 variant (VDM-300-EX) is available under separate certification (EN 60079-0, -15) with modified electronics housing.
What sample volume is required for a complete viscosity + density measurement?
A single 2.2 mL aliquot is sufficient. The system automatically purges residual fluid between measurements using inert gas-assisted cleaning cycles.
How is temperature uniformity maintained across the capillary and oscillator tube?
Both sensing elements share a monolithic aluminum thermal block with dual PID-controlled Peltier modules and four embedded Pt100 sensors, ensuring <0.02 °C axial gradient during steady-state operation.
