SCIEX Triple Quad 7500 Liquid Chromatography Tandem Mass Spectrometer (LC-MS/MS)

Overview

The SCIEX Triple Quad 7500 is a high-performance, triple quadrupole liquid chromatography–tandem mass spectrometry (LC-MS/MS) system engineered for ultra-sensitive, robust, and reproducible quantitative analysis in complex biological and environmental matrices. Operating on the fundamental principles of electrospray ionization (ESI) or atmospheric pressure chemical ionization (APCI), followed by mass-selective fragmentation in Q2 (collision cell) and product-ion detection in Q3, the system delivers exceptional sensitivity, wide linear dynamic range (>6 orders of magnitude), and high specificity via multiple reaction monitoring (MRM). Designed for regulated and discovery-driven laboratories, it supports rigorous quantitative workflows compliant with FDA Bioanalytical Method Validation Guidance, ICH M10, and ISO/IEC 17025 requirements. Its architecture integrates hardware innovations—such as D Jet ion optics and OptiFlow Pro ion source—with software-controlled operational flexibility to maintain analytical integrity across diverse sample types and throughput demands.

Key Features

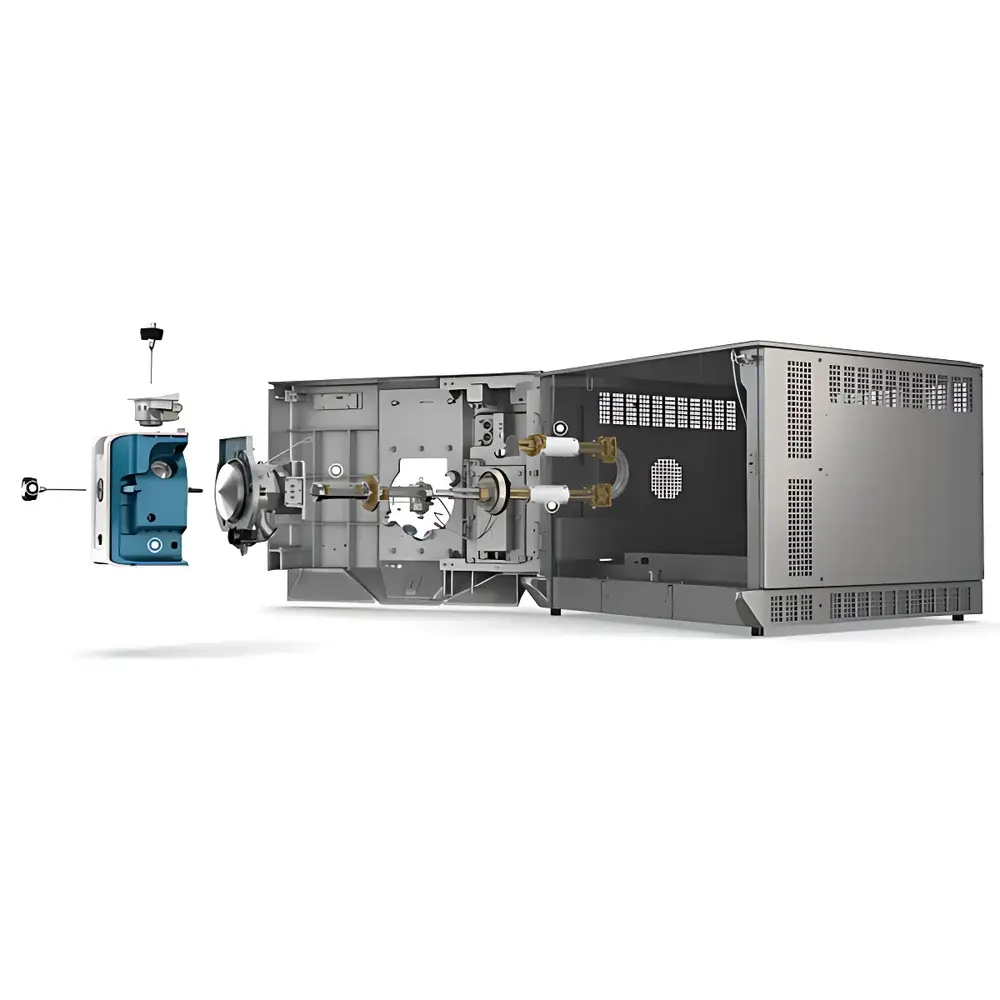

• D Jet Ion Guide Technology: Enhances ion transmission efficiency by expanding the cone aperture and implementing an optimized electrodynamic lensing geometry, resulting in improved signal-to-noise ratio (S/N) and reduced neutral interference.

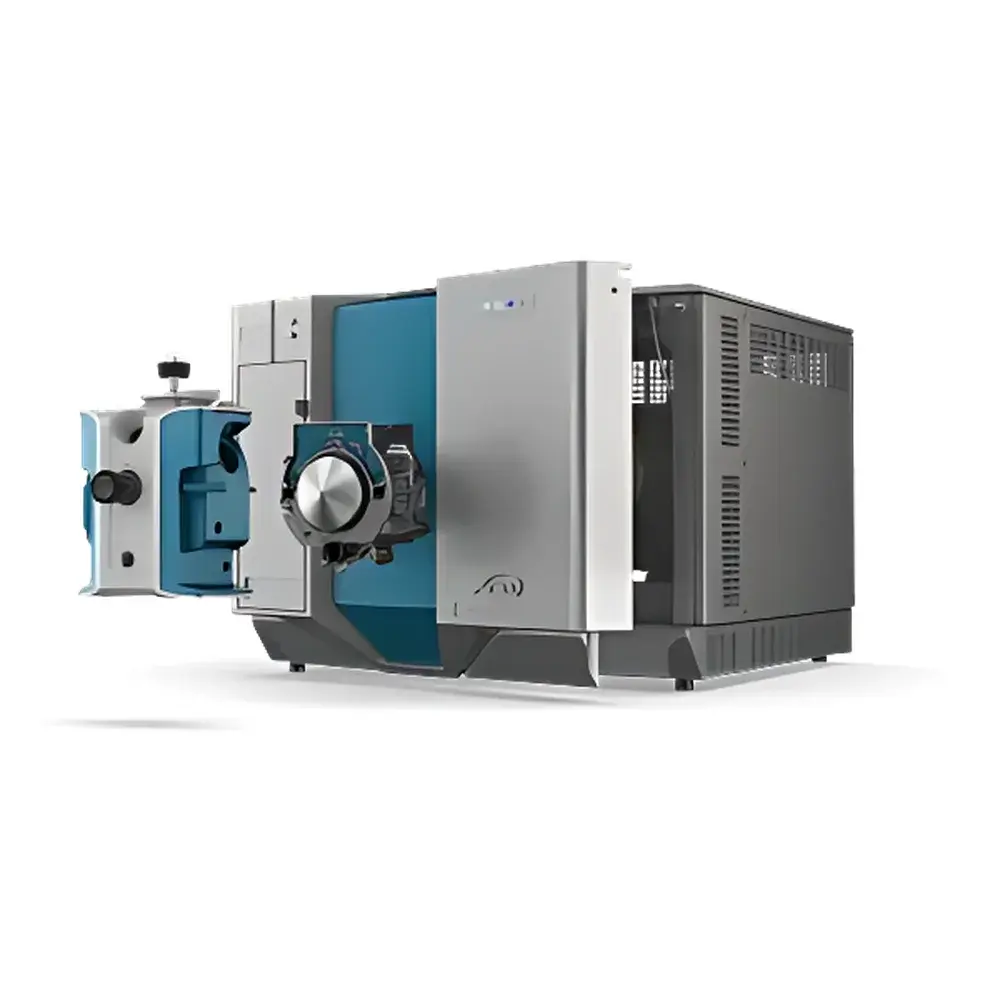

• OptiFlow Pro Ion Source: Modular, dual-mode (ESI/APCI) source with E Lens™ technology that increases ion capture from the electrospray plume and enables seamless switching between high-flow (≥1 mL/min) and low-flow (<10 µL/min) LC configurations without hardware reconfiguration or recalibration.
• QTRAP Ready Architecture: Hardware-compatible pathway for future upgrade to QTRAP functionality—including enhanced product ion (EPI), MRM-triggered IDA-EPI, and MRM³ scanning—enabling simultaneous quantitation and structural confirmation within a single run.
• Robust Ion Path Design: Precision-machined quadrupole rods and collision cell components ensure long-term stability, minimal carryover, and consistent inter-day reproducibility under continuous operation.
• SCIEX OS Software Platform: Intuitive, workflow-driven interface supporting method development, real-time data acquisition, automated peak integration, audit-trail-enabled reporting, and full compliance with 21 CFR Part 11 and ALCOA+ data integrity principles.

Sample Compatibility & Compliance

The Triple Quad 7500 accommodates a broad spectrum of sample matrices—including plasma, whole blood, tissue homogenates, cell lysates, urine, drinking water, bottled water, and plant extracts—without compromising detection limits or quantitative accuracy. Its enhanced resistance to matrix effects enables reliable quantification even in highly variable biological backgrounds. The system meets key regulatory expectations for bioanalysis (USP , FDA Guidance for Industry on Bioanalytical Method Validation), environmental testing (EPA Methods 1694, 537.1), and clinical toxicology (CAP/CLIA standards). All instrument control, data acquisition, and processing modules support electronic signatures, user access controls, and immutable audit trails required for GLP and GMP environments.

Software & Data Management

SCIEX OS serves as the unified software platform for instrument control, data acquisition, processing, and reporting. It features modular workflow templates for peptide quantification, lipidomics, small-molecule screening, and forensic toxicology. Raw data files are stored in vendor-neutral .wiff format, compatible with third-party processing tools (e.g., Skyline, MultiQuant™ Legacy). Built-in calibration curve fitting (linear, quadratic, weighted least-squares), auto-integration algorithms, and batch processing capabilities streamline large-scale studies. Full traceability is ensured through time-stamped audit logs, version-controlled method files, and secure user-role assignment—all aligned with FDA 21 CFR Part 11 and EU Annex 11 compliance frameworks.

Applications

• Quantitative analysis of therapeutic peptides and proteins in biological matrices (e.g., insulin analogs in rat plasma) with sub-ppt LLOQ and >3× sensitivity gain over prior-generation systems.
• Targeted lipidomics profiling across ~1900 lipid molecular species using chromatographic separation coupled with MRM optimization to resolve isomeric interferences.
• Forensic toxicology screening of 49 controlled substances and metabolites in human whole blood at low pg/mL levels.
• Host cell protein (HCP) quantification in biopharmaceutical process development, achieving 0.02–4.54 ppm detection across 48 target proteins within an 8-minute LC gradient.
• Direct analysis of pesticide residues and pharmaceuticals and personal care products (PPCPs) in drinking water without derivatization or pre-concentration.
• Pharmacokinetic and pharmacodynamic assessment of cyclic peptides and macrocyclic therapeutics using LC-MRM with enhanced S/N and reduced background suppression.

FAQ

Is this a refurbished or used instrument?
Yes—this unit is a pre-owned SCIEX Triple Quad 7500 system, fully inspected, functionally validated, and delivered with documented performance verification reports.
Does it include original SCIEX OS software licenses?
Yes—each unit ships with a valid, transferable license for SCIEX OS v2.x or later, including access to firmware updates and technical support via authorized SCIEX service channels.
What level of service support is available post-purchase?
Comprehensive post-sale support includes remote diagnostics, on-site preventive maintenance contracts, application-specific method development assistance, and qualification documentation (IQ/OQ/PQ) packages upon request.
Can the system be upgraded to QTRAP functionality?
Yes—the Triple Quad 7500 is QTRAP Ready; optional hardware and software modules can be installed to enable hybrid scan modes (e.g., MRM-IDA-EPI, MS³) for qualitative confirmation alongside quantitation.
Are consumables and spare parts still available for this model?
Yes—SCIEX maintains active inventory of critical consumables (ion sources, turbomolecular pumps, detector assemblies) and provides multi-year spares availability guarantees for legacy platforms including the 7500 series.
