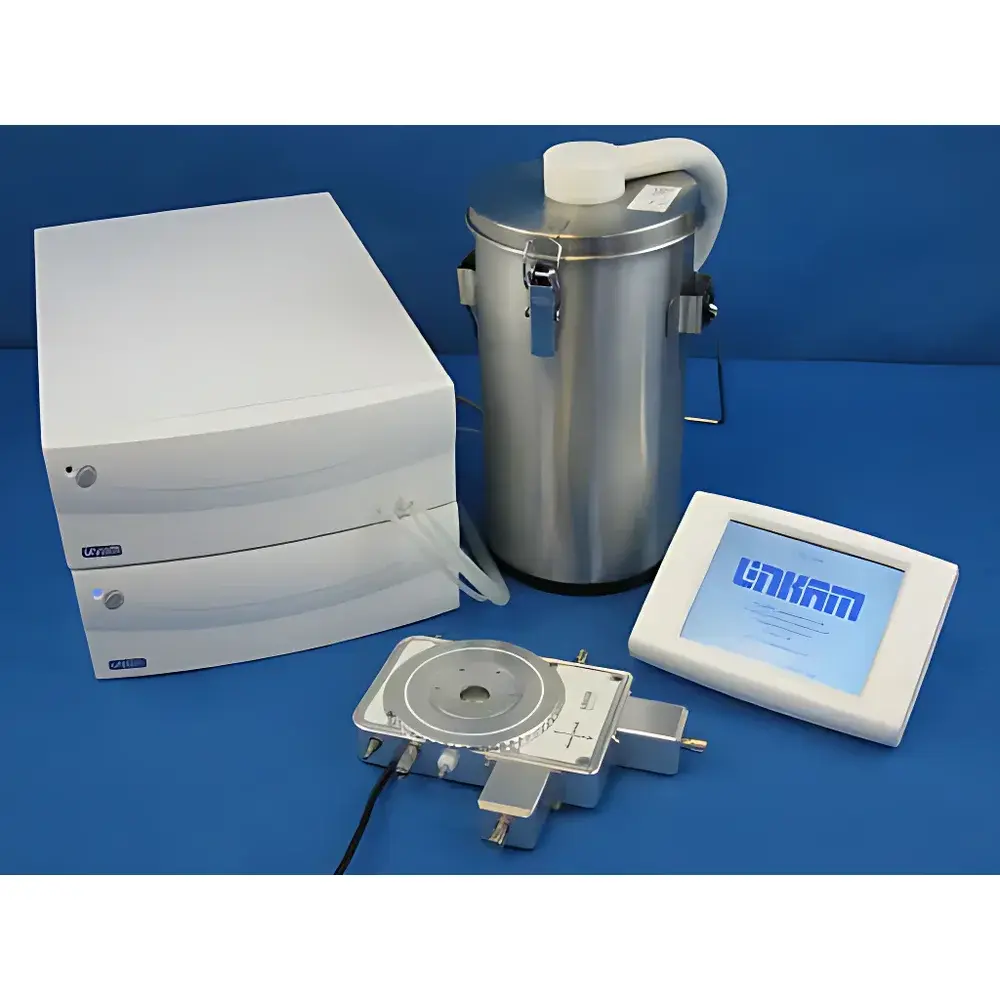

Linkam MDSG600 Geological Motorized Heating-Cooling Stage for Polarized Light Microscopy

Overview

The Linkam MDSG600 is a motorized, high-precision heating-cooling stage engineered specifically for geological microanalysis under polarized light microscopy. It operates on the principle of controlled thermal modulation coupled with sub-micron positional accuracy, enabling in situ observation of phase transitions—including melting, freezing, eutectic reactions, and fluid inclusion behavior—across an ultra-broad temperature range from cryogenic (−196 °C, using liquid nitrogen cooling) to high-temperature (up to +600 °C) conditions. Unlike manually operated stages, the MDSG600 integrates closed-loop stepper motor control for X–Y translation, allowing precise repositioning of regions of interest (ROIs) during dynamic thermal experiments. Its architecture is optimized for compatibility with standard upright and inverted polarizing microscopes, supporting rigorous petrographic and geochemical characterization workflows in academic, governmental, and industrial geoscience laboratories.

Key Features

• Motorized XY translation with 0.05 µm resolution and <3 µm repeatability—enabling reliable relocation of individual fluid inclusions as small as <1 µm in diameter.
• Thermally stable silver alloy heating block combined with calibrated Pt100 resistance thermometer for traceable, high-fidelity temperature measurement and control (±0.1 °C accuracy typical at steady state).
• Optimized optical design featuring a 1.3 mm central aperture, anti-condensation bottom window, and thermally isolated upper cover—ensuring unobstructed light path integrity and minimizing thermal drift-induced image artifacts.
• Modular sample holder system accommodating 7 mm, 10 mm, and 16 mm diameter mounts; all holders engineered to suppress mechanical vibration across full speed ranges, critical for high-magnification imaging (≥100× oil immersion).
• Integrated thermal management for objectives: optional cooling jackets and specialized covers maintain objective working distance (0.1–4.9 mm) and prevent thermal lensing during prolonged heating/cooling cycles.
• Direct-mount thermal stage bracket compatible with standard microscope nosepiece interfaces—eliminating alignment uncertainty and ensuring mechanical stability during long-duration experiments.

Sample Compatibility & Compliance

The MDSG600 accommodates standard thin sections (e.g., 25 × 45 mm, 30 × 50 mm), doubly polished fluid inclusion wafers, synthetic mineral mounts, and synthetic melt inclusions embedded in epoxy or quartz. Its design conforms to ISO 11352:2012 (microscopy stage dimensional tolerances) and supports GLP-compliant documentation when paired with Linkam’s TMS94 software (audit-trail enabled). The stage meets electrical safety requirements per IEC 61010-1 and thermal hazard mitigation standards outlined in EN 60519-2. All materials in contact with samples are non-magnetic, low-outgassing, and chemically inert—critical for volatile-rich systems and reactive mineral assemblages.

Software & Data Management

Controlled via Linkam’s TMS94 platform (Windows-based), the MDSG600 supports synchronized acquisition of temperature, position, time, and external sensor inputs (e.g., camera trigger signals, environmental humidity). Up to 150 user-defined XY coordinates can be stored, recalled, and thermally cycled independently—essential for multi-point inclusion homogenization studies. The software logs timestamped metadata in CSV and XML formats, compliant with FAIR data principles. Optional integration with third-party image acquisition packages (e.g., QCapture, NIS-Elements, µManager) enables time-lapse video recording of thermal events with frame-accurate temperature tagging. Full audit trail functionality satisfies FDA 21 CFR Part 11 requirements for regulated environments when deployed with appropriate IT validation protocols.

Applications

• Determination of homogenization temperatures (Th), final ice-melting temperatures (Tm,ice), and clathrate dissociation temperatures in fluid inclusions.
• In situ observation of mineral phase transitions (e.g., quartz α–β inversion, calcite–aragonite transformation) under controlled thermal gradients.
• Characterization of melt inclusion textures, crystallization sequences, and volatile exsolution behavior in silicate and sulfide systems.
• Calibration of Raman and FTIR spectroscopic signatures against known thermal endpoints in geological standards (e.g., H2O–NaCl, CO2–CH4 binary systems).
• High-resolution thermal mapping of heterogeneous samples, including metamorphic reaction rims, hydrothermal alteration zones, and meteoritic chondrules.

FAQ

What cooling media are supported for operation down to −196 °C?
Liquid nitrogen (LN2) is required for cryogenic operation; the stage includes a vacuum-jacketed LN2 reservoir and integrated flow regulation to ensure stable thermal delivery without frost formation on optical surfaces.
Can the MDSG600 be used with oil-immersion objectives?
Yes—its minimum objective working distance of 0.1 mm and optional immersion-compatible cooling sleeves permit use with 100× oil objectives; thermal expansion compensation is built into the Z-axis calibration routine.
Is the stage compatible with automated stage controllers from other manufacturers?
No—the MDSG600 relies exclusively on Linkam’s proprietary motor driver and communication protocol (USB 2.0 HID); third-party automation requires API-level integration via Linkam’s Software Development Kit (SDK), available under NDA.
How is temperature uniformity maintained across the sample area?
A radial heater geometry, silver-alloy thermal mass, and PID-controlled feedback loop achieve ±0.3 °C spatial uniformity over a 5 mm diameter zone at 400 °C—verified by embedded thermocouple mapping per ASTM E220.
Does the system support vacuum or controlled-atmosphere operation?
The base MDSG600 is designed for ambient air operation only; for inert or reduced-pressure environments, Linkam offers the LTS420V variant with sealed chamber and gas purge ports—consult technical specifications for compatibility.
