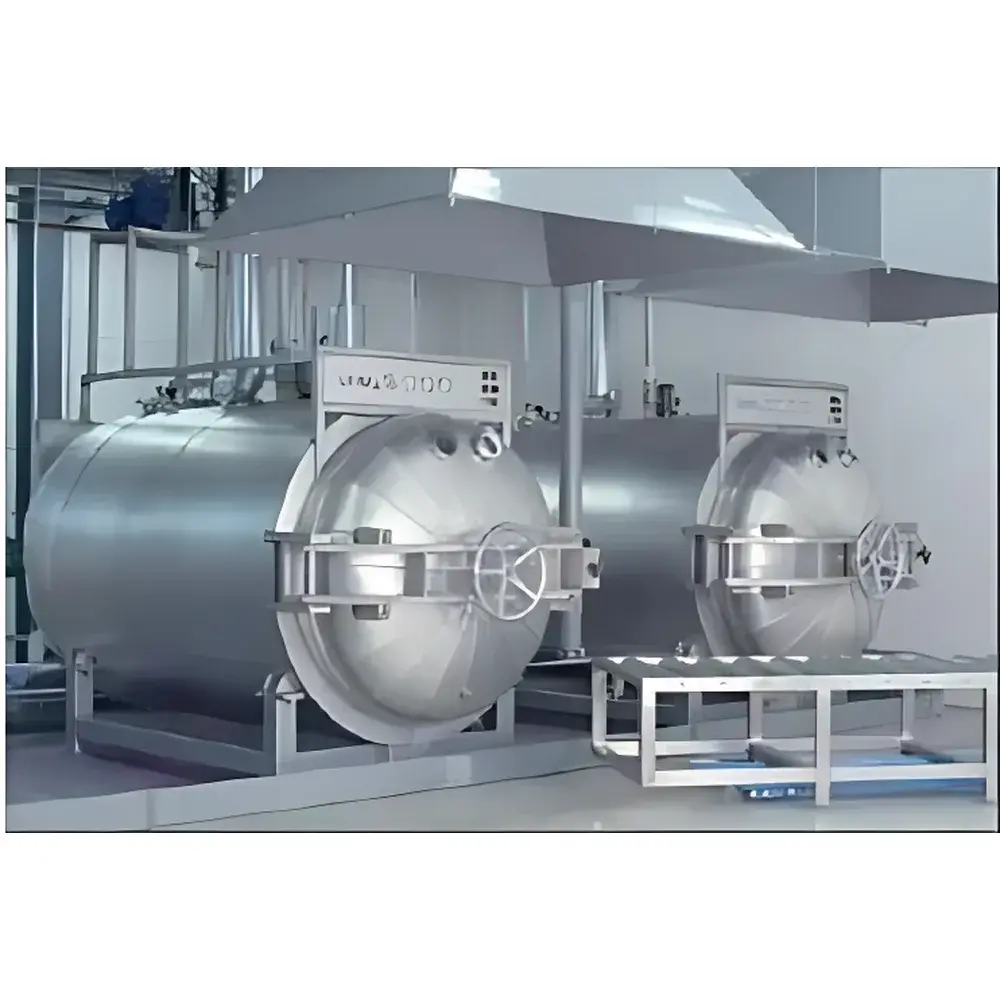

LOEMI Solvent Extraction Debinding System (EBA Series)

Overview

The LOEMI Solvent Extraction Debinding System (EBA Series) is a purpose-engineered industrial-scale platform for controlled, solvent-based removal of organic binders, waxes, and gelling agents from metal injection molded (MIM) and ceramic injection molded (CIM) green parts. Operating on the principle of selective solubilization under precisely regulated thermal and vacuum conditions, the system enables high-fidelity debinding without part distortion, microcracking, or residual carbon contamination. Unlike thermal-only debinding methods, solvent extraction preserves structural integrity during early-stage binder removal—critical for complex geometries, thin-walled components, and high-precision sintered parts. Designed and manufactured in Germany, each EBA system is custom-configured per client specifications, integrating extraction, vacuum drying, and closed-loop solvent recovery into a single validated process train compliant with ISO 9001-certified engineering practices.

Key Features

• Modular architecture supporting 1–5 parallel extraction units—enabling scalable throughput from R&D batches (EBA-50) to full production lines (EBA-2500)
• Stainless steel extraction vessels rated for temperatures up to 200 °C and vacuum down to 1 mbar, with O-ring sealed closures meeting DIN 28178 standards
• High-reproducibility temperature control (±0.1 °C) via explosion-proof导热油 heating system with redundant Pt100 sensors and PID regulation
• Integrated ATEX-certified vacuum drying chamber with programmable ramp-hold profiles and real-time pressure monitoring
• Closed-loop solvent distillation unit with fractional condensation, enabling >95% solvent recovery efficiency and minimizing hazardous waste generation
• PLC-based automation (Siemens S7-1200 or equivalent) with touchscreen HMI (ATEX-rated option available), audit trail logging, and password-protected parameter access
• Comprehensive safety architecture: dual-channel emergency stop, overtemperature cutoff, solvent vapor detection interlocks, and pressure-relief rupture discs per PED 2014/68/EU

Sample Compatibility & Compliance

The EBA series accommodates green parts fabricated from stainless steels (e.g., 316L, 17-4PH), titanium alloys (Ti-6Al-4V), tungsten carbide, alumina, zirconia, and silicon nitride—provided binder systems are compatible with standard debinding solvents (e.g., heptane, terpineol, PEG-based formulations). All models comply with EU Machinery Directive 2006/42/EC, Electromagnetic Compatibility Directive 2014/30/EU, and Pressure Equipment Directive 2014/68/EU. ATEX certification (II 2 G c T3) covers both vessel interiors and control cabinets. Optional upgrades include II 1/2 G c T3 configurations for Class 1, Division 1 environments and integration with FDA 21 CFR Part 11-compliant electronic records and signatures when paired with validated SCADA software.

Software & Data Management

LOEMI’s proprietary DebindControl™ software provides full lifecycle process management: recipe definition, multi-step profile programming (extraction → rinse → vacuum dry → solvent recovery), real-time data acquisition (temperature, pressure, flow rate, solvent level), and automated report generation in PDF/CSV formats. The system supports OPC UA connectivity for MES/ERP integration and includes built-in GLP/GMP features such as user-level permissions, change history tracking, and electronic signature workflows. Remote diagnostics and firmware updates are enabled via secure TLS-encrypted Ethernet or optional cellular gateway—subject to customer network security policies.

Applications

• Primary debinding of MIM/CIM green parts prior to sintering—especially for aerospace turbine blades, medical implants, and microfluidic components
• Removal of thermoplastic and thermosetting binders (e.g., PMMA, PVDF, paraffin wax blends) without thermal degradation
• Multi-stage solvent exchange protocols for graded debinding of multi-binder systems
• Post-sinter cleaning of residual organics from porous metal filters and catalyst substrates
• Research-grade optimization of debinding kinetics using variable flow rates (0–105 L/min), dwell times, and solvent-to-part ratios

FAQ

What solvents are compatible with the EBA series?
Commonly used solvents include n-heptane, limonene, terpineol, and proprietary low-toxicity blends—selected based on binder chemistry and regulatory requirements (e.g., REACH SVHC compliance). LOEMI performs solvent compatibility testing during system validation.
Can the system handle mixed-material batches?
Yes—provided all parts share compatible binder systems and thermal expansion coefficients. Chamber zoning and independent temperature profiling per unit allow heterogeneous loads with defined process windows.
Is validation support provided for GMP environments?
LOEMI delivers IQ/OQ documentation packages aligned with ASTM F2897 and ISO 13320 standards. PQ support is available through third-party qualified partners upon request.
What maintenance intervals are recommended?
Preventive maintenance is scheduled every 1,000 operational hours or annually—whichever occurs first—including vacuum pump oil replacement, filter inspection, seal integrity verification, and calibration of critical sensors.
How is solvent purity maintained across cycles?
Distillation columns operate under fractional reflux conditions with inline refractometry feedback; recovered solvent meets ASTM D4057 specifications for re-use in subsequent batches.
