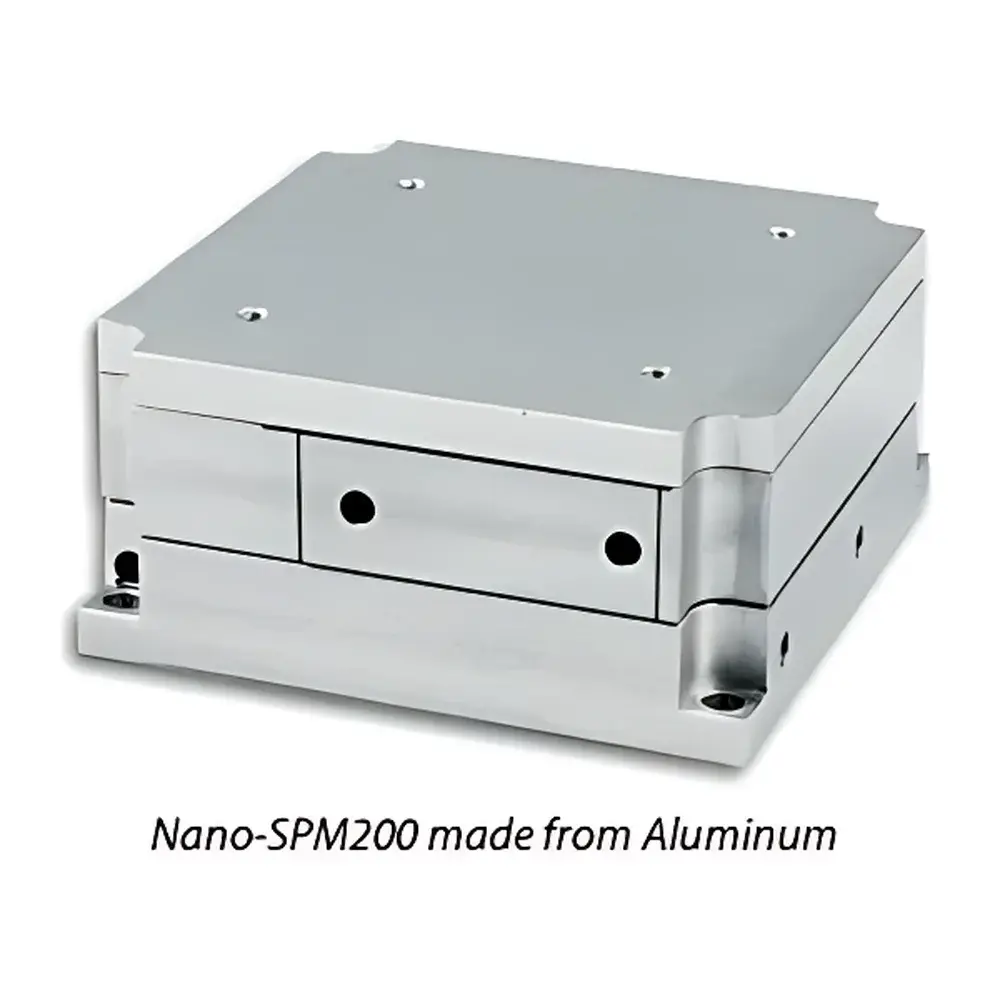

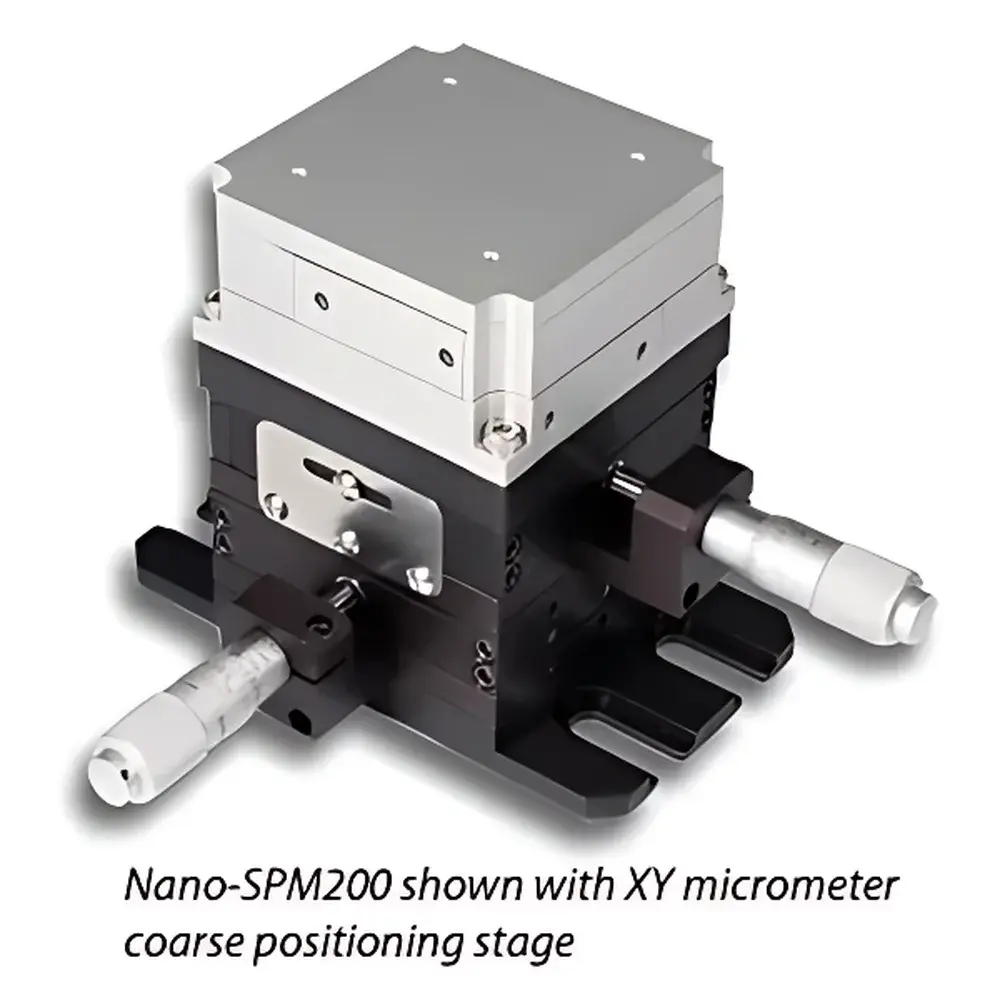

MCL Think Nano Nano-SPM200 Compact Closed-Loop XY Nanopositioning Stage
| Brand | MCL Think Nano |
|---|---|
| Origin | USA |
| Model | Nano-SPM200 |
| Motion Range (XY) | 200 µm |
| Resolution | 0.4 nm |
| Resonant Frequency (X/Y) | 300 Hz ±20% |
| Stiffness | 1.0 N/µm |
| Max Horizontal Load | 0.5 kg |
| Max Vertical Load | 0.2 kg |
| Body Material | Aluminum |
| Controller | Nano-Drive® |
| Drive Type | Piezoelectric, Flexure-Guided, Closed-Loop |
Overview
The MCL Think Nano Nano-SPM200 is a high-precision, compact, closed-loop XY nanopositioning stage engineered for demanding applications in scanning probe microscopy (SPM), including atomic force microscopy (AFM) and near-field scanning optical microscopy (NSOM). Built on a monolithic aluminum architecture with true flexure-guided motion, the stage eliminates backlash, hysteresis, and mechanical wear—enabling sub-nanometer positioning resolution and exceptional long-term repeatability. Its operational principle relies on piezoelectric actuation coupled with integrated capacitive position sensors, delivering real-time feedback to the Nano-Drive® controller for active error correction. This closed-loop architecture ensures stable, drift-compensated scanning over extended acquisition periods—critical for quantitative topographic mapping, force spectroscopy, and nanoscale metrology under ambient or controlled-environment conditions.
Key Features
- Compact footprint (76 × 76 × 18 mm) optimized for integration into space-constrained SPM platforms, optical tables, and custom vacuum-compatible setups.
- True flexure-guided motion on both X and Y axes—providing mechanical decoupling, zero friction, and negligible cross-axis coupling (< 0.05% typical).
- Closed-loop control with capacitive position sensing delivers 0.4 nm RMS resolution and < 2 nm peak-to-peak noise over full 200 µm range.
- High resonant frequency (300 Hz ±20%) enables fast, stable raster scanning at line rates up to 50 Hz (at 256×256 pixels), supporting dynamic imaging modes such as tapping, contact, and force-volume mapping.
- Flat, feature-rich top surface with four M3 threaded mounting holes (spaced 40 mm center-to-center) allows flexible sample attachment and accommodates standard SPM cantilever holders, optics mounts, and microfluidic chips.
- Designed for compatibility with MadPLL® low-noise phase-locked loop electronics and fully supported by MCL’s Nano-Drive® software suite for deterministic waveform generation and synchronized data acquisition.
Sample Compatibility & Compliance
The Nano-SPM200 supports diverse sample geometries—from bare silicon wafers and TEM grids to functionalized biochips and photonic crystals—without requiring adapter plates. Its non-magnetic aluminum construction ensures compatibility with magnetic resonance environments and avoids interference in magneto-optical experiments. The stage meets mechanical and electromagnetic compatibility requirements per IEC 61326-1 for laboratory use and is designed to operate within ISO 14644 Class 5 cleanroom environments when used with appropriate enclosures. While not certified to FDA 21 CFR Part 11, its closed-loop traceability, controller logging capabilities, and deterministic step-response behavior support GLP/GMP-aligned workflows where audit-ready positioning records are required.
Software & Data Management
Control is facilitated via MCL’s Nano-Drive® software (Windows-based), offering intuitive GUI-driven operation, scriptable Python API (via PyNanoDrive), and native integration with National Instruments DAQmx and MATLAB Data Acquisition Toolbox. Position logs—including timestamped setpoint, actual position, voltage output, and sensor error—are recorded at up to 10 kHz sampling rate and exported in HDF5 or CSV formats for post-processing. The system supports third-party synchronization via TTL triggers and analog voltage inputs/outputs, enabling tight coordination with lock-in amplifiers, laser sources, and photon counters. Firmware updates preserve calibration coefficients and maintain traceability per ISO/IEC 17025 guidelines for metrological integrity.
Applications
- High-resolution AFM imaging of 2D materials (graphene, TMDCs), polymer blends, and biological membranes under physiological buffer conditions.
- NSOM tip-enhanced Raman spectroscopy (TERS) with sub-diffraction spatial registration between optical excitation and mechanical scanning.
- Nanofabrication alignment in electron-beam lithography (EBL) and dip-pen nanolithography (DPN) toolchains.
- In-situ electrochemical AFM studies requiring simultaneous electrode biasing and sub-angstrom Z-feedback stability.
- Multi-modal correlative microscopy—co-registration of AFM topography with fluorescence, Raman, or cathodoluminescence signals.
- Calibration reference stage for interferometric displacement verification and NIST-traceable nanometrology protocols.
FAQ
What is the maximum recommended load for vertical orientation?
The Nano-SPM200 is rated for 0.2 kg in vertical (Z-facing) configuration. Loads exceeding this value require engineering consultation to assess creep behavior and thermal drift mitigation strategies.
Is vacuum compatibility available?
Standard units are air-rated; however, vacuum-compatible variants (UHV-rated to 10⁻⁹ Torr) with modified cabling and outgassing-tested materials are available upon request.
Can the Nano-SPM200 be used with third-party controllers?
Yes—open analog interface (±10 V, 0–10 V unipolar) and digital command protocol documentation are provided for integration with custom or OEM control systems.
Does the stage include built-in thermal compensation?
No dedicated thermal sensor is embedded; however, the aluminum body exhibits low thermal expansion (23.1 × 10⁻⁶ /°C), and long-term drift is actively suppressed via closed-loop feedback.
How is calibration traceability maintained?
Each unit ships with a factory calibration certificate referencing NIST-traceable interferometric measurements; recalibration services are offered annually through MCL’s ISO/IEC 17025-accredited metrology lab.
