MEI NexGen Aviation Electrical Connector Fire Test System (ME1500-3 + ME1900-5)

Overview

The MEI NexGen Aviation Electrical Connector Fire Test System (ME1500-3 + ME1900-5) is a FAA-recognized, standards-compliant fire testing platform engineered for rigorous evaluation of electrical connectors and associated wiring harnesses under simulated aviation fuel-fire conditions. Designed as the certified successor to discontinued legacy burners—including the Park DPL 3400, Lennox OB-32, and Carlin 200 CRD—the NexGen system implements validated combustion physics based on controlled turbulent diffusion flame dynamics. It delivers repeatable, metrologically traceable thermal exposure profiles required by airworthiness certification authorities. The system operates using aviation turbine fuel (Jet A or equivalent), generating a stabilized, high-intensity flame with defined thermal flux and temperature characteristics—enabling precise replication of real-world fire scenarios encountered in aircraft cabins, cargo compartments, and power distribution zones.

Key Features

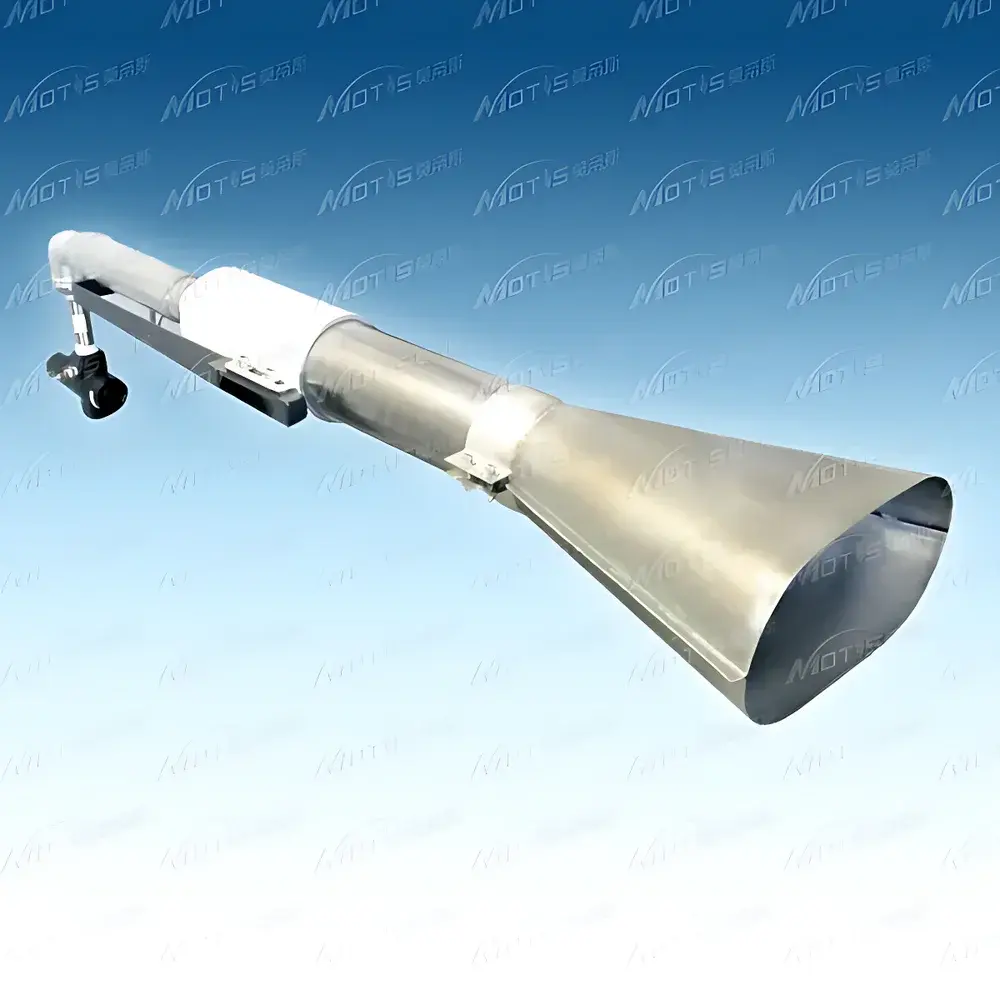

• FAA-qualified NexGen burner assembly featuring corrosion- and heat-resistant alloy conical nozzle, precision-machined fuel injector, integrated swirl stabilizer, and spark ignition system.
• Full parameter monitoring and control: digital fuel pressure gauge (0–200 psi), solenoid-controlled fuel shutoff valve, RTD-based fuel temperature sensor (±0.5 °C accuracy), adjustable air pressure regulator, and air inlet temperature sensor.
• Dual-stage thermal conditioning: two insulated ice-bath reservoirs (≥0.14 m³ each) maintain fuel temperature at 10 ± 2 °C per FAR 25.853 Appendix F requirements.
• Adjustable airflow damper enables precise volumetric air flow control (target: 1.89 m³/min at STP) to sustain flame stoichiometry across test configurations.
• Fuel flow regulation via calibrated pressure-reducing valve ensures stable delivery at 0.126 L/min ±1%, meeting FAR 25.867 and MH/T 6086 fuel metering specifications.
• Flame performance certified to deliver ≥2000 ± 50 °F (1093 ± 28 °C) peak temperature and ≥10.6 W/cm² radiant heat flux at 152 mm standoff distance—verified per ASTM E1537 calibration protocol.
• Modular support structure includes heavy-duty steel frame with horizontal/vertical sample mounting capability, thermal insulation blanket for fuel lines and structural components, and integrated acoustic dampening elements.
• Comprehensive calibration suite: seven grounded, ceramic-sheathed, 1.6 mm-diameter K-type thermocouples (30 AWG, 361 Ω/km) mounted on angular steel comb fixture for spatial temperature mapping; water-cooled radiometric heat flux sensor (0–25 W/cm² range) with fixed bracket alignment.

Sample Compatibility & Compliance

The system accommodates electrical connectors, crimped terminations, backshells, wire splices, and multi-pin assemblies up to 150 mm in length and 50 mm in maximum cross-section. Fixture adaptability supports vertical, horizontal, and angled mounting per test method geometry requirements. It is fully compliant with FAA Advisory Circular AC 25.853-1, AC 25.855-1, and AC 25.867-1, and executes tests referenced in FAR Parts 25.853, 25.855, 25.863, and 25.867. Internationally, it satisfies MH/T 6086–2017 (aviation electrical component fire resistance), HB 7263–2004 (fire testing of aircraft wiring), MH/T 6041–2006 (flammability of aircraft interior materials), GB/T 25352–2010 (railway vehicle fire testing—adapted for aerospace validation), and HB 7044–1994 (aircraft fire protection test methods). All test procedures align with GLP principles and support audit-ready documentation for FAA/EASA type certification submissions.

Software & Data Management

While the core NexGen burner operates as a hardware-controlled analog system, the ME1500-3 controller module integrates optional data acquisition interfaces (RS-485, analog 4–20 mA outputs) compatible with third-party DAQ systems (e.g., National Instruments CompactDAQ, Keysight DAQ970A). Real-time logging of fuel pressure, fuel temperature, air pressure, and air temperature is supported at ≥1 Hz sampling rate. Calibration records—including thermocouple placement verification, heat flux sensor zero-drift checks, and burner output validation—are maintained in accordance with ISO/IEC 17025:2017 and FDA 21 CFR Part 11-compliant electronic record practices when paired with validated LIMS or ELN platforms. Audit trails, user access logs, and electronic signatures may be implemented via external compliance software.

Applications

This system is deployed in OEM engineering labs, FAA-designated test houses, and Tier-1 aerospace suppliers for qualification testing of MIL-DTL-38999, AS39029, and SAE AS50881-compliant electrical connectors. Primary use cases include: flame propagation resistance of connector backshells under direct impingement; arc tracking evaluation of insulator materials during fault-induced heating; thermal integrity assessment of crimped contacts after sustained exposure; flammability screening of molded polymer housings (e.g., PEEK, polyamide-imide); and comparative fire performance analysis of alternative plating finishes (e.g., tin-cobalt vs. silver vs. nickel-gold). It also supports development testing for DO-160 Section 25 (Fire Test) and supports failure mode analysis for CAST-34 and SAE ARP4761 safety assessments.

FAQ

Is this system certified by the FAA for airworthiness compliance testing?
Yes—the NexGen burner architecture and operational protocol are formally recognized by the FAA as an approved replacement for legacy burners cited in AC 25.853-1, and its use is accepted in certification test reports submitted to FAA Aircraft Certification Offices.
Can the system be configured for non-electrical component testing, such as seat cushion or insulation panels?
Yes—by installing appropriate fixtures (e.g., ME1900-5 vertical specimen holder), the same burner platform executes FAR 25.853 Appendix F (seat cushion), Appendix G (thermal/acoustic insulation), and Appendix H (cargo liner) tests.
What calibration frequency is recommended for thermocouples and heat flux sensors?
Per ASTM E1537 and FAA guidance, thermocouple arrays must be verified prior to each test series and recalibrated every 30 days; heat flux sensors require annual NIST-traceable recalibration with in-situ drift verification before each test day.
Does the system include automated ignition and flame stabilization sequences?

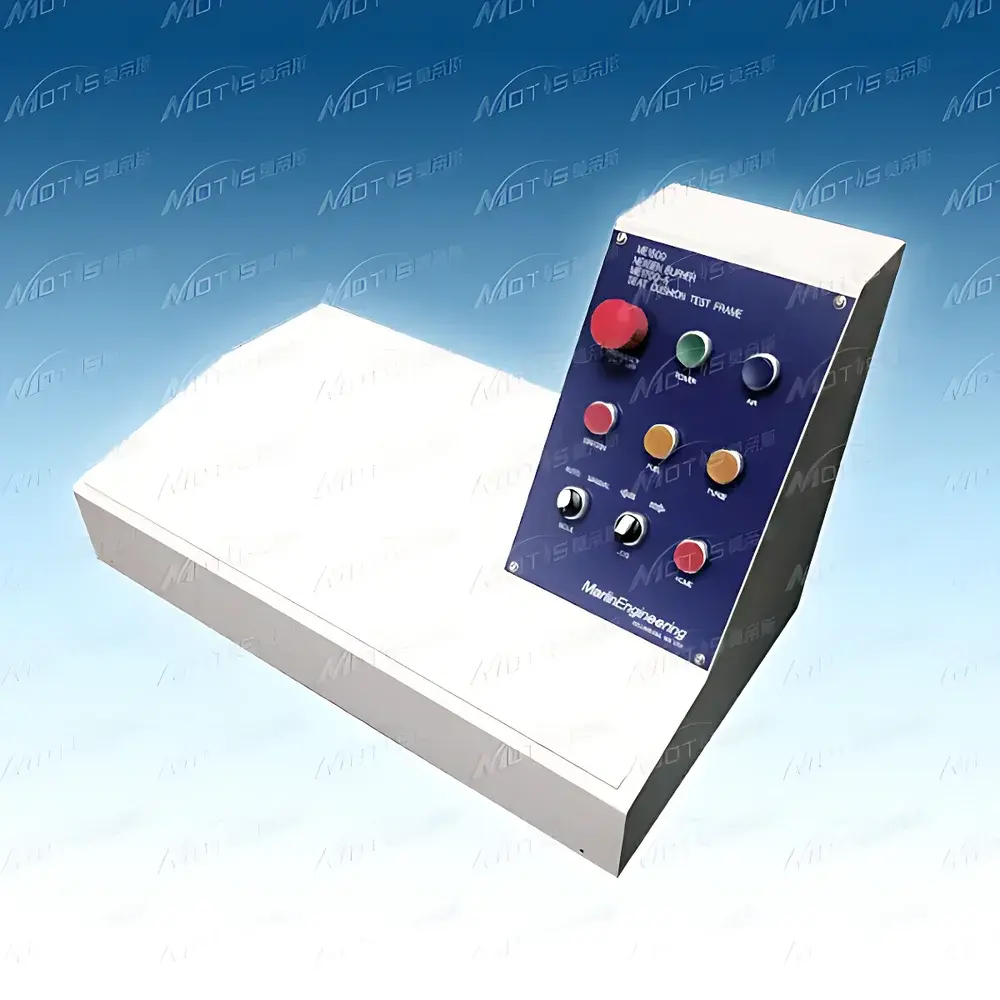

The ME1500-3 controller provides programmable pre-purge timing, fuel priming, spark initiation, and post-ignition stabilization logic—but final flame tuning (air/fuel ratio adjustment) remains manual per test standard requirements to ensure metrological fidelity.
Are spare parts and technical support available directly from MEI/Marlin Engineering?
Yes—MEI maintains full spares inventory for burner subassemblies, thermocouple combs, fuel nozzles, and calibration accessories; on-site technical support and operator training are available under service agreement.
