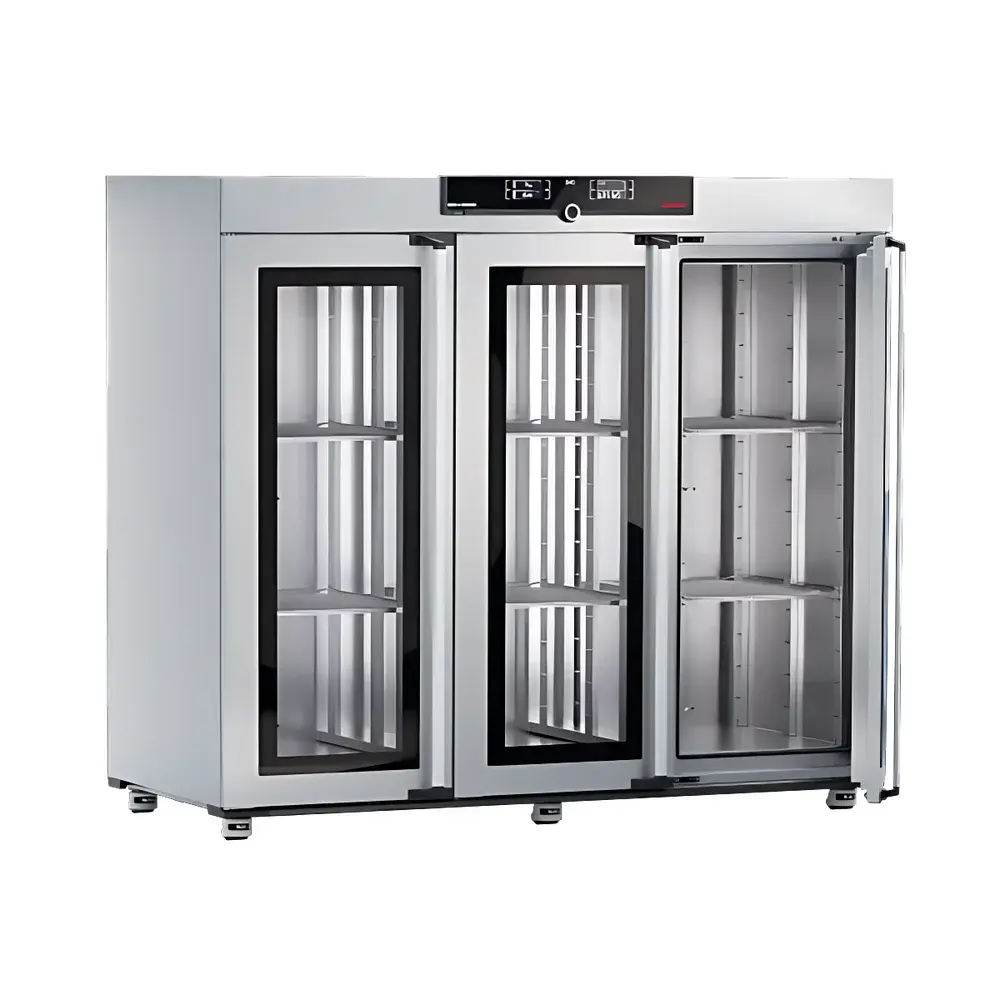

Memmert HCP Series High-Temperature & High-Humidity Environmental Test Chambers

Overview

The Memmert HCP Series High-Temperature & High-Humidity Environmental Test Chambers are precision-engineered climatic chambers designed for long-term stability and spatial uniformity under demanding thermo-hygrometric conditions. Based on a dual-control architecture—separately regulated heating and steam-based humidification—the HCP system achieves exceptional dynamic control over temperature and relative humidity (RH), minimizing thermal gradients and condensation risk across the entire working volume. Its core measurement principle relies on high-accuracy Pt100 sensors (class A, traceable to DIN EN 60751), combined with a calibrated capacitive RH sensor (HUMICAP®), enabling reproducible environmental simulation per IEC 60068-2-30 (damp heat, cyclic) and IEC 60068-2-78 (damp heat, steady state). The chamber is widely deployed in pharmaceutical stability studies (ICH Q1A(R3), USP ), accelerated life testing of electronic components (e.g., “Dual 85” testing per IEC 60068-2-67), building material hygrothermal aging, and biopharmaceutical excipient compatibility assessments.

Key Features

• Six-side heating system ensures uniform thermal distribution without vertical stratification; eliminates cold spots commonly observed in single-wall or bottom-heated chambers.
• Heated double-glazed inner door prevents surface condensation and maintains optical clarity during high-RH operation—critical for real-time visual sample monitoring.
• Integrated aluminum thermal mass layer acts as a passive buffer: improves temperature homogeneity (±0.3 °C at 60 °C, 60 % RH, measured per DIN 12880) and extends thermal hold time during brief power interruptions.
• Dynamic humidity control algorithm modulates steam injection rate and chamber air exchange to suppress transient overshoot and reduce recovery time after door opening (<15 min to re-stabilize at 85 °C/85 % RH).
• Standard validation-ready design: rear-mounted 2× Ø15 mm calibration ports (with stainless steel plugs), accessible sensor mounting points, and full traceability of all critical components per ISO/IEC 17025 requirements.
• SetpointWAIT function delays timer initiation until actual chamber conditions reach the defined setpoint—ensuring accurate exposure duration in stability protocols.

Sample Compatibility & Compliance

The HCP series accommodates standard ISO 14644-1 Class 5–8 compatible sample racks, glassware, blister packs, polymer films, PCB assemblies, and sealed vials. All internal surfaces are electropolished stainless steel (1.4404 / AISI 316L), fully compliant with GMP Annex 1 cleanroom material requirements. The chamber meets mechanical safety standards per EN 61000-6-2/-6-4 and carries CE marking under the EU Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU. For regulated environments, optional IQ/OQ documentation packages support FDA 21 CFR Part 11 compliance when paired with AtmoCONTROL software’s audit trail and electronic signature modules.

Software & Data Management

AtmoCONTROL software (included standard) provides full remote configuration, multi-stage program definition (unlimited ramps, holds, and cycles), real-time graphing, and automated report generation (PDF/CSV). Data logging resolution is configurable down to 1 s intervals, with timestamped records stored locally and exportable via USB or Ethernet. Optional features include SMTP-based alarm notifications (email/SMS), UPS-integrated graceful shutdown logic, and integration with LIMS via OPC UA or Modbus TCP. All data files are digitally signed and retain immutable metadata—including operator ID, instrument serial number, and calibration certificate expiry dates—to satisfy GLP/GMP audit requirements.

Applications

• Pharmaceutical stability testing: Accelerated degradation studies per ICH Q1A(R3), photostability per ICH Q5C, and excipient compatibility screening.
• Electronics reliability validation: Dual-85 testing (85 °C/85 % RH) for conformal coating integrity, solder joint fatigue, and moisture sensitivity level (MSL) qualification.
• Building science research: Hygrothermal performance evaluation of insulation materials, vapor barriers, and façade systems per ASTM E283 and ISO 12572.
• Biomedical device aging: Simulated tropical storage conditions for implant packaging, diagnostic reagent kits, and sterile barrier systems.
• Academic & industrial R&D: Controlled environmental stress screening for polymers, adhesives, composites, and nanomaterials.

FAQ

What is the maximum allowable load volume without compromising uniformity specifications?
The specified temperature and humidity uniformity (±0.3 °C / ±2 % RH) applies up to 80 % of nominal chamber volume loaded with non-porous, thermally neutral test objects.
Can the HCP be validated for GxP environments?
Yes—MEMMERT provides factory-verified IQ/OQ protocols, calibration certificates traceable to PTB (Physikalisch-Technische Bundesanstalt), and optional PQ support documentation aligned with ASTM E2500 and EU GMP Annex 15.
Is steam sterilization or autoclave compatibility supported?
No—the HCP is not designed for sterilization cycles; its humidification system uses demineralized water vapor only and lacks pressure-rated construction.
How does the six-side heating improve performance versus conventional top/bottom heating?
Six-side heating eliminates convective asymmetry, reduces vertical temperature deviation by >60 % compared to two-zone systems, and enables faster ramp rates while maintaining low energy consumption per degree-hour.
Are third-party calibration services available globally?
Yes—MEMMERT maintains an international network of ISO/IEC 17025-accredited service partners offering on-site calibration, preventive maintenance, and regulatory compliance audits.
