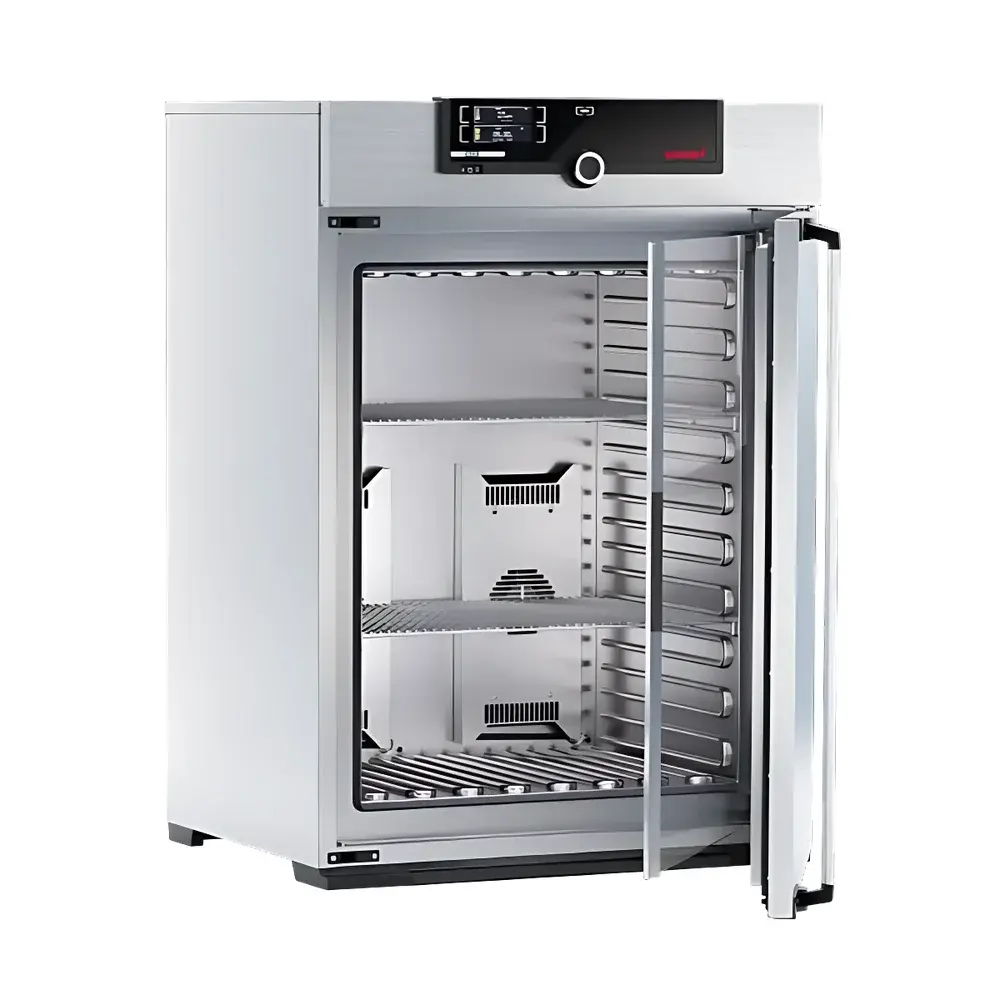

Memmert IPP260eco Low Temperature Incubator (Single-Display Model)

Overview

The Memmert IPP260eco is a precision-engineered low temperature incubator designed for laboratories requiring stable, energy-efficient thermal control across a broad operational range—from sub-ambient (0 °C) to elevated temperatures (70 °C). Unlike conventional compressor-based incubators, the IPP260eco employs solid-state Peltier thermoelectric modules for both heating and cooling, enabling bidirectional thermal regulation without mechanical refrigerants or moving compressors. This architecture eliminates oil-lubricated components, refrigerant leakage risks, and high-vibration operation—making it especially suitable for vibration-sensitive applications such as insect rearing, cell culture maintenance, and microorganism propagation where mechanical disturbance must be minimized. The unit’s closed-loop thermoelectric system operates only during active heating or cooling phases, resulting in up to 90% lower energy consumption compared to standard compressor-driven alternatives under equivalent thermal load conditions.

Key Features

• Peltier-based thermoelectric heating/cooling system with zero refrigerant use and no compressor—ensuring silent, vibration-free operation (typical noise level <35 dB(A))
• Compact footprint optimized for benchtop integration in space-constrained laboratories
• High-precision temperature control with ±0.1 °C stability at setpoint (typical), achieved via PID-regulated power modulation of Peltier elements
• Internal chamber free of condensation: moisture forms exclusively on external heat-sink surfaces due to hermetically sealed thermoelectric assembly
• Forced-air convection with tangential fan ensures uniform temperature distribution (<±0.3 °C deviation across working volume)
• Single high-resolution TFT display with intuitive menu navigation and real-time parameter monitoring
• Robust stainless steel interior (AISI 304) and insulated double-wall construction for thermal efficiency and long-term corrosion resistance

Sample Compatibility & Compliance

The IPP260eco accommodates standard laboratory vessels including Petri dishes, multi-well plates, flasks, and culture tubes. Its absence of internal condensation and minimal air exchange preserves sample integrity—particularly critical for long-duration microbiological assays, entomological studies, and sensitive enzymatic reactions. The device complies with IEC 61010-1:2010 for electrical safety in laboratory equipment and meets CE marking requirements for the European Economic Area. While not inherently humidity-controlled (unlike Memmert’s HPPeco series), the IPP260eco supports optional external humidification interfaces for integration into custom environmental protocols. It is validated for use in GLP-compliant environments when paired with appropriate calibration and audit-trail documentation procedures.

Software & Data Management

The IPP260eco features an embedded microcontroller with non-volatile memory for storing up to 10 user-defined programs, each configurable with ramp/soak profiles and hold durations. Real-time temperature logging is available via RS232 interface (standard) or optional USB-to-serial adapter. Data export supports CSV format for post-processing in Excel or LIMS platforms. Although the base model lacks built-in Ethernet or cloud connectivity, its communication protocol is compatible with third-party SCADA systems and LabVIEW drivers. For regulated environments, optional validation packages—including IQ/OQ documentation templates and traceable NIST-calibrated sensor certificates—are available directly from Memmert upon request.

Applications

• Microbiological incubation of psychrophilic and mesophilic strains (e.g., Pseudomonas fluorescens, Bacillus subtilis) across defined thermal gradients
• Insect colony maintenance (Drosophila, Tribolium) requiring stable, low-vibration environments to prevent behavioral artifacts
• Enzyme activity assays requiring precise sub-30 °C thermal control to preserve catalytic conformation
• Seed germination studies under controlled chilling treatments (stratification protocols)
• Material stability testing of biopolymer-based formulations at intermediate storage temperatures
• Pre-incubation conditioning of biosensors and diagnostic reagents prior to functional validation

FAQ

Does the IPP260eco require external ventilation or exhaust ducting?

No—its Peltier modules dissipate heat externally through passive or forced-air heat sinks; no room venting or dedicated HVAC integration is required.
Can the IPP260eco maintain temperature uniformity at 4 °C while operating in a 25 °C ambient lab?

Yes—the thermoelectric design delivers consistent performance across ambient conditions from 15 °C to 30 °C without derating.
Is the unit suitable for GMP-regulated quality control labs?

It supports GMP workflows when deployed with documented calibration, preventive maintenance logs, and electronic record controls per FDA 21 CFR Part 11 guidelines (requires optional software add-ons and qualified IT infrastructure).
What is the maximum achievable cooling rate from 25 °C to 4 °C?

Approximately 1.2 °C/min under no-load conditions; actual rate depends on chamber loading, door opening frequency, and ambient thermal stability.
How often does the unit require recalibration?

Annual verification against a traceable reference thermometer is recommended; Memmert provides certified calibration services with ISO/IEC 17025 accreditation.
