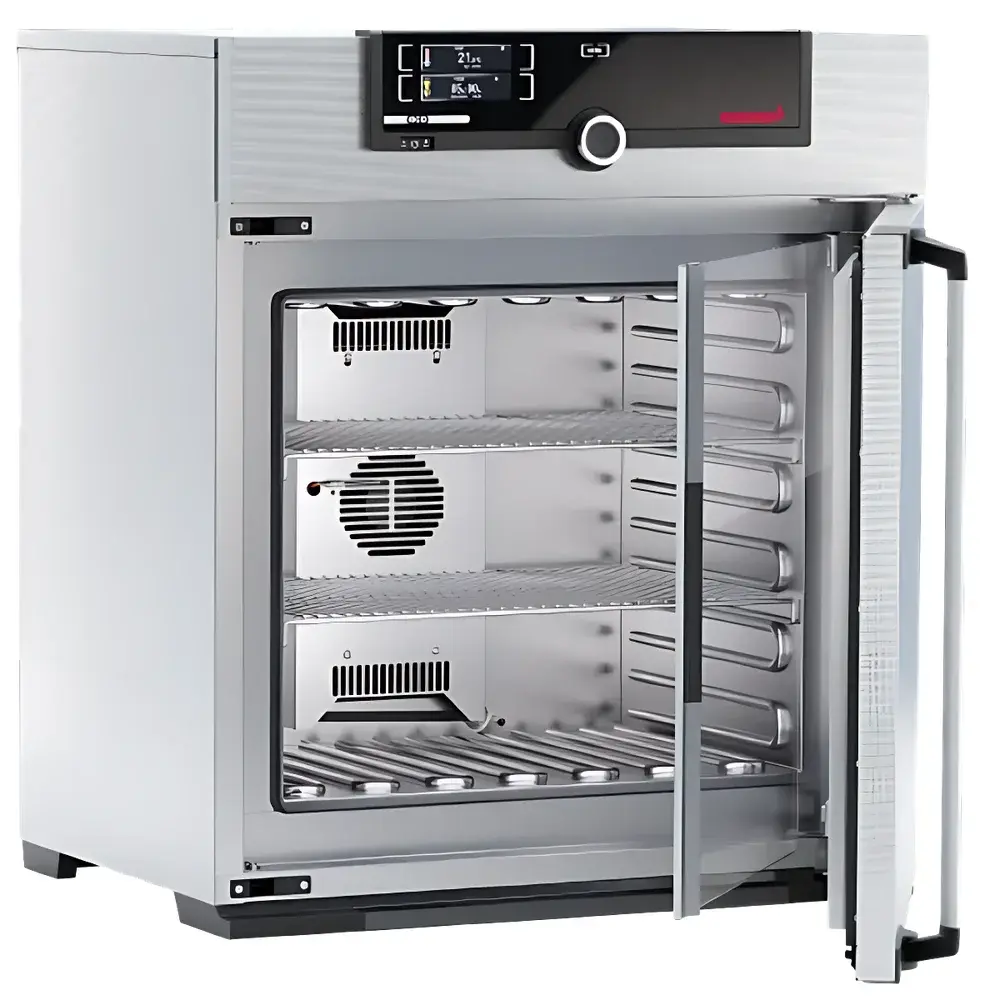

Memmert IPP55 Low Temperature Incubator (Single-Display Model)

Overview

The Memmert IPP55 Low Temperature Incubator is an engineered solution for precise, energy-efficient temperature control in life science laboratories. Unlike conventional compressor-based incubators, the IPP55 employs solid-state Peltier thermoelectric modules for bidirectional thermal regulation—enabling both heating and active cooling within a single, compact architecture. This technology operates on the principle of the Peltier effect: when direct current passes through junctions of dissimilar semiconductors, heat is absorbed at one junction and released at the other—allowing reversible thermal transfer without refrigerants or moving mechanical parts. The system delivers stable, vibration-free thermal environments across its full operating range of 0 °C to 70 °C, with exceptional stability (±0.1 °C typical) and uniformity (±0.3 °C across chamber volume). Its design eliminates internal condensation—a persistent challenge in traditional low-temperature incubation—by isolating the cooling process to external heat exchangers, thereby preserving sample integrity and minimizing maintenance.

Key Features

• Peltier-based thermoelectric cooling and heating: No compressors, no CFCs or HFCs, fully compliant with EU F-Gas Regulation (EU) No 517/2014
• Energy efficiency: Up to 90% lower power consumption compared to equivalent compressor-driven units during active cooling cycles
• Vibration-free operation: Ideal for sensitive biological assays, insect rearing, cell culture, and microplate-based kinetics where mechanical disturbance must be avoided
• Condensation-free interior: Sealed thermoelectric circuitry directs moisture formation exclusively to external heat sinks; no internal humidity accumulation or drip trays required
• Forced-air convection system: Ensures rapid thermal response and high spatial uniformity (≤ ±0.3 °C at 37 °C, measured per DIN 12880)
• Compact footprint: Optimized for space-constrained lab environments without compromising usable chamber volume (55 L net capacity)
• Single high-resolution display interface: Intuitive parameter navigation with real-time setpoint/actual value readout and status indicators

Sample Compatibility & Compliance

The IPP55 supports a broad spectrum of temperature-sensitive biological samples—including microbial cultures, primary cells, embryonic tissues, and entomological specimens—without introducing mechanical vibration or thermal overshoot. Its absence of oil-lubricated compressors and refrigerant gases ensures compliance with ISO 14001 environmental management standards and eliminates risk of chemical contamination in sterile workflows. The unit meets essential safety and electromagnetic compatibility requirements per IEC 61010-1 and EN 61326-1. While the IPP55 itself does not provide humidification, it is fully compatible with external saturated salt solutions or desiccants for controlled dry incubation protocols. For applications requiring regulated humidity, Memmert’s HPPeco series (featuring dual Peltier modules for independent temperature and RH control) serves as a technically aligned companion platform.

Software & Data Management

The IPP55 operates via an embedded microcontroller with non-volatile memory for storing up to 10 user-defined programs, each configurable with ramp/soak profiles and alarm thresholds. All operational data—including time-stamped temperature logs, error codes, and runtime statistics—are retained internally and exportable via USB interface in CSV format. The firmware supports audit trail functionality in accordance with GLP principles, including operator ID tagging (via optional RFID reader integration), change history logging, and tamper-evident event records. While the base model lacks Ethernet connectivity, it is compatible with Memmert’s optional CombiControl software suite for centralized monitoring and remote calibration verification—facilitating alignment with FDA 21 CFR Part 11 requirements when deployed in regulated QC/QA environments.

Applications

• Low-temperature bacterial and fungal cultivation (e.g., psychrotrophic strains at 4–10 °C)
• Insect rearing and developmental biology studies requiring vibration-free thermal stability
• Enzyme activity assays and protein stability profiling across sub-ambient to physiological ranges
• Seed germination testing under precisely defined chilling conditions (stratification protocols)
• Storage and conditioning of temperature-sensitive reagents, antibodies, and diagnostic kits
• Environmental simulation for material testing per ASTM D3574 (low-temp foam resilience) and ISO 22196 (antimicrobial surface evaluation)

FAQ

Does the IPP55 require external ventilation or exhaust ducting?

No—its Peltier modules reject heat solely through passive or fan-assisted external heat sinks; no room venting or dedicated HVAC integration is necessary.
Can the IPP55 maintain temperatures below ambient without pre-chilling?

Yes—it achieves active cooling from ambient down to 0 °C without preconditioning, though stabilization time increases at extreme differentials (e.g., >25 K below ambient).
Is the chamber interior stainless steel?

Yes—the working chamber is constructed from electropolished AISI 304 stainless steel with rounded corners for seamless cleaning and corrosion resistance.
What is the maximum permissible ambient temperature for continuous operation?

The unit is rated for uninterrupted use at ambient temperatures up to 30 °C; performance specifications assume ambient ≤25 °C per DIN 12880 test conditions.
Does Memmert provide IQ/OQ documentation support?

Yes—factory-issued Installation Qualification (IQ) and Operational Qualification (OQ) templates are available upon request, aligned with ISO/IEC 17025 and GMP Annex 15 guidelines.
