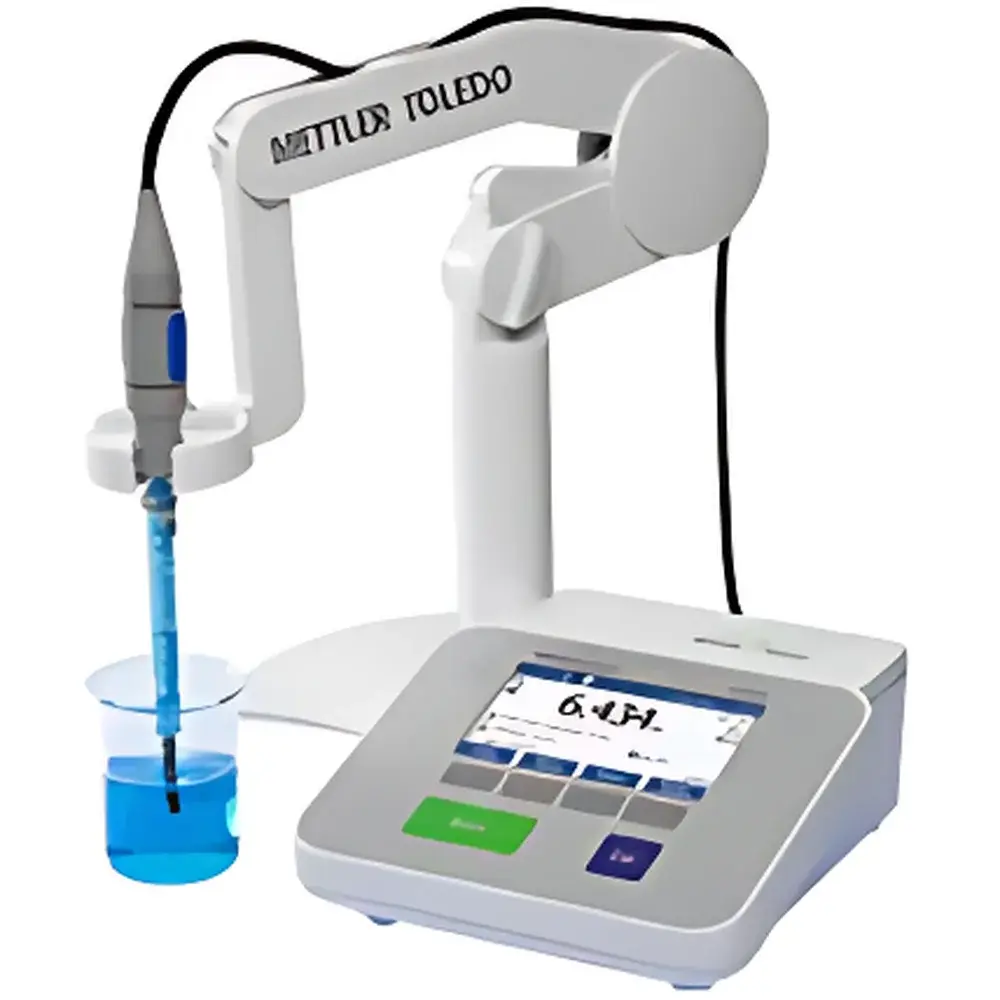

METTLER TOLEDO SevenCompact S220 pH/mV Meter

Overview

The METTLER TOLEDO SevenCompact S220 is a high-precision benchtop pH/mV meter engineered for rigorous laboratory environments where regulatory traceability, measurement reproducibility, and operational efficiency are non-negotiable. Based on potentiometric measurement principles—utilizing the Nernst equation to quantify hydrogen ion activity—the S220 delivers stable, temperature-compensated readings across aqueous and semi-aqueous samples. Its core architecture integrates a low-drift, high-input-impedance amplifier circuit (<1 pA input bias current) and dual-channel analog-to-digital conversion optimized for electrochemical signal integrity. Designed in accordance with ISO/IEC 17025 and aligned with Good Laboratory Practice (GLP) documentation requirements, the instrument supports full audit trails, user access control, and time-stamped calibration records—essential for QC labs operating under FDA 21 CFR Part 11, EU Annex 11, or pharmaceutical GMP frameworks.

Key Features

• uFocus™ color TFT display with intuitive touch interface supporting 10 languages—including full Chinese localization—enabling seamless operation across multinational R&D and manufacturing sites.
• uPlace™ one-hand electrode positioning system: motorized vertical travel with tactile feedback ensures repeatable immersion depth and eliminates manual alignment variability during batch measurements.
• Intelligent Sensor Management (ISM®) technology: automatic recognition of digital pH electrodes via embedded memory chip; real-time retrieval of latest calibration history, sensor age, slope, and offset values directly from the electrode itself.
• Dual temperature input capability: simultaneous support for NTC 30 kΩ thermistors and Pt1000 RTDs, enabling accurate automatic temperature compensation (ATC) across diverse sample matrices—from refrigerated buffers to heated process streams.
• Modular connectivity suite: native USB host port for direct data export to flash drives, RS232 serial interface for legacy printer integration, analog 0–20 mA output for SCADA linkage, and optional Bluetooth module for wireless PC synchronization.

Sample Compatibility & Compliance

The S220 is validated for use with standard glass combination electrodes, refillable reference systems, and robust gel-filled sensors suitable for routine QC testing of pharmaceutical excipients, biologics formulations, and purified water systems. It meets pharmacopeial conductivity requirements per USP , European Pharmacopoeia 2.2.38, and Chinese Pharmacopoeia (ChP) Chapter 0681 for Water for Injection (WFI) and Purified Water (PW) resistivity verification when paired with an approved conductivity cell. All measurement data—including raw mV, calculated pH, temperature, calibration parameters, and operator ID—are timestamped and stored internally with immutable GLP-compliant metadata, satisfying internal audit and external inspection demands.

Software & Data Management

Data handling follows ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available). Internal memory retains up to 1,000 measurement records with full context (date/time, user, electrode ID, calibration status, ambient conditions). Export options include CSV via USB, PDF reports with embedded electronic signatures, and structured XML for LIMS integration. Optional LabX® software provides centralized instrument management, automated report generation, deviation alerts, and electronic signature workflows compliant with 21 CFR Part 11 Annex 11 requirements. IQ/OQ documentation packages—including test protocols, acceptance criteria, and executed reports—are available upon request for regulated facility validation.

Applications

• Pharmaceutical water system monitoring (PW/WFI conductivity and pH stability tracking)
• Final product release testing of parenteral solutions, ophthalmic preparations, and topical suspensions
• Buffer preparation verification and stability studies in bioprocessing
• Raw material qualification per ICH Q5 and Q7 guidelines
• Environmental monitoring of cleanroom rinse waters and HVAC condensate
• Academic and industrial research requiring high-resolution pH titration endpoints and redox potential profiling

FAQ

Does the S220 support automatic calibration verification (ACV)?
Yes—when used with ISM-enabled electrodes, the instrument performs automatic post-calibration verification by comparing measured mV against theoretical Nernstian values at each buffer point.
Can the S220 be integrated into a networked lab environment?
It supports Ethernet via optional communication modules and is compatible with LabX Multi-User Server for remote monitoring, centralized data aggregation, and role-based access control.
Is temperature compensation mandatory for all pH measurements?
While manual temperature entry is permitted, automatic temperature compensation using either NTC or Pt1000 probes is strongly recommended to minimize systematic error due to thermal drift in electrode response.
What documentation is provided for regulatory audits?
Factory-supplied GLP-compliant calibration certificates, traceable to NIST standards, plus optional IQ/OQ execution packs with pre-validated test scripts and editable electronic records.
How does the S220 handle electrode aging diagnostics?
ISM firmware continuously logs slope degradation, asymmetry potential, and response time; thresholds trigger configurable warnings before performance falls outside ISO 3696 Class 2 or USP specifications.
