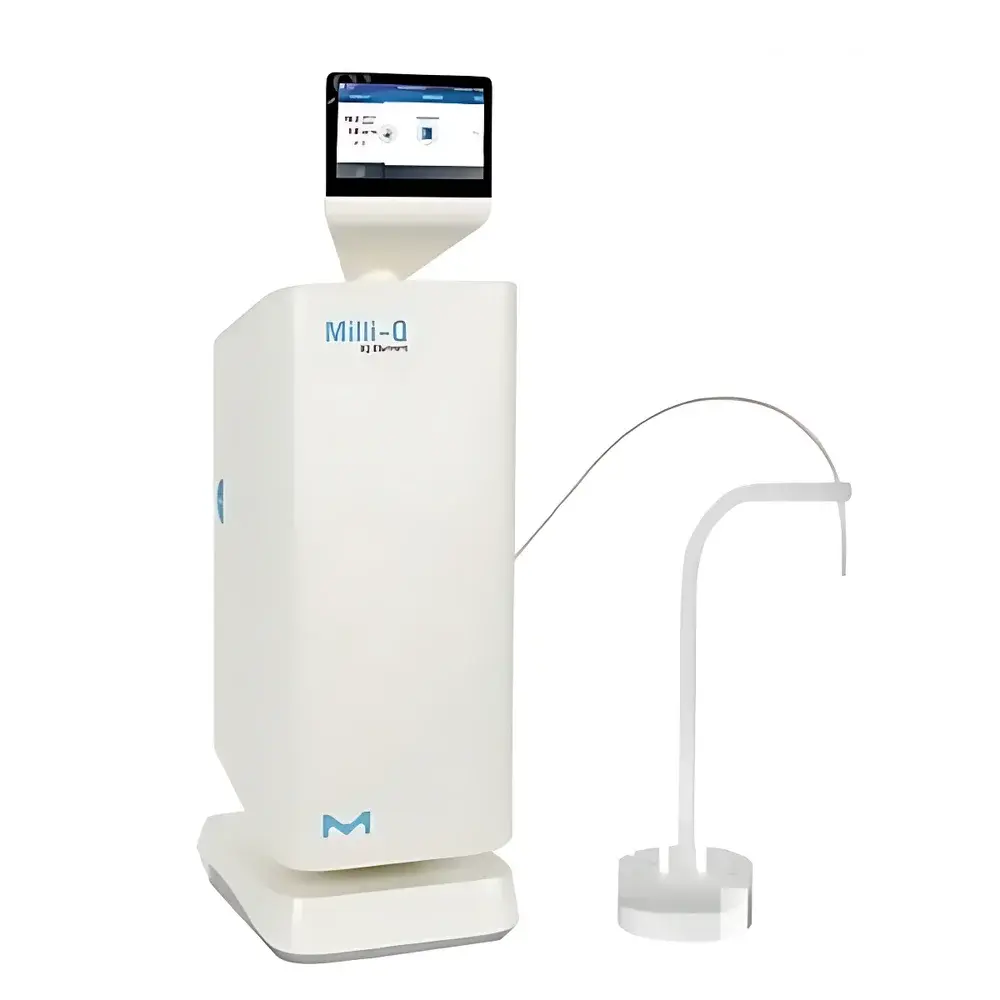

Milli-Q® IQ Element Ultra-Pure Water Polishing System by Merck
| Brand | Milli-Q |
|---|---|
| Origin | France |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Origin Category | Imported |
| Model | Milli-Q® IQ Element |
| Pure Water Grade | ASTM Type I / ISO 3696 Grade 1 |
| Resistivity | 18.2 MΩ·cm at 25 °C |
| Heavy Metals & Soluble Silica | <0.1 ppb |
| Total Organic Carbon (TOC) | ≤5 ppb |
| Microbial Count | <0.001 CFU/mL |
| Endotoxins | <0.001 EU/mL |
| Particulates (>0.1 µm) | ≤1 particle/mL (0.22 µm filter certified) |
Overview
The Milli-Q® IQ Element Ultra-Pure Water Polishing System by Merck is an endpoint water purification and dispensing unit engineered specifically for ultra-trace elemental analysis applications requiring sub-ppt (parts-per-quadrillion) contamination control. Unlike conventional point-of-use purifiers, the IQ Element is not a standalone system—it functions exclusively as a final polishing stage integrated downstream of Milli-Q® IQ 7-series primary purification systems (e.g., IQ 7000, IQ 7003/05/10/15). It employs a proprietary multi-stage purification architecture—including a low-leaching Q-POD® ultrapure cartridge with integrated 0.22 µm hydrophilic polyethersulfone (PES) membrane filtration, dual-wavelength UV oxidation (185/254 nm), and electro-deionization (EDI)-enhanced ion exchange—to reduce residual ionic, organic, microbial, and particulate contaminants to levels validated for ICP-MS, GF-AAS, and trace-level ion chromatography. Its design adheres to ISO 3696:2017 (Grade 1 water), ASTM D1193-20 (Type I), and supports compliance with GLP, GMP, and FDA 21 CFR Part 11 requirements when deployed with audit-trail-enabled software configurations.
Key Features
- Sub-ppt elemental purity: Demonstrated reduction of heavy metals (e.g., Al, Fe, Cu, Pb) and soluble silica to <0.1 ppb—validated by independent laboratories performing ultra-trace environmental and clinical metallomics.
- TOC suppression ≤5 ppb: Achieved via dual-wavelength UV photo-oxidation coupled with high-efficiency carbon adsorption, minimizing carbon-based spectral interferences in ICP-MS.
- Endotoxin- and microbe-free output: Integrated 0.22 µm sterilizing-grade filtration and UV germicidal irradiation ensure endotoxin levels <0.001 EU/mL and microbial counts <0.001 CFU/mL—critical for cell culture media preparation and molecular biology workflows.
- Hands-free, contamination-minimized dispensing: Foot-operated switch eliminates surface contact; ergonomic, low-turbulence dispensing arm minimizes aerosol generation and ambient particle ingress.
- Modular, user-serviceable consumables: Q-POD® cartridges are tool-free, twist-lock installed; full replacement requires no field engineer support and maintains system integrity per ISO 9001 calibration traceability.
- Real-time quality assurance: High-resolution capacitive touchscreen displays live resistivity, TOC, temperature, flow rate, and cartridge life—updated every 2 seconds with NIST-traceable sensor calibration.
Sample Compatibility & Compliance
The Milli-Q® IQ Element is compatible only with feed water supplied by Merck’s Milli-Q® IQ 7-series systems operating within specified inlet parameters (resistivity ≥15 MΩ·cm, TOC ≤30 ppb, pressure 2–6 bar). All wetted materials—including fluid path tubing, valves, and housing—are manufactured from pharmaceutical-grade, low-extractable polymers (e.g., PTFE, PES, and USP Class VI-certified elastomers) to prevent leaching of organics or metals. The system complies with ISO 14644-1 Class 5 (ISO Class 5) cleanroom compatibility standards for installation in laminar flow hoods or controlled environments. Documentation packages include full material declarations (IMDS), extractables/leachables reports per USP , and validation protocols aligned with EU Annex 1 and PIC/S PI 007-6 for water system qualification.
Software & Data Management
Equipped with Merck’s Elix® Connect firmware v3.2+, the IQ Element supports configurable data logging with automatic timestamped records of every dispense event—including volume, duration, real-time resistivity/TOC, operator ID (via optional RFID badge integration), and cartridge usage metrics. Data export is compliant with ASTM E2500-21 for electronic records and supports CSV, PDF, and XML formats. When networked via Ethernet or Wi-Fi, it interfaces with laboratory information management systems (LIMS) through standard OPC UA and HL7 protocols. Audit trails meet FDA 21 CFR Part 11 requirements, including electronic signatures, immutable logs, and role-based access control (RBAC) with password complexity enforcement and session timeout.
Applications
- Ultra-trace elemental analysis: ICP-MS calibration, standard preparation, and blank mitigation for geological, environmental, and semiconductor metrology labs.
- High-sensitivity spectroscopy: GF-AAS sample dilution and reagent preparation where background metal interference must remain below method detection limits (MDLs).
- Molecular diagnostics: Preparation of PCR master mixes, NGS library buffers, and CRISPR-Cas reagents sensitive to nucleases or divalent cation contamination.
- Pharmaceutical QC: Endotoxin-sensitive biologics formulation, parenteral drug diluent preparation, and cleaning validation rinse water analysis.
- Reference material production: Certified reference material (CRM) dilution and homogenization in national metrology institutes (NMIs) and accredited calibration labs.
FAQ
Can the Milli-Q® IQ Element operate independently without a Milli-Q® IQ 7-series source?
No. It is a polishing-only device and requires feed water meeting strict inlet specifications—only guaranteed when connected to a qualified Milli-Q® IQ 7 system.
What is the maximum recommended dispensing flow rate for optimal purity retention?
The system is optimized for flow rates between 0.5–2.0 L/min; exceeding 2.0 L/min may transiently reduce TOC removal efficiency and compromise sub-ppt metal stability.
How frequently must the Q-POD® cartridge be replaced?
Cartridge lifetime is usage-dependent but typically ranges from 6–12 months under standard lab conditions (≤100 L/day); the system calculates remaining capacity based on real-time conductivity and TOC load.
Is the foot switch compatible with sterile glove use in ISO Class 5 environments?
Yes—the stainless steel foot pedal features IP67-rated enclosure and is designed for repeated disinfection with 70% ethanol or hydrogen peroxide vapor without degradation.
Does the IQ Element support remote monitoring via mobile devices?
Yes—Merck’s Milli-Q® Remote Access Portal enables secure HTTPS-based viewing of system status, alerts, and historical data on iOS and Android devices using two-factor authentication.
