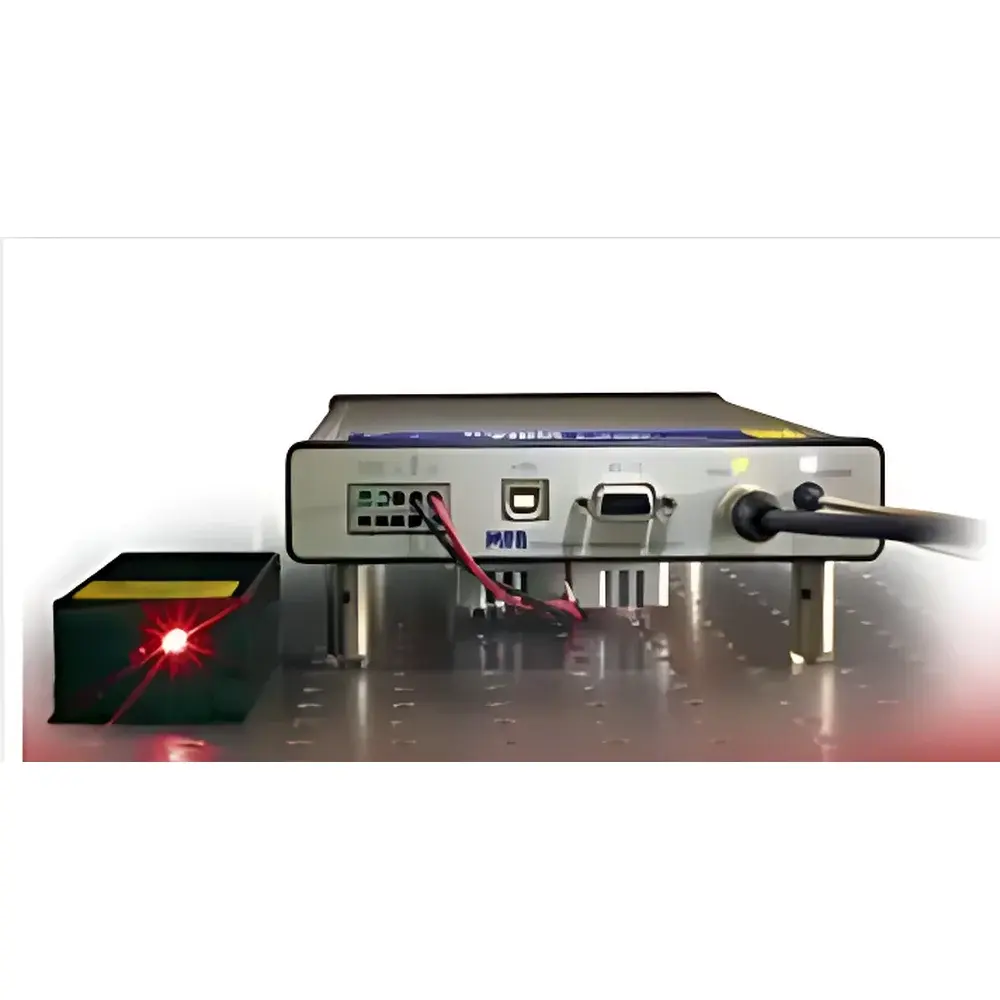

MPB VFL-P-200-647 Continuous-Wave 647 nm Fiber-Coupled Laser System

Overview

The MPB VFL-P-200-647 is a high-stability, continuous-wave (CW), single-longitudinal-mode fiber-coupled laser system engineered for precision optical applications requiring narrow spectral linewidth, diffraction-limited beam quality, and long-term wavelength fidelity at 647 nm. Operating on the principle of stimulated emission in an optically pumped rare-earth-doped fiber gain medium, this laser delivers a Gaussian TEM₀₀ output with M² ≤1.1 and linear polarization oriented vertically relative to the mechanical baseplate—enabling direct integration into alignment-sensitive platforms such as confocal microscopes, Raman spectrometers, and flow cytometry optical benches. Its air-cooled architecture eliminates reliance on external chillers, while the hermetically sealed fiber-pigtailed output ensures robust coupling efficiency and immunity to environmental drift. Designed and manufactured in Canada by MPB Communications—a Tier-1 developer of specialty fiber lasers—the VFL-P series meets stringent industrial and regulatory expectations for reliability under continuous duty cycles.

Key Features

• Stable CW output at 647 nm with ±0.02 nm wavelength stability (typ.) over 8 hours, traceable to NIST-calibrated reference standards
• TEM₀₀ spatial mode with M² ≤1.1 and full-angle beam divergence <5 mrad—optimized for high-numerical-aperture optics and single-mode fiber coupling
• Dual digital control interface: RS232 for OEM integration and USB 2.0 for local GUI-based operation
• Programmable power regulation from 20% to 100% of rated output (200 mW), enabling dynamic intensity modulation without mode hopping
• Benchtop configuration includes safety interlock circuitry compliant with IEC 60825-1; rackmount (2RU) variant integrates internal AC/DC transformer and certified emergency stop switch
• 2RU chassis conforms to EIA-310-D, IEC 60297-3-100, and ETSI TS 300 119 standards—compatible with 19″, 23″, and European telecommunications racks

Sample Compatibility & Compliance

The VFL-P-200-647 is compatible with standard FC/APC or SMA905 fiber connectors (customizable upon request) and supports direct coupling into multimode or single-mode delivery fibers (e.g., 50/125 µm, 62.5/125 µm, or SMF-28). Its optical output meets ISO 11146-1:2019 requirements for beam parameter measurement and complies with FDA 21 CFR 1040.10/1040.11 for laser product safety classification (Class 3B). The system undergoes full GLP-aligned factory testing—including power linearity verification, pointing stability assessment (<10 µrad/hour), and thermal soak validation across 15–35 °C ambient range. Documentation packages include Declaration of Conformity (DoC), test reports per IEC 61000-6-3 (EMC emissions) and IEC 61000-6-2 (immunity), and optional IQ/OQ protocols for GMP-regulated environments.

Software & Data Management

MPB provides the LaserControl Suite—a platform-independent application supporting Windows, Linux, and macOS—for real-time monitoring of output power, case temperature, diode current, and fault logs. All operational parameters are timestamped and exportable in CSV or HDF5 format for audit trails. The software implements configurable alarm thresholds and supports SCPI command sets for seamless integration into LabVIEW, MATLAB, or Python-based automation frameworks. For regulated laboratories, optional firmware enables 21 CFR Part 11-compliant user access control, electronic signatures, and immutable audit logging—fully traceable to individual operator sessions and system events.

Applications

• Confocal and super-resolution fluorescence microscopy—ideal for Alexa Fluor 647, Cy5, and Atto 647N excitation due to spectral overlap and low photobleaching induction
• Flow cytometry optical engines requiring stable 647 nm illumination for tandem dye detection (e.g., APC-Cy7, PE-Cy7)
• Ophthalmic biometry and retinal imaging systems where precise wavelength targeting minimizes melanin absorption artifacts
• Raman spectroscopy excitation sources for low-fluorescence carbon nanotube and graphene characterization
• Laser-assisted thin-film processing—including photonic annealing and selective ablation of ITO/PEDOT:PSS layers in OLED fabrication lines
• Calibration reference sources for spectroradiometers and hyperspectral sensor validation per ASTM E308 and ISO/CIE 11664-2

FAQ

Is the 647 nm output tunable?
No—this is a fixed-wavelength CW laser optimized for spectral purity and power stability; wavelength tuning is not supported.
What fiber connector types are standard?
FC/APC is standard; SMA905 and custom connectors (e.g., QD, ST) are available under OEM agreement.
Can the laser be operated in pulsed mode via external modulation?
Yes—TTL-compatible analog modulation input (0–5 V) supports external intensity gating up to 100 kHz bandwidth.
Does the rackmount version include redundant cooling fans?
Yes—the 2RU variant features dual NMB-MAT DC fans with independent thermal monitoring and fail-safe shutdown logic.
Is remote firmware update capability included?
Yes—secure OTA updates via USB or RS232 are supported using signed firmware binaries verified by SHA-256 checksums.
