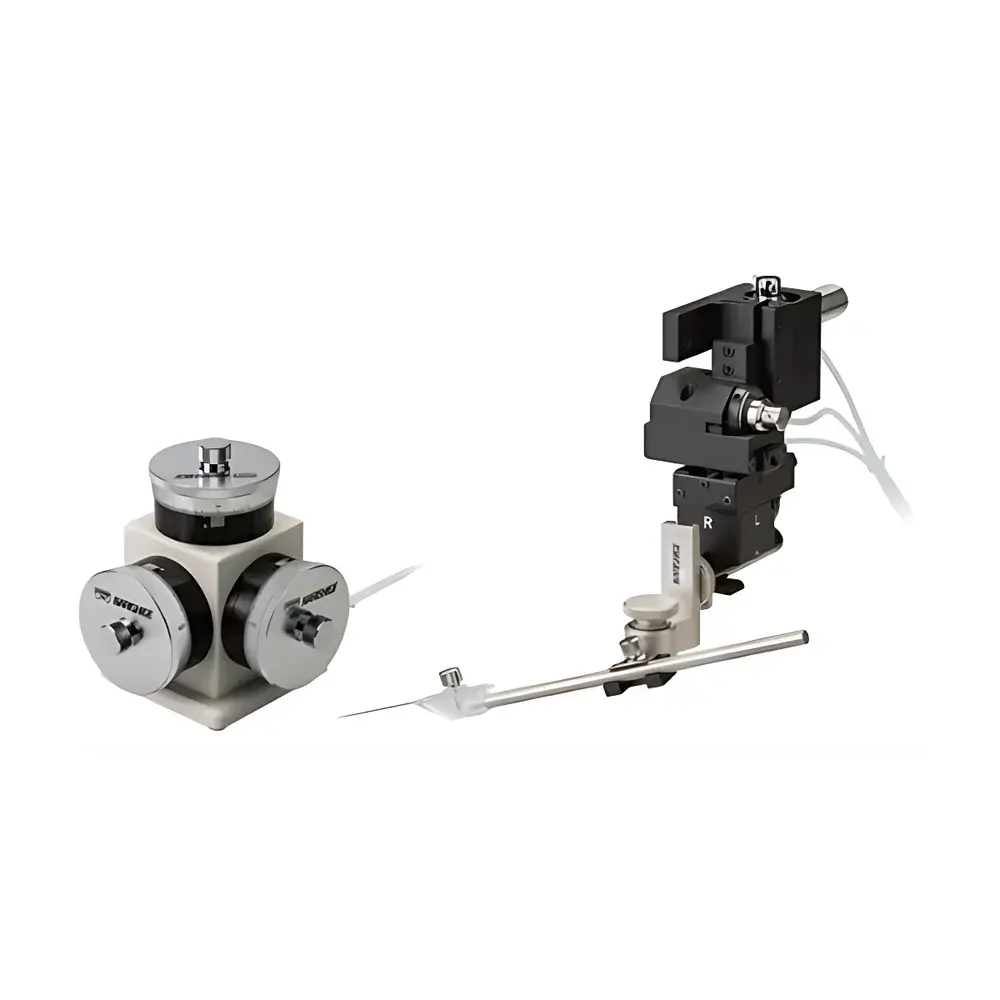

NARISHIGE MMO-203 Three-Axis Oil-Hydraulic Micromanipulator

Overview

The NARISHIGE MMO-203 Three-Axis Oil-Hydraulic Micromanipulator is a high-precision, manually operated positioning system engineered for reproducible sub-micrometer-scale manipulation in life science and electrophysiology laboratories. It operates on a sealed oil-hydraulic transmission principle—where manual rotation of precision-machined control knobs pressurizes incompressible hydraulic fluid within a closed circuit, translating rotational input into smooth, backlash-free linear displacement of the micromanipulator arm. This mechanism eliminates mechanical play, gear slippage, or thermal drift commonly associated with screw-driven or stepper-motor-based systems, making it especially suitable for stable, long-duration experiments such as intracellular patch-clamp recording, microinjection, or microelectrode positioning under optical microscopy. Designed and manufactured in Japan to NARISHIGE’s stringent quality standards, the MMO-203 integrates compact form factor with mechanical rigidity and fine positional fidelity—critical when aligning glass micropipettes or electrodes relative to live cells or tissue slices.

Key Features

• Oil-hydraulic actuation ensures zero-backlash, vibration-damped motion with exceptional positional stability over time—even during multi-hour recordings.
• Three independent axes (X, Y, Z) each provide 10 mm total travel range, with dual-stage adjustment: coarse movement (250 µm per full knob rotation) and ultra-fine vernier adjustment (1 µm minimum incremental resolution).
• Modular accessory interface compatible with standard NARISHIGE mounting systems—including B-8C spherical joint for multi-angle articulation, H-7 pipette holder for rigid glass capillary fixation, CF-3 clamp for secure stage attachment, and dedicated capillary holder for consistent orientation.
• Compact control unit (115 × 115 × 132 mm, 1.6 kg) features ergonomic knurled knobs and tactile feedback indicators; lightweight drive unit (70 × 50 × 80 mm, 0.15 kg) enables flexible integration onto inverted or upright microscopes without compromising optical access.
• All structural components are machined from anodized aluminum alloy, providing dimensional stability across ambient temperature fluctuations and resistance to corrosion from common lab solvents and saline solutions.

Sample Compatibility & Compliance

The MMO-203 is routinely deployed in GLP-compliant electrophysiology suites and academic core facilities performing single-cell analysis. Its mechanical design conforms to ISO 9001-certified manufacturing protocols at NARISHIGE’s Chiba facility. While the device itself is not electronically regulated, its use in FDA-regulated preclinical studies (e.g., neurophysiological assay development per ICH S7B guidelines) benefits from documented calibration traceability—users may perform in-house verification using certified gauge blocks or laser interferometry. The absence of electronic components eliminates electromagnetic interference (EMI), ensuring signal integrity in low-noise patch-clamp configurations. All accessories comply with RoHS 2011/65/EU directives and are free of SVHC substances per REACH Annex XIV.

Software & Data Management

As a fully manual, non-motorized instrument, the MMO-203 does not incorporate embedded firmware, digital interfaces, or proprietary software. This architecture intentionally avoids dependencies on drivers, operating system compatibility, or cybersecurity updates—enhancing long-term operational reliability and simplifying audit readiness in regulated environments. Positional repeatability is verified empirically through standardized test protocols (e.g., ASTM E2544-21 Annex A2 for micromanipulator resolution validation). Laboratories maintaining 21 CFR Part 11 compliance may document MMO-203 usage via handwritten logbooks or LIMS-integrated procedural checklists referencing batch-specific calibration records and operator training certifications.

Applications

• Intracellular and whole-cell patch-clamp electrophysiology on neurons, cardiomyocytes, and stem-cell-derived models.
• Microinjection of DNA, RNA, dyes, or CRISPR-Cas9 ribonucleoproteins into oocytes, zygotes, or early embryos.
• Targeted placement of ion-selective or pH microelectrodes in brain slice preparations or organotypic cultures.
• Alignment and stabilization of fiber-optic probes or optogenetic cannulae during in vivo or ex vivo photostimulation experiments.
• Positioning of AFM cantilevers or nanoindentation tips in hybrid correlative microscopy workflows (e.g., combined light + force imaging).

FAQ

Is the MMO-203 compatible with inverted microscopes from Zeiss, Nikon, or Olympus?

Yes—the compact drive unit mounts directly to standard dovetail or M6-thread microscope stages; optional adapter plates (sold separately) support OEM-specific footprints.
Can the MMO-203 be used in humidified CO₂ incubators?

No—oil-hydraulic systems are not rated for continuous operation above 80% RH or elevated CO₂ concentrations due to potential seal degradation; it is intended for ambient lab use only.
What maintenance is required to sustain 1 µm resolution over time?

Annual inspection of hydraulic seals and recalibration using NARISHIGE-certified test gauges is recommended; no routine lubrication is needed—sealed oil chambers operate maintenance-free for >5 years under typical usage.
Does NARISHIGE provide ISO/IEC 17025-accredited calibration certificates?

Calibration reports traceable to JCSS (Japan Calibration Service System) standards are available upon request at time of purchase, including uncertainty budgets per ISO/IEC 17025:2017 Clause 7.7.
How does the MMO-203 compare to motorized alternatives like the MN-4 or MP-285?

Unlike motorized manipulators, the MMO-203 offers superior mechanical damping and zero electrical noise—but lacks programmable automation; selection depends on whether experimental priority lies in positional stability (MMO-203) or script-driven repeatability (motorized platforms).
