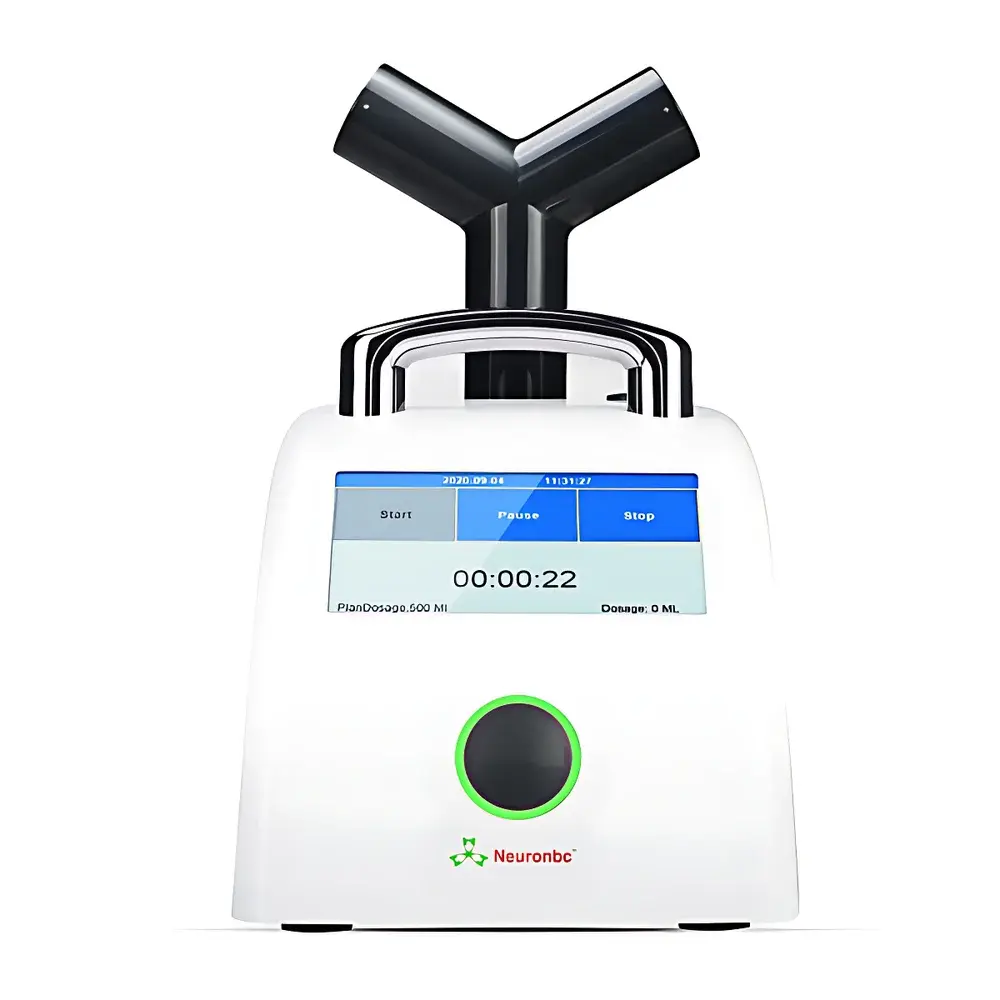

NeuronBC HP-1000 Hydrogen Peroxide Cold Vapor Sterilizer

Overview

The NeuronBC HP-1000 is a fully integrated, ambient-temperature hydrogen peroxide (H₂O₂) cold vapor sterilization system engineered for terminal decontamination of critical controlled environments. Unlike thermal or plasma-based sterilizers, the HP-1000 employs a proprietary cold evaporation technology—where liquid H₂O₂ is atomized into sub-3 µm aerosol particles without thermal degradation—enabling rapid, residue-free, and material-compatible biocidal action. The system operates within ISO 14644 Class 5–8 cleanrooms, BSL-2/3 laboratories, pharmaceutical isolators, pass-through chambers, and HVAC ductwork. Its core principle relies on catalytic decomposition of H₂O₂ vapor into reactive hydroxyl radicals (•OH), which irreversibly oxidize microbial proteins, lipids, and nucleic acids. Validated per EN 17177:2020 and compatible with VHP®-equivalent protocols, the HP-1000 delivers deterministic sterility assurance levels (SAL) of 10⁻⁶ across complex geometries—including under shelves, behind equipment, and inside tubing—without condensation or surface wetting.

Key Features

• Ambient-temperature vaporization: No external compressed air or heating elements required; eliminates thermal stress on sensitive instrumentation and polymer components.
• High-efficiency dual-nozzle rotary dispersion: Eccentric multi-orifice nozzles coupled with ultra-high-speed centrifugal airflow ensure uniform 1–3 µm aerosol distribution across 1,000 m³ volumes in ≤30 minutes (cycle time dependent on room configuration and humidity).
• Dual-display remote control interface: 7-inch high-resolution color touchscreen + optional web-based dashboard for real-time parameter monitoring and intervention.
• Modular consumable design: Interchangeable 5 L H₂O₂ reservoirs support seamless swap during multi-zone campaigns; compatible with USP-grade 35% w/w hydrogen peroxide solutions from multiple certified suppliers.
• Integrated environmental conditioning: Built-in desiccant-assisted dehumidification maintains ≤40% RH pre-cycle—critical for optimal H₂O₂ vapor phase stability and radical yield.
• HEPA-filtered recirculation loop: Internal 99.99% @ 0.3 µm filtration ensures operator safety and prevents cross-contamination between cycles.
• Microprocessor-controlled automation: Fully programmable cycle logic with automatic leak detection, vapor concentration feedback, and abort-on-anomaly safeguards.

Sample Compatibility & Compliance

The HP-1000 is validated for use with stainless steel, anodized aluminum, borosilicate glass, polypropylene, PTFE, and most elastomers commonly found in GMP manufacturing suites and biosafety labs. It complies with ISO 14644-1 (cleanroom classification), ISO 14698-1 (biocontamination control), and EN 17177:2020 (chemical sterilization of rooms and devices). Cycle data—including temperature, humidity, H₂O₂ ppm concentration (via onboard electrochemical sensor), exposure duration, and pressure differential—are timestamped and stored locally with optional encrypted export to CSV or PDF. Full audit trail functionality supports FDA 21 CFR Part 11 compliance when deployed with validated network authentication and electronic signature modules.

Software & Data Management

Embedded firmware supports wireless mesh networking (IEEE 802.15.4) for synchronized multi-unit operation across large facilities. All sterilization cycles are logged with unique identifiers, operator credentials, and environmental metadata. Data export includes raw sensor time-series, cycle summary reports, and pass/fail validation flags aligned with ISO 14647 Annex D. Optional integration with LIMS or MES platforms via RESTful API enables automated release of sterilized zones post-validation. Firmware updates are delivered over secure HTTPS with cryptographic signature verification.

Applications

• Pharmaceutical manufacturing: Isolator decontamination, transfer hatch sterilization, reactor vessel bio-decontamination, and HVAC duct sanitization prior to media fill simulations.
• Research laboratories: BSL-2/3 containment room turnover, glovebox reconditioning, and analytical instrument chamber sterilization (e.g., SEM sample stages, MALDI sources).
• Animal facilities: Barrier room decontamination, caging system sterilization, and surgical suite turnover between procedures.
• Healthcare infrastructure: Endoscope reprocessing room decontamination, pharmacy compounding area clearance, and PPE storage cabinet sterilization.
• Biotech process equipment: Single-use bioreactor bag interiors, chromatography column housings, and fluid path sterilization without disassembly.

FAQ

What is the maximum recommended H₂O₂ concentration for safe operation?
The HP-1000 is calibrated for 30–35% w/w aqueous hydrogen peroxide solutions; higher concentrations may exceed material compatibility thresholds and require additional validation.
Does the system require external HVAC integration?
No—self-contained air handling enables standalone operation; however, optional duct coupling is available for whole-facility decontamination via existing HVAC return lines.
How is biological efficacy verified per cycle?
Each cycle incorporates real-time vapor-phase H₂O₂ monitoring and optional biological indicator (BI) placement per ISO 14647; log reduction is confirmed via post-cycle incubation of Geobacillus stearothermophilus spore strips.
Can the HP-1000 be used in occupied spaces?
No—operation requires full room evacuation and interlocked door access control; residual H₂O₂ is catalytically decomposed to oxygen and water vapor prior to re-entry.
Is firmware validation documentation available for GMP audits?
Yes—IQ/OQ/PQ protocols, traceability matrices, and cybersecurity risk assessments (per IEC 62304) are provided upon request as part of the qualification support package.
