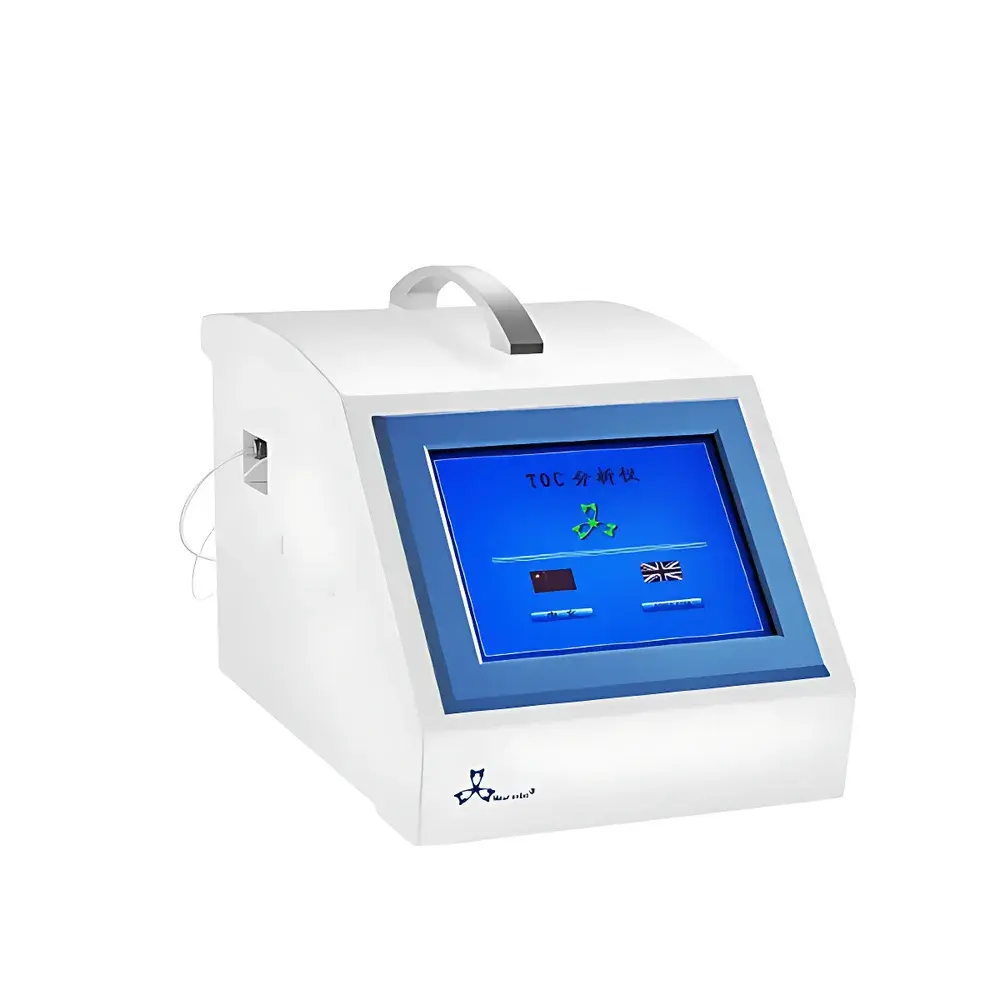

NeuronBC TA-1.0 Offline Total Organic Carbon (TOC) Analyzer with Audit Trail

Overview

The NeuronBC TA-1.0 Offline Total Organic Carbon (TOC) Analyzer is a purpose-engineered laboratory instrument designed for precise, regulatory-compliant quantification of total organic carbon in ultrapure water matrices. It operates on the principle of UV photocatalytic oxidation coupled with direct conductivity detection — a method validated for pharmaceutical-grade water analysis where reagent-free operation and minimal consumables are critical. In this configuration, dissolved organic compounds are oxidized to CO₂ under 185/254 nm UV irradiation in the presence of a titanium dioxide catalyst; the resulting CO₂ dissolves in deionized water to form carbonic acid, inducing a measurable change in solution conductivity proportional to the original TOC concentration. Unlike combustion-based or NDIR-detected systems, the TA-1.0 eliminates the need for carrier gases (e.g., zero air or nitrogen), strong acids, persulfate reagents, or high-temperature furnaces — significantly reducing operational complexity, maintenance burden, and long-term cost of ownership. Its offline architecture ensures full independence from process piping, making it ideal for batch release testing, cleaning validation sampling, and routine QC checks in GMP-regulated environments.

Key Features

• Reagent-free UV photocatalytic oxidation system — no persulfate, acid, or gas cylinders required
• Integrated audit trail functionality implemented at the embedded controller level (not software-emulated), ensuring ALCOA+ compliant data integrity per FDA 21 CFR Part 11 and EU Annex 11
• Onboard automated system suitability testing (SST) and system adaptability verification per USP , including blank correction, calibration verification, and recovery spike checks
• Intelligent limit-based alarm logic: configurable upper action limits trigger visual/audio alerts and automatic flagging of out-of-spec results in raw data files

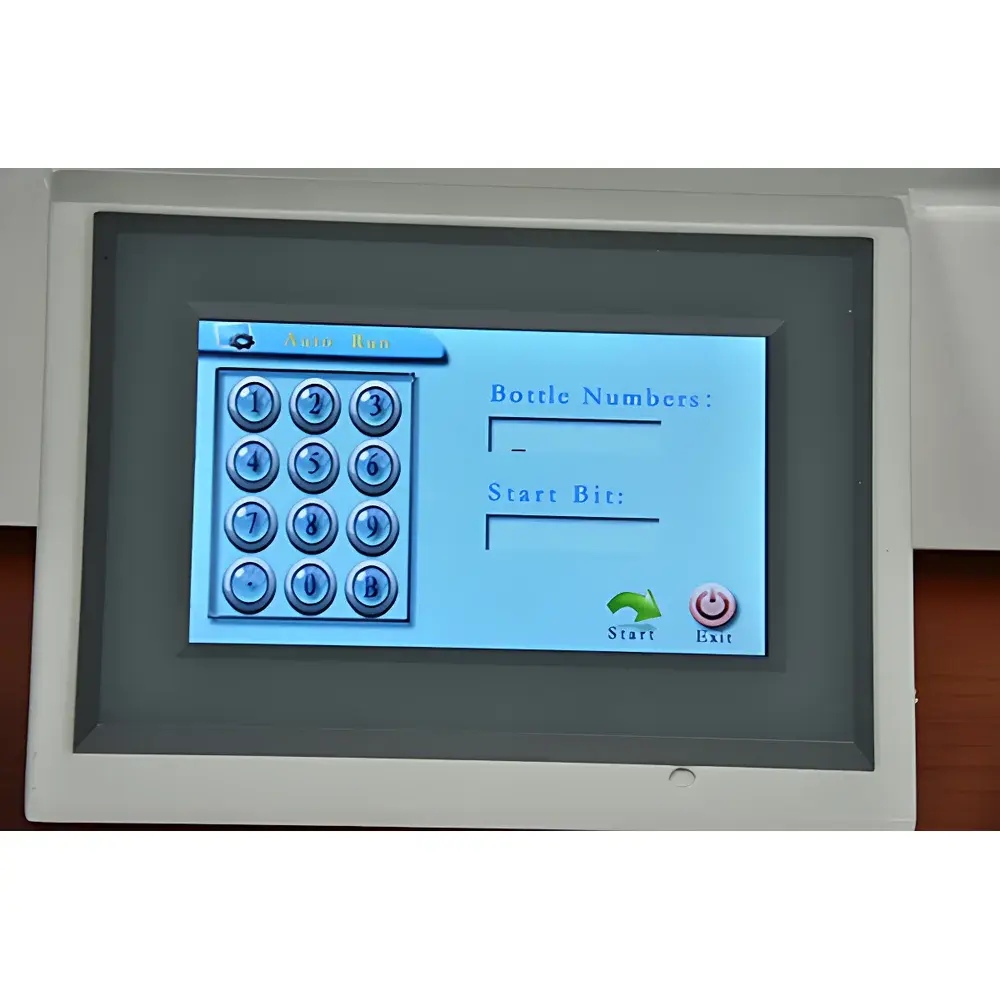

• Modular auto-sampler compatibility (optional) supporting up to 48 vials for unattended batch analysis
• Embedded real-time clock and user-accessible event log with operator ID, timestamp, parameter changes, and result modifications — all immutable and exportable as CSV or PDF

Sample Compatibility & Compliance

The TA-1.0 is optimized for low-conductivity aqueous samples with conductivity < 2.5 µS/cm, including Water for Injection (WFI), Purified Water (PW), and ultrapure water used in semiconductor rinse applications. It meets the performance criteria outlined in ChP 2020 General Chapter 0682, USP “Total Organic Carbon”, and European Pharmacopoeia monograph 2.2.44. All firmware and data handling protocols are engineered to support full lifecycle validation: Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ) documentation packages are available upon request and include traceable calibration certificates, uncertainty budgets, and test protocols aligned with ISO/IEC 17025 and ASTM D5905-22. The device conforms to IEC 61000-6-3 (EMC) and IEC 61010-1 (safety) standards for laboratory electrical equipment.

Software & Data Management

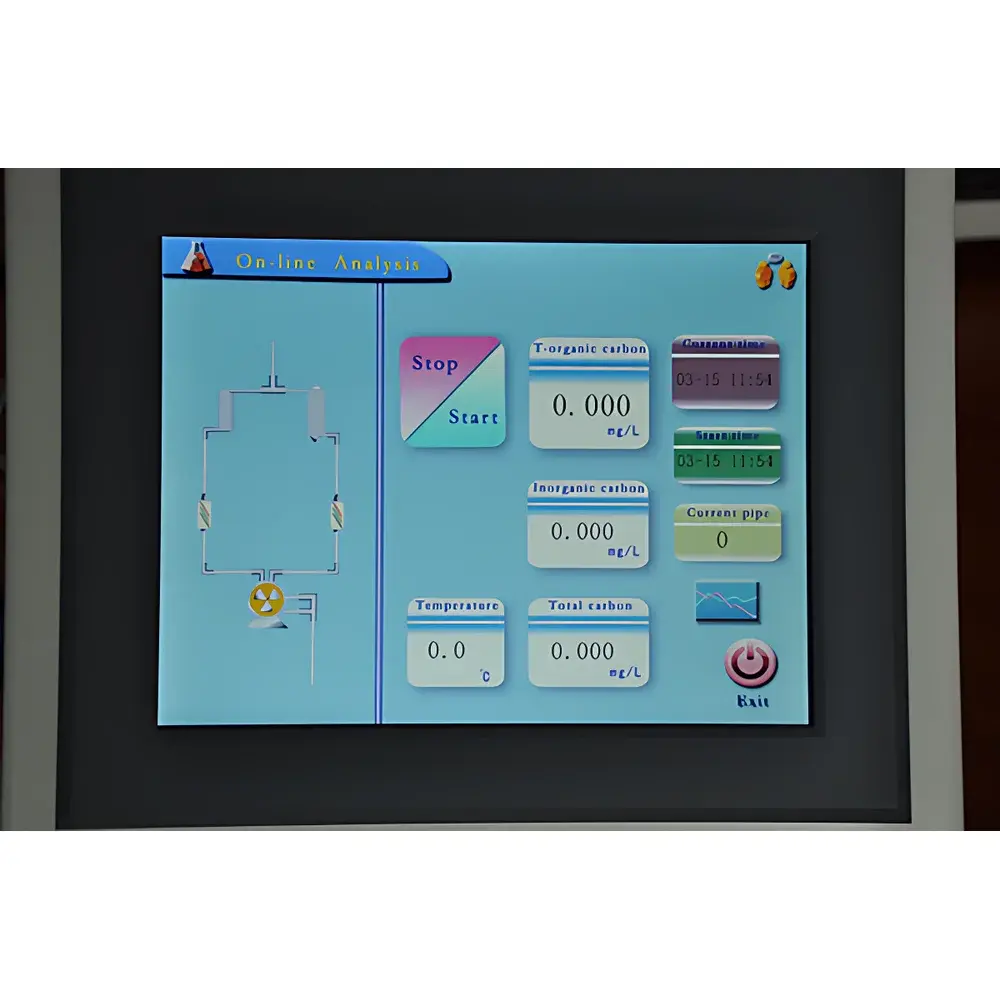

Data acquisition and reporting are managed via the TA-1.0’s embedded Linux-based controller, which stores all analytical data, audit events, and method parameters in an encrypted SQLite database. Raw conductivity traces, calibration curves, and SST reports are exportable without proprietary software dependency — standard USB drive interface supports direct file retrieval in CSV, XML, or PDF/A-1a formats. Audit trail records include operator login/logout, method edits, result overrides, and instrument status transitions — each entry cryptographically signed and time-stamped by an internal hardware RTC synchronized to NTP servers during network connection. No cloud upload or remote telemetry occurs unless explicitly enabled by administrator-level configuration, preserving data sovereignty and alignment with internal IT security policies.

Applications

• Final release testing of WFI and PW per pharmacopeial compendia
• Cleaning validation studies for biopharmaceutical manufacturing equipment (e.g., tanks, piping, filters)
• Periodic monitoring of ultrapure water distribution loops in semiconductor fabs
• Environmental monitoring of low-TOC process streams in microelectronics and nanomaterial synthesis
• Method transfer and comparative analysis between online and offline TOC measurement platforms
• Supporting FDA, EMA, and NMPA inspection readiness through fully documented, tamper-evident data archives

FAQ

Does the TA-1.0 require external gas supply or chemical reagents for routine operation?

No — it uses only UV light and catalytic oxidation; no carrier gases, persulfate, phosphoric acid, or sodium hydroxide are needed.
Is the audit trail compliant with FDA 21 CFR Part 11 and EU Annex 11?

Yes — audit trail is generated and stored at the firmware level with electronic signatures, immutable timestamps, and role-based access control.
Can the instrument perform system suitability tests automatically?

Yes — SST sequences (including blank, calibration standard, and spiked recovery) execute without manual intervention and generate pass/fail reports per USP .
What sample volume is required per analysis?

Standard analysis consumes 2.0 mL of sample; optional low-volume mode supports 0.5 mL for precious or limited samples.
Is IQ/OQ/PQ documentation provided with the system?

Yes — comprehensive validation templates, protocol execution records, and summary reports are included and customizable for site-specific requirements.
