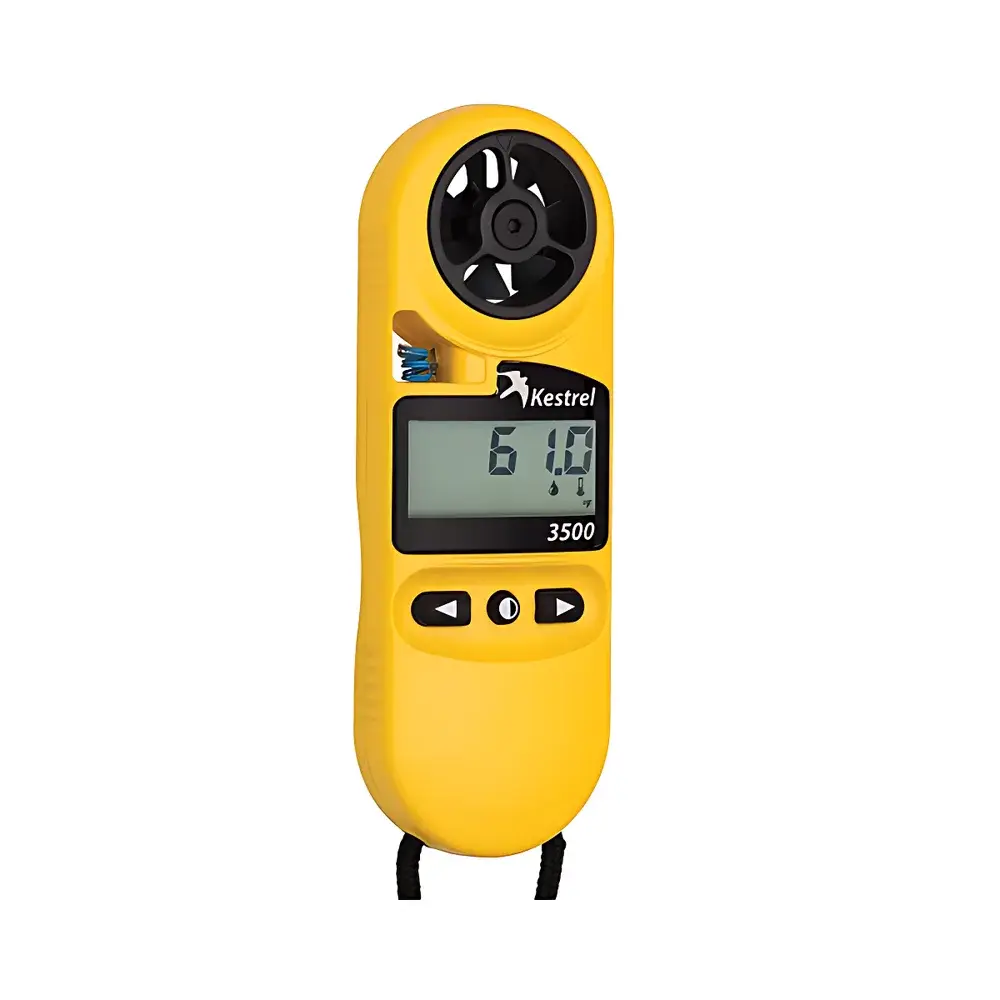

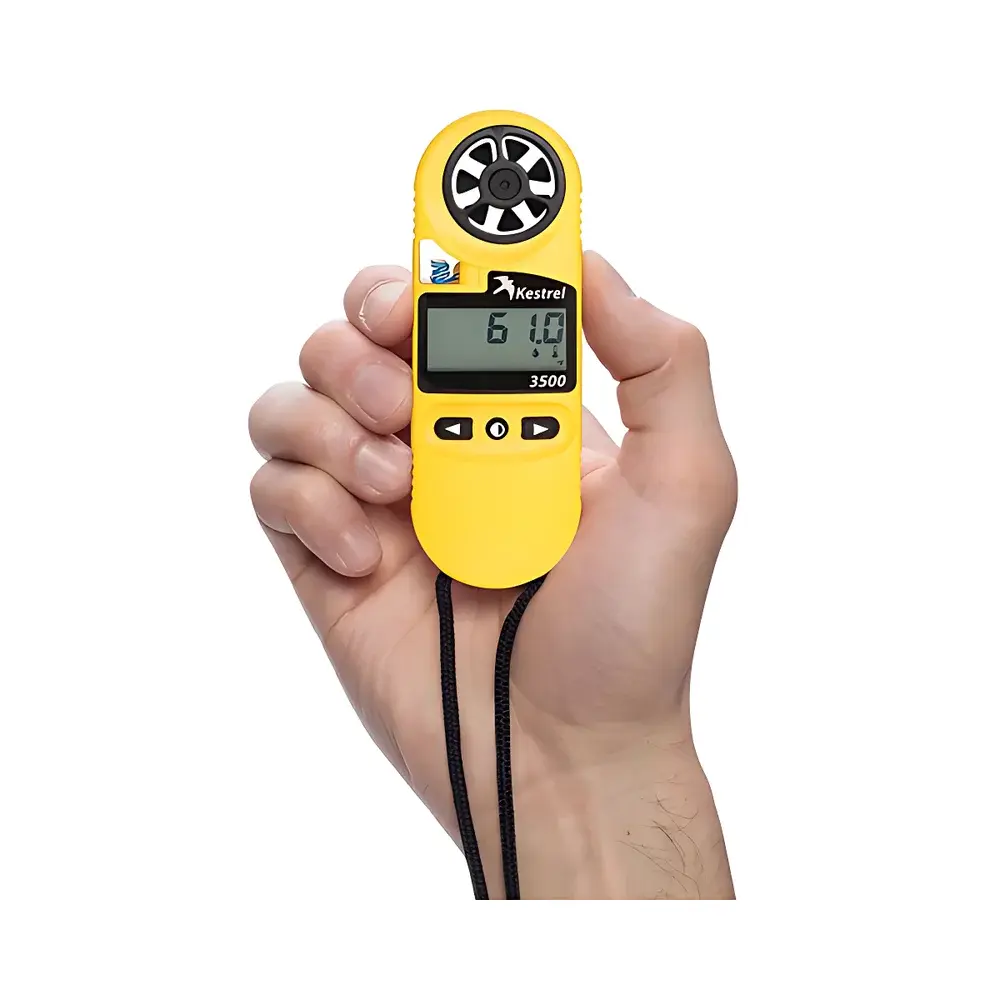

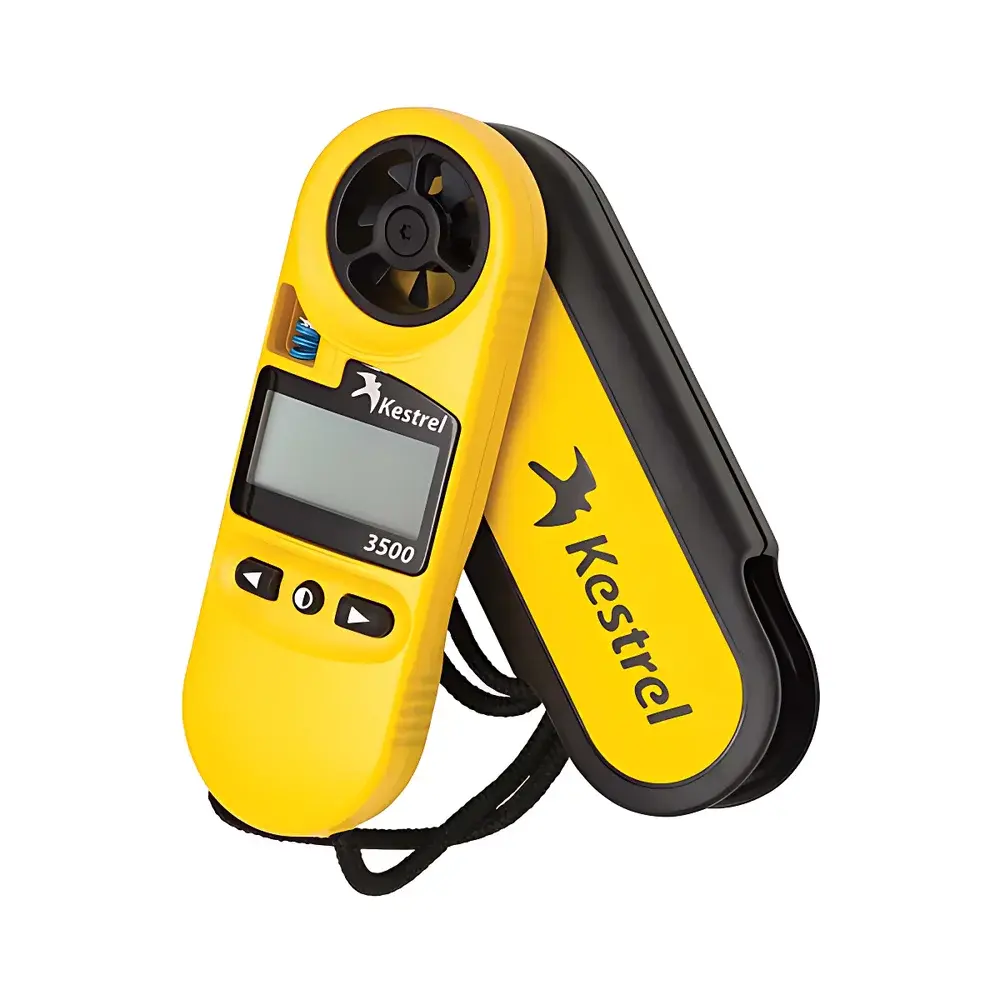

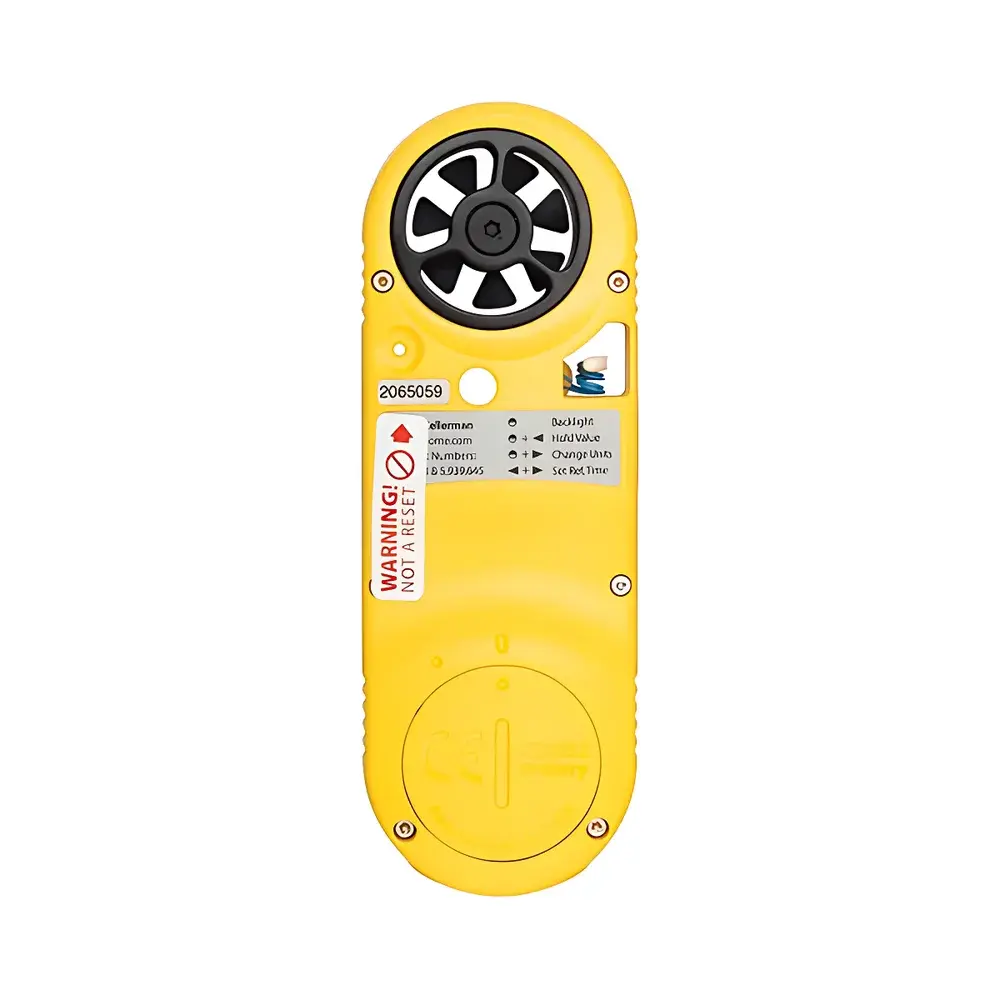

NK Kestrel 3500 Handheld Weather Meter

Overview

The NK Kestrel 3500 Handheld Weather Meter is a field-deployable, integrated environmental measurement instrument engineered for precision, durability, and operational simplicity in demanding outdoor conditions. Unlike basic anemometers or standalone thermohygrometers, the Kestrel 3500 employs a calibrated rotating-cup anemometer—based on proven cup-and-bearing aerodynamic principles—to deliver accurate wind velocity data across a wide dynamic range, including low-wind regimes (<0.5 m/s) where many portable instruments exhibit poor resolution or hysteresis. Its core sensor suite integrates a thermistor-based temperature transducer, a capacitive relative humidity (RH) sensor with polymer dielectric film, and a piezoresistive barometric pressure sensor—all factory-traceable to NIST standards. These components operate under real-time microprocessor control (low-power ARM Cortex-M series architecture), enabling simultaneous acquisition and cross-parameter calculation of derived meteorological indices—including wind chill (per ASTM D5190-21), heat index (per NOAA/NWS methodology), dew point (Magnus formula implementation), and altitude (calculated from sea-level referenced barometric pressure). The device is designed for direct-field use by professionals in occupational safety, wildland fire management, HVAC commissioning, outdoor sports science, and environmental compliance monitoring.

Key Features

• Triple-button interface with tactile feedback—designed for gloved operation and intuitive navigation without menu depth
• High-visibility monochrome LCD with user-selectable red backlight (standard on grass-green housing variant) for low-light readability
• Modular cup anemometer assembly with replaceable impeller and precision sapphire-jeweled bearings for long-term repeatability and minimal friction error
• IP67-rated enclosure—fully submersible to 1 meter for 30 minutes; tested per IEC 60529; shock-tested to MIL-STD-810G Method 516.6
• Floatable chassis design—enables recovery from accidental water immersion during marine or flood-response operations
• CR2032 coin-cell power architecture—no proprietary battery required; >300 hours continuous operation at 25°C; auto-power-down after 45 minutes of idle state
• No external calibration required under normal service intervals—sensor drift compensated via firmware-based thermal and pressure compensation algorithms

Sample Compatibility & Compliance

The Kestrel 3500 does not require sample preparation or consumables. It measures ambient atmospheric conditions directly at the point of deployment. All sensors comply with internationally recognized metrological frameworks: temperature accuracy ±0.5°C (–20°C to +60°C), RH accuracy ±3% (10–90% RH, 25°C), barometric pressure accuracy ±0.5 hPa (700–1100 hPa). Wind speed accuracy is ±3% of reading or ±0.2 m/s (whichever is greater) across its 0.1–40 m/s range. The instrument meets CE marking requirements (EMC Directive 2014/30/EU, RoHS 2011/65/EU) and carries FCC ID ZPQK3500 for electromagnetic compatibility in North America. While not certified for regulated GxP environments (e.g., FDA 21 CFR Part 11), it supports audit-ready data logging when paired with optional Kestrel LiNK Bluetooth dongles and compliant software platforms used in ISO 9001-certified QA workflows.

Software & Data Management

The Kestrel 3500 operates as a standalone unit with no embedded memory or onboard data logging. However, it is fully compatible with the Kestrel LiNK iOS/Android application via Bluetooth Smart (BLE 4.0+). This enables real-time telemetry streaming, time-stamped parameter export (CSV), and configurable alarm thresholds for wind gusts, temperature excursions, or humidity saturation events. Data exports include full metadata (device serial number, firmware version, UTC timestamp, GPS coordinates if enabled via paired smartphone). For enterprise integration, CSV outputs conform to ASTM E2500-22 Annex A1 data formatting guidelines, facilitating ingestion into LIMS, SCADA, or environmental monitoring databases. Firmware updates are distributed through the official NK mobile app and maintain backward compatibility with all Kestrel 3000-series hardware revisions.

Applications

• Wildfire incident command—real-time wind shift detection and spot-fire risk assessment using wind chill and heat index trends
• Occupational health & safety—OSHA-compliant heat stress monitoring during construction, roofing, or refinery maintenance
• Agricultural microclimate profiling—field-level validation of irrigation scheduling models and frost-risk forecasting
• Aviation ground support—pre-flight wind shear evaluation and density altitude computation for small aircraft operations
• Outdoor athletic performance optimization—environmental load indexing for endurance training and race-day strategy planning
• Building envelope commissioning—localized air infiltration quantification and thermal bridging verification via comparative RH/temperature gradients

FAQ

Does the Kestrel 3500 support data logging without external devices?
No—it is a real-time display instrument only. Persistent data capture requires pairing with the Kestrel LiNK app via Bluetooth.
Can the impeller be replaced in the field?
Yes—the cup assembly is user-serviceable using standard tools; replacement kits (P/N 0801) are available directly from NK or authorized distributors.
Is the barometric pressure reading automatically corrected to sea level?
No—the device displays absolute (station) pressure by default; sea-level equivalent must be calculated externally using local elevation input.
What is the operating temperature range for reliable sensor performance?
–20°C to +60°C for all primary measurements; extended cold operation down to –30°C is possible with reduced battery life and potential RH hysteresis.
How is calibration traceability maintained?
Each unit ships with a Certificate of Conformance referencing NIST-traceable master standards; periodic verification against accredited reference instruments is recommended every 12 months per ISO/IEC 17025 guidance.
