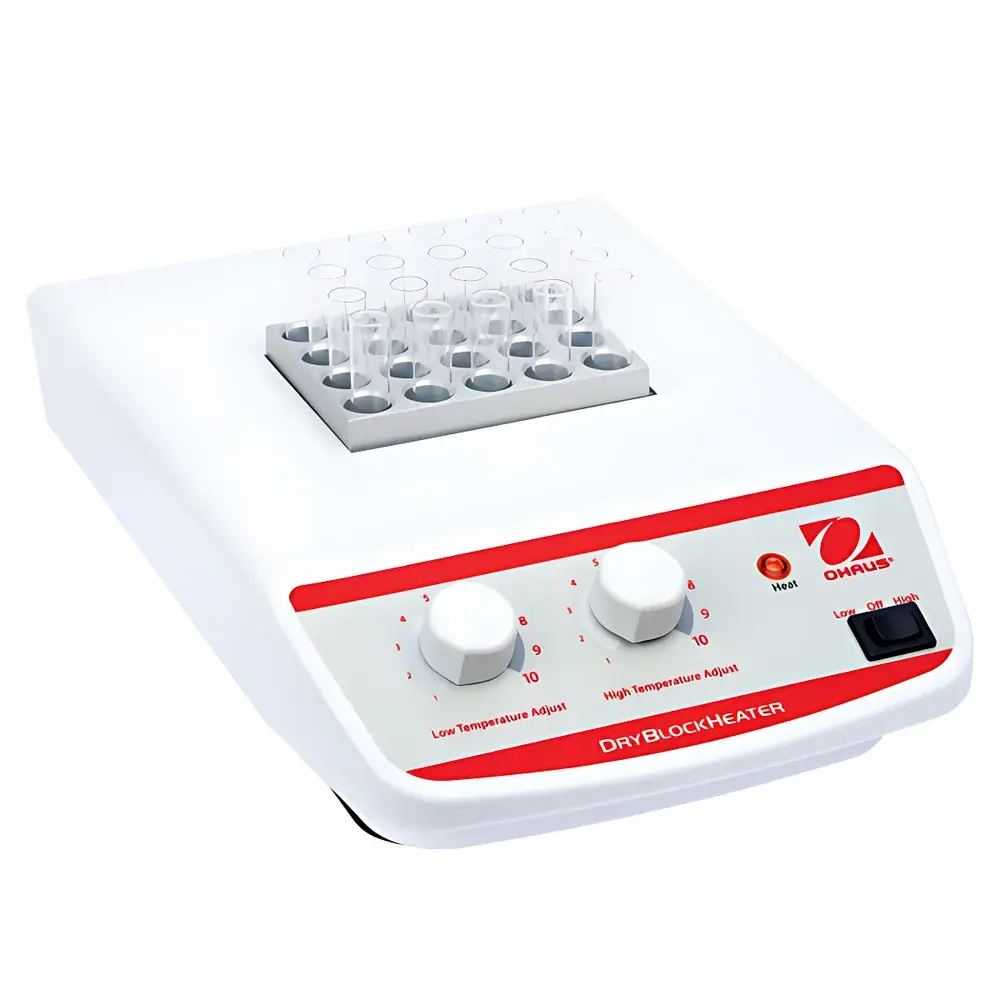

OHAUS HB6DG Dry Block Heater

Overview

The OHAUS HB6DG Dry Block Heater is an engineered thermal platform designed for precise, uniform, and contamination-free sample heating in life science, clinical, and quality control laboratories. Unlike water baths or heating mantles, this dry block system employs solid aluminum heating blocks with precisely machined wells to transfer thermal energy directly to tubes, vials, or microplates via conduction—eliminating evaporation, condensation, and cross-contamination risks. Its operation is based on closed-loop PID temperature control, ensuring stable setpoint maintenance across the full 20–80 °C range. The unit is optimized for applications requiring consistent thermal profiles over extended durations, including enzyme incubation, DNA denaturation, reagent equilibration, and sample thawing prior to downstream analysis.

Key Features

• Single-block configuration with rapid thermal response and high thermal mass for minimal temperature fluctuation (<±2.5 °C accuracy at setpoint)
• Tool-free modular interchangeability—compatible with over 40 interchangeable aluminum and stainless-steel blocks for tubes (0.2 mL to 50 mL), PCR strips, deep-well plates, and custom geometries
• Direct-contact well design ensures maximal thermal coupling between block surface and vessel walls, improving heat transfer efficiency by up to 30% compared to air-based heaters
• Digital display model features real-time temperature readout, adjustable ramp rates, and programmable hold times—supporting GLP-compliant documentation workflows
• Rugged powder-coated steel chassis with integrated ventilation and thermal cutoff protection meets UL/CSA safety standards for continuous unattended operation

Sample Compatibility & Compliance

The HB6DG accommodates a broad spectrum of laboratory consumables through its modular architecture. Standard blocks support common formats including 0.2 mL PCR tubes, 1.5/2.0 mL microcentrifuge tubes, 15 mL and 50 mL conical tubes, 96-well PCR plates, and 24-well cell culture plates. All blocks are manufactured to ISO 9001-certified processes and undergo dimensional validation per ASTM E2234 for thermal uniformity verification. While the instrument itself does not carry FDA 510(k) clearance, its design aligns with USP guidelines for analytical instrument qualification (AIQ), particularly in the Operational Qualification (OQ) phase for temperature stability testing. It supports audit-ready traceability when paired with validated calibration protocols and external NIST-traceable thermometers.

Software & Data Management

The HB6DG digital variant operates without proprietary software—temperature settings, dwell times, and ramp profiles are configured locally via front-panel keypad and LCD interface. All parameter changes are logged in non-volatile memory with timestamped entries, enabling basic electronic recordkeeping compliant with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate). For integration into larger LIMS or ELN ecosystems, optional RS-232 or USB-to-serial adapters allow bidirectional communication using ASCII command sets defined in the OHAUS Instrument Control Protocol (ICP) v2.1. Data export supports CSV formatting for post-acquisition analysis in Excel or statistical packages such as JMP or Minitab.

Applications

• Pre-analytical sample conditioning for HPLC, GC, and ICP-MS workflows
• Controlled thawing of cryopreserved cell lines and biologics under ISO 13485-aligned handling protocols
• Enzyme kinetics assays requiring strict thermal consistency across replicates (e.g., kinase activity, ligase efficiency)
• Stability testing of pharmaceutical formulations per ICH Q1A(R2) guidelines
• Standardization of calibration standards in environmental labs (e.g., VOC extraction, heavy metal digestion)

FAQ

What is the recommended calibration frequency for the HB6DG?
Annual calibration is advised per ISO/IEC 17025 requirements; however, user-performed daily verification using a NIST-traceable probe is strongly recommended before critical runs.
Can the HB6DG be used for sterilization or autoclave simulation?
No—it is not rated for temperatures above 80 °C and lacks the pressure containment or validation features required for sterilization cycles.
Is the HB6DG compatible with third-party blocks?
Only OHAUS-certified blocks are supported; use of non-OHAUS blocks voids warranty and compromises thermal uniformity and safety compliance.
Does the unit support remote monitoring or network connectivity?
Not natively—but with optional serial interface hardware and custom scripting, integration into building management systems (BMS) or centralized lab monitoring platforms is feasible.
How does ambient temperature affect performance?
Operation is rated for ambient conditions of 15–30 °C and ≤80% RH non-condensing; sustained exposure to extremes may impact time-to-setpoint and long-term sensor drift.
