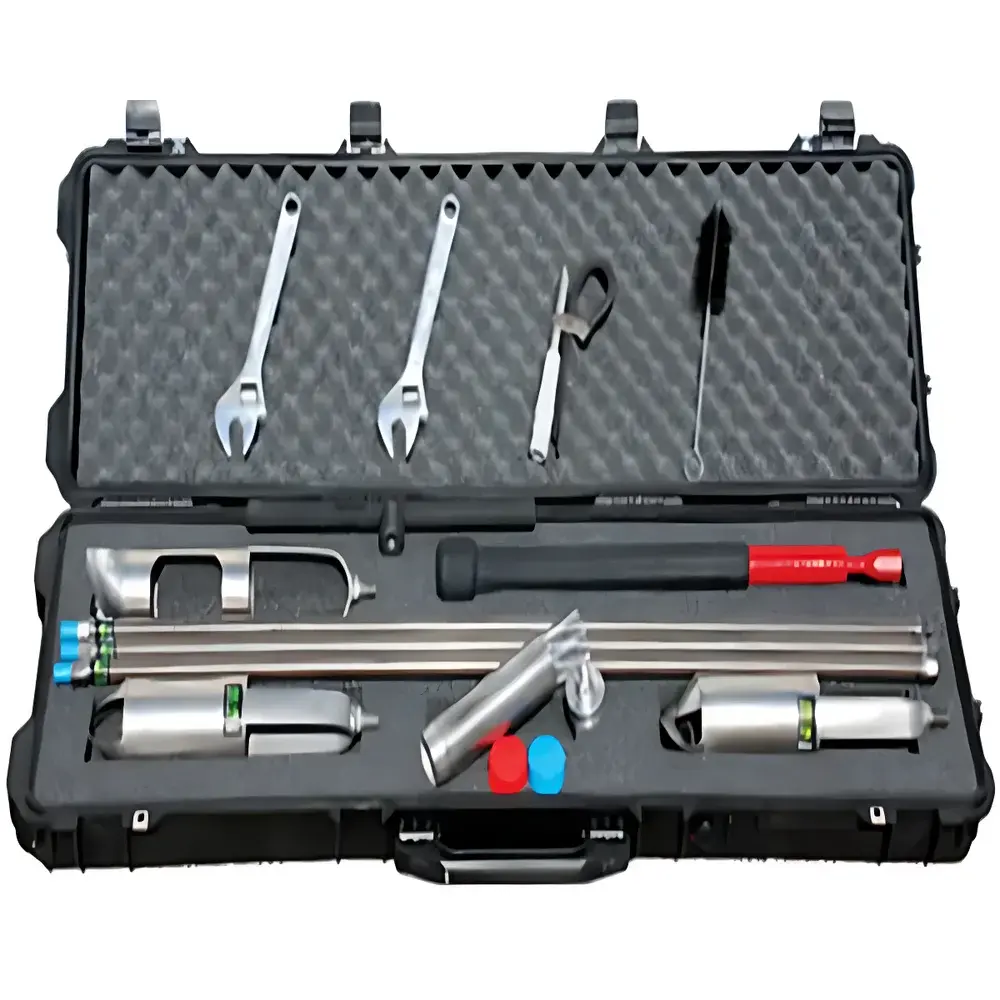

Peiou PQQT-325 Manual Soil Sampler
| Brand | Peiou |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | PQQT-325 |
| Drive Type | Manual |
| Core Diameter | 3.25 in (82.6 mm) |
| Maximum Sampling Depth | 12 ft (3.66 m) |
| Included Components | Standard auger bit, clay auger bit, sludge sampler, T-handle, core sampler, slide hammer, three 4-ft extension rods, plastic liner tubes, tube caps, wrench, cleaning brush |
| Carrying Case | Rugged wheeled toolbox with handle |
Overview
The Peiou PQQT-325 Manual Soil Sampler is a field-deployable, hand-operated coring system engineered for reliable, low-disturbance soil sampling across heterogeneous geological and environmental settings. Designed around the principle of rotary penetration with controlled torque transmission, it utilizes a dual-auger configuration—standard and clay-specific—to maintain structural integrity of the soil column during extraction. The 3.25-inch (82.6 mm) core diameter conforms to ASTM D1586 and ISO 22475-1 standards for geotechnical and environmental borehole sampling, enabling representative retrieval of undisturbed or minimally disturbed specimens from unconsolidated soils, clays, silts, and saturated sediments down to 3.66 meters (12 ft). Its fully manual operation eliminates dependency on power sources or hydraulic systems, making it suitable for remote sites, protected habitats, and locations with restricted access or regulatory constraints on motorized equipment.
Key Features
- High-strength imported alloy steel auger bits—including a standard helical bit for granular soils and a specialized clay auger with reduced pitch and reinforced cutting edges—to minimize sample compression and wall smearing.
- Integrated slide hammer mechanism for percussive assistance during dense or compacted layer penetration, enhancing depth capability without compromising core continuity.
- Modular 4-ft (1.22 m) aluminum extension rods with precision-machined threaded couplings ensure axial alignment and torsional rigidity across full 12-ft deployments.
- Dedicated plastic liner tubes (polypropylene, autoclavable) with sealed end caps preserve moisture content and volatile organic compound (VOC) integrity—critical for EPA Method 5035A and ISO 11465 compliance in contaminated land assessments.
- Ergonomic T-handle with non-slip rubber grip and balanced weight distribution reduces operator fatigue during repetitive rotation cycles.
- Comprehensive accessory set including core sampler, sludge sampler for water-saturated deposits, cleaning brush, and calibrated wrench—all stored within a reinforced polymer toolbox fitted with heavy-duty casters and telescoping handle for ISO 9001-aligned field logistics.
Sample Compatibility & Compliance
The PQQT-325 accommodates a broad spectrum of soil types: cohesionless sands and gravels (with optional pilot point), cohesive clays and plastic silts (via clay auger), and high-moisture-content sludges and peats (using the dedicated sludge sampler). Sample recovery rates exceed 90% in ASTM D1586 Class A conditions. All components meet RoHS Directive 2011/65/EU material restrictions. Liner tube dimensions comply with EPA SW-846 requirements for subsurface waste characterization. The system supports GLP-compliant chain-of-custody documentation when used with traceable sample labeling protocols.
Software & Data Management
As a manually operated mechanical system, the PQQT-325 does not incorporate embedded electronics or firmware. However, it is fully compatible with industry-standard digital field data capture platforms—including ESRI Field Maps, Avenza Maps, and QGIS Mobile—via QR-coded sample tube labels and geotagged photo logs. Optional integration with LIMS (Laboratory Information Management Systems) such as LabWare or Thermo Fisher SampleManager is supported through CSV-based metadata export (depth, GPS coordinates, soil description, collector ID, timestamp). Audit trails for sample collection events may be maintained per FDA 21 CFR Part 11 requirements using electronic signature-enabled mobile forms.
Applications
- Regulatory Phase I/II Environmental Site Assessments (ESAs) under ASTM E1527 and E1903.
- Soil gas monitoring well installation and vadose zone profiling.
- Agricultural soil health surveys requiring stratified horizon sampling (e.g., Ap, Bt, C horizons).
- Wetland delineation and hydric soil identification per USDA-NRCS Field Indicators of Hydric Soils.
- Forensic geotechnical investigations involving buried evidence recovery.
- Academic research in pedology, biogeochemistry, and contaminant transport modeling.
FAQ
What soil types are best suited for the PQQT-325?
It performs optimally in fine- to medium-grained soils (clays, silts, loams) and moderately dense sands. Gravelly or cobbly layers require pre-boring or alternative methods.
Can the system be sterilized for microbiological sampling?
Yes—plastic liner tubes and metal components tolerate ethanol wipe-downs, autoclaving (121°C, 15 psi, 20 min), and hydrogen peroxide vapor treatment without degradation.
Is the 12-ft depth rating achievable in all soil conditions?
Maximum depth assumes consistent soil homogeneity and proper operator technique; performance may be reduced in highly compacted, cemented, or boulder-rich strata.
Are replacement parts available internationally?
Yes—auger bits, liner tubes, extension rods, and T-handles are stocked globally through Peiou’s authorized distributor network with lead times under 10 business days.
Does the kit include calibration documentation?
Each unit ships with a Certificate of Conformance referencing ISO/IEC 17025-accredited dimensional verification of core diameter, thread pitch, and liner tube inner diameter tolerances.
