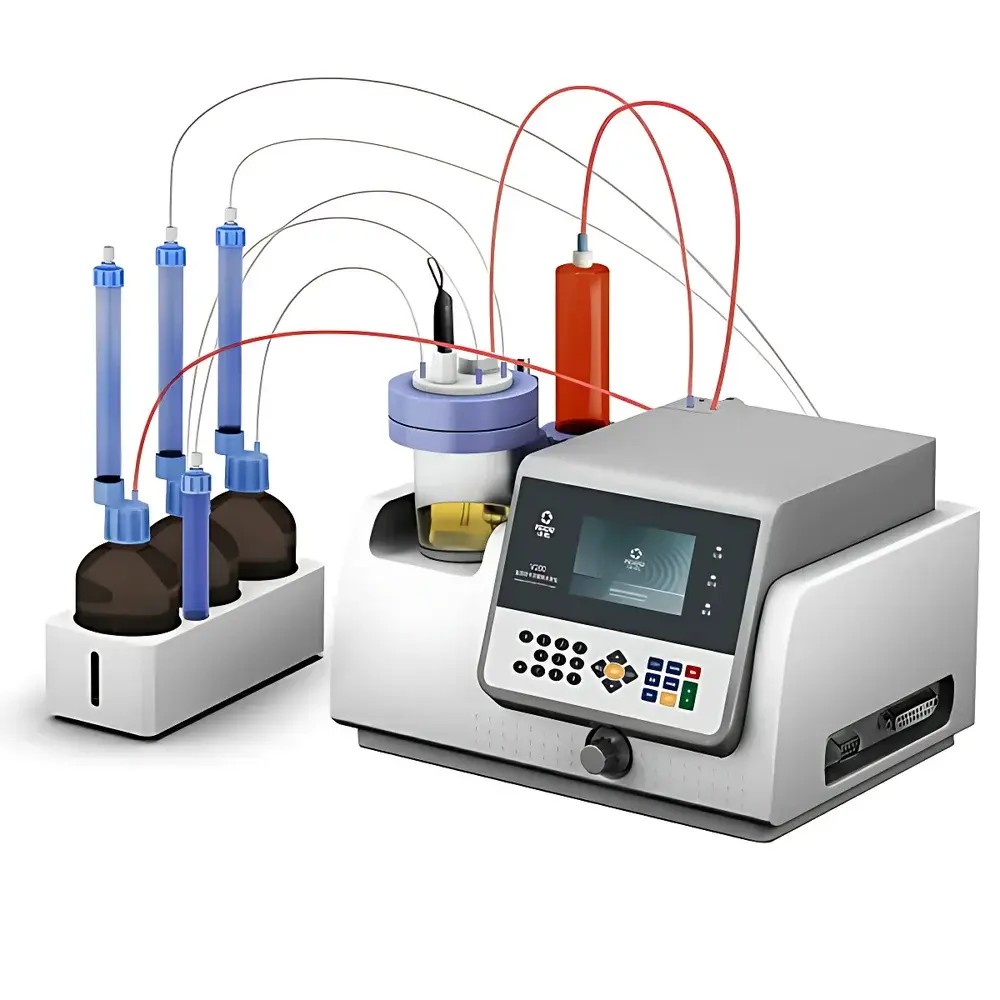

Peiou V100 Karl Fischer Moisture Analyzer

Overview

The Peiou V100 Karl Fischer Moisture Analyzer is a fully automated volumetric titration system engineered for high-reproducibility quantitative determination of water content in diverse liquid, solid, and gaseous samples across pharmaceutical, petrochemical, fine chemical, food, and materials science laboratories. Based on the standardized electrochemical endpoint detection principle of the Karl Fischer (KF) reaction—where iodine stoichiometrically reacts with water in the presence of sulfur dioxide, a base, and a solvent—the V100 implements coulometric-free, reagent-driven volumetric titration with dual-platinum electrode polarization detection. Its architecture complies with the fundamental metrological requirements of ISO 8533:2014 (Determination of water by volumetric Karl Fischer titration), ASTM E203–22 (Standard Test Method for Water Using Volumetric Karl Fischer Titration), and USP “Water Determination”. Designed for routine QC/QA environments, the instrument delivers stable endpoint recognition under variable solvent conductivity conditions via integrated liquid resistance compensation—eliminating manual sensitivity recalibration when switching between methanol-, chloroform-, or pyridine-based KF reagents.

Key Features

• Fully automated volumetric titration with programmable delay initiation and endpoint hold time—enabling precise handling of volatile, hygroscopic, or slow-reacting samples.
• High-precision 20 mL glass burette assembly with UV-protective housing and UK-sourced corrosion-resistant 3-way solenoid valves and PTFE-sealed fittings—ensuring long-term reagent integrity and minimal carryover.
• Dual platinum electrode with real-time open-circuit/short-circuit diagnostics—providing continuous electrode health monitoring and automatic fault flagging.
• Adaptive titration speed control: five discrete delivery rates selectable per method, optimized for viscosity and reaction kinetics of sample matrices (e.g., lubricants vs. ethanol).
• Onboard calculation engine supporting moisture % w/w, % w/v, absolute mass (µg H₂O), blank subtraction, multi-point reagent titer calibration, and statistical summary (mean, RSD, min/max) across stored runs.
• LCD interface with intuitive menu navigation; internal storage for ≥1,000 result records (expandable via RS-232 export); optional high-speed dot-matrix printer for GLP-compliant hardcopy traceability.

Sample Compatibility & Compliance

The V100 accommodates broad sample classes without derivatization: hydrocarbons (crude oil, gasoline, kerosene, transformer oil), oxygenates (ethanol, glycols, acetone), halogenated solvents (chloroform, dichloromethane), organic acids (acetic, formic), bases (amines, ammonia solutions), salts (ammonium nitrate, urea), polymers (PVC, PET pellets), and formulated products (cosmetic emulsions, detergent concentrates, pharmaceutical APIs and excipients). It meets Chinese national standards GB/T 6283 (general KF method), GB/T 3727 (ethylene/propylene), GB/T 6023 (butadiene), and GB/T 18619 (natural gas), and supports audit-ready operation under GMP/GLP frameworks through timestamped data logging, user-access-controlled method libraries, and electronic signature-capable software (via RS-232 integration with LIMS).

Software & Data Management

Data acquisition and reporting are managed via embedded firmware—not PC-dependent software—ensuring deterministic response and uninterrupted operation. All measurements include mandatory metadata: date/time stamp, operator ID (numeric login), method name, sample ID, blank value, titer used, endpoint voltage curve snapshot (stored as numeric derivative data), and final moisture result with uncertainty estimate (±0.3%). RS-232 serial output enables direct transmission to laboratory information management systems (LIMS) or Excel-compatible databases. The system supports FDA 21 CFR Part 11 compliance when paired with validated third-party audit trail software—recording all parameter changes, result modifications, and user logins with immutable timestamps.

Applications

The V100 is routinely deployed for: release testing of active pharmaceutical ingredients per ICH Q5C stability guidelines; moisture specification verification in lithium battery electrolyte formulations; quality control of aviation turbine fuels per ASTM D6304; quantification of residual water in silicone sealants and epoxy resins; batch certification of industrial catalysts (e.g., zeolites, supported metals); and incoming inspection of agricultural chemicals including urea-based fertilizers and organophosphate pesticides. Its robustness in high-salinity and low-dielectric media makes it suitable for chloride-rich brines and molten salt intermediates where conventional coulometric systems exhibit drift.

FAQ

What types of Karl Fischer reagents are compatible with the V100?
The V100 supports single-component and two-component volumetric KF reagents (methanol-based, chloroform-free formulations) from major suppliers (e.g., Honeywell, Merck, Riedel-de Haën). Reagent titer must be entered manually or auto-imported via barcode scanner (optional accessory).
Does the V100 support coulometric moisture determination?
No—the V100 is exclusively a volumetric titrator. For samples containing <100 µg water, a dedicated coulometric analyzer is recommended.
Can the V100 analyze gases such as natural gas or compressed air?
Yes—when coupled with an optional gas sampling module (heated vaporizer + flow controller), it complies with GB/T 18619 and ASTM D6304 for gaseous matrix analysis.
Is method validation documentation provided?
Peiou supplies a basic IQ/OQ protocol template aligned with ISO/IEC 17025 requirements; full PQ execution requires lab-specific parameters (e.g., precision at 0.1% w/w in diesel fuel) and is performed on-site during commissioning.
What maintenance intervals are recommended?
Burette piston lubrication and electrode cleaning every 200 runs; annual calibration of burette volume accuracy and endpoint detection threshold using certified water standards (e.g., Hydranal™ 1.00 mg/mL).
