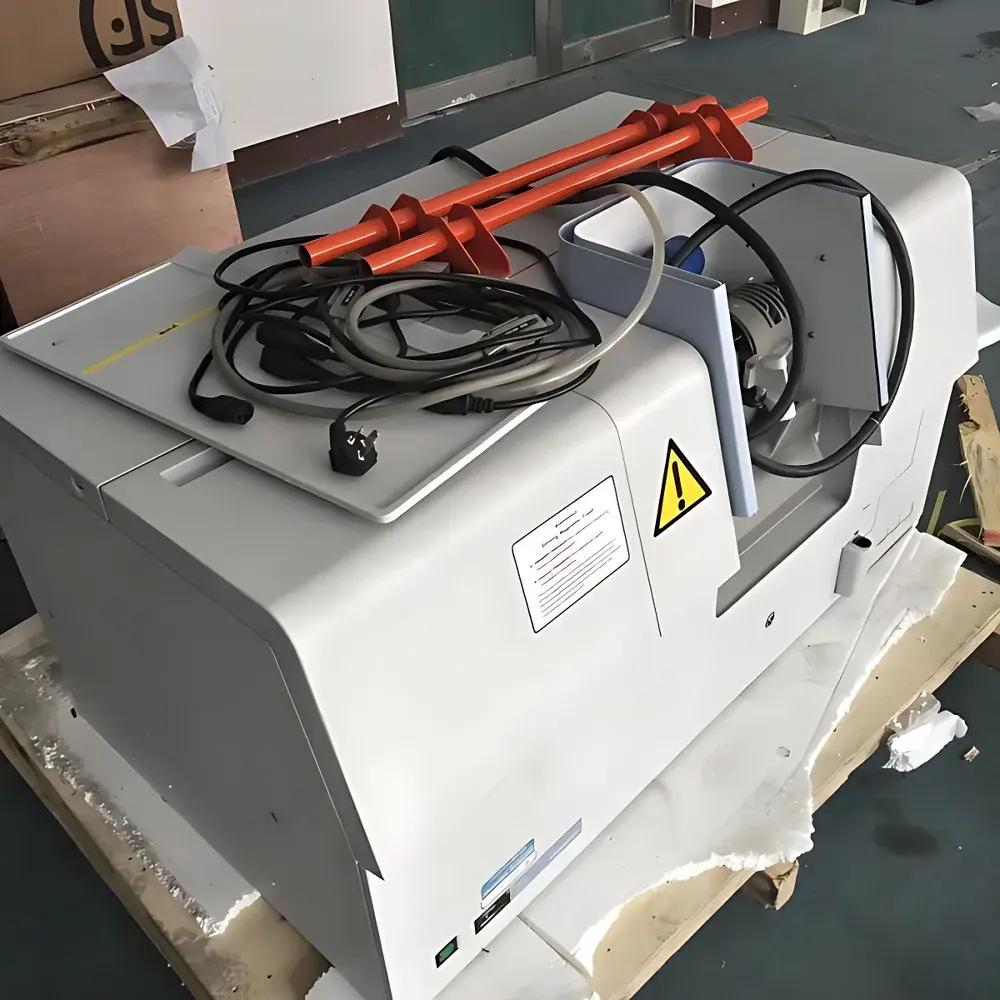

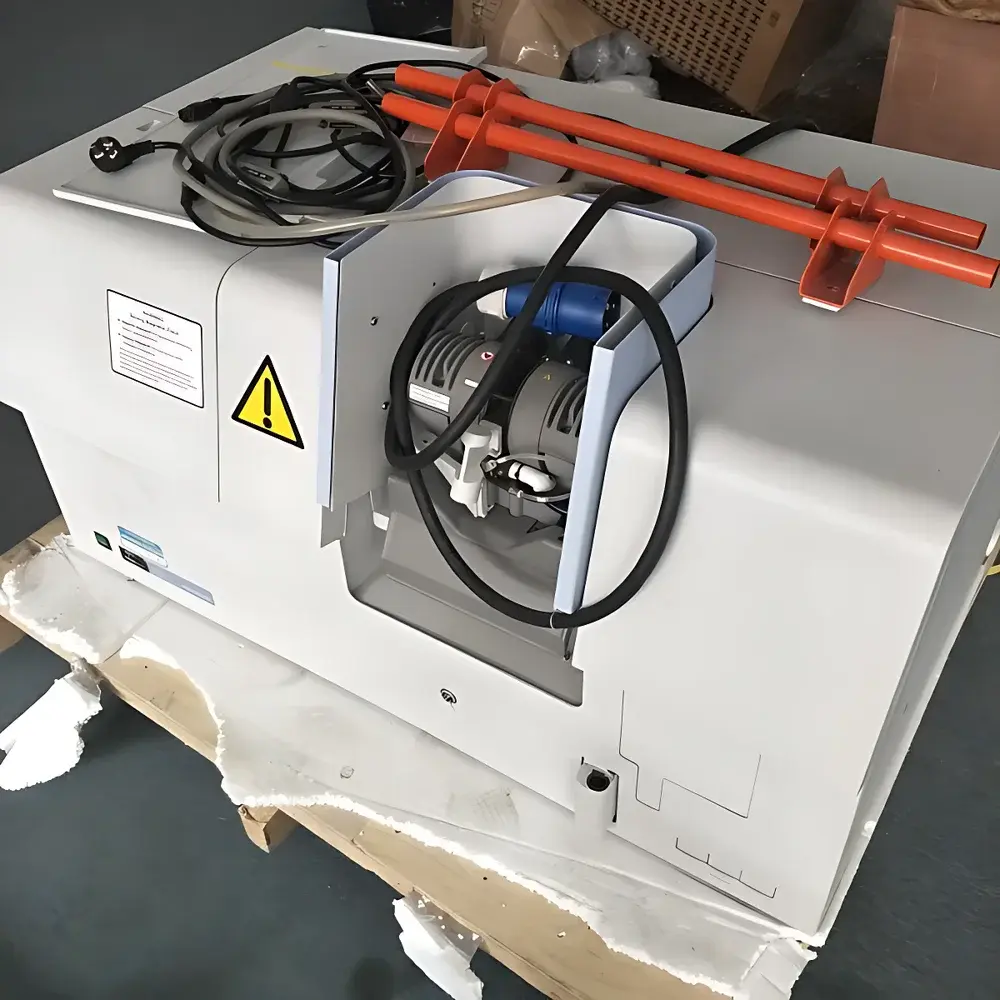

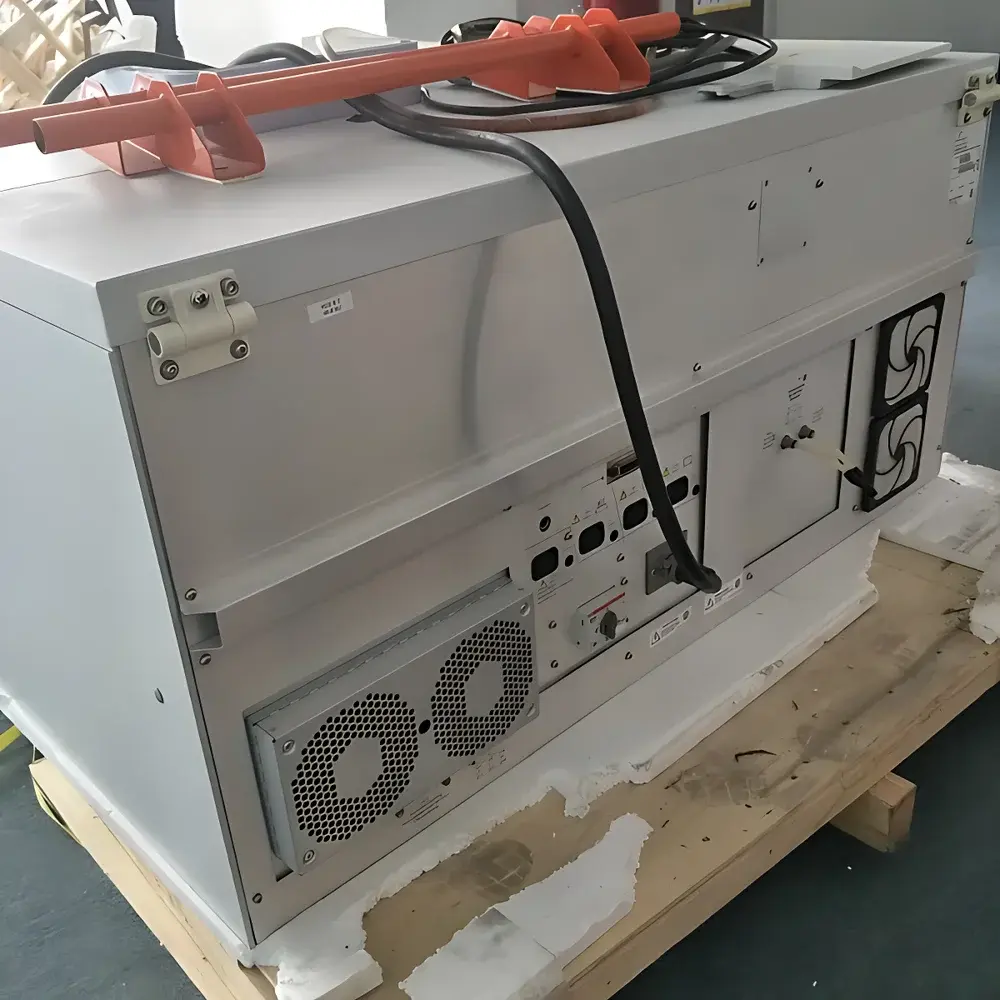

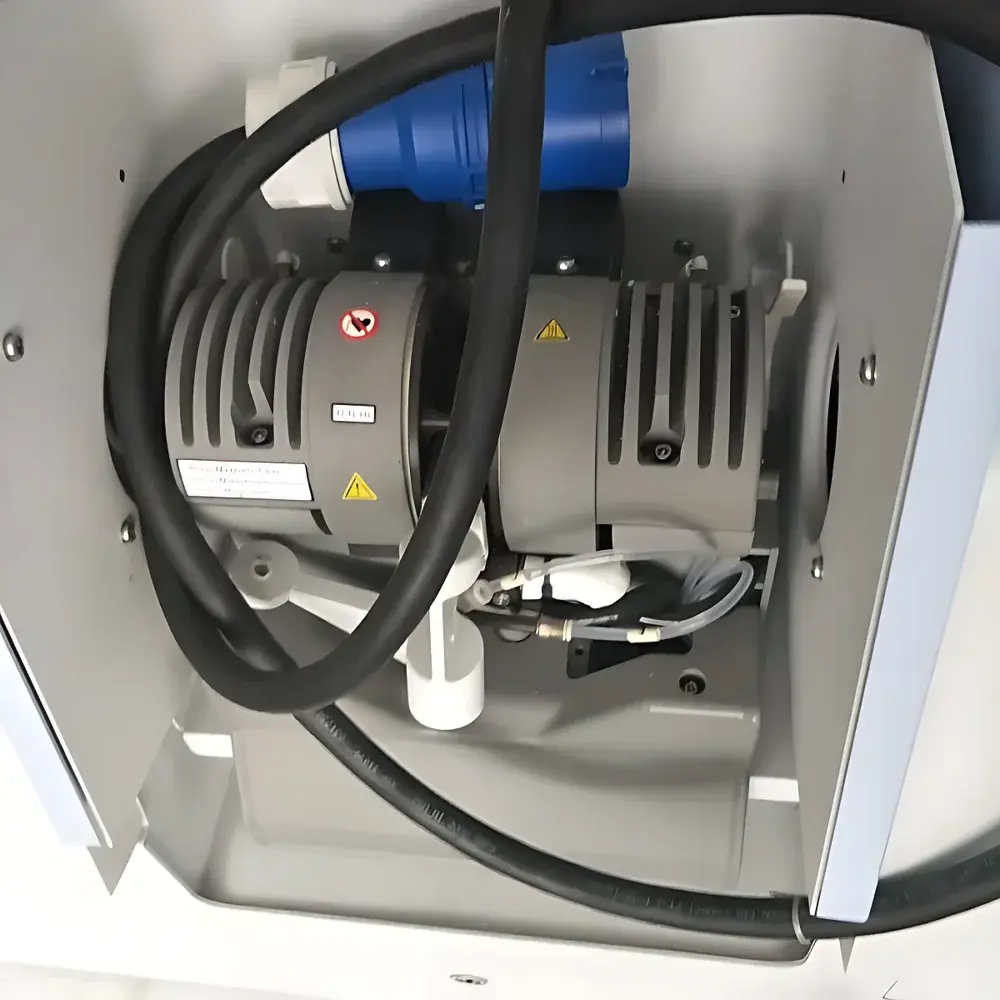

PerkinElmer AAnalyst 600 Atomic Absorption Spectrometer Maintenance and Repair Service

Overview

The PerkinElmer AAnalyst 600 is a flame and graphite furnace atomic absorption spectrometer engineered for trace metal quantification in complex matrices across environmental, pharmaceutical, food safety, and clinical laboratories. Its measurement principle relies on the absorption of narrow-band radiation by ground-state free atoms generated in a high-temperature flame or electrothermal graphite furnace. The instrument employs a deuterium background corrector and interchangeable hollow cathode lamps to deliver high specificity and low detection limits (sub-pptr range for many elements). As a discontinued but widely deployed platform, the AAnalyst 600 remains operationally critical in regulated environments where method validation history, instrument familiarity, and long-term reproducibility are prioritized over next-generation automation. This service offering addresses the ongoing operational continuity needs of legacy AAnalyst 600 systems—ensuring compliance-ready performance through certified technical intervention, not replacement.

Key Features

• Comprehensive hardware diagnostics including monochromator slit alignment, photomultiplier tube (PMT) gain verification, and wavelength calibration traceability to NIST SRM standards
• Flame subsystem servicing: burner head realignment, nebulizer capillary inspection and cleaning, spray chamber descaling, gas flow regulator calibration (acetylene/air/N₂O)
• Graphite furnace module support: platform and tube conditioning, pyrolytic coating integrity assessment, temperature ramp profile validation using certified reference materials
• Lamp system optimization: HCL and EDL spectral output profiling, current stability testing, and beam path collimation per ASTM E1313 and ISO 11047
• Firmware-level diagnostic logging and error code interpretation aligned with PerkinElmer’s original service bulletins (SB-087, SB-112)
• Post-service verification using CRMs (e.g., NIST SRM 1643e for multi-element aqueous standards) to confirm accuracy, precision (RSD < 2% at 10× LOD), and linearity (r² ≥ 0.999)

Sample Compatibility & Compliance

The AAnalyst 600 supports liquid samples via aspiration (flame) or micro-injection (graphite furnace), compatible with acid-digested environmental extracts, diluted biological fluids, and filtered food leachates. All maintenance procedures adhere to GLP-compliant documentation protocols, including service log entries with technician ID, timestamp, component serial numbers, and pre/post-intervention performance metrics. Calibration verification reports satisfy audit requirements under USP , EPA Method 7000B, and ISO/IEC 17025:2017 clause 6.4.2 (equipment suitability). No modifications are made to firmware or regulatory configuration settings without client authorization and version-controlled change logs.

Software & Data Management

Service includes verification of WinLab32 v5.x software functionality—specifically data acquisition stability, peak integration algorithm consistency, and report generation integrity. Audit trail review confirms compliance with FDA 21 CFR Part 11 requirements for electronic records (user authentication, action timestamps, non-erasable logs). Where applicable, we assist in migrating validated methods from legacy PCs while preserving original integration parameters and calibration curves. Remote diagnostics utilize encrypted TeamViewer sessions with session recording enabled per internal SOP-MNT-009.

Applications

This maintenance program directly supports routine analysis in regulated workflows: Pb/Cd/Hg quantification in soil per EPA SW-846 Method 6010D; Na/K/Ca/Mg profiling in serum per CLIA guidelines; Fe/Zn/Cu monitoring in fortified cereals per AOAC 985.27; and Cr/Ni/Co analysis in industrial wastewater per ISO 11885. Each service engagement includes application-specific parameter revalidation—ensuring that instrument performance meets the sensitivity, selectivity, and robustness thresholds defined in the client’s approved SOPs.

FAQ

Do you supply original PerkinElmer spare parts?
Yes—we source OEM components exclusively through authorized PerkinElmer channels or certified third-party suppliers meeting MIL-STD-883 reliability criteria.
Can you restore full factory specifications after repair?
All interventions follow PerkinElmer’s Technical Service Manual (TSM-AAnalyst600 Rev. 4.2); post-service verification confirms conformance to published specifications for detection limits, precision, and wavelength accuracy.
Is remote support available for troubleshooting?
Yes—diagnostic sessions are conducted within 12 hours of request, with on-site dispatch scheduled within 48 business hours for Beijing metro area clients.
Do you provide calibration certificates traceable to national standards?
Each completed service includes a signed Certificate of Performance Verification referencing NIST-traceable CRMs and instrument-specific measurement uncertainty budgets.
Are software updates included in the service fee?
No—WinLab32 patches and security updates require separate PerkinElmer licensing; however, compatibility verification with existing licensed versions is included.
