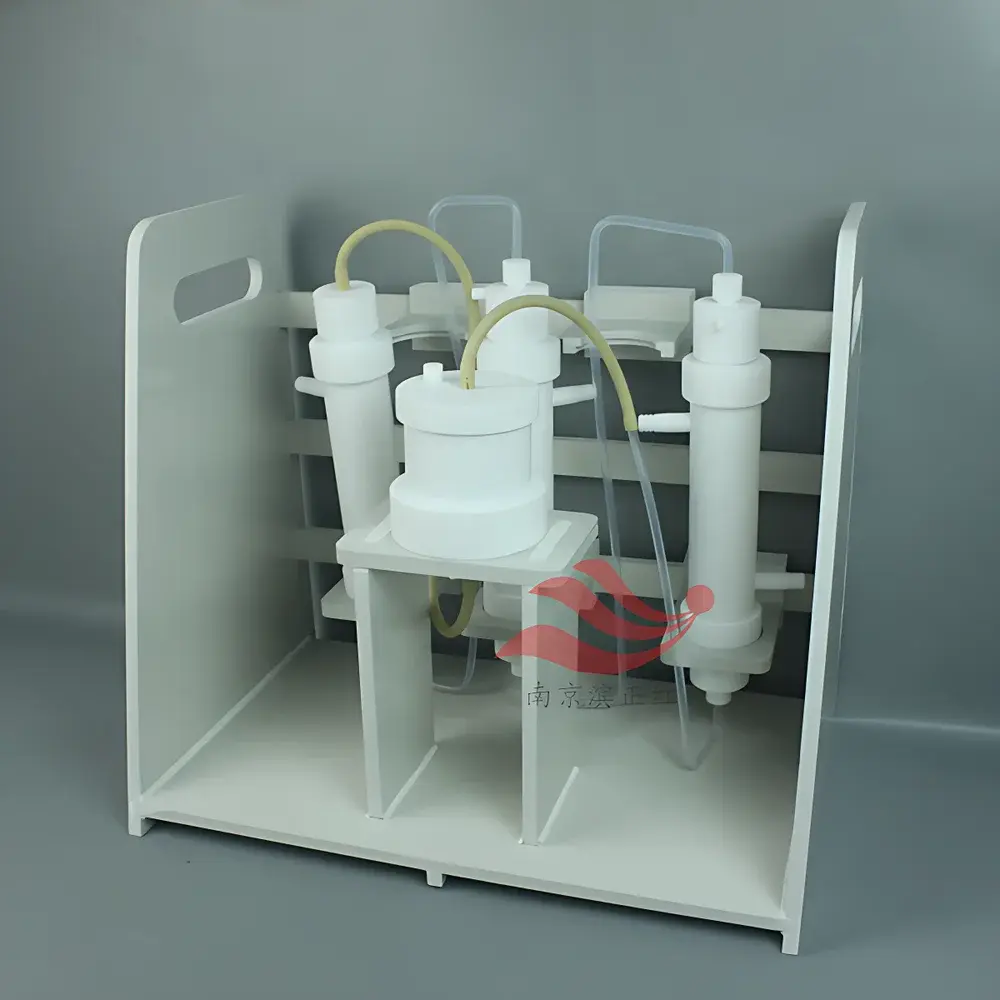

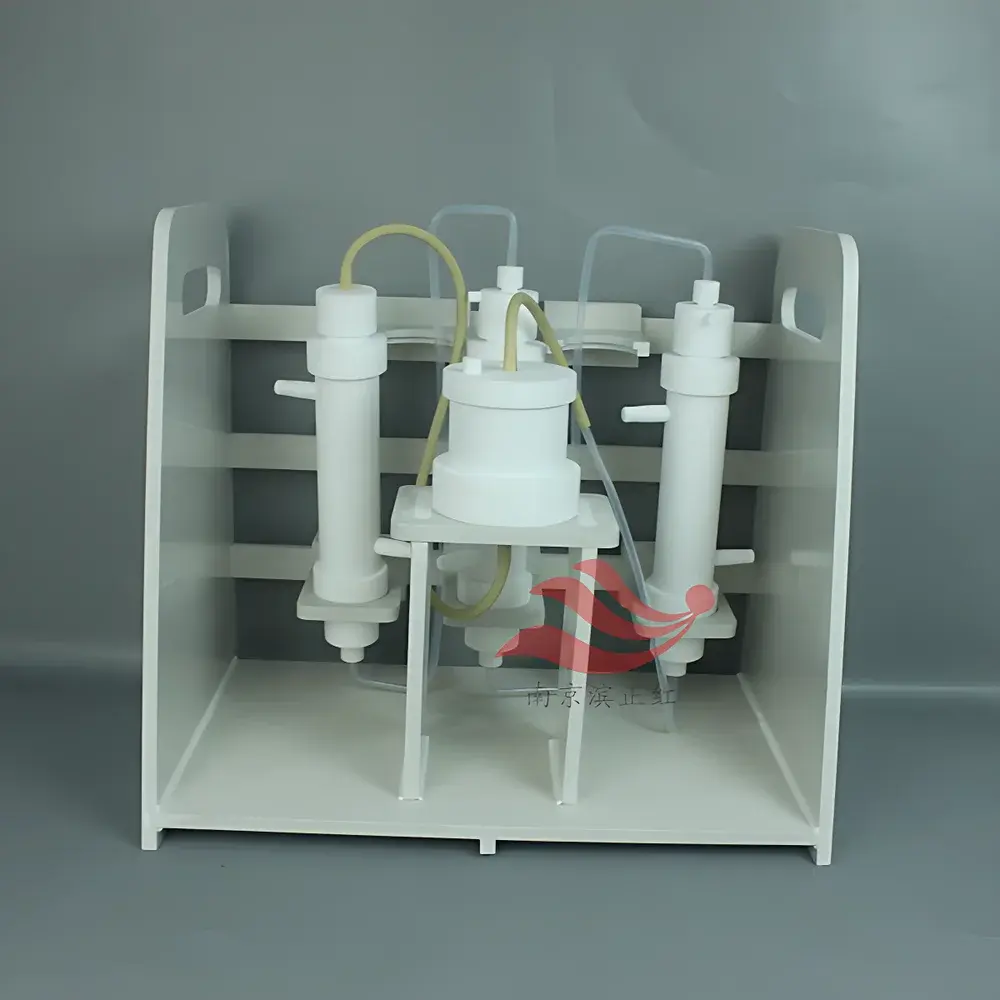

PFA+PTFE Jacketed Filter Column with Vent Valve – Binzhenghong NJ-PFA+PTFE-GLZ Series
| Brand | Binzhenghong |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Manufacturer |
| Country of Origin | Domestic (China) |
| Model | NJ-PFA+PTFE-GLZ |
| Pricing | Upon Request |
Overview
The Binzhenghong NJ-PFA+PTFE-GLZ is a high-purity, chemically inert jacketed filter column engineered for precise fluid handling in demanding laboratory and pilot-scale chemical synthesis, purification, and continuous flow reaction applications. Constructed entirely from perfluoroalkoxy alkane (PFA) and polytetrafluoroethylene (PTFE), this column eliminates metallic leaching, adsorption, or catalytic interference—making it ideal for trace-level analysis, pharmaceutical intermediate processing, and aggressive reagent systems (e.g., concentrated acids, halogenated solvents, strong bases, and anhydrous HF). The double-walled PFA/PTFE jacket enables precise temperature control via external coolant or heating media circulation, while the integrated vent valve allows safe, controlled pressure equalization during column loading, solvent exchange, or system depressurization—critical for maintaining operator safety and process integrity in closed-loop flow chemistry setups.
Key Features
- Full-body construction from USP Class VI-certified PFA and virgin PTFE—guaranteeing ultra-low extractables, non-stick surface properties, and resistance to >99% of industrial chemicals including aqua regia, oleum, and sodium hypochlorite at elevated temperatures.
- Double-jacketed design with standardized 1/4″–28 UNF or M6 threaded ports for jacket inlet/outlet, compatible with standard thermal circulators and pressure-rated tubing (up to 10 bar @ 150°C).
- Integrated stainless-steel-reinforced PTFE vent valve with PFA-sealed plunger—enabling rapid, bubble-free venting without disassembly or cross-contamination risk.
- Modular end-cap configuration with Swagelok®-compatible PFA ferrules and compression fittings (¼″ and ⅛″ options) for leak-tight, tool-free connection to syringe pumps, HPLC systems, or microreactor manifolds.
- Transparent PFA jacket section (optional) for real-time visual monitoring of filtration front, precipitate formation, or catalyst bed integrity during operation.
- Autoclavable (121°C, 20 min, saturated steam) and compatible with gamma irradiation (25 kGy)—supporting sterilization requirements in GMP-compliant API synthesis workflows.
Sample Compatibility & Compliance
This column supports liquid-phase and slurry-phase samples across pH 0–14 and temperatures from −200°C to +200°C (short-term). It is routinely deployed in applications requiring compliance with ISO 13485 (medical device manufacturing), ASTM D4571 (fluoropolymer purity testing), and USP (plastic packaging components for pharmaceuticals). All wetted materials meet FDA 21 CFR §177.1550 (fluorinated polymers for food contact) and EU Regulation (EC) No 1935/2004. Documentation includes material traceability certificates, extractables test reports (per USP ), and RoHS/REACH declarations.
Software & Data Management
While the NJ-PFA+PTFE-GLZ is a passive, hardware-only component, its design integrates seamlessly into digitally controlled flow platforms. When used with programmable syringe pumps (e.g., Chemyx Fusion 6000), PLC-based reactor controllers (e.g., Vapourtec R-Series), or LabVIEW-driven automation suites, the column’s pressure stability and thermal response enable closed-loop feedback control of residence time, filtration rate, and temperature ramping. Audit trails, calibration logs, and batch records generated by upstream instrumentation remain fully compliant with FDA 21 CFR Part 11 when paired with validated electronic lab notebooks (ELNs) or LIMS systems.
Applications
- In-line particulate removal in continuous crystallization processes (e.g., API isolation under cGMP conditions)
- Catalyst cartridge housing for heterogeneous hydrogenation or cross-coupling reactions (Pd/C, Ni-Raney, immobilized enzymes)
- Guard column for protecting analytical HPLC/UHPLC columns from particulate fouling
- Scavenger column for post-reaction removal of metal residues, excess reagents, or by-products
- Temperature-sensitive filtration in cryo-flow chemistry (e.g., lithiation at −78°C followed by immediate quench/filtration)
- High-purity solvent purification loops for semiconductor-grade chemical delivery systems
FAQ
Is the vent valve compatible with vacuum applications?
Yes—the PFA-sealed vent valve maintains integrity under full vacuum (≤1 mbar) and supports controlled vent-to-atmosphere or vent-to-scrubber configurations.
Can the jacket be connected to a heating circulator?
Yes—standardized NPT or metric threads accept standard thermal circulator hoses; maximum recommended jacket pressure is 6 bar at 150°C.
What is the maximum allowable differential pressure across the filter medium?
Depends on installed frit or membrane; with 5 µm sintered PTFE frits, max ΔP is 4 bar at 25°C; consult frit supplier datasheets for temperature derating.
Do you provide custom port configurations or internal volume modifications?
Yes—Binzhenghong offers OEM engineering support for bespoke lengths (50–500 mm), internal diameters (3–25 mm), and multi-port manifolds per client specifications.
Is third-party validation support available for GMP installation qualification (IQ/OQ)?
Yes—comprehensive IQ/OQ protocol templates, as-built drawings, and material verification packages are provided upon request for regulated environments.
