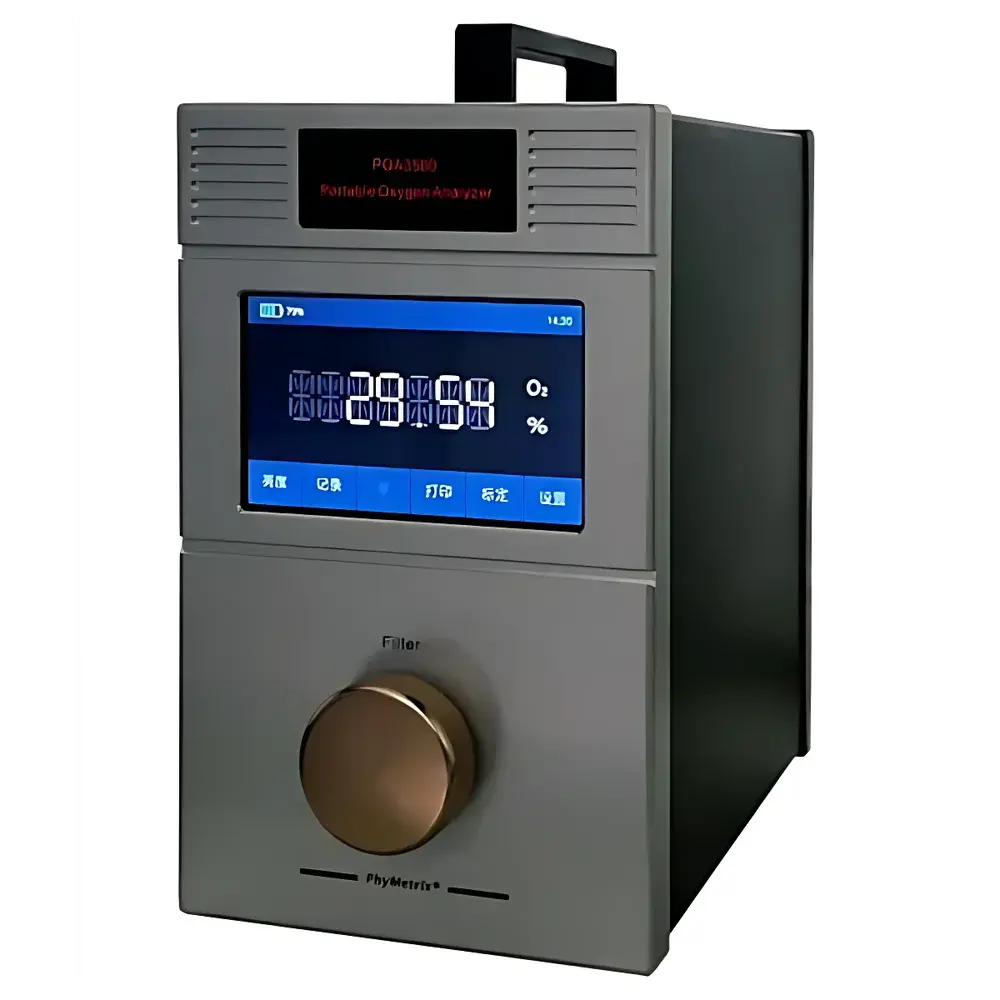

PhyMetrix POA3500 Portable Paramagnetic Oxygen Analyzer

Overview

The PhyMetrix POA3500 is a field-deployable, high-fidelity paramagnetic oxygen analyzer engineered for quantitative O₂ measurement in ambient air, process streams, inert gas blankets, and controlled-atmosphere environments. Unlike electrochemical or zirconia-based sensors—whose performance degrades with time, temperature fluctuation, or exposure to reactive gases—the POA3500 employs the fundamental physical property of molecular oxygen: its strong paramagnetism. In a non-uniform magnetic field, O₂ molecules experience a measurable force proportional to their concentration; the POA3500 leverages this principle via a precision-balanced dumbbell suspension system within a calibrated magnetic gradient. This magnetomechanical detection architecture delivers inherent linearity across the full 0–100% O₂ range, eliminates sensor poisoning, and ensures long-term stability without catalytic consumables or electrolyte replenishment. Designed for both laboratory verification and industrial field use, the instrument meets the metrological rigor required for quality control in pharmaceutical inerting, food packaging validation, combustion optimization, and safety-critical confined-space monitoring.

Key Features

• True paramagnetic sensing core—no chemical reaction, no drift from aging electrodes or reference gases
• Full-scale accuracy better than ±0.1% FS with repeatability matching specification, verified per ISO 17025-accredited calibration protocols
• Fast T90 response (<15 s) enables real-time tracking of dynamic O₂ transitions during purge cycles or leak testing
• Integrated rechargeable lithium-ion battery supports >8 hours of continuous operation—ideal for remote site audits and mobile QA/QC teams
• 5-inch capacitive touchscreen interface with intuitive menu navigation, on-device data review, and configurable alarm thresholds
• Rugged anodized aluminum enclosure (IP54-rated) resists corrosion, mechanical shock, and thermal cycling in industrial settings
• Optional built-in sampling pump accommodates sub-atmospheric draw applications (e.g., furnace flue gas, vacuum chambers) without external vacuum sources
• Dual output capability: isolated 4–20 mA analog signal for PLC integration and RS-232 serial interface for direct PC logging or SCADA communication

Sample Compatibility & Compliance

The POA3500 is optimized for dry, non-corrosive gas matrices. It exhibits negligible cross-sensitivity to CO₂, N₂, Ar, He, H₂, and common hydrocarbons—critical when measuring residual O₂ in nitrogen-purged reactors or modified-atmosphere packaging (MAP). Sample conditioning is minimal: inlet filtration (5 µm particulate) and optional desiccant drying are recommended for high-humidity streams (>70% RH), though the analyzer tolerates up to 95% RH non-condensing per IEC 60068-2-30. The device complies with CE marking requirements (EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU) and conforms to relevant sections of ASTM D6262 (standard test method for oxygen in inert gases) and ISO 8573-7 (compressed air purity—oxygen content). Its design supports GLP/GMP documentation workflows, including user-accessible audit trails for calibration events and configuration changes.

Software & Data Management

Onboard firmware enables timestamped storage of 10,000 measurement records—including O₂ value, temperature, pressure, flow status, and operator ID—accessible via USB export or RS-232 dump. Optional PC software (PhyMetrix AnalyzeLink™ v3.2) provides automated report generation compliant with FDA 21 CFR Part 11 (electronic signatures, audit trail, role-based access control). Data exports support CSV, Excel, and PDF formats with embedded metadata (calibration certificate ID, instrument serial number, environmental conditions). Firmware updates are performed securely over USB or serial connection, preserving all user configurations and historical logs.

Applications

• Pharmaceutical: Residual oxygen quantification in lyophilizer chambers, vial headspace analysis, and nitrogen purge validation per USP
• Food & Beverage: MAP integrity verification, fermentation O₂ monitoring, and modified-atmosphere packaging line QC
• Power Generation: Boiler combustion efficiency tuning and flue gas O₂ trimming in coal/gas-fired plants
• Chemical Processing: Inerting verification prior to reactor charging, solvent recovery system monitoring
• Environmental: Ambient air quality spot checks, landfill gas O₂ profiling, and indoor air quality surveys
• Research & Education: Teaching paramagnetism principles, kinetic studies requiring rapid O₂ kinetics, and sensor comparison benchmarks

FAQ

Does the POA3500 require zero or span calibration in the field?
Yes—though infrequent due to low drift, a two-point calibration (zero in certified N₂, span in certified air or O₂ standard) is recommended every 30 days for GMP-regulated use or after exposure to extreme conditions.
Can it measure oxygen in high-CO₂ environments such as biogas?
Yes—the paramagnetic sensor is unaffected by CO₂ concentrations up to 100%; however, condensate removal and particulate filtration are essential to protect the flow path.
Is the internal battery replaceable by the end user?
No—the Li-ion pack is sealed and service-replaceable only by authorized PhyMetrix service centers to maintain intrinsic safety compliance and calibration traceability.
What sample gas pressure range is supported without external regulators?
The analyzer operates natively from 1 to 10 psig (6.9–69 kPa); pressures outside this range require inline pressure regulation to prevent mechanical stress on the sensor cell.
How does tilt affect measurement accuracy?
Tilt-induced error is characterized at ±0.15% FS per 15° deviation from horizontal; for critical applications, use the included leveling feet or mount on a stable surface.
