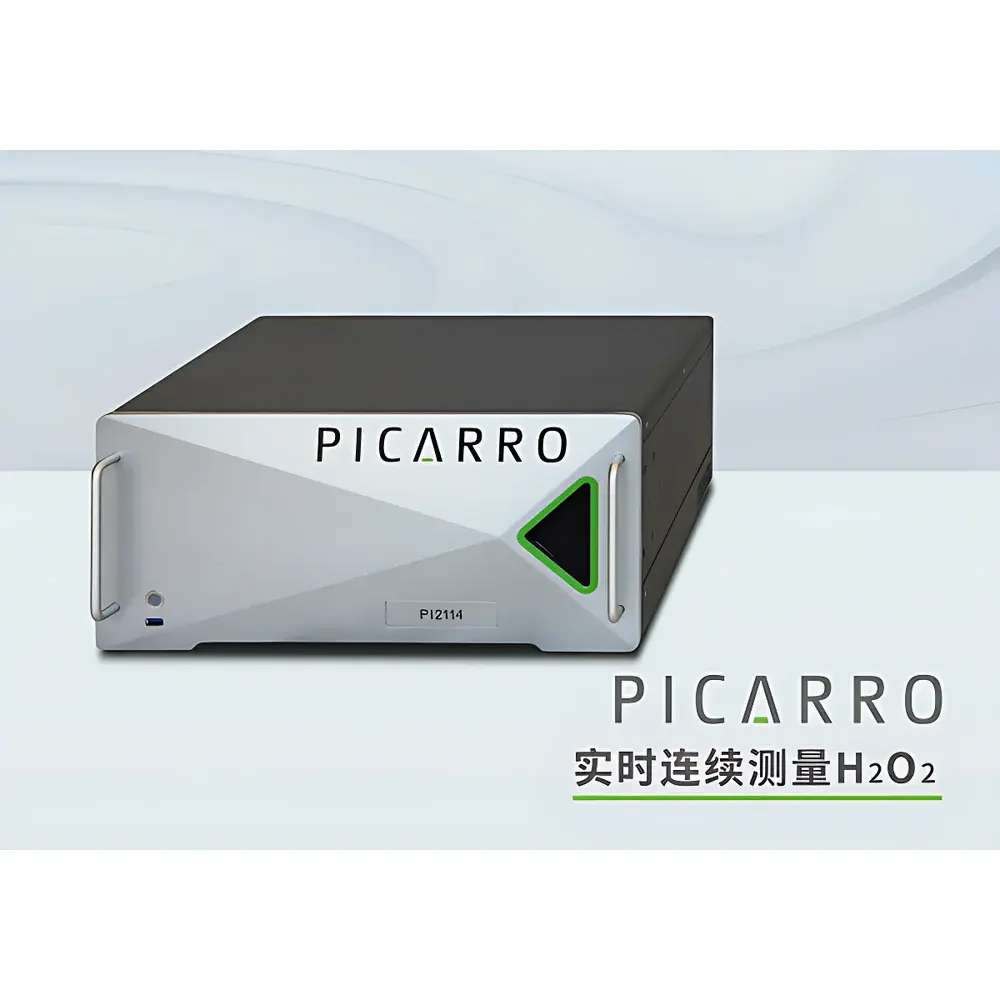

Picarro PI2114 Hydrogen Peroxide (H₂O₂) Gas Concentration Analyzer
| Brand | Picarro |
|---|---|
| Origin | USA |
| Model | PI2114 |
| Measurement Principle | Cavity Ring-Down Spectroscopy (CRDS) |
| Detection Limit | <3 ppb (3σ, 300 s) |
| Accuracy | <1 ppb + 0.1% of reading (1σ, 300 s) |
| Precision (5-min) | <0.5 ppb (1σ) |
| Response Time (10–90% / 90–10%) | <60 s |
| Measurement Range | 0–100 ppm |
| Sample Flow Rate | <1 slm at 760 Torr |
| Operating Temperature | –10 to 45 °C |
| Sample Pressure | 300–1000 Torr (40–133 kPa) |
| Relative Humidity | <99% RH, non-condensing at 40 °C |
| Certified | CE Mark, CDRH |
| Compliance | FDA 21 CFR Part 11, GMP-ready |
Overview
The Picarro PI2114 Hydrogen Peroxide (H₂O₂) Gas Concentration Analyzer is a high-sensitivity, laboratory-grade instrument engineered for continuous, real-time quantification of gaseous hydrogen peroxide in critical pharmaceutical and biomanufacturing environments. Utilizing proprietary Cavity Ring-Down Spectroscopy (CRDS), the PI2114 delivers exceptional selectivity and stability without chemical reagents, consumables, or zero-gas requirements. Its optical measurement architecture eliminates cross-sensitivity to common interferents—including water vapor (H₂O), methane (CH₄), and ambient particulates—ensuring unambiguous H₂O₂ detection across dynamic decontamination cycles. Designed specifically for Good Manufacturing Practice (GMP) compliance, the PI2114 supports validated sterile processing workflows in isolators, VHP (vaporized hydrogen peroxide) chambers, and cleanroom HVAC systems where precise control of oxidative residuals is essential to API stability, biologic integrity, and sterility assurance.
Key Features
- Ultra-low detection limit of <3 ppb (3σ, 300 s averaging), enabling trace-level monitoring during post-decontamination aeration and residual validation.
- High temporal resolution: <60-second response time (10–90% rise / 90–10% fall), supporting rapid process feedback and cycle optimization.
- Long-term baseline stability: zero drift ≤ ±2.5 ppb over 72 hours; ≤ –5/+10 ppb over 30 days—minimizing recalibration frequency.
- Integrated thermal and pressure stabilization: measurement cavity controlled to ±0.005 °C and ±0.0002 atm, ensuring metrological rigor under variable facility conditions.
- No consumables, no wet chemistry, no zero gas—reducing operational overhead and eliminating calibration-induced uncertainty.
- Full 21 CFR Part 11 compliance: electronic signatures, immutable audit trails, role-based user access, and time-stamped data records embedded in firmware.
Sample Compatibility & Compliance
The PI2114 accepts unfiltered, humidified sample streams across a broad operating envelope: 300–1000 Torr (40–133 kPa), –10 to +45 °C, and up to 99% RH (non-condensing at 40 °C). It tolerates transient condensation events without optical degradation or signal artifact. The analyzer is routinely deployed in ISO Class 5–8 environments and meets IEC 61000-6-3 (EMC) and CDRH laser safety standards. Regulatory alignment includes support for ASTM E2995 (standard guide for VHP decontamination verification), ISO 14644-3 (cleanroom monitoring), and EU Annex 1 (sterile manufacturing). IQ/OQ documentation packages are provided with each unit, and system qualification may be performed using commercially available CH₄ reference gas as a validated proxy standard—eliminating reliance on unstable or hazardous H₂O₂ calibration sources.
Software & Data Management
Picarro’s proprietary AcqOS software provides a secure, auditable platform for instrument control, data acquisition, and reporting. Four-tiered user roles—Operator, Technician, Analyst, and Administrator—enforce segregation of duties per ALCOA+ principles. All configuration changes, measurement sessions, and report exports are logged with tamper-proof timestamps and operator IDs. The system supports simultaneous output via RS-232, Ethernet, USB, and analog 4–20 mA interfaces for integration into SCADA, DCS, or MES platforms. Data export formats include CSV, PDF, and XML, compatible with LIMS and electronic batch record (EBR) systems. Validation-ready features include automated calibration verification workflows, electronic signature capture for SOP execution, and full traceability from raw spectral data to final concentration value.
Applications
- Real-time monitoring of VHP decontamination cycles in isolators and transfer hatches.
- Residual H₂O₂ clearance verification prior to aseptic intervention or equipment entry.
- Stability studies of oxidation-sensitive APIs and monoclonal antibodies during storage and handling.
- Environmental monitoring in fill-finish suites to ensure compliance with USP and Ph. Eur. 5.1.1 sterility requirements.
- Process analytical technology (PAT) implementation for continuous quality verification in CMO and contract manufacturing operations.
- Method development and validation support for pharmacopeial monographs requiring quantitative H₂O₂ residue assessment.
FAQ
Does the PI2114 require zero gas or daily calibration?
No. The CRDS optical architecture is inherently stable and does not rely on zero-gas purges or span calibration gases for routine operation.
Can the PI2114 measure H₂O₂ in high-humidity environments?
Yes—it operates reliably up to 99% RH at 40 °C without sample drying or conditioning, and its spectral fitting algorithm actively compensates for H₂O absorption interference.
Is the system suitable for GMP-regulated manufacturing?
Yes. It ships with IQ/OQ protocols, 21 CFR Part 11-compliant software, and a complete validation toolkit—including CH₄-based performance verification—designed for FDA, EMA, and PMDA audits.
What maintenance is required?
Annual optical cavity inspection and pump filter replacement; no optical alignment, lamp replacement, or sensor refurbishment is needed within the first five years of operation.
How is data integrity ensured during power interruption or network failure?
All measurements are buffered locally on internal flash memory with battery-backed real-time clock; data continuity is preserved and auto-synced upon recovery.
