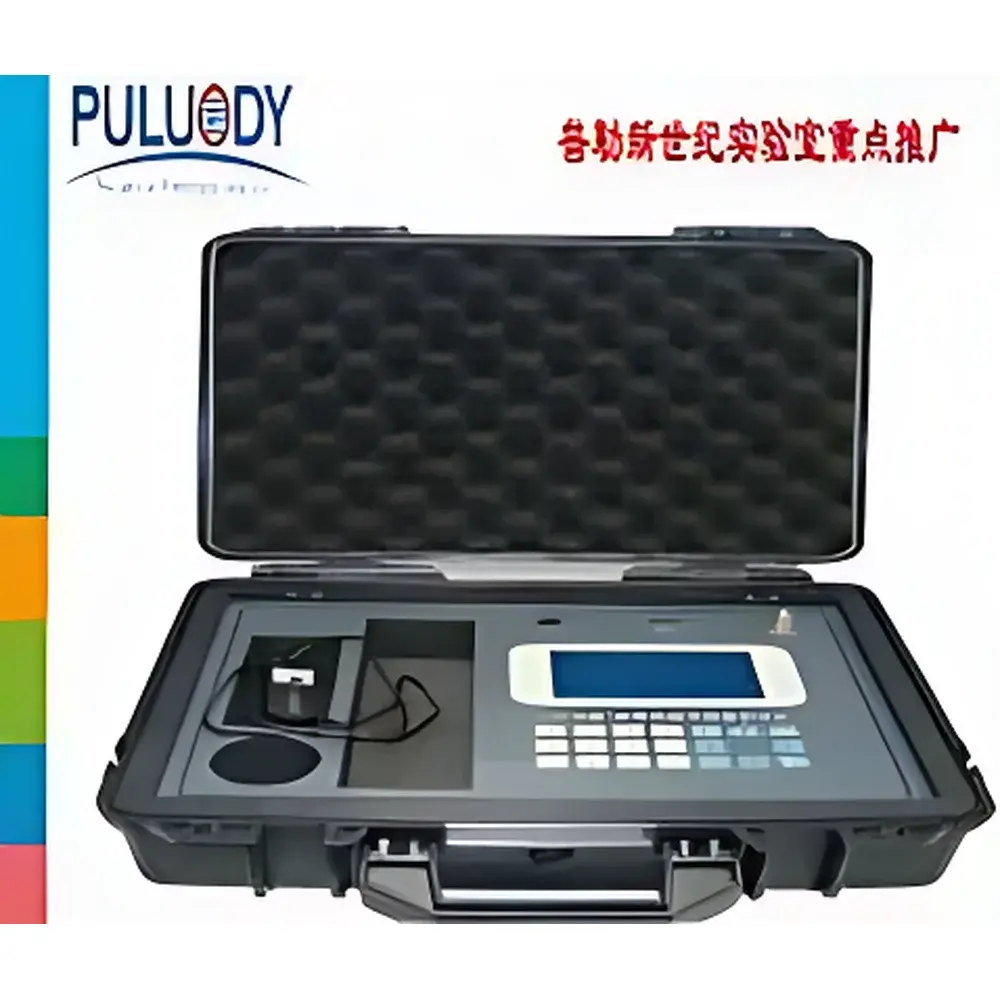

PLDMC PLD-CX-a Portable Gasoline Octane Number Analyzer

Overview

The PLDMC PLD-CX-a Portable Gasoline Octane Number Analyzer is an on-site field instrument engineered for rapid, non-destructive determination of Research Octane Number (RON) in automotive gasoline. It operates on the dielectric constant correlation principle: gasoline’s bulk dielectric permittivity—measured via high-frequency capacitive sensing—is empirically linked to its RON value through a multivariate regression model derived from extensive calibration against reference fuels traceable to NIST SRM 2710a and certified reference materials compliant with ASTM D2699 and ISO 5164. Unlike combustion-based methods (e.g., CFR engine testing), this analyzer eliminates fuel consumption, exhaust emissions, and facility dependency. Its compact, handheld form factor (285 × 120 × 65 mm; 1.4 kg) enables direct deployment at refinery loading racks, gas stations, quality control checkpoints, and regulatory inspection sites—supporting real-time compliance verification against GB 17930–2016 and equivalent regional specifications.

Key Features

• Field-deployable architecture with IP54-rated enclosure for dust and splash resistance during outdoor or mobile operations.
• Dual-mode measurement protocol: “Scan Mode” for broad-range screening (RON 80–100) and “Segment Mode” aligned with Chinese gasoline grade bands (92#, 95#, 98#), enabling grade-specific calibration and reduced interpolation error.
• Integrated temperature-compensated sensor probe (PT100 embedded) correcting for thermal drift across 0–40 °C ambient range, ensuring ±0.3 RON repeatability under variable environmental conditions.
• Onboard microprocessor (ARM Cortex-M7) executing proprietary calibration algorithms with factory-loaded reference curves validated per JJG 1153–2018 (Chinese metrological verification regulation for octane analyzers).
• Direct thermal printout of test results (date/time stamp, RON value, sample ID, operator code) plus RS-232 serial output compatible with LIMS integration.
• Battery-powered operation (7.4 V/4400 mAh Li-ion) supporting ≥8 hours of continuous use without external power—critical for remote audits and roadside inspections.

Sample Compatibility & Compliance

The PLD-CX-a is validated for use with unleaded gasoline formulations meeting GB 17930–2016, including ethanol-blended variants (E5, E10) and reformulated gasoline containing oxygenates (MTBE, ETBE). It is not suitable for diesel, aviation fuel, or highly aromatic solvents due to dielectric saturation limits. Instrument performance complies with the metrological requirements of JJG 1153–2018, and its calibration traceability aligns with China’s National Institute of Metrology (NIM) guidelines. While not certified to ASTM D2699 or EN 25163, its correlation model has been cross-validated against primary reference fuels tested in accredited CFR laboratories (R² = 0.992; RMSE = 0.28 RON). For regulated environments requiring audit trails, manual calibration logs and printed reports satisfy basic GLP documentation requirements.

Software & Data Management

The analyzer operates firmware-only—no external PC software is required for routine measurement. All calibration parameters, user-defined grade segments, and historical test records (timestamped, with RON value and sensor diagnostics) are stored in non-volatile flash memory (≥500 entries). Data export is limited to ASCII-formatted serial output (RS-232, 9600 bps, N-8-1), compatible with generic terminal emulators or custom scripts for CSV ingestion into QC databases. No cloud connectivity, remote update capability, or FDA 21 CFR Part 11 compliance is implemented; users must maintain independent electronic or paper-based audit records per internal QA procedures.

Applications

• Refinery final-product release testing prior to pipeline or tanker dispatch.
• Routine quality surveillance at retail fuel dispensing points—detecting adulteration or mislabeling of 92#, 95#, or 98# grades.
• Regulatory enforcement by provincial market supervision bureaus conducting unannounced field sampling.
• Logistics verification during inter-provincial fuel transport to confirm grade consistency upon delivery.
• Technical support for fuel additive manufacturers evaluating octane-enhancement efficacy in field trials.

FAQ

Does the PLD-CX-a require periodic recalibration with certified reference fuels?
Yes. Initial factory calibration is valid for 12 months; thereafter, users must perform recalibration using at least three certified reference fuels spanning the target RON range (e.g., 87, 92, 98 RON), following the procedure in Appendix B of GB/T 30520–2014.
Can it measure motor octane number (MON)?
No. The instrument reports only Research Octane Number (RON) as defined in GB/T 5487–2015 and ASTM D2699. MON determination requires a separate CFR engine test method.
Is sensor cleaning required between samples?
Yes. After each measurement, the stainless-steel probe must be wiped with lint-free tissue and rinsed with analytical-grade isooctane to prevent cross-contamination and dielectric residue buildup.
What is the measurement uncertainty under field conditions?
At 95% confidence level, expanded uncertainty (k=2) is ±0.5 RON for samples within ±2 °C of calibration temperature and free of suspended water or particulates.
Does the device support multi-language display?
No. The LCD interface and printed output are English-only; no Chinese or other language firmware options are available.
