Qioptiq iFLEX-iRIS 488 nm Semiconductor Laser System

Overview

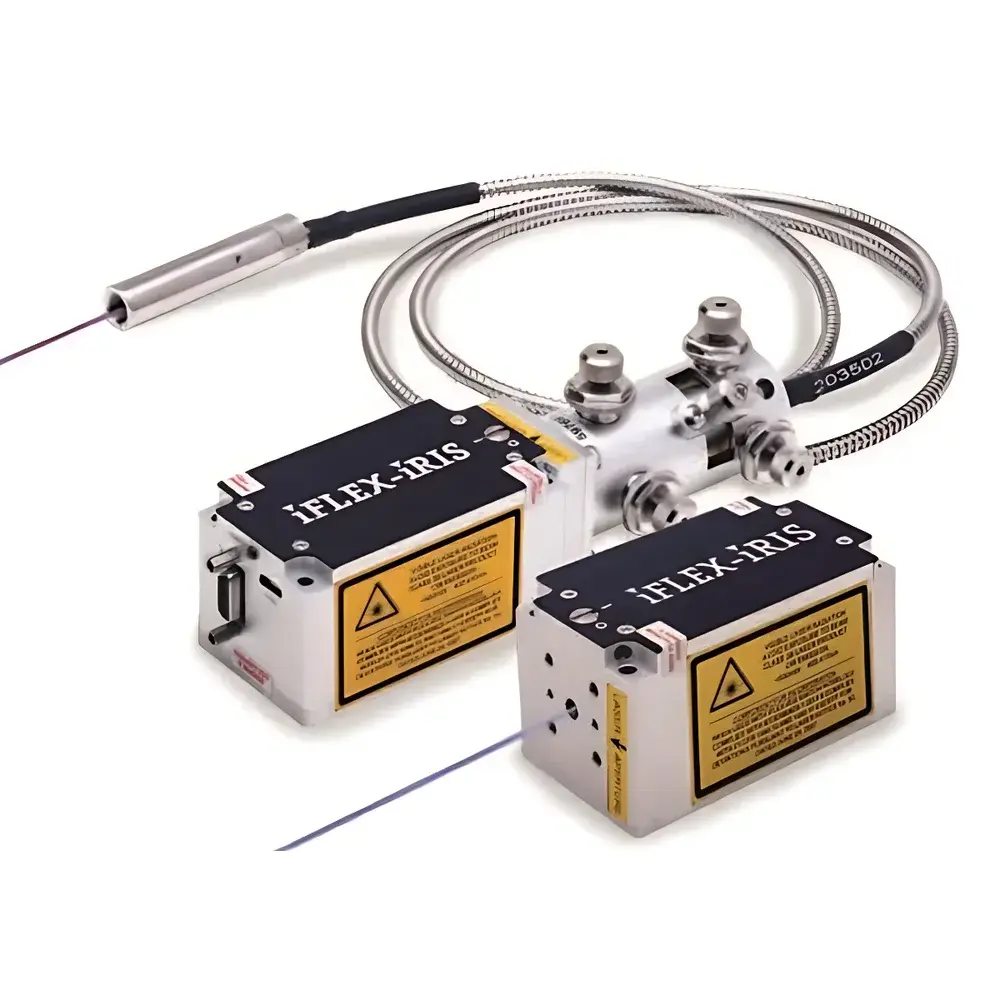

The Qioptiq iFLEX-iRIS 488 nm Semiconductor Laser System is a precision-engineered, single-mode fiber-coupled laser source designed for demanding life science and metrology applications requiring exceptional beam quality, long-term power stability, and ultra-low intensity noise. Based on high-reliability semiconductor diode technology, the system operates at a nominal wavelength of 488 nm—optimal for excitation of common fluorophores including FITC, GFP, and Alexa Fluor 488. Its core optical architecture leverages proprietary thermal management and active feedback control to achieve sub-microradian beam pointing stability (< 1 µrad/°C) and < 0.5 % RMS power drift over 8 hours—performance metrics critical for quantitative fluorescence imaging and flow cytometry where signal-to-noise ratio directly impacts detection sensitivity and reproducibility. Unlike bulk-optic or DPSS alternatives, the iFLEX-iRIS integrates the laser diode, collimation optics, polarization control, and single-mode fiber coupling into a monolithic, alignment-free platform, eliminating mechanical drift and enabling true plug-and-play integration into OEM instruments.

Key Features

• True TEM₀₀ output with M² < 1.2 (typ.), ensuring diffraction-limited focusability for confocal and super-resolution microscopy
• Ultra-low relative intensity noise (RIN) < 0.05 % RMS (20 Hz – 20 MHz), minimizing photon-counting uncertainty in time-resolved fluorescence and FRET assays
• Thermally stabilized housing with passive + active thermal regulation, maintaining baseplate temperature ≤ 40 °C under continuous operation
• Seamless free-space ↔ single-mode fiber coupling toggle—no realignment required upon fiber insertion or replacement
• Dual modulation capability: simultaneous analog (0–5 V, DC–5 MHz) and digital (TTL-compatible, rise/fall < 100 ns) inputs for synchronized triggering and intensity control
• Compact footprint (70 × 38 × 40 mm) and low power dissipation (< 5 W typical) enable integration into space-constrained platforms such as portable cytometers or benchtop DNA sequencers
• OEM-ready communication interfaces: micro-USB and RS232 support remote configuration, real-time monitoring, and firmware updates per GLP/GMP audit trail requirements

Sample Compatibility & Compliance

The iFLEX-iRIS 488 nm laser is compatible with standard SMF-28 or HI1060 single-mode fibers (FC/PC or FC/APC connectors optional) and delivers stable output across ambient temperatures from 15 °C to 30 °C. It meets CE marking requirements for electromagnetic compatibility (EN 61326-1) and safety (IEC 60825-1:2014 Class 3B laser product). When integrated with validated OEM software stacks, the system supports 21 CFR Part 11 compliance through electronic signatures, audit logs, and user-access-controlled parameter locking—essential for regulated QC environments in pharmaceutical and clinical diagnostics labs. Its polarization purity (≥ 200:1, vertical orientation) ensures consistent performance with polarizing beam splitters and acousto-optic modulators used in multi-channel flow cytometers.

Software & Data Management

Qioptiq provides the iFLEX Control Suite—a cross-platform application (Windows/macOS/Linux) supporting USB and RS232 connectivity. The suite enables real-time monitoring of output power, diode temperature, and modulation status; logging of operational parameters with timestamped CSV export; and secure user-level access control (Admin/Operator/View-only). For embedded integration, a full ASCII command protocol is documented, allowing direct control from LabVIEW, Python (PySerial), or MATLAB environments. All firmware updates are digitally signed and verified prior to installation, satisfying integrity requirements under ISO 13485 and IEC 62304 for medical device software lifecycle management.

Applications

• Laser scanning confocal microscopy (LSCM) and spinning-disk systems requiring stable 488 nm excitation for multicolor immunofluorescence
• Flow cytometry platforms—especially spectral and imaging cytometers—where low RIN and high pointing stability reduce coefficient of variation (CV) in PE-Texas Red tandem dyes
• DNA sequencing instruments utilizing capillary or microfluidic electrophoresis with fluorescence detection
• Optical trapping and holographic optical tweezers requiring precise power ramping and fast digital gating
• Calibration-grade light sources for photodetector linearity verification and quantum efficiency mapping
• OEM integration into compact Raman spectrometers and portable biosensors leveraging 488 nm resonance enhancement

FAQ

Is the iFLEX-iRIS 488 nm laser compliant with FDA 21 CFR Part 11?
Yes—when deployed with Qioptiq’s validated OEM software framework and configured with role-based user authentication, electronic signatures, and immutable audit trails, the system meets predicate controls for Part 11 compliance.
Can the laser be operated without fiber coupling?
Yes—the unit supports free-space output via an integrated collimated beam path (0.7 ± 0.2 mm 1/e² diameter); fiber coupling is optional and fully reversible without recalibration.
What is the maximum allowable ambient operating temperature?
The laser is rated for continuous operation up to 30 °C ambient; internal thermal management maintains baseplate temperature ≤ 40 °C even under worst-case convection conditions.
Does the system support analog and digital modulation simultaneously?
Yes—dual-input modulation allows independent control: one channel for TTL-triggered on/off switching, the other for analog power scaling (0–5 V), both with DC–5 MHz bandwidth and < 100 ns edge response.
Are calibration certificates traceable to NIST or UKAS standards available?
Qioptiq provides factory calibration reports (power, wavelength, beam divergence) with measurement uncertainties stated per ISO/IEC 17025; UKAS-accredited third-party calibration is available as an OEM option.
