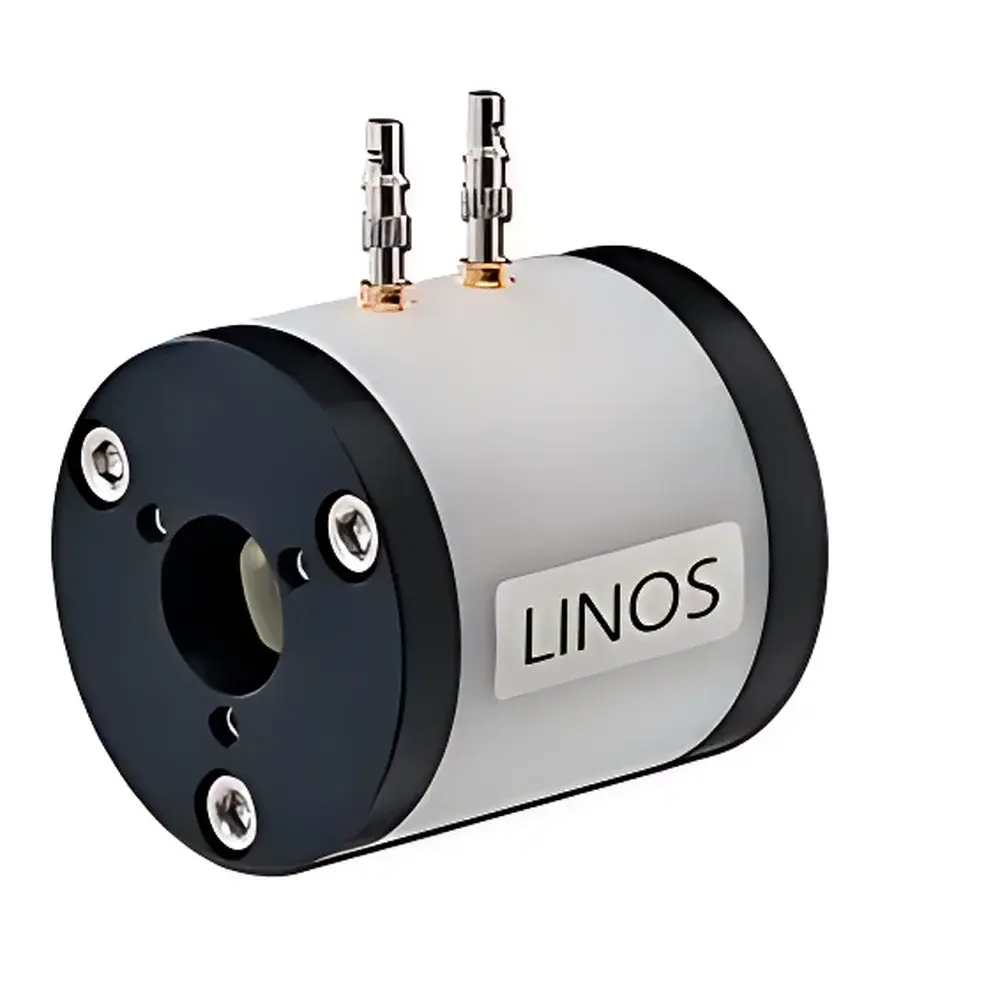

Qioptiq LM8 HD 1064 nm Electro-Optic Modulator

Overview

The Qioptiq LM8 HD 1064 nm electro-optic modulator is a high-damage-threshold, solid-state optical device engineered for precise, high-speed control of laser beam properties in demanding continuous-wave (CW) and pulsed 1064 nm laser systems. Based on lithium niobate (LiNbO₃) or beta-barium borate (BBO) crystal architecture—depending on configuration—the modulator operates via the linear electro-optic (Pockels) effect, enabling sub-nanosecond voltage-controlled phase, amplitude, or polarization modulation. Its monolithic, hermetically sealed design ensures long-term stability under thermal and mechanical stress, making it suitable for integration into industrial laser processing stations, scientific ultrafast laser cavities, and quantum optics setups requiring deterministic photon manipulation. Unlike acousto-optic modulators, the LM8 HD delivers zero insertion loss drift and negligible beam deviation over extended operation, supporting applications where temporal fidelity and wavefront preservation are critical.

Key Features

• High-damage-threshold optical aperture optimized for 1064 nm Nd:YAG and Nd:YVO₄ lasers, rated for >500 MW/cm² peak power (pulsed) and >10 kW/cm² average power (CW)
• Low-voltage drive requirement (typically < 300 V half-wave voltage, depending on crystal orientation and electrode geometry), compatible with standard arbitrary waveform generators and RF amplifiers
• Bandwidth exceeding 1 GHz (small-signal), supporting modulation frequencies from DC to microwave domain for Q-switching, cavity dumping, and sideband generation
• Integrated temperature-stabilized mount with ±0.1 °C regulation to minimize thermally induced birefringence drift and maintain extinction ratio stability
• AR-coated input/output surfaces (R < 0.2% per surface @ 1064 nm), ensuring minimal reflection-induced feedback and cavity destabilization
• Compliant with ISO 10110 optical surface quality standards (scratch-dig 10–5) and RoHS 2011/65/EU material directives

Sample Compatibility & Compliance

The LM8 HD is designed exclusively for collimated, spatially coherent 1064 nm beams with M² ≤ 1.3 and beam diameters between 1.5 mm and 4.0 mm (1/e² intensity). It supports TEM₀₀ Gaussian and near-Gaussian profiles without significant diffraction clipping or modal distortion. The modulator meets key international compliance frameworks applicable to laboratory-grade optical instrumentation: ISO/IEC 17025:2017 (for calibration traceability when used with NIST-traceable power meters), IEC 61000-6-3 (EMC emission limits), and IEC 60825-1:2014 (laser product safety classification Class 1 when fully enclosed). For regulated environments—including GMP-compliant photonics manufacturing lines or GLP-accredited spectroscopy labs—the device supports optional factory calibration reports with uncertainty budgets aligned with EURAMET cg-19 guidelines.

Software & Data Management

While the LM8 HD is a hardware-only analog modulator requiring external driver electronics, Qioptiq provides comprehensive integration documentation—including SPICE-compatible electrical models, S-parameter datasets (up to 3 GHz), and MATLAB-based simulation scripts for predicting modulation depth vs. drive voltage under varying thermal load conditions. When deployed with third-party controllers (e.g., Thorlabs Kinesis, Newport ESP300), the modulator supports automated alignment routines via TTL-triggered synchronization and real-time monitoring of bias point drift through integrated photodiode feedback ports (optional configuration). All firmware and driver compatibility notes adhere to IEEE 1622-2013 standards for interoperable photonics instrumentation interfaces.

Applications

• Active Q-switching in diode-pumped solid-state (DPSS) 1064 nm lasers for micro-machining and LIBS
• Cavity dumping in regenerative amplifiers to generate high-energy, low-repetition-rate pulses
• Phase stabilization loops in interferometric gravitational wave detectors (e.g., as auxiliary path modulators)
• Coherent optical communications testbeds requiring precise IQ modulation at 1064 nm for free-space optical links
• Quantum memory experiments involving atomic vapor cells (e.g., Rb or Cs D2-line pumping via sideband generation)
• High-resolution Doppler-free spectroscopy where narrow-linewidth (<10 kHz) carrier suppression is required

FAQ

Is the LM8 HD compatible with femtosecond Ti:sapphire oscillators operating at 1064 nm?
No — the LM8 HD is optimized for CW and nanosecond-to-microsecond pulse regimes. For ultrashort pulses (<500 fs), dispersion-compensated EO modulators with chirped-electrode designs are recommended.
Does Qioptiq provide NIST-traceable calibration certificates for this modulator?
Yes — optional calibration includes measured half-wave voltage (V_π), extinction ratio (>30 dB), rise/fall time (<1 ns), and thermal coefficient of V_π (mV/°C), traceable to PTB (Physikalisch-Technische Bundesanstalt) standards.
Can the LM8 HD be operated in vacuum or inert-gas environments?
Yes — the housing is vacuum-compatible up to 10⁻⁶ mbar; O-rings use FKM elastomer compliant with ASTM D1418 and MIL-STD-883H Method 1015.1.
What is the maximum allowable beam divergence for stable modulation performance?
Full modulation fidelity is maintained for input divergence ≤ 0.5 mrad (FWHM); beyond this, spatial walk-off effects reduce effective overlap integral between optical mode and applied electric field.
Is there a version available for 532 nm or 1550 nm wavelengths?
Qioptiq offers wavelength-specific variants (LM8 HD 532, LM8 HD 1550); each undergoes individual AR-coating optimization and crystal cut angle verification per ANSI/OEOSC OP1.002-2022.
