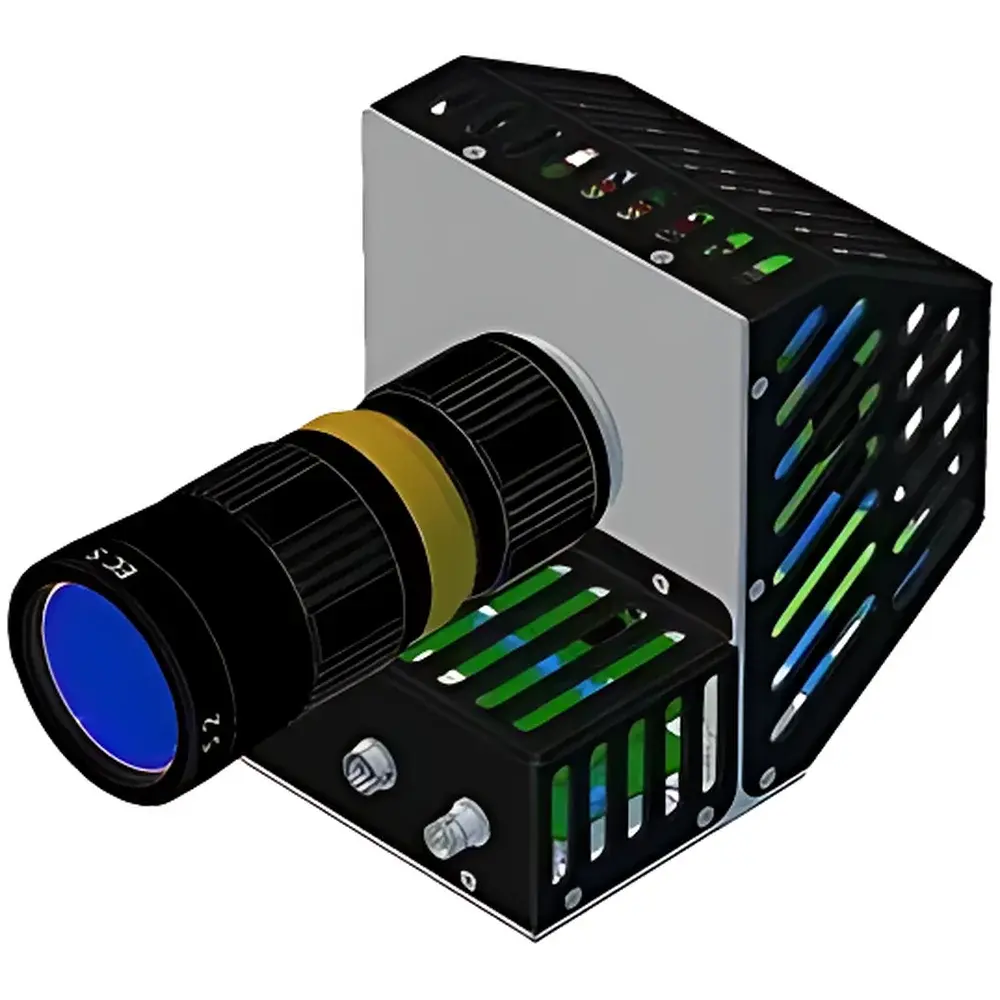

Quest-Innovations Condor5-UAV 5-Channel Multispectral Imaging Camera

Overview

The Quest-Innovations Condor5-UAV is a purpose-built, high-integration 5-channel multispectral imaging camera engineered specifically for unmanned aerial vehicle (UAV) platforms. Unlike conventional single-sensor or RGB-NIR retrofit solutions, the Condor5-UAV employs five synchronized, high-quantum-efficiency CCD sensors—each independently filtered and optically aligned—to capture spatially registered spectral data across discrete, user-defined bands. Its measurement principle is based on simultaneous snapshot multispectral acquisition using precision dichroic beam-splitting optics and thermoelectrically stabilized sensor arrays, ensuring minimal inter-band registration error (<0.3 pixels RMS) and temporal coherence critical for dynamic airborne operation. Designed for mission-critical remote sensing applications—including precision agriculture, environmental monitoring, and infrastructure inspection—the system delivers radiometrically calibrated data without motion-induced spectral misalignment, a common limitation in scanning-based or sequential-filter architectures.

Key Features

• Five co-aligned, global-shutter CCD sensors with individual interference filters (e.g., 450 nm, 550 nm, 650 nm, 750 nm, 850 nm)—configurable per application requirements
• Integrated thermal stabilization (±0.1 °C) to maintain sensor dark current stability and quantum efficiency consistency across flight temperature gradients
• Onboard FPGA-based real-time image registration and radiometric correction engine, supporting automatic vignetting compensation and pixel-level flat-field normalization
• Lightweight, ruggedized magnesium alloy housing rated to IP65 for dust and water resistance; operational ambient range: −10 °C to +55 °C
• GenICam-compliant GigE Vision interface with hardware-triggered synchronization support for seamless integration with UAV autopilot systems (e.g., Pixhawk, DJI SkyPort)
• Embedded metadata tagging including GPS timestamp, IMU attitude quaternion, and exposure parameters compliant with OGC SensorML schema

Sample Compatibility & Compliance

The Condor5-UAV is optimized for reflective surface imaging under natural solar illumination and supports reflectance factor quantification when used with calibrated reference panels (e.g., Spectralon®). It complies with ISO 12232:2019 for digital still camera sensitivity determination and adheres to EN 16087-2:2021 for agricultural remote sensing instrumentation validation. Data output formats include 16-bit TIFF with embedded EXIF and XMP sidecar files, fully compatible with photogrammetry pipelines (Agisoft Metashape, Pix4Dmapper) and scientific analysis environments (ENVI, QGIS with SCP plugin). The system undergoes factory calibration traceable to NPL (National Physical Laboratory, UK) standards, with certificate of calibration provided per unit.

Software & Data Management

The Condor5-UAV ships with QI-MultiView, a cross-platform desktop application for sensor configuration, flight plan synchronization, and batch radiometric correction. Raw data ingestion supports automated georeferencing via embedded GNSS/IMU fusion logs. All processing workflows are scriptable via Python API (qimv-sdk), enabling integration into automated QA/QC pipelines compliant with ISO/IEC 17025 laboratory management requirements. Audit trails—including parameter changes, calibration updates, and export events—are logged with ISO/IEC 27001-aligned encryption and time-stamped entries, satisfying GLP documentation integrity expectations for regulated environmental studies. Export options include GeoTIFF, Cloud Optimized GeoTIFF (COG), and HDF5 containers with CF-1.7 metadata conventions.

Applications

• Precision agriculture: NDVI, NDRE, and custom vegetation indices for crop health assessment, irrigation scheduling, and yield prediction
• Environmental compliance monitoring: Detection of chlorophyll-a anomalies in inland water bodies, invasive species mapping in riparian zones, and post-wildfire regrowth analysis
• Infrastructure asset management: Thermal-agnostic defect detection in solar farms, coating degradation assessment on bridges and wind turbine blades
• Forestry inventory: Canopy height modeling (CHM) integration with LiDAR point clouds and species classification via supervised spectral unmixing
• Archaeological prospection: Subsurface feature identification through subtle surface moisture and vegetation stress signatures in near-infrared bands

FAQ

Is the Condor5-UAV compatible with DJI Matrice 300 RTK and Autel EVO Max 4T platforms?
Yes—mechanical mounting brackets and electrical interface adapters are available for both platforms; firmware v2.4.1+ enables full PTP time synchronization and trigger handshaking.
Does the system support radiometric calibration in-flight?
No—radiometric calibration is performed pre-flight using certified reflectance targets; however, onboard dark frame subtraction and temperature-compensated gain tables ensure stability over typical 45-minute UAV missions.
Can raw sensor data be accessed without proprietary software?
Yes—raw 16-bit linear sensor frames are accessible via GigE Vision GenTL interface; SDKs for C++, Python, and MATLAB are provided under a royalty-free commercial license.
What is the maximum sustainable frame rate at full resolution?
At native 1280 × 960 resolution per channel, the system achieves 10 fps with full bandwidth utilization; reduced ROI modes support up to 30 fps for high-speed corridor mapping.
Is FDA 21 CFR Part 11 compliance supported?
While not a medical device, the QI-MultiView audit log architecture meets electronic record/electronic signature (ER/ES) requirements for Part 11 compliance when deployed in validated environmental monitoring programs under GxP frameworks.
