X-Rite Ci64UV Spectrophotometer Light Source Failure Repair Service
| Brand | X-Rite |
|---|---|
| Origin | USA |
| Model | Ci64UV |
| Service Type | Light Source Failure Diagnosis & Replacement |
| Response Time | Within 1 business day |
| Calibration & Metrology Compliance | NIST-traceable |
| Experience | 20 years specializing in X-Rite and Konica Minolta color measurement instrumentation |
| Service Coverage | Guangzhou-based field support + remote diagnostics + certified calibration documentation |
Overview
The X-Rite Ci64UV is a portable, sphere-based spectrophotometer engineered for high-accuracy color measurement across reflective, translucent, and UV-fluorescent substrates—including optical brightener additives (OBAs) in papers, textiles, and packaging. When the device reports “Light Source Failure,” it indicates a deviation beyond operational tolerance in the pulsed xenon lamp output, spectral stability, or associated drive circuitry—conditions that directly compromise measurement repeatability, inter-instrument agreement (IIA), and compliance with ISO 13655:2017 (M0/M1/M2/M3 illumination modes) and CIE 15:2018 spectral measurement standards. This service addresses root-cause diagnosis and component-level repair—not temporary workarounds—to restore full spectral integrity and factory-specified irradiance stability (±0.5% over 10,000 flashes).
Key Features
- Root-cause analysis of light source failure using proprietary lamp energy profiling and spectral decay diagnostics
- Replacement of OEM-grade xenon flash lamp assembly with batch-certified spectral output verification
- Recalibration of photodiode array gain, integration timing, and UV-enhanced detector response curves
- Full firmware validation against X-Rite’s latest Ci64UV revision (v3.5.2+), including UV filter actuator synchronization
- Post-repair verification using NIST-traceable white ceramic tile (CIE L*a*b* D65, ΔEab < 0.05) and black trap reference
- Comprehensive diagnostic log generation compatible with FDA 21 CFR Part 11 audit trails (electronic signature-ready)
Sample Compatibility & Compliance
This repair service maintains full compatibility with all standard Ci64UV measurement geometries: d/8° (diffuse/8°), with specular component included (SCI) or excluded (SCE), and 0°/45° for gloss-sensitive applications. Repaired units retain full conformance to ASTM D2244 (color difference calculation), ISO 11664-4 (CIE colorimetric observers), and ISO/IEC 17025:2017 requirements for accredited calibration laboratories. All replacement lamps are sourced from X-Rite-authorized distributors and carry full traceability to manufacturing lot and spectral certification data.
Software & Data Management
Post-repair functionality includes seamless integration with X-Rite Color iMatch™, Color iQC™, and PantoneLIVE™ cloud platforms. Firmware updates preserve native support for CSV, XML, and CxF/X3 format export—ensuring compatibility with enterprise LIMS and QC dashboards. Audit logs capture timestamped lamp usage cycles, spectral deviation thresholds, and calibration history—enabling GLP/GMP-compliant record retention per ISO 9001:2015 clause 7.1.5.2. Remote firmware rollback capability is retained for legacy workflow environments requiring version consistency.
Applications
This service supports mission-critical color control workflows in industries where spectral fidelity is non-negotiable: print & packaging (ISO 12647-2 process control), automotive interior trim (SAE J1547 color match), pharmaceutical blister packaging (USP color consistency), textile dye lot approval (AATCC Evaluation Procedure 1), and food packaging film (ASTM F2003 UV fluorescence quantification). Restoring light source integrity ensures accurate M1 (D65 + UV) measurements essential for OBA-containing substrates—preventing costly batch rejections due to false out-of-spec readings.
FAQ

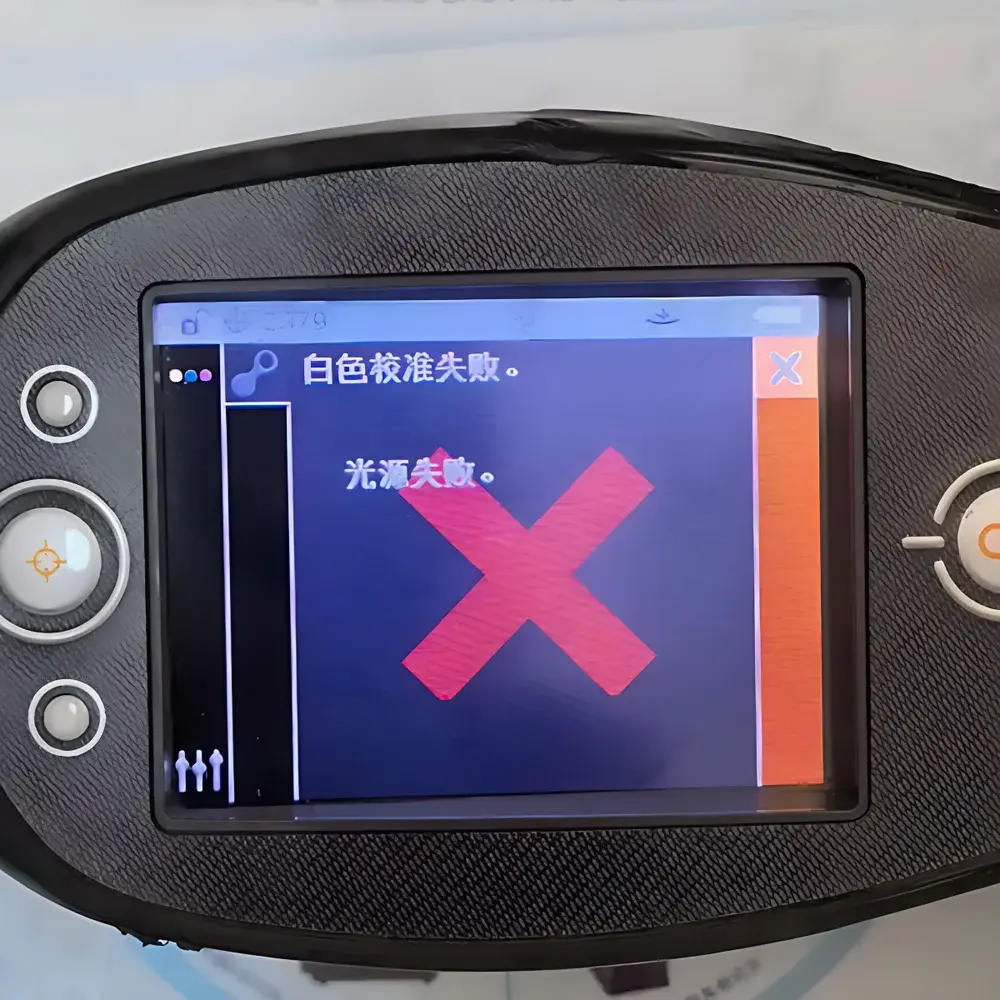

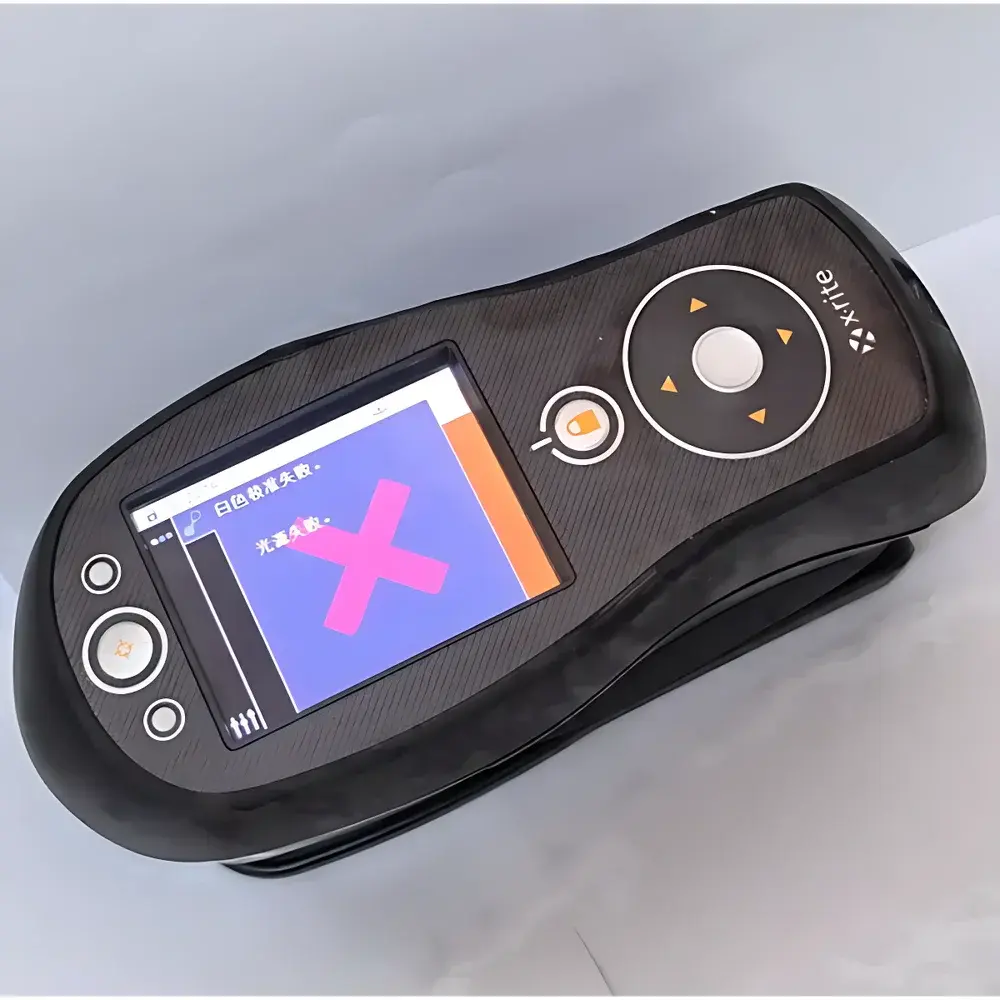

What causes “Light Source Failure” on the Ci64UV?
Degradation of the xenon flash lamp’s electrode emissivity, quartz envelope darkening, or drift in the high-voltage trigger circuit—typically after 10,000–15,000 measurement cycles or prolonged exposure to high ambient temperatures (>35°C).

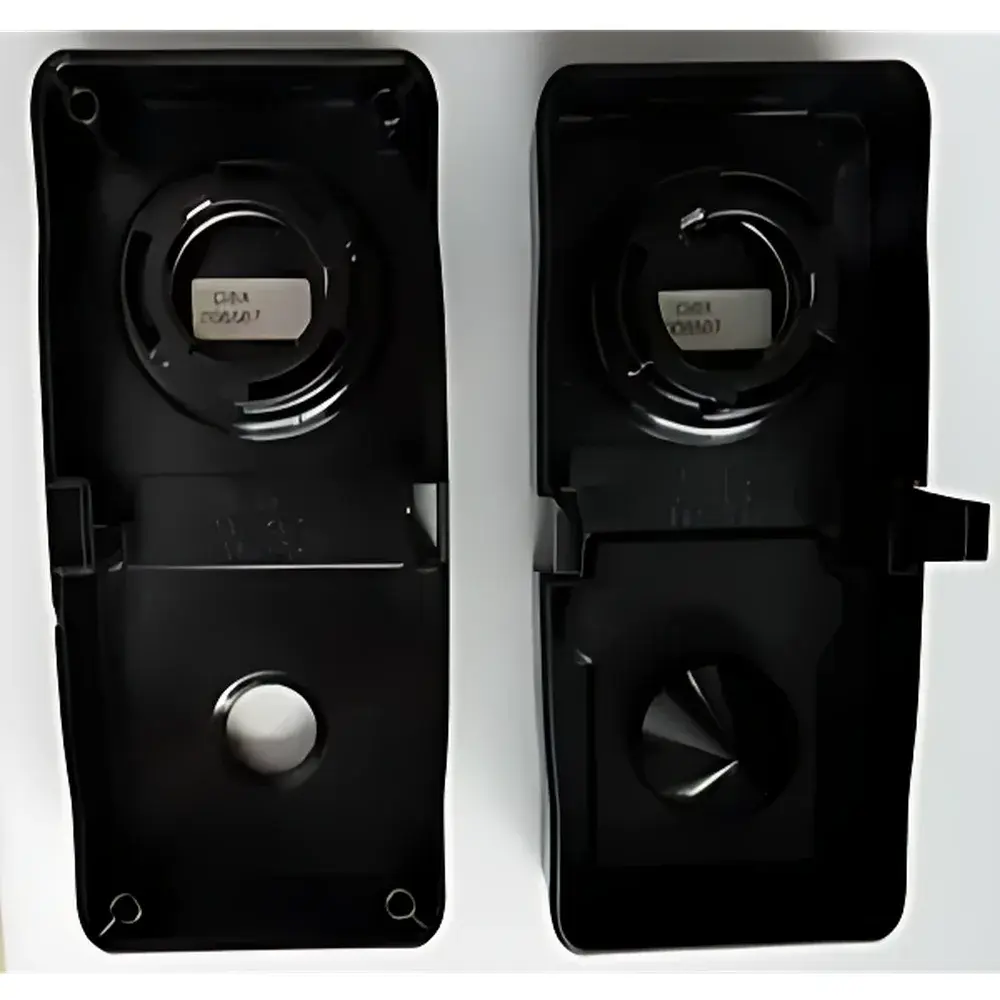

Can cleaning the white calibration tile resolve this error?
No. While contamination on the tile or black trap may cause “White Calibration Failed,” persistent “Light Source Failure” indicates hardware-level degradation requiring lamp replacement and spectral recalibration.
Is NIST-traceable calibration included in the service?
Yes. Each repaired unit receives full spectral calibration against NIST SRM 2011a (white reflectance standard) and SRM 2030 (black trap), documented in a certificate compliant with ISO/IEC 17025 Annex A.2.
How long does the repair take?
Standard turnaround is 3–5 business days from receipt, including diagnostics, lamp replacement, full recalibration, and compliance documentation. Emergency service (24-hour dispatch) is available for Guangzhou metro-area clients.
Does this service void the original X-Rite warranty?
No. Repairs performed by X-Rite-authorized service partners using genuine components maintain eligibility for remaining factory warranty coverage under X-Rite’s Global Service Agreement terms.
