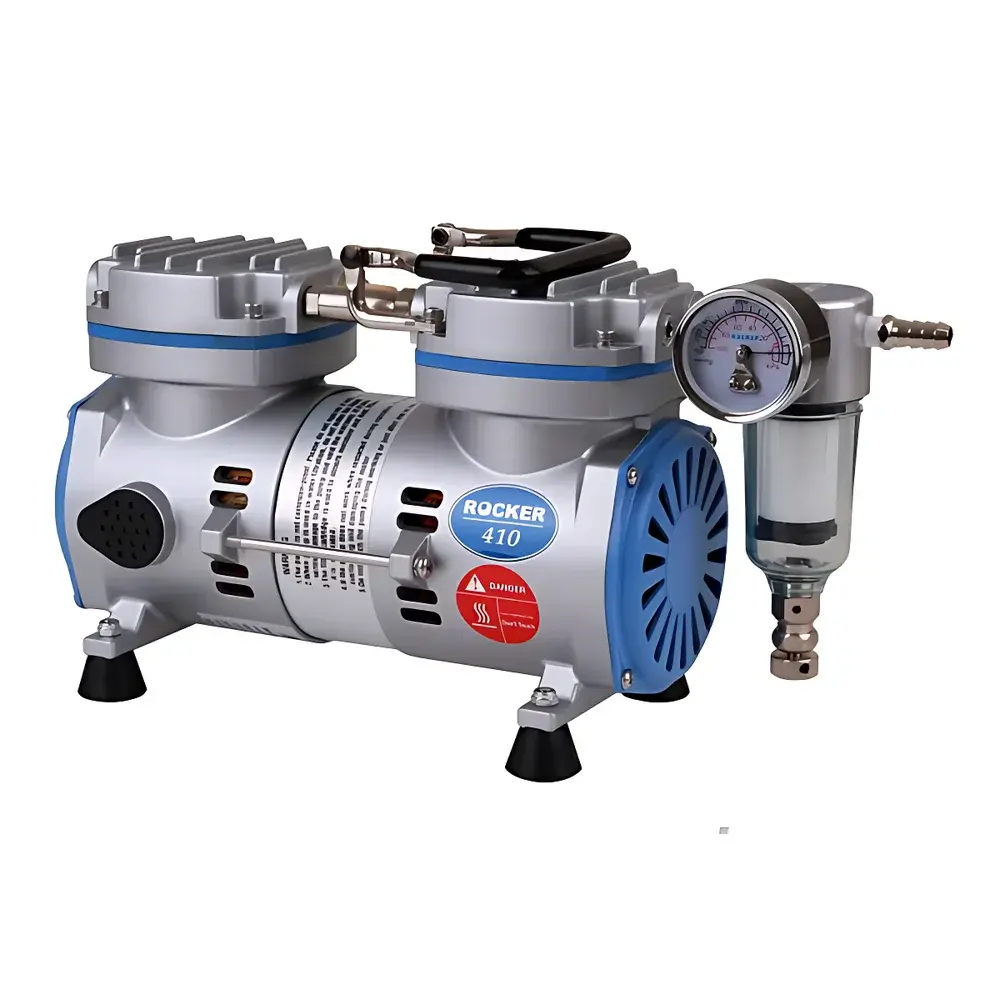

Rocker 410 Oil-Free Piston Vacuum Pump

Overview

The Rocker 410 Oil-Free Piston Vacuum Pump is an engineered solution for laboratories requiring clean, reliable, and maintenance-free vacuum generation in analytical, microbiological, and environmental testing workflows. Unlike oil-lubricated rotary vane pumps, the Rocker 410 employs a precision-machined piston mechanism driven by a direct-coupled induction motor—eliminating the need for lubricating oil entirely. This design ensures zero oil carryover, preventing sample contamination and safeguarding downstream instrumentation such as filtration manifolds, air samplers, and vacuum desiccators. Its robust architecture delivers stable vacuum performance up to −97.3 kPa (−730 mmHg), with a nominal free-air flow rate of 20 L/min—sufficient for concurrent operation of multiple filtration units or continuous low-flow sampling applications. The pump operates at a measured sound pressure level of 52.0 dB(A), making it suitable for shared lab environments where acoustic comfort and operational discretion are essential.

Key Features

• Oil-free piston technology eliminates risk of hydrocarbon contamination and removes routine oil replenishment or filter replacement associated with oil-sealed systems.
• Direct-drive motor coupling—no belts, no slippage—ensures consistent torque transmission, reduced mechanical wear, and enhanced long-term reproducibility.
• Integrated thermal protection switch automatically interrupts power when internal motor temperature exceeds safe operating thresholds; auto-resets upon cooling to prevent thermal degradation.
• Prote™ anti-splash protection system safeguards internal components from accidental liquid ingress during vacuum filtration or wet sampling—critical for aqueous microbial assays and suspended solids (TSS) analysis.
• Standard inlet particulate/moisture filter (replaceable cartridge) protects cylinder walls and piston seals from abrasive dust and condensate, extending service life beyond 10,000 hours under typical laboratory duty cycles.
• Complies with EN 61000-6-3 (EMC emission) and EN 61000-6-2 (immunity), certified to CE and CSA safety standards for use across EU and North American regulated facilities.

Sample Compatibility & Compliance

The Rocker 410 is routinely deployed in GLP-compliant environmental labs performing EPA Method 160.1 (total suspended solids), ISO 7218 (microbiological examination), and ASTM D5907 (filterable residue). Its oil-free operation meets stringent requirements for pharmaceutical water testing (USP ), where hydrocarbon interference must be excluded from TOC or conductivity measurements. The pump’s sealed housing and IP20-rated enclosure support use in ISO Class 7 cleanrooms when installed with HEPA-filtered exhaust ducting. All electrical components conform to IEC 61010-1:2010 for laboratory equipment safety, including reinforced insulation and double-pole switching. Documentation includes full traceable calibration records and factory test reports aligned with ISO/IEC 17025 internal audit protocols.

Software & Data Management

While the Rocker 410 is a standalone analog vacuum source without digital interface, its design supports integration into validated workflows via external process monitoring systems. Users may connect pressure transducers (e.g., Validyne DP15 or Omega PX409) to log real-time vacuum stability over time—data exportable in CSV or Excel format for inclusion in 21 CFR Part 11–compliant electronic lab notebooks (ELN). Optional analog output modules (0–5 V or 4–20 mA) enable closed-loop control in automated filtration racks. Maintenance logs—including filter replacement dates and runtime hours—can be tracked using standard LIMS templates, satisfying GMP documentation requirements for preventive maintenance scheduling.

Applications

• Vacuum-assisted membrane filtration for coliform enumeration (ISO 9308-1), heterotrophic plate count (HPC), and pathogen concentration (EPA Method 1623).
• Suspended solids (TSS) and turbidity analysis per APHA Standard Methods 2540D and ISO 11923.
• Air sampling for viable and non-viable particulates using Andersen impactors or gelatin filters (ISO 14644-1, USP ).
• Desiccation of moisture-sensitive reagents and lyophilization pre-processing under controlled negative pressure.
• Evaporative concentration of environmental water extracts prior to GC-MS or ICP-MS analysis.

FAQ

Is the Rocker 410 suitable for continuous 24/7 operation?
Yes—its thermally protected motor and oil-free mechanical design support uninterrupted duty cycles when ambient temperature remains below 35°C and relative humidity stays below 80% RH.
Can it be used with aggressive solvents like acetone or chloroform?
No—the pump’s elastomeric seals (NBR diaphragms and Viton® O-rings) are not chemically resistant to halogenated or ketonic vapors; use only with aqueous, saline, or mildly acidic/basic solutions.
What is the expected service life of the inlet filter under normal lab conditions?
With weekly visual inspection and quarterly replacement in high-dust environments, the standard polypropylene filter cartridge maintains >95% efficiency for ≥12 months.
Does the pump meet FDA requirements for pharmaceutical manufacturing environments?
While not classified as GMP-grade equipment per se, its CE/CSA certification, absence of lubricants, and documented maintenance history support qualification within FDA-regulated quality systems when included in IQ/OQ protocols.
Is a 110 V / 60 Hz version available for North American benchtop use?
Yes—model variant 167410-11 ships with UL-listed power supply and NEMA 5-15P plug; identical performance specifications apply.
