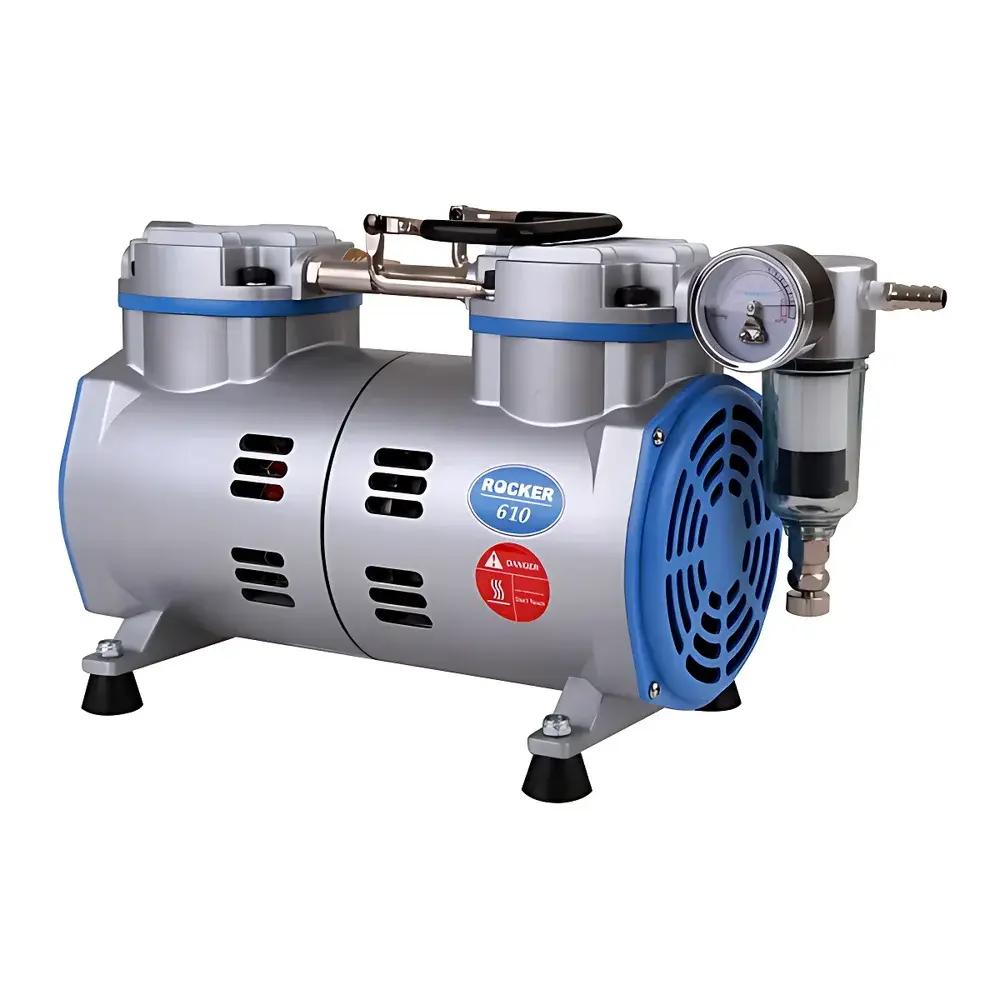

Rocker 610 Oil-Free Diaphragm Vacuum Pump

Overview

The Rocker 610 Oil-Free Diaphragm Vacuum Pump is an engineered solution for laboratories requiring clean, reliable, and maintenance-free vacuum generation in sensitive analytical and biological workflows. Utilizing a precision-machined piston-driven diaphragm mechanism—distinct from rotary vane or scroll architectures—the Rocker 610 achieves stable vacuum performance without lubricating oil, eliminating the risk of hydrocarbon contamination, oil backstreaming, or vapor-phase carryover into samples or downstream instrumentation. Its ultimate vacuum of –97.3 kPa (–730 mmHg, 40 mbar) and continuous flow rate of 36 L/min support routine applications such as membrane filtration, microbial colony isolation, suspended solids analysis (e.g., EPA Method 160.2), and low-flow air sampling. Designed for uninterrupted operation under ambient laboratory conditions (15–35°C, <80% RH), the pump integrates thermal management, mechanical robustness, and electromagnetic compatibility per IEC/EN 61326-1, ensuring stable performance in shared instrument environments.

Key Features

• Oil-free diaphragm-piston architecture: Eliminates oil consumption, scheduled oil changes, and associated downtime—ideal for GLP-compliant labs where trace contamination must be avoided in microbiological, pharmaceutical, or environmental testing.
• Direct-drive motor coupling: Removes belt-driven transmission losses and vibration sources, contributing to a measured noise level of only 62 dB(A) at 1 m—significantly lower than comparable 1/4 HP diaphragm pumps in its class.
• Integrated thermal protection: A bimetallic temperature switch embedded in the motor winding automatically interrupts power when internal coil temperature exceeds safe operating limits, then resumes operation after passive cooling—preventing insulation degradation and extending service life.
• Prote™ anti-splash protection system: A patented fluid detection mechanism within the inlet manifold halts pump operation upon contact with liquid ingress, safeguarding the diaphragm assembly and valve plates from hydraulic lock or corrosion-induced failure.
• Replaceable inlet particulate/moisture filter: Standard 5-µm rated sintered polyethylene filter cartridge captures airborne dust, aerosolized water droplets, and fine particulates prior to intake—reducing wear on the diaphragm seal and extending mean time between maintenance (MTBM) beyond 10,000 hours.

Sample Compatibility & Compliance

The Rocker 610 is compatible with aqueous, mildly acidic, and buffered solutions commonly encountered in environmental monitoring (e.g., ISO 5667-12 for water quality sampling), clinical microbiology (CLSI M02-A12 for membrane filtration), and food safety testing (AOAC 977.27). Its oil-free design ensures no volatile organic compounds (VOCs) are introduced during vacuum-assisted filtration—critical for HPLC sample prep or residual solvent removal. The pump complies with EU Machinery Directive 2006/42/EC and carries CE marking for safety, electromagnetic compatibility (EMC), and low-voltage directive adherence. It also meets CSA C22.2 No. 61010-1 requirements for laboratory equipment in North America. All electrical components conform to RoHS 2011/65/EU and REACH SVHC regulations. Documentation supports audit readiness for ISO/IEC 17025-accredited laboratories.

Software & Data Management

While the Rocker 610 operates as a standalone analog device without digital interface or firmware, its mechanical reliability and consistent output make it fully compatible with externally monitored vacuum systems. When integrated into automated platforms—such as robotic filtration stations or multi-channel vacuum manifolds—it functions reliably under PLC-controlled start/stop sequencing. Its stable flow profile enables reproducible filtration times across batches, supporting SOP-driven documentation in FDA 21 CFR Part 11–aligned workflows when paired with validated electronic lab notebooks (ELNs) or LIMS timestamping. Optional analog pressure transducers (0–10 V or 4–20 mA output) may be installed upstream for real-time vacuum logging and trend analysis.

Applications

• Vacuum-assisted membrane filtration for total coliform and E. coli enumeration (APHA 9222 B/D, ISO 9308-1)
• Suspended solids (TSS) determination in wastewater effluent per EPA Method 160.2
• Pre-concentration of trace analytes from large-volume water samples (e.g., PFAS, microplastics)
• Air sampling using glass fiber or polycarbonate filters for PM_2.5/PM₁₀ gravimetric analysis (ISO 7708, EN 12341)
• Desiccation of heat-sensitive biological reagents and lyophilization pre-chamber evacuation
• Support vacuum for gel electrophoresis blotting and thin-layer chromatography development tanks

FAQ

Does the Rocker 610 require periodic oil changes or lubrication?
No. Its oil-free diaphragm-piston design eliminates all need for lubricants, making it suitable for cleanroom-adjacent use and reducing lifecycle maintenance costs.
Can the pump handle occasional liquid ingestion during vacuum filtration?
Yes—its Prote™ anti-splash protection detects liquid entry and shuts down the motor immediately, preventing internal damage. Recovery is automatic once the system dries and cools.
Is the inlet filter replaceable, and how often should it be serviced?
Yes—the standard 5-µm sintered polyethylene filter is user-replaceable and recommended for inspection every 200 operational hours or after each high-particulate application.
What voltage configurations are available for international deployment?
Standard units ship for 220–240 V / 50 Hz; 110 V / 60 Hz variants (model suffix -11) are available for North American and Japanese markets upon order.
Does the Rocker 610 meet regulatory requirements for pharmaceutical QC laboratories?
Yes—its CE and CSA certifications, combined with documented thermal protection, ingress protection (IP20), and oil-free operation, support compliance with ICH Q7 Annex 11 and USP for analytical instrument qualification in GMP environments.
