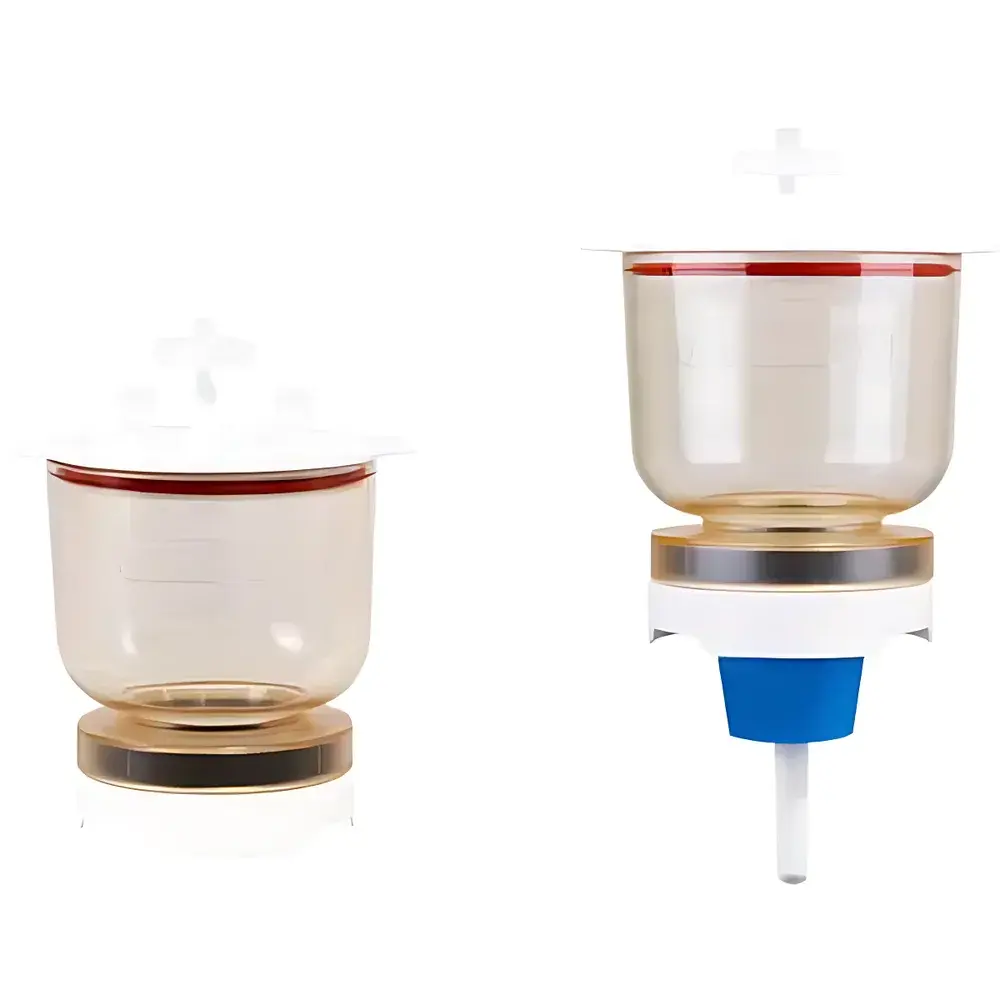

ROCKER MF3 Pro Magnetic Filtration Funnel

Overview

The ROCKER MF3 Pro Magnetic Filtration Funnel is an engineered solution for rapid, reliable, and operator-friendly vacuum-assisted filtration in life science and quality control laboratories. Unlike conventional clamped or screw-top filtration systems, the MF3 Pro employs a dual-layer rare-earth magnet coupling mechanism between the PPSU filtration cup and base—enabling secure membrane retention under vacuum pressure while eliminating mechanical torque, gasket compression fatigue, or alignment drift. This magnetic sealing architecture ensures consistent 0.2 µm retention performance across repeated cycles without compromising integrity, making it especially suitable for applications requiring strict adherence to GLP-compliant sample handling protocols. The system operates on standard laboratory vacuum sources (typically −80 to −100 kPa), with integrated side-port vacuum connection allowing direct tubing attachment—bypassing proprietary vacuum bottle constraints and enabling compatibility with serum bottles, borosilicate glass flasks, and polypropylene waste containers.

Key Features

• Dual-Layer High-Force Magnet Assembly: Strategically embedded neodymium magnets provide uniform radial clamping force across the full 47 mm membrane diameter, ensuring leak-free sealing even during high-flow or viscous sample filtration.
• Single-Handed Operation: Intuitive magnetic engagement/disengagement permits full assembly, membrane loading, and disassembly using one hand—reducing procedural time and minimizing contamination risk during biosafety cabinet workflows.
• PPSU Construction (Polyphenylsulfone): Offers superior thermal stability (autoclavable at 121°C for 20 minutes), hydrolytic resistance, and broad chemical compatibility—including exposure to alcohols, acetone, acetonitrile, and dilute acids/bases—outperforming standard PES or polycarbonate alternatives.
• Integrated Membrane Alignment Ring: Precision-machined circumferential groove on the base surface guides 47 mm membranes into exact centering prior to magnetic closure, eliminating misalignment-related channeling or edge bypass.
• Side-Mount Vacuum Inlet (ID 4–8 mm): Eliminates top-mounted hose interference; enables unobstructed access to the filtration chamber and simplifies integration into multi-vessel vacuum manifolds or centralized vacuum systems.
• Modular Component Design: Interchangeable base variants (standard and short-height MF3a Pro configuration) support flexible adaptation to different flask neck geometries and benchtop spatial constraints.

Sample Compatibility & Compliance

The MF3 Pro is validated for use with aqueous buffers, cell culture supernatants, environmental water samples, pharmaceutical filtrates, and clarified bioprocess streams. Its PPSU wetted surfaces meet USP Class VI biological safety requirements and exhibit no detectable leachables under ISO 10993-12 extraction conditions. The system supports sterile filtration of heat-labile reagents when paired with pre-sterilized 0.2 µm PTFE membrane discs (25 mm format included). All components comply with RoHS Directive 2011/65/EU and are compatible with routine cleaning using 70% ethanol or 0.5% sodium hypochlorite solutions. For regulated environments, the absence of threaded interfaces eliminates calibration drift concerns associated with torque-dependent seals—supporting audit readiness under FDA 21 CFR Part 11 and ISO/IEC 17025 documentation frameworks.

Software & Data Management

As a standalone passive filtration device, the MF3 Pro does not incorporate embedded electronics or firmware. However, its design facilitates seamless integration into digital lab workflows: filtration start/stop timestamps, membrane lot numbers, and vacuum pressure logs can be recorded within LIMS or ELN platforms (e.g., LabVantage, Benchling, or Veeva Vault) via standardized SOP templates. The consistent geometry and repeatable magnetic closure force enable high inter-operator reproducibility—critical for method validation per ICH Q2(R2) guidelines. Optional barcode-labeled component kits (available upon request) support traceability-driven inventory management in GMP manufacturing settings.

Applications

• Pre-filtration of environmental water samples (e.g., drinking water, wastewater, river effluent) prior to microbial enumeration (ISO 9308-1, ASTM D5673).
• Clarification of monoclonal antibody harvests and vaccine intermediates where stainless-steel or glass funnels pose particulate shedding risks.
• Routine sterilization of cell culture media, PBS, and HEPES buffers in academic and contract research laboratories.
• Suspended solids quantification (TSS) in industrial process monitoring per EPA Method 160.2 and ISO 11923.
• High-throughput sample preparation for HPLC mobile phase filtration and LC-MS solvent purification workflows.

FAQ

Can the MF3 Pro be autoclaved repeatedly without performance degradation?
Yes—PPSU components withstand ≥50 cycles of steam sterilization at 121°C for 20 minutes without dimensional change or magnetic weakening.
Is the 0.2 µm PTFE needle filter included with every unit?
Yes—the MF3 Pro kit includes one sterile 25 mm × 0.2 µm PTFE syringe filter for inline pre-filtration of feed solutions.
What vacuum pressure range is recommended for optimal flow rate and membrane integrity?
Operational range: −80 to −100 kPa; sustained pressures exceeding −100 kPa may induce premature membrane collapse with low-viscosity solvents.
How does the MF3a Pro differ from the MF3 Pro configuration?
The MF3a Pro features a shortened base height optimized for narrow-neck serum bottles (e.g., Corning 430659), whereas the MF3 Pro base accommodates wider-mouth flasks and standard vacuum bottles.
Are replacement membranes and O-rings available as consumables?
ROCKER supplies certified 47 mm PES, PVDF, and PTFE membranes (0.1–5.0 µm), silicone sealing plugs (Cat. No. 167110-16), and PPSU base/cup refurbishment kits—fully documented in the Technical Support Portal.
