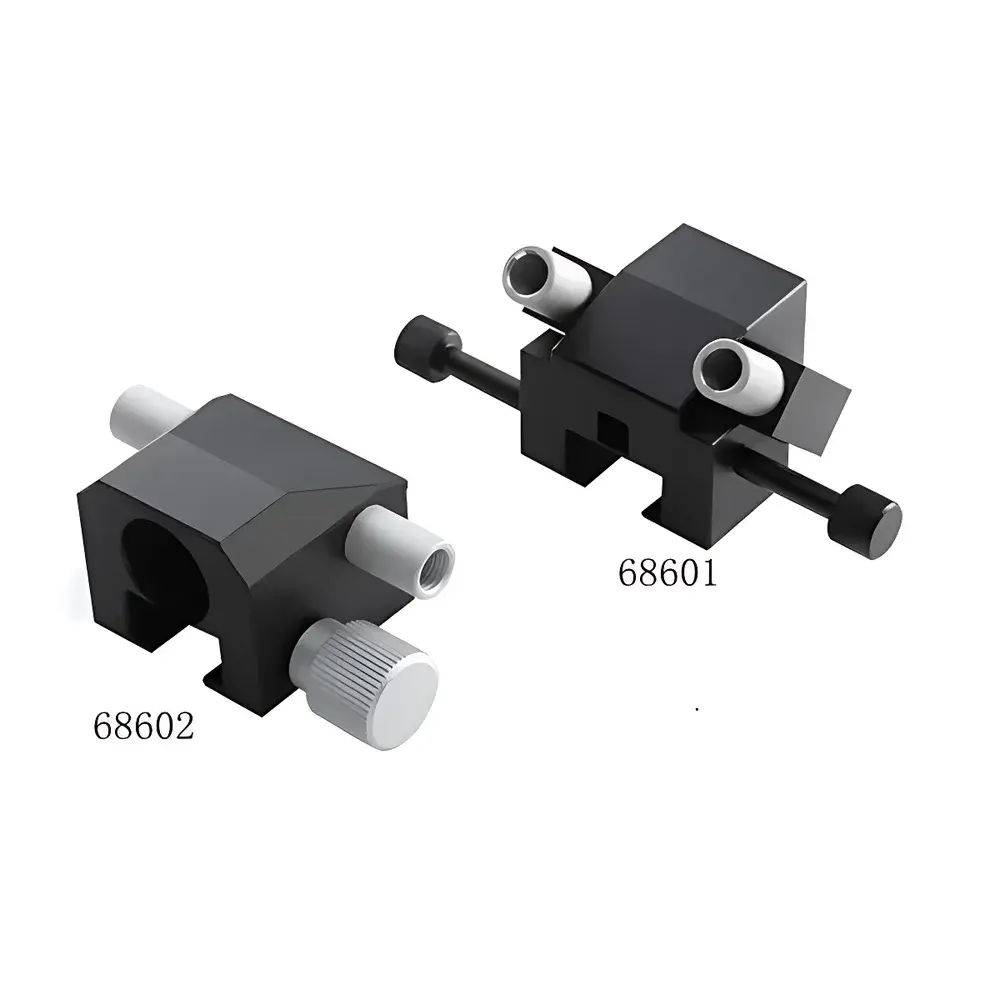

RWD 68601 Stereotaxic Anesthesia Mask Kit for Rodent Neurosurgery

Overview

The RWD 68601 Stereotaxic Anesthesia Mask Kit is an engineered component designed for precise, low-stress inhalational anesthesia delivery during stereotactic neurosurgical procedures in murine models. It operates on the principle of passive scavenging—relying on the natural pressure differential between the anesthesia circuit and ambient environment to direct exhaled waste gas through an integrated activated carbon filter canister, eliminating the need for external vacuum or active suction systems. This configuration minimizes mechanical complexity, reduces acoustic and vibrational interference near the stereotaxic frame, and maintains stable head positioning throughout prolonged surgical sessions. The mask’s anatomically contoured silicone interface ensures uniform seal formation across heterogeneous mouse strains (e.g., C57BL/6, BALB/c, CD-1), while its dual-profile rod mounting system (supporting both square and round cross-section stereotaxic rods) enables rapid integration with RWD’s modular stereotaxic platforms—including the 68030 Universal Mouse Adapter, 68036 Adjustable Nose Clamp Assembly, and 68087 High-Precision Microdrive Mount.

Key Features

• Passive scavenging architecture eliminates dependency on external vacuum sources, reducing system noise and vibration that may compromise micromanipulator stability during electrophysiology or optogenetic interventions.
• Medical-grade platinum-cured silicone mask body provides biocompatibility, thermal stability (−40 °C to +200 °C), and consistent elastic recovery after repeated sterilization cycles (autoclave-compatible up to 121 °C, 20 min).
• Dual-interface rod adapter accommodates both 12 mm square and 16 mm round stereotaxic support rods—ensuring interoperability across RWD’s full range of rodent positioning systems without tool-based reconfiguration.
• Integrated swivel exhaust adapter (360° rotational freedom) prevents tubing torsion during multi-axis craniotomy alignment, preserving gas flow integrity and minimizing dead space volume (<0.8 mL).
• Pre-assembled activated carbon filter canister meets ISO 10993-5 cytotoxicity standards and achieves ≥95% isoflurane adsorption efficiency at standard flow rates (0.5–2 L/min), compliant with OSHA PEL and ACGIH TLV occupational exposure guidelines.

Sample Compatibility & Compliance

The 68601 kit is validated for use with mice weighing less than 70 g, including neonatal, juvenile, and adult cohorts commonly employed in hippocampal CA1 targeting, prefrontal cortex microinjection, and thalamic electrode implantation protocols. Its low-profile design avoids occlusion of bregma/lambda landmarks during skull referencing. All components conform to ISO 13485:2016 medical device quality management requirements. The filter canister carries CE marking under EU Directive 2017/745 (MDR) and is registered with China NMPA as a Class I non-sterile ancillary device. When used within RWD’s validated anesthesia workflow (e.g., with 68001 Precision Vaporizer and 68010 Flow Meter), the system supports GLP-compliant study documentation per OECD Series 110 and US FDA Guidance for Industry: “Good Clinical Practice for Clinical Trials of Drugs and Biologics.”

Software & Data Management

While the 68601 mask itself is a hardware-only component, it integrates seamlessly into RWD’s digital anesthesia monitoring ecosystem via optional accessories: the 68010 Flow Meter outputs analog 0–5 V signals compatible with LabChart, Spike2, or custom MATLAB acquisition scripts; the 68001 Vaporizer supports RS-485 Modbus RTU communication for remote setpoint logging and dose titration traceability. All usage records—including duration, flow rate, and vapor concentration—can be archived with time-stamped metadata to satisfy 21 CFR Part 11 audit trail requirements when paired with validated electronic lab notebook (ELN) platforms such as LabArchives or Benchling.

Applications

• Chronic intracranial EEG electrode implantation in longitudinal epilepsy models.
• CRISPR-Cas9-mediated in vivo genome editing with simultaneous fiber photometry recording.
• Stereotactic viral vector delivery (AAV, LV) to subcortical nuclei with real-time respiration monitoring.
• Functional MRI-compatible awake-to-anesthetized transition studies requiring minimal mechanical perturbation.
• High-throughput behavioral phenotyping pipelines where rapid mask exchange (<30 s) between subjects is essential.

FAQ

Is the 68601 mask compatible with isoflurane, sevoflurane, and desflurane?
Yes—the silicone formulation and activated carbon media are chemically inert toward all common volatile anesthetics used in rodent neuroscience.
Can the filter canister be regenerated or reused?
No. Each canister is single-use and must be replaced after 8 hours of continuous isoflurane exposure or upon visible saturation (color change indicator). Reuse compromises adsorption capacity and violates ISO 10993-10 cytotoxicity validation.
What sterilization methods are validated for the mask body?
Autoclaving (121 °C, 20 min, gravity displacement), ethylene oxide (EtO) gas, and vaporized hydrogen peroxide (VHP) are all validated. Alcohol wiping is permitted for rapid surface decontamination between subjects.
Does the passive scavenging design affect anesthetic depth control?
No. Passive recovery does not alter upstream vaporizer output or fresh gas flow dynamics; end-tidal anesthetic concentration remains fully governed by the vaporizer setting and minute ventilation.
How is alignment accuracy maintained during mask placement?
The dual-rod adapter includes precision-machined alignment pins that index directly to the stereotaxic frame’s reference grid, ensuring ≤±0.15 mm positional repeatability across ≥50 insertion cycles.
