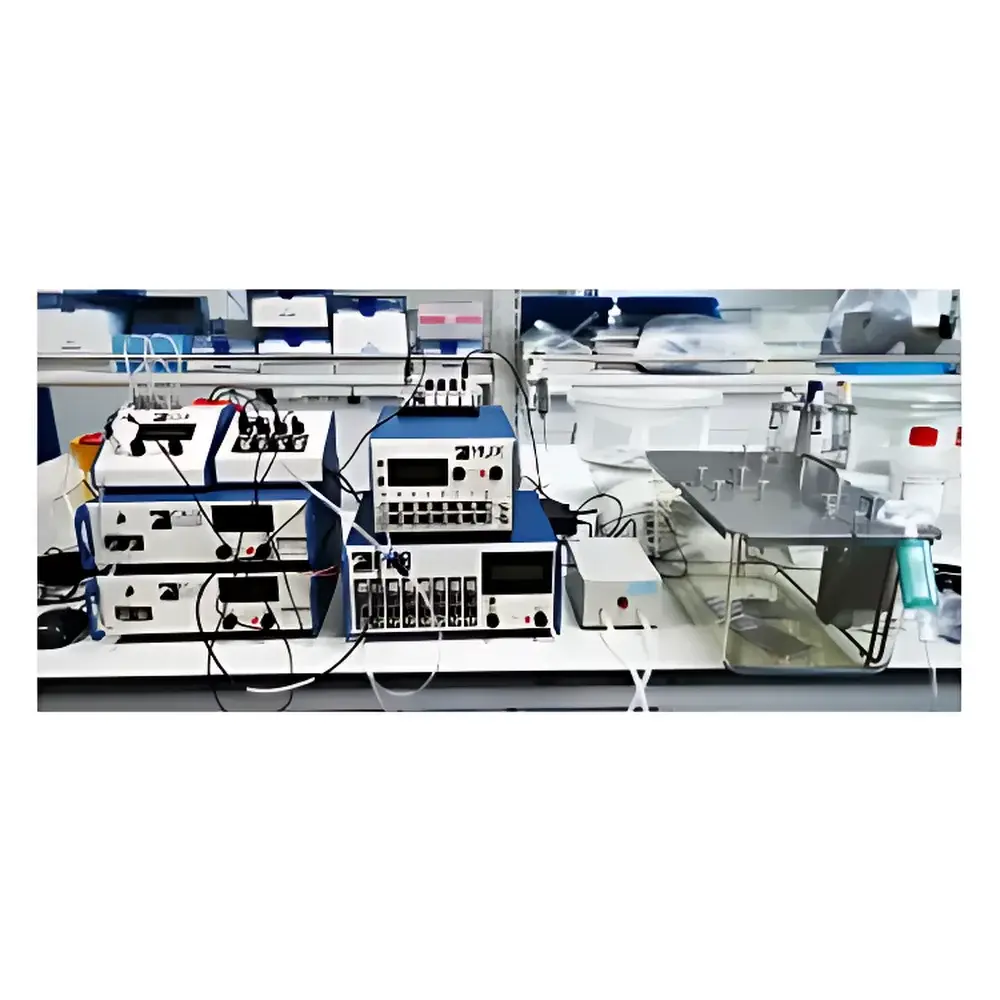

Sable SSI Modular Animal Energy Metabolism Measurement System

Overview

The Sable SSI Modular Animal Energy Metabolism Measurement System is an open-circuit, research-grade respirometry platform engineered for high-fidelity, long-duration metabolic phenotyping of small laboratory rodents—including mice and rats—under minimally disruptive physiological conditions. It implements the gold-standard principles of indirect calorimetry: precise quantification of oxygen consumption (VO₂), carbon dioxide production (VCO₂), and water vapor output (VH₂O) to derive energy expenditure (EE), respiratory exchange ratio (RER), and substrate utilization patterns. The system’s modular architecture enables rigorous experimental control while supporting longitudinal, circadian, or stress-response studies over 24+ hours without confinement-induced artifacts. Its design adheres to established methodologies outlined in ASTM E2573-20 (Standard Guide for Indirect Calorimetry in Small Mammals) and aligns with NIH-supported metabolic phenotyping core facility standards. All primary gas analyzers feature built-in temperature and pressure compensation, real-time digital signal processing, and traceable calibration protocols—ensuring inter-laboratory reproducibility essential for publication in journals such as Cell Metabolism, Journal of Experimental Biology, and Frontiers in Physiology.

Key Features

• Modular scalability: Standard 8-channel configuration (7 animal chambers + 1 baseline reference channel); expandable to 16-, 24-, or custom N-channel systems via synchronized multiplexer integration.
• Multi-analyte flexibility: Independent selection of CO₂, O₂, and H₂O modules—enabling configuration for RER-only studies, full-triad metabolic profiling, or targeted gas perturbation experiments.
• Integrated physiological monitoring: Optional implantable telemetry (e.g., HD-XG or E-mitter platforms) for concurrent measurement of core body temperature, heart rate, and locomotor activity—synchronized with gas exchange data at 10 Hz temporal resolution.
• Environmental control compatibility: Supports integration with programmable gas mixing units (O₂/CO₂/N₂ blending), environmental chambers (temperature/humidity regulation), and precision load cells for real-time body mass tracking within metabolic cages.
• Open-circuit, pull-mode architecture: Minimizes animal stress through low-flow (24 h continuous recording without behavioral suppression or thermal dysregulation.
• High-stability sensor suite: Paramagnetic O₂ analyzer (0–100% range, ±0.1% accuracy, <7 s T₉₀); dual-wavelength NDIR CO₂ detector (0–5% / 0–15% dual-range, <1 s response, 0.1 ppm resolution); chilled-mirror dew-point hygrometer (0.2–100% RH, ±0.002 °C dew-point resolution).

Sample Compatibility & Compliance

The SSI system is optimized for C57BL/6, BALB/c, CD-1, and other common murine strains (15–45 g), with cage dimensions adaptable to juvenile, adult, and aged cohorts. It accommodates both standard ventilated caging and custom-sealed push-mode enclosures for hypoxia/hypercapnia challenge studies. All hardware components meet IEC 61000-6-3 (EMC emissions) and UL 61010-1 safety standards. When operated with Sable’s MetaScreen™ software under validated installation qualification (IQ)/operational qualification (OQ) protocols, the system satisfies data integrity requirements for GLP and GCP environments—including electronic signature support, audit trail generation, and 21 CFR Part 11–compliant user access controls.

Software & Data Management

MetaScreen™ v5.x provides native acquisition, real-time visualization, and automated calculation of VO₂, VCO₂, EE (kcal/h), RER, and cumulative substrate oxidation. Raw analog inputs (gas concentrations, flow rates, temperature, activity counts) are acquired at 100 Hz with 24-bit ADC resolution and stored in HDF5 format—ensuring bit-level fidelity and cross-platform interoperability. Batch processing supports ISO/IEC 17025–aligned uncertainty propagation across derived parameters. Export modules generate compliant CSV, MATLAB (.mat), and MIMIC-compatible files for downstream analysis in R (metaboloR), Python (respyro), or commercial platforms (GraphPad Prism, MATLAB). Audit logs record operator actions, calibration events, and instrument state changes with timestamped digital signatures.

Applications

• Metabolic phenotyping in genetically modified mouse models (e.g., ob/ob, db/db, POMC-KO)
• Circadian rhythm studies of energy homeostasis and thermoregulation
• Nutritional intervention trials (high-fat, low-carb, caloric restriction)
• Toxicology assessments of mitochondrial uncoupling or oxidative phosphorylation inhibition
• Pharmacodynamic evaluation of anti-obesity therapeutics (GLP-1 agonists, β3-adrenergic modulators)
• Ecophysiological adaptation research in desert-adapted or hibernation-prone species
• Integration with MRI/PET for multimodal energy flux mapping

FAQ

What is the minimum recommended airflow rate for stable CO₂ measurement?
A minimum of 5 mL/min is required for optimal signal-to-noise ratio in the NDIR CO₂ module; maximum recommended flow is 2000 mL/min to maintain laminar sampling and avoid pressure-induced baseline drift.
Can the system operate in push-mode (positive pressure) configurations?
Yes—custom push-mode metabolic cages are available with integrated mass flow controllers and back-pressure regulation, enabling precise O₂/CO₂ enrichment or depletion studies.
Is telemetry integration limited to Sable-branded transmitters?
No—the data acquisition unit provides TTL-sync and analog voltage outputs compatible with third-party telemetry systems including Data Sciences International (DSI) and Starr Life Sciences platforms.
How is long-term baseline stability maintained across multi-day experiments?
Each gas analyzer includes active zero/span verification routines, temperature-compensated optical path stabilization, and 24-hour drift correction algorithms embedded in firmware—verified against NIST-traceable gas standards prior to shipment.
Does the system support simultaneous measurement of locomotor activity and metabolic rate?
Yes—via optional infrared beam-break arrays or running wheel encoders, with activity event timestamps aligned to metabolic data at sub-second resolution using hardware-synchronized triggers.
